Model # CH7524QKA3 Official ICP heat pump outdoor section
Here are the diagrams and repair parts for Official ICP CH7524QKA3 heat pump outdoor section, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
CH7524QKA3 Heat Pump Outdoor Section
#8

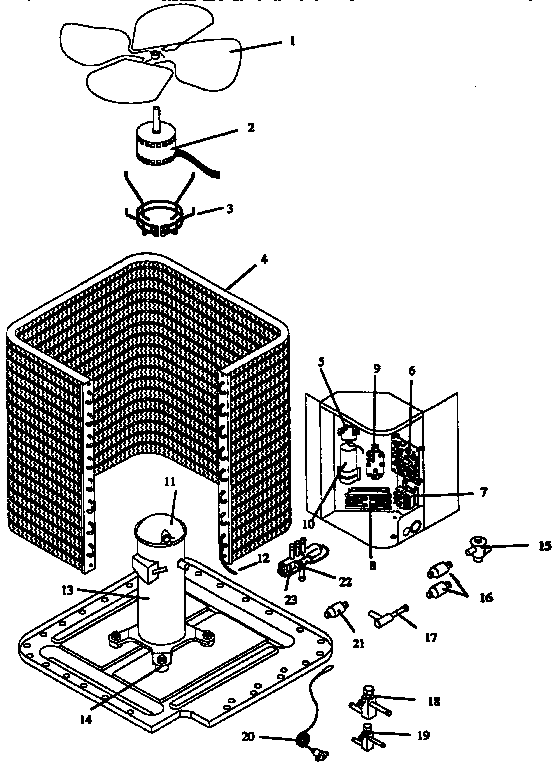

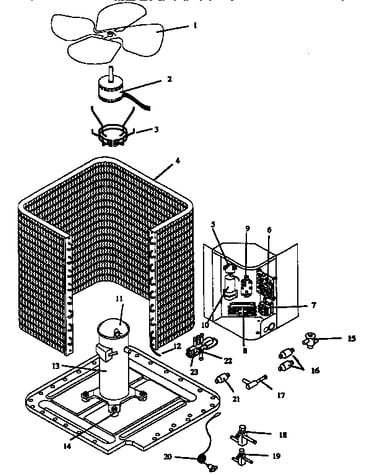

Functional parts diagram
Contactor
Part #1050699
Replaced by #94-388
?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
#9
Functional parts diagram
Spst relay
Part #1053004
The manufacturer no longer makes this part, and there's no substitute part
#3
Functional parts diagram
Central air conditioner condenser fan motor mount
Part #1051460
$310.20
In Stock
#17
Functional parts diagram
Check valve
Part #1052910
$84.67
In Stock
#NI

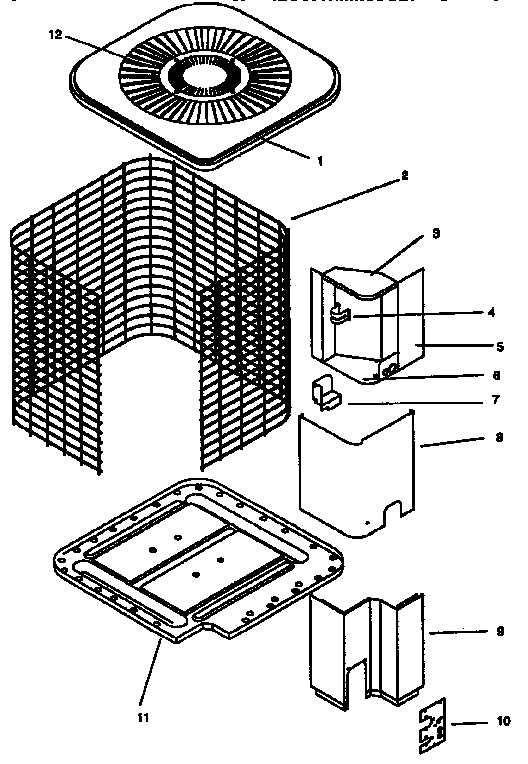

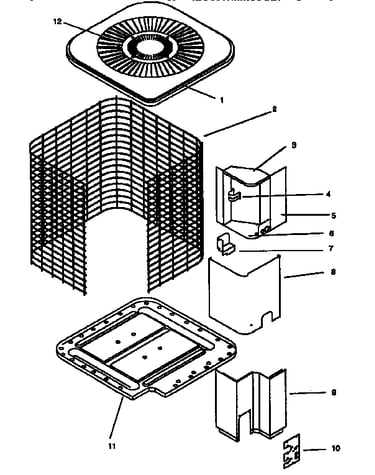

All parts diagram
Raceway
Part #1051322
$10.20
In Stock
#20
Functional parts diagram
Press switch
Part #1053017
$11.23
In Stock
#2
Functional parts diagram
Central air conditioner condenser fan motor
Part #1050892
$504.40
In Stock
#21
Functional parts diagram
Muffler
Part #1059730
Replaced by #1174688
?
Manufacturer substitution
This part replaces 1059730. Substitute parts can look different from the original.
$47.30 |
11% OFF Phone Price : $53.30
In Stock
#1
Functional parts diagram
Fan blade
Part #1051216
Replaced by #1087331
?
Manufacturer substitution
This part replaces 1051216. Substitute parts can look different from the original.
$114.28
In Stock
#NI
All parts diagram
Raceway
Part #1051321
Replaced by #1051322
?
Manufacturer substitution
This part replaces 1051321. Substitute parts can look different from the original.
$10.20
In Stock
