Model # 390250280 Official Kenmore 1/2-hp shallow well jet pump

Here are the diagrams and repair parts for Official Kenmore 390250280 1/2-hp shallow well jet pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
0-ring U9-226
#12B

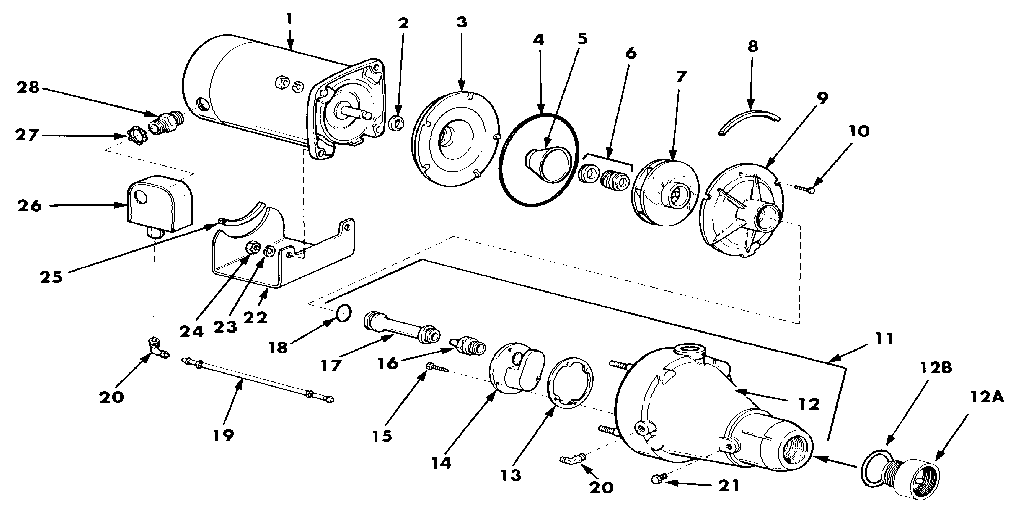

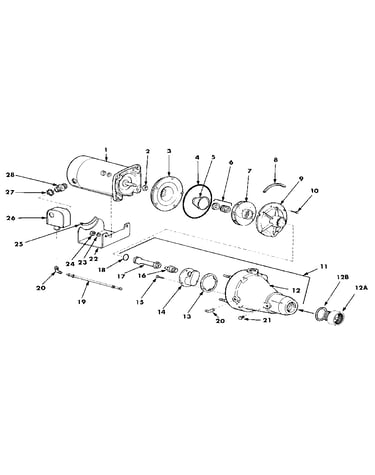

Replacement parts diagram

0-ring

Part #U9-226

$10.71
In Stock
Pump Housing O-ring U9-390
#4

Replacement parts diagram

Pump housing o-ring

Part #U9-390

This item is not returnable
$43.59 |
12% OFF Phone Price : $49.59
In Stock
Pump Venturi N32P-66
#17

Replacement parts diagram

Pump venturi

Part #N32P-66

$57.40
In Stock
Pump Body Jet Insert N76-29P
#14

Replacement parts diagram

Pump body jet insert

Part #N76-29P

$71.79 |
8% OFF Phone Price : $77.79
Back Order
Lock Nut U36-112ZP
#27

Replacement parts diagram

Lock nut

Part #U36-112ZP

$14.40
Back Order
Connector L43-5C
#28

Replacement parts diagram

Connector

Part #L43-5C

$19.77
Back Order
Pump Check Valve (replaces N12-12p) N166-5P
#12A

Replacement parts diagram

Pump check valve (replaces n12-12p)

Part #N166-5P

$123.89 |
9% OFF Phone Price : $135.89
Back Order
Pump Body N76-35PE
#12

Replacement parts diagram

Pump body

Part #N76-35PE

$137.89 |
8% OFF Phone Price : $149.89
In Stock
Pump Nozzle N34P-19
#16

Replacement parts diagram

Pump nozzle

Part #N34P-19

$22.73
In Stock
Pump Diffuser Rubber Pad C35-41
#8

Replacement parts diagram

Pump diffuser rubber pad

Part #C35-41

$12.93
In Stock
