Model # 229962333 Official Kenmore gas-fired boiler

Here are the diagrams and repair parts for Official Kenmore 229962333 gas-fired boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

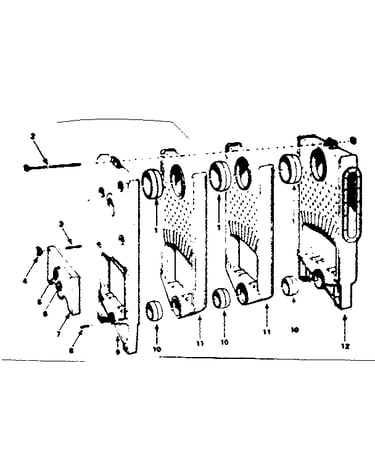

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |

Safety Valve 8836
#9

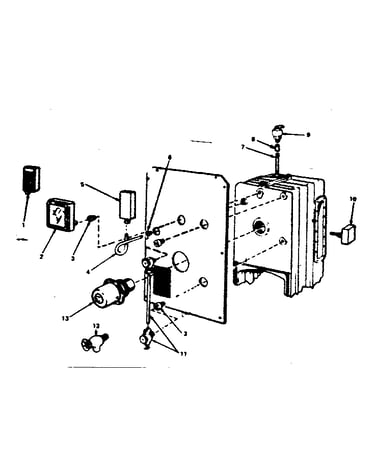

Boiler controls - steam systems diagram

Safety valve

Part #8836

Replaced by #1570001

?
Manufacturer substitution
This part replaces 8836. Substitute parts can look different from the original.
In Stock
Thermostat 9237
Thermostat

Part #9237

Replaced by #1E30N-910

?
Manufacturer substitution
This part replaces 9237. Substitute parts can look different from the original.
$81.43
7% OFF Phone Price : $87.43
In Stock
Pr Gauge 588
#2

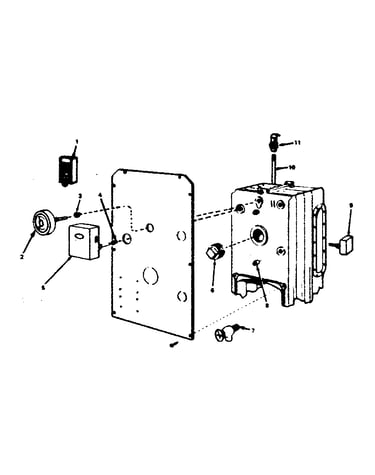

Boiler controls - hot water systems diagram

Pr gauge

Part #588

Replaced by #1260006SP

?
Manufacturer substitution
This part replaces 588. Substitute parts can look different from the original.
In Stock
Thermostat 9235
#1A

Boiler controls - hot water systems diagram

Thermostat

Part #9235

The manufacturer no longer makes this part, and there's no substitute part

Control 9268
#5

Boiler controls - steam systems diagram

Control

Part #9268

Replaced by #PA404A1033

?
Manufacturer substitution
This part replaces 9268. Substitute parts can look different from the original.
$312.53
$12.00 OFF Phone Price : $324.53
In Stock
Gauge 21001
#11

Boiler controls - steam systems diagram

Gauge

Part #21001

Replaced by #21-104-03

?
Manufacturer substitution
This part replaces 21001. Substitute parts can look different from the original.
In Stock
Relief Valve 8840
#11

Boiler controls - hot water systems diagram

Relief valve

Part #8840

Replaced by #10-408-05

?
Manufacturer substitution
This part replaces 8840. Substitute parts can look different from the original.
$44.77
12% OFF Phone Price : $50.77
In Stock
Gauge Steam 8858
#2

Boiler controls - steam systems diagram

Gauge steam

Part #8858

The manufacturer no longer makes this part, and there's no substitute part

Pilot Lp Gas Q314A-LP
#10A

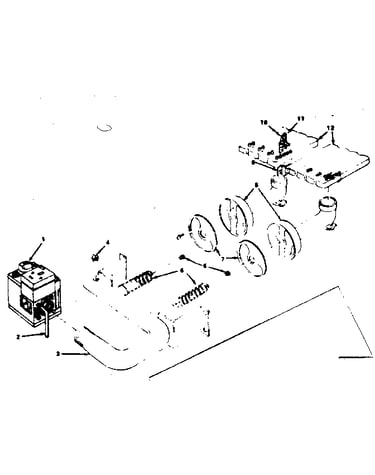

Burner & manifold parts diagram

Pilot lp gas

Part #Q314A-LP

The manufacturer no longer makes this part, and there's no substitute part

Heater 9503
#13

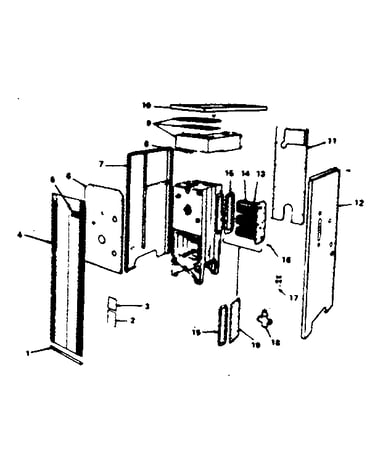

Cabinet diagram

Heater

Part #9503

The manufacturer no longer makes this part, and there's no substitute part
