Model # HAV1200AWA Official Hoover washer

Here are the diagrams and repair parts for Official Hoover HAV1200AWA washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

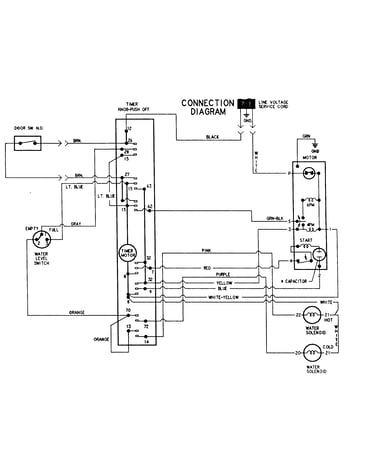

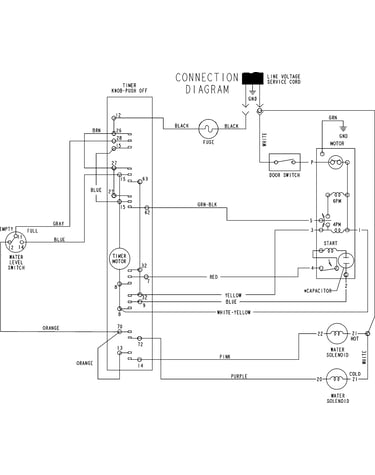

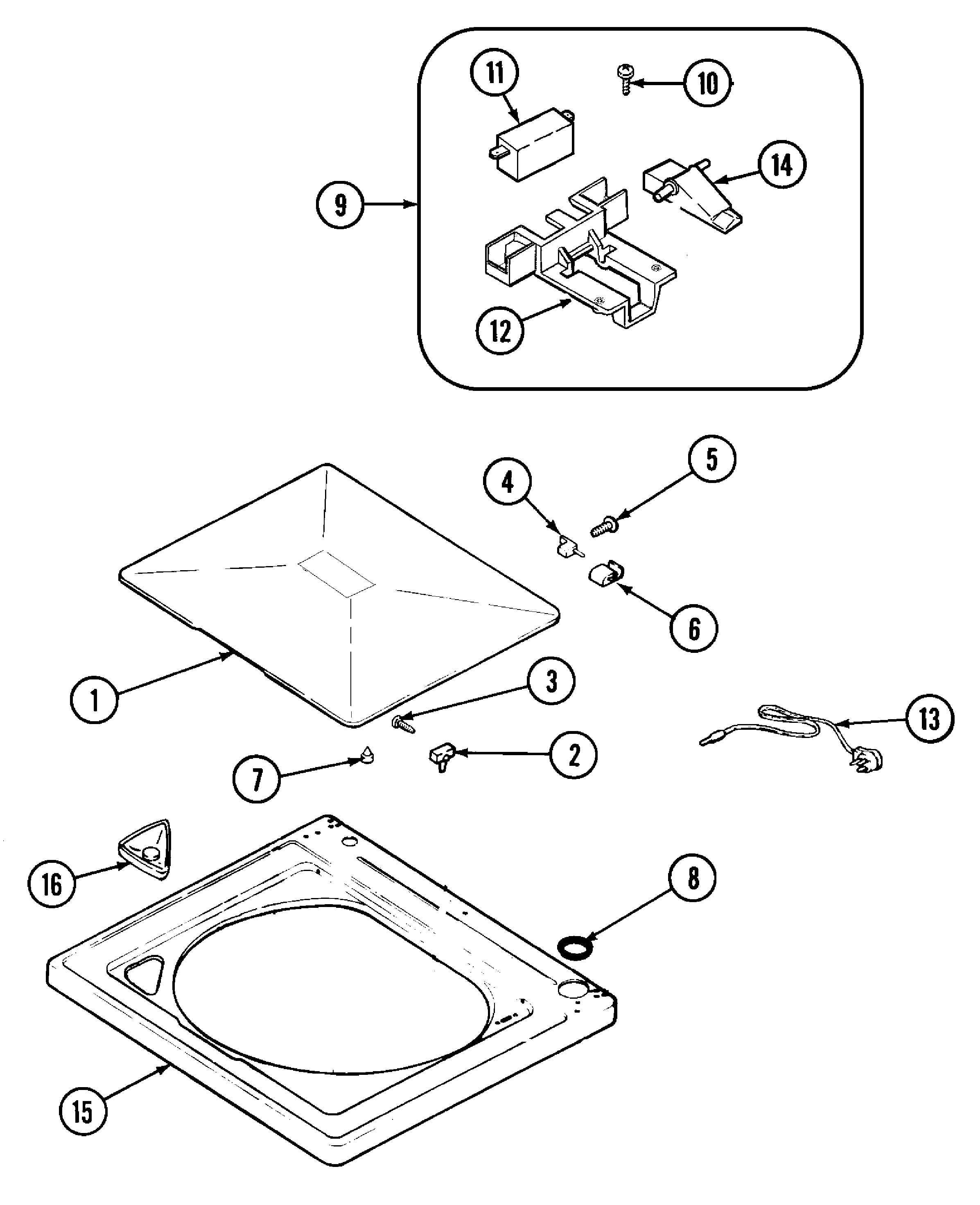

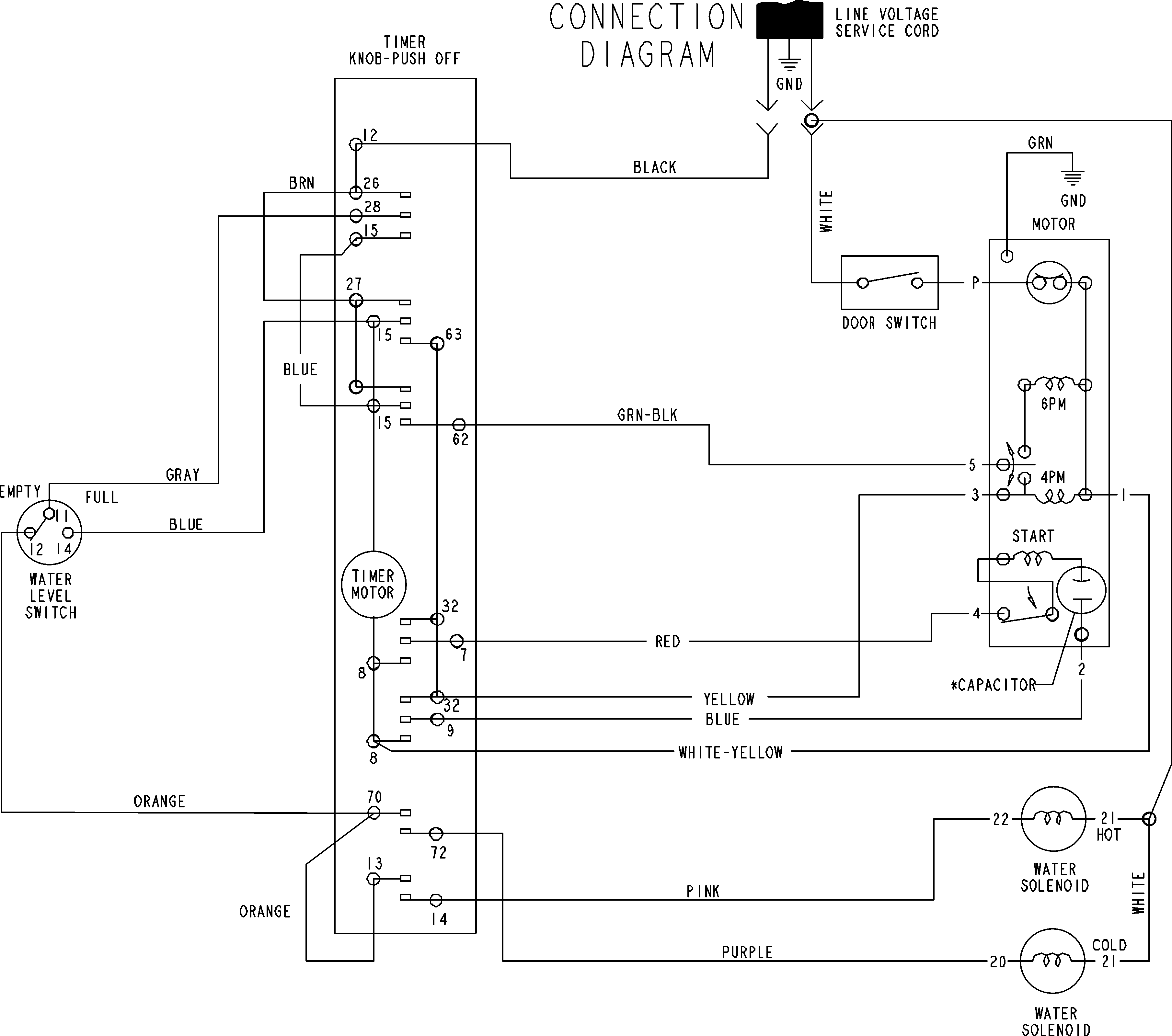

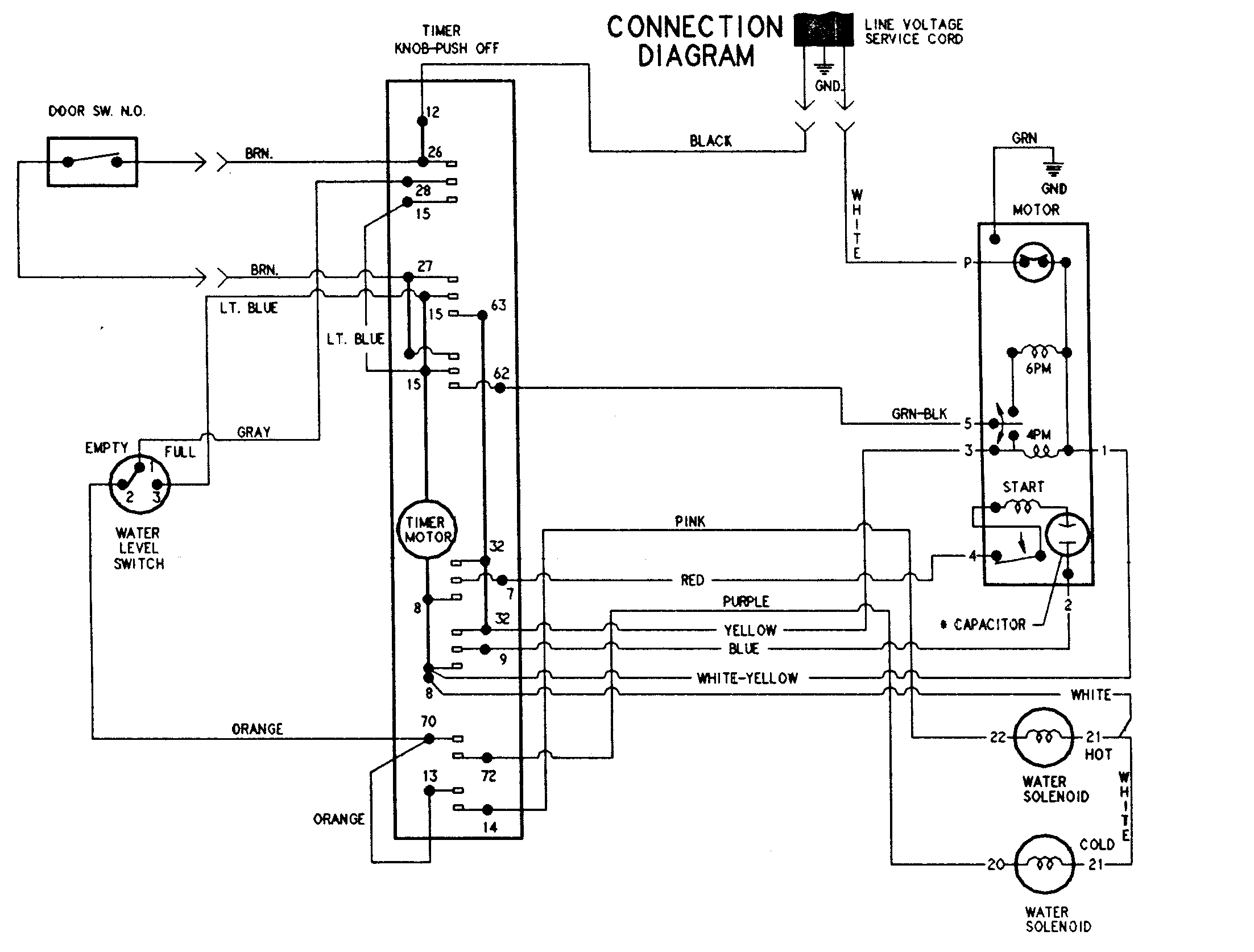

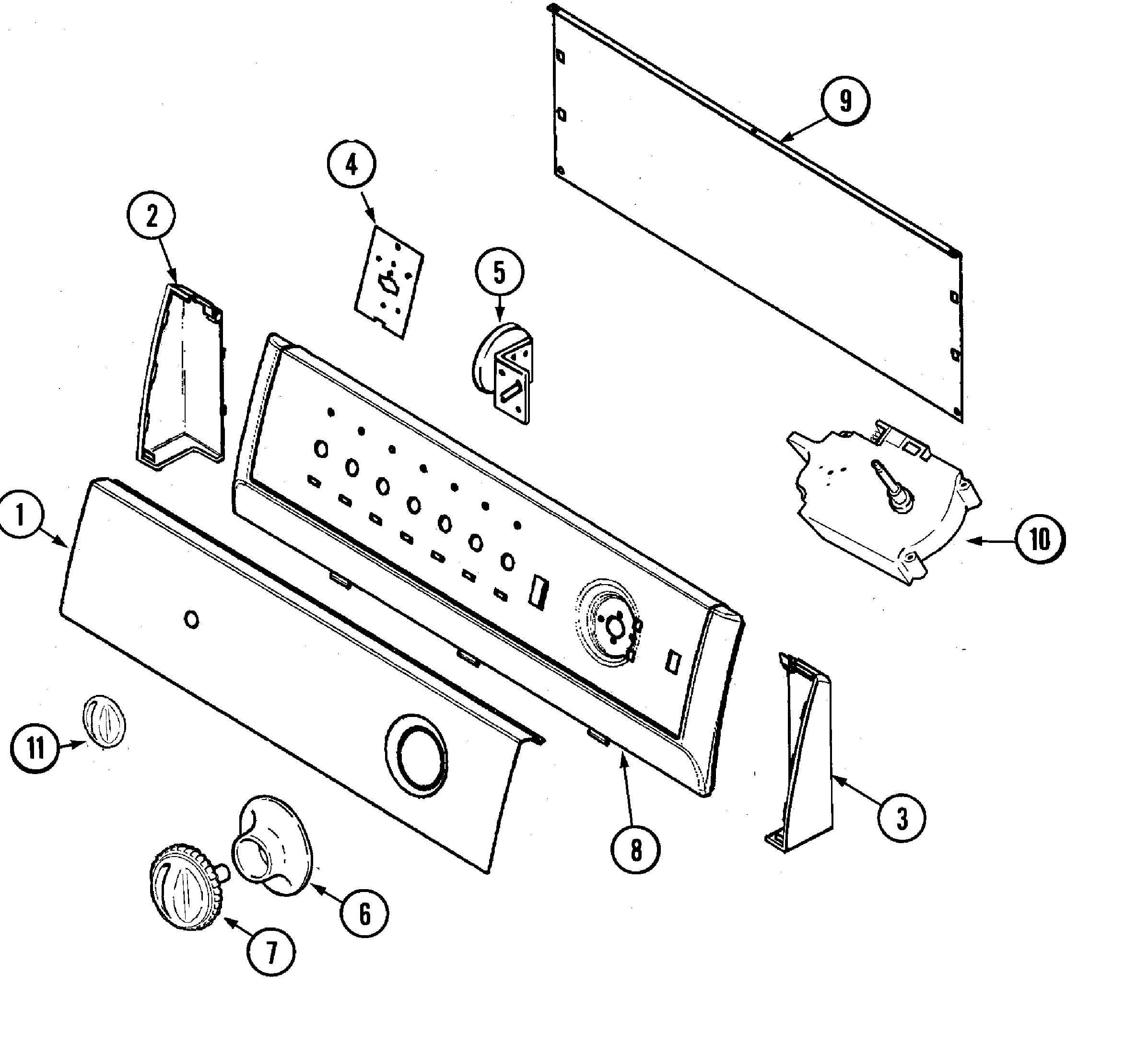

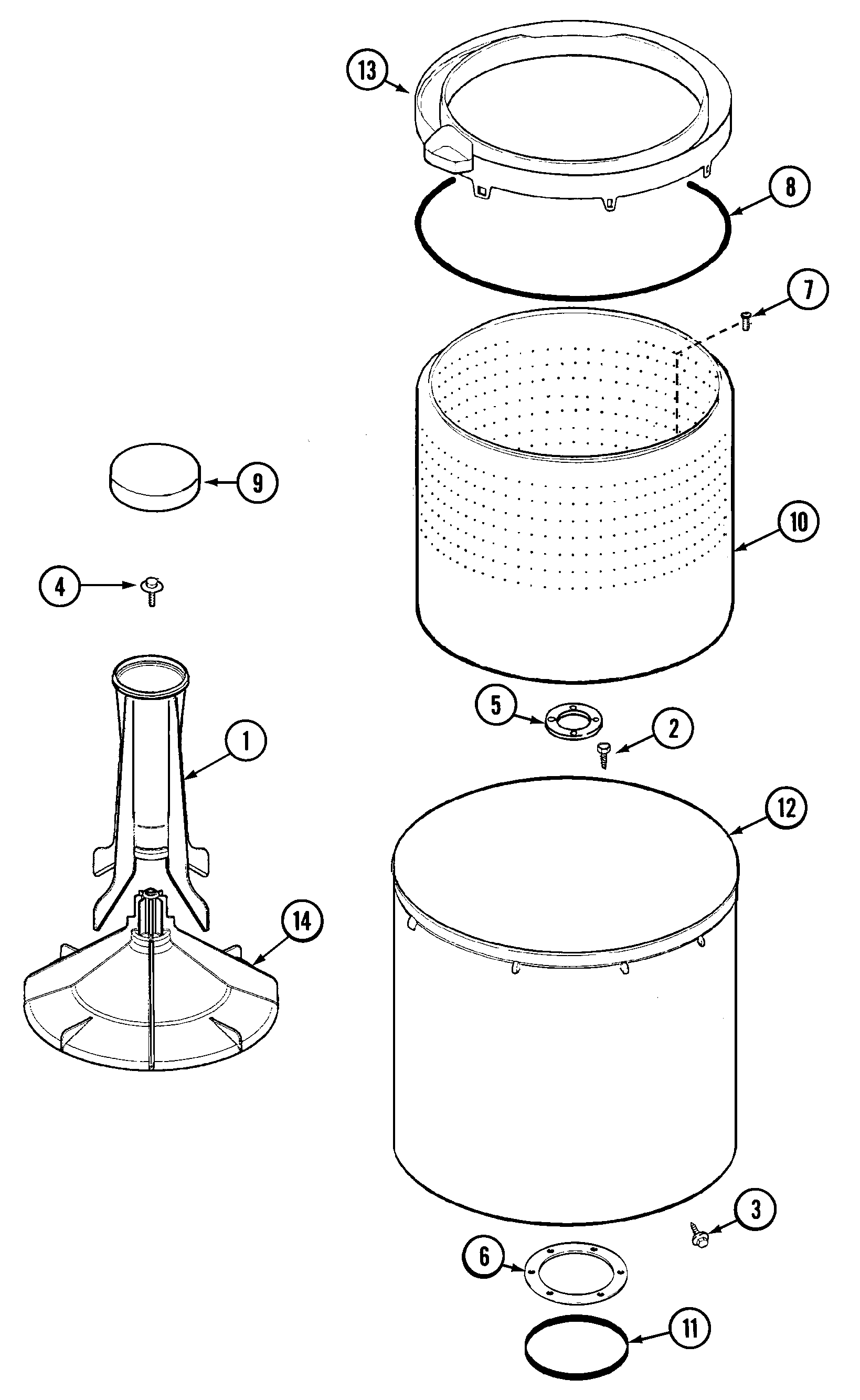

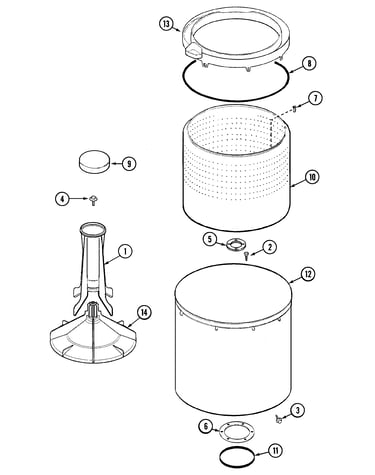

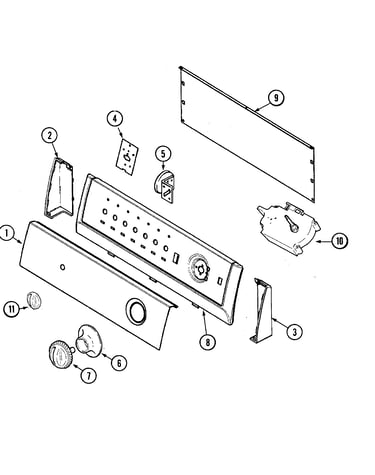

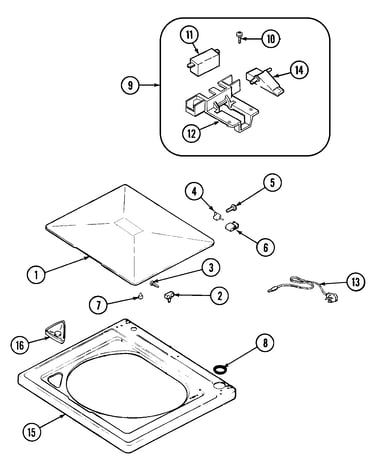

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Hose Clamp 21001875
#8

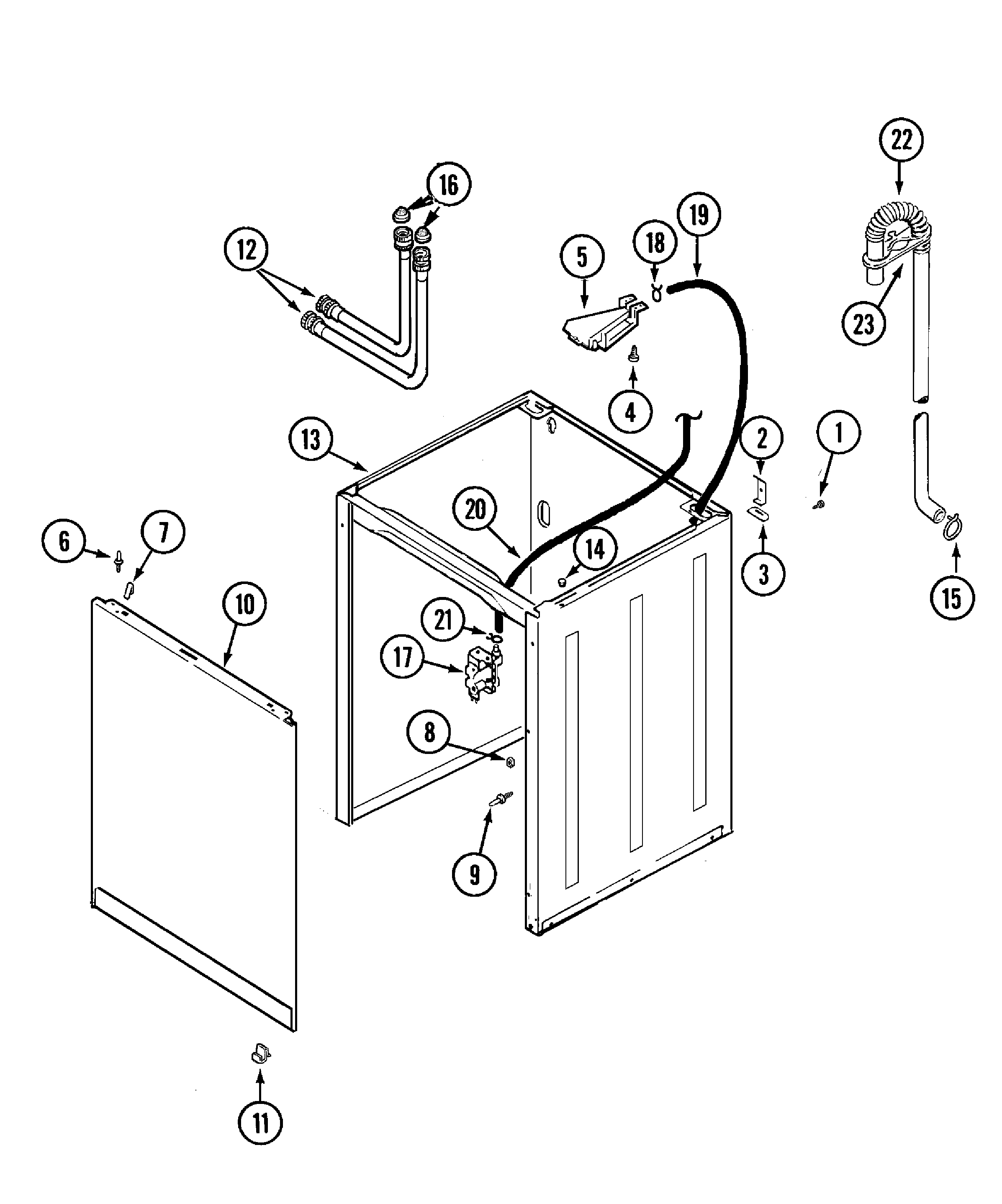

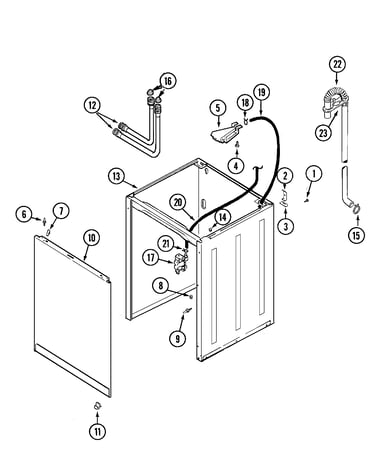

Cabinet (series 16) diagram

Hose clamp

Part #21001875

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 21001875. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Clamp, Singl 21002254
Clamp, singl

Part #21002254

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 21002254. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Hose Clamp 25-6068
Hose clamp

Part #25-6068

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 25-6068. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Discharge Clamp 25-7080
#15

Cabinet diagram

Discharge clamp

Part #25-7080

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 25-7080. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Pump 21001873
#4

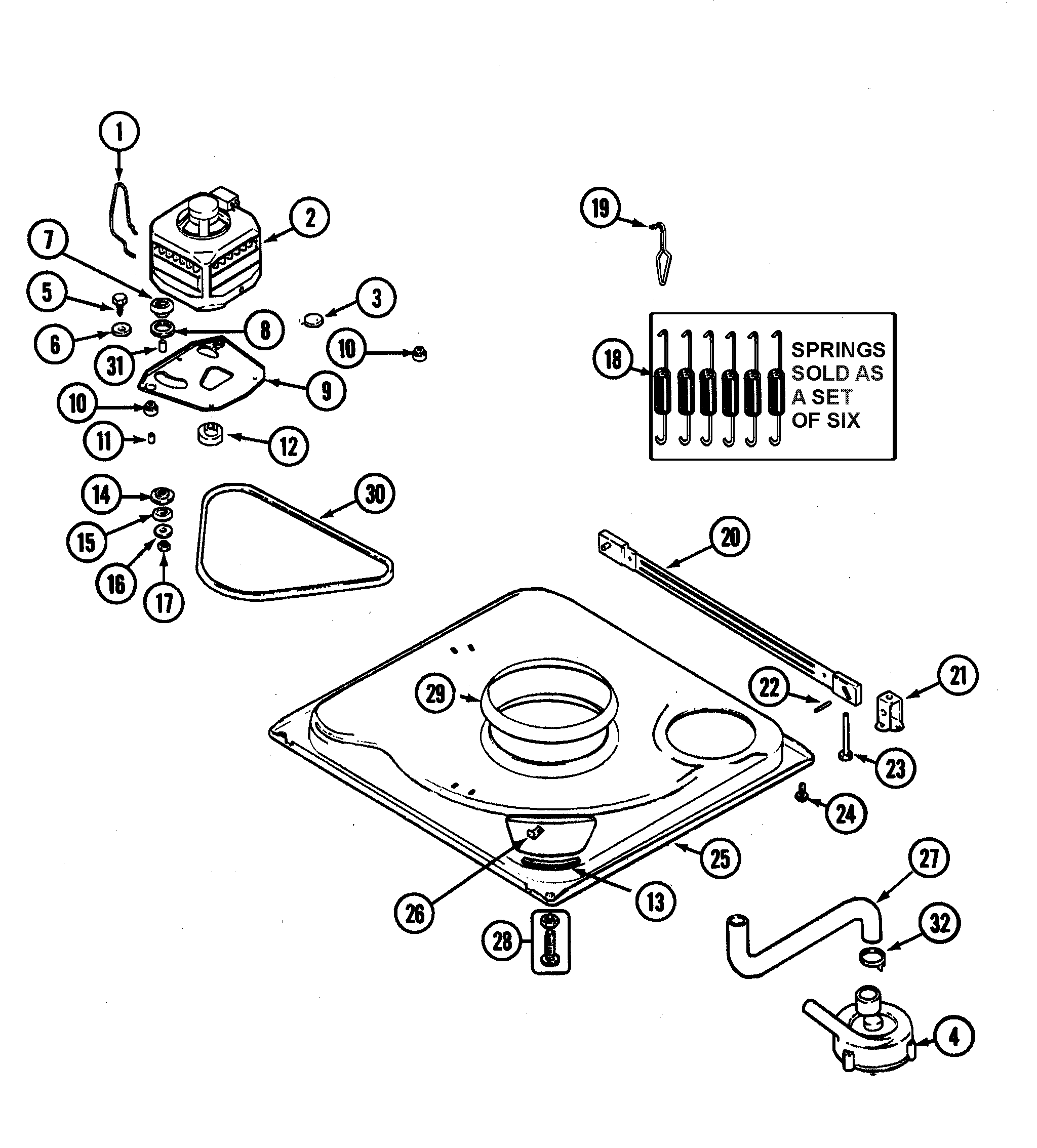

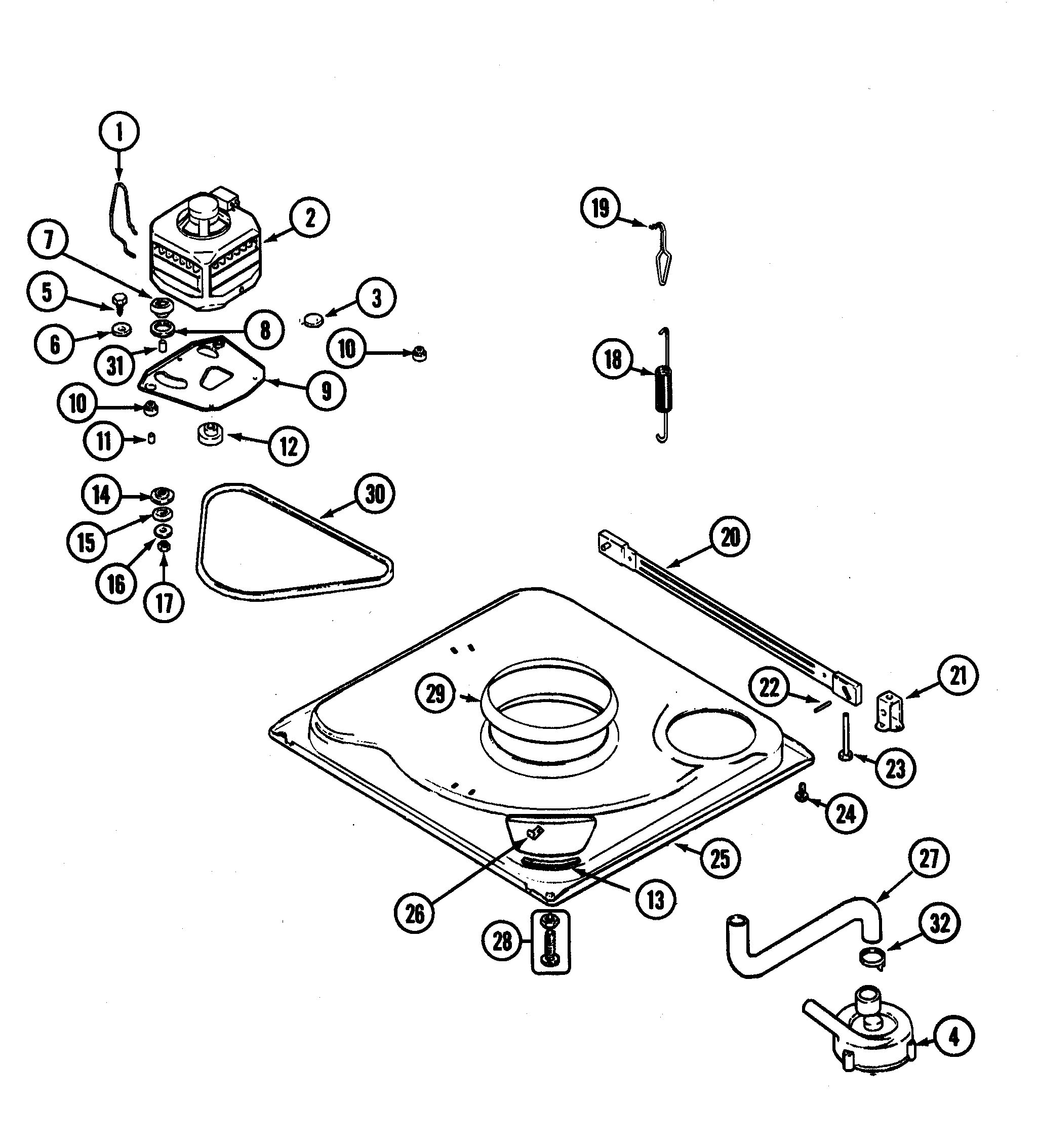

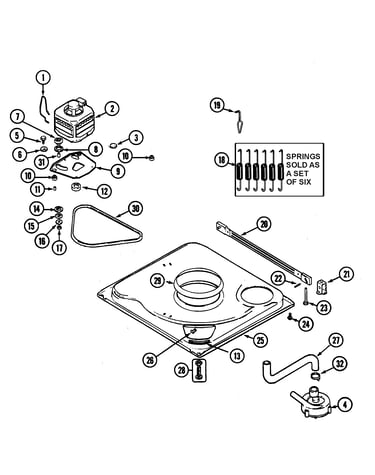

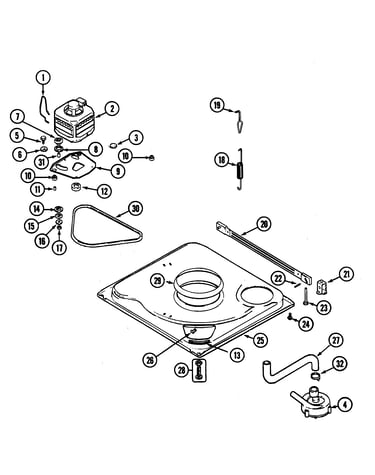

Base (series 19) diagram

Pump

Part #21001873

Replaced by #WP35-6780

?
Manufacturer substitution
This part replaces 21001873. Substitute parts can look different from the original.
BEST SELLER
$105.65 |
10% OFF Phone Price : $117.65
In Stock
Pump 21002219
#4A

Base (series 19) diagram

Pump

Part #21002219

Replaced by #WP35-6780

?
Manufacturer substitution
This part replaces 21002219. Substitute parts can look different from the original.
BEST SELLER
$105.65 |
10% OFF Phone Price : $117.65
In Stock
Screw, Suppo 25-7828
Screw, suppo

Part #25-7828

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 25-7828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Cam Replacem LA-2007
#4

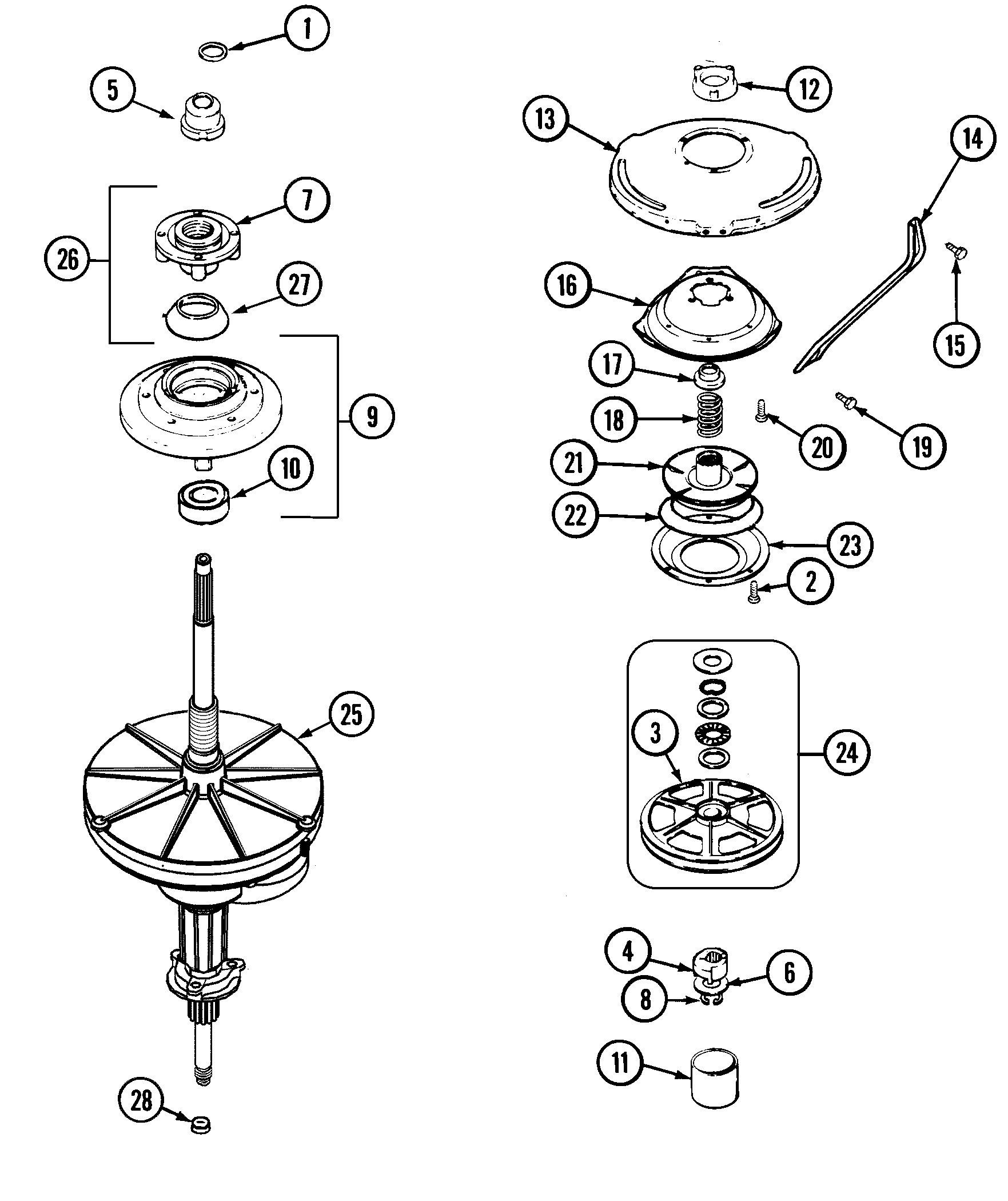

Transmission diagram

Cam replacem

Part #LA-2007

Replaced by #12002213

?
Manufacturer substitution
This part replaces LA-2007. Substitute parts can look different from the original.
BEST SELLER
$41.09 |
13% OFF Phone Price : $47.09
In Stock
Pulley 12001797
#3

Transmission diagram

Pulley

Part #12001797

Replaced by #12002213

?
Manufacturer substitution
This part replaces 12001797. Substitute parts can look different from the original.
BEST SELLER
$41.09 |
13% OFF Phone Price : $47.09
In Stock
Thrust Brg K 12500036
#24

Transmission diagram

Thrust brg k

Part #12500036

Replaced by #12002213

?
Manufacturer substitution
This part replaces 12500036. Substitute parts can look different from the original.
BEST SELLER
$41.09 |
13% OFF Phone Price : $47.09
In Stock
