Craftsman
Jointer/Planer

Model # 900277300 Official Craftsman plate joiner

Here are the diagrams and repair parts for Official Craftsman 900277300 plate joiner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Black & Decker Bearing 150057-00
#11

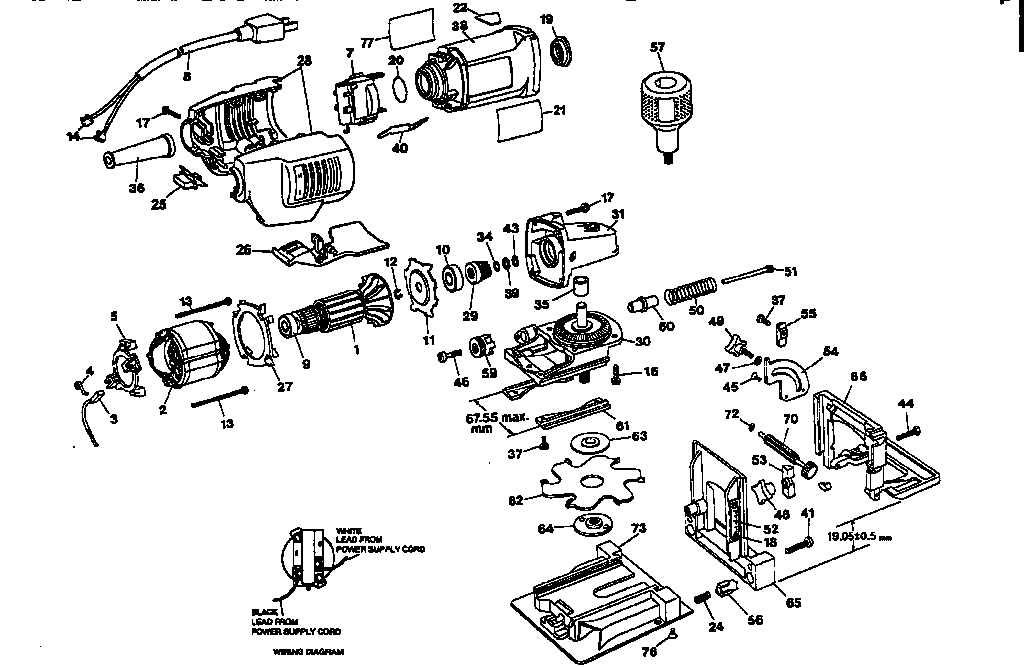

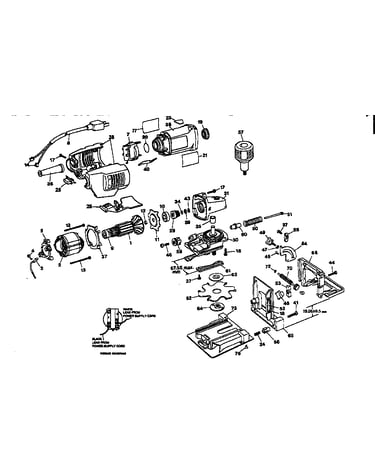

Unit parts diagram

Black & decker bearing

Part #150057-00

The manufacturer no longer makes this part, and there's no substitute part

Clamp 147749-00
#53

Unit parts diagram

Clamp

Part #147749-00

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 445217-02
#19

Unit parts diagram

Sleeve

Part #445217-02

The manufacturer no longer makes this part, and there's no substitute part

Support 147741-00
#65

Unit parts diagram

Support

Part #147741-00

The manufacturer no longer makes this part, and there's no substitute part

Shaft 147759-00
#51

Unit parts diagram

Shaft

Part #147759-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Angle Grinder Motor Brush Ring 449899-05
#5

Unit parts diagram

Black & decker angle grinder motor brush ring

Part #449899-05

The manufacturer no longer makes this part, and there's no substitute part

Stop 147760-00
#59

Unit parts diagram

Stop

Part #147760-00

The manufacturer no longer makes this part, and there's no substitute part

Retaing Ring 38751-00
#43

Unit parts diagram

Retaing ring

Part #38751-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330045-43
#18

Unit parts diagram

Screw

Part #330045-43

The manufacturer no longer makes this part, and there's no substitute part

Label 147803-03
#22

Unit parts diagram

Label

Part #147803-03

The manufacturer no longer makes this part, and there's no substitute part
