Craftsman
Water Pump

Model # 390251981 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390251981 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

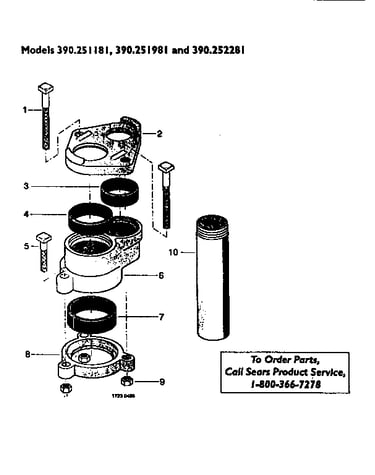

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
0-ring U9-226
#9

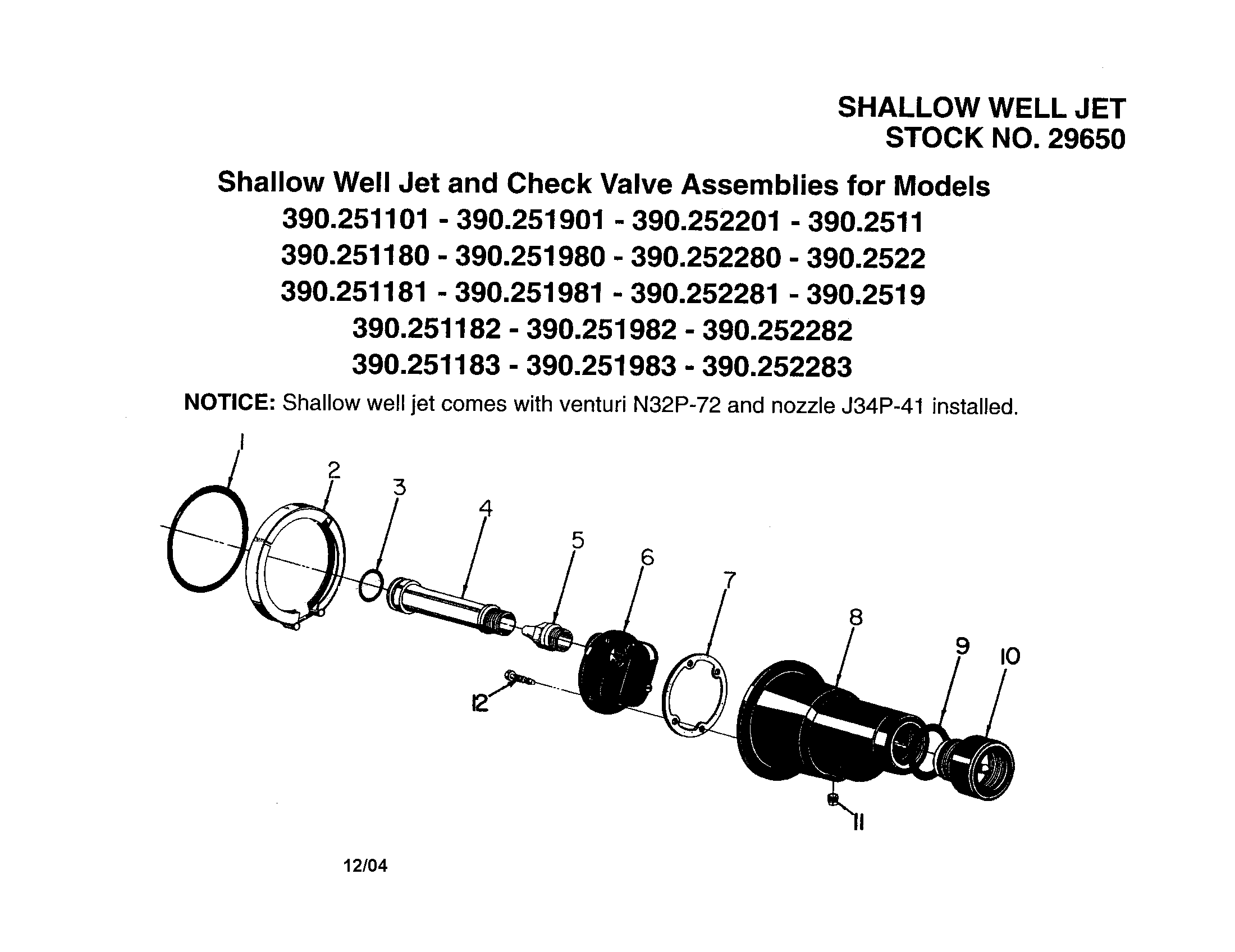

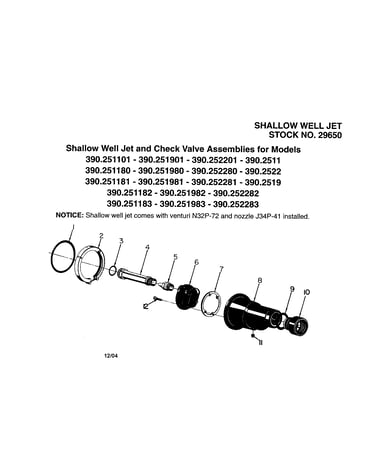

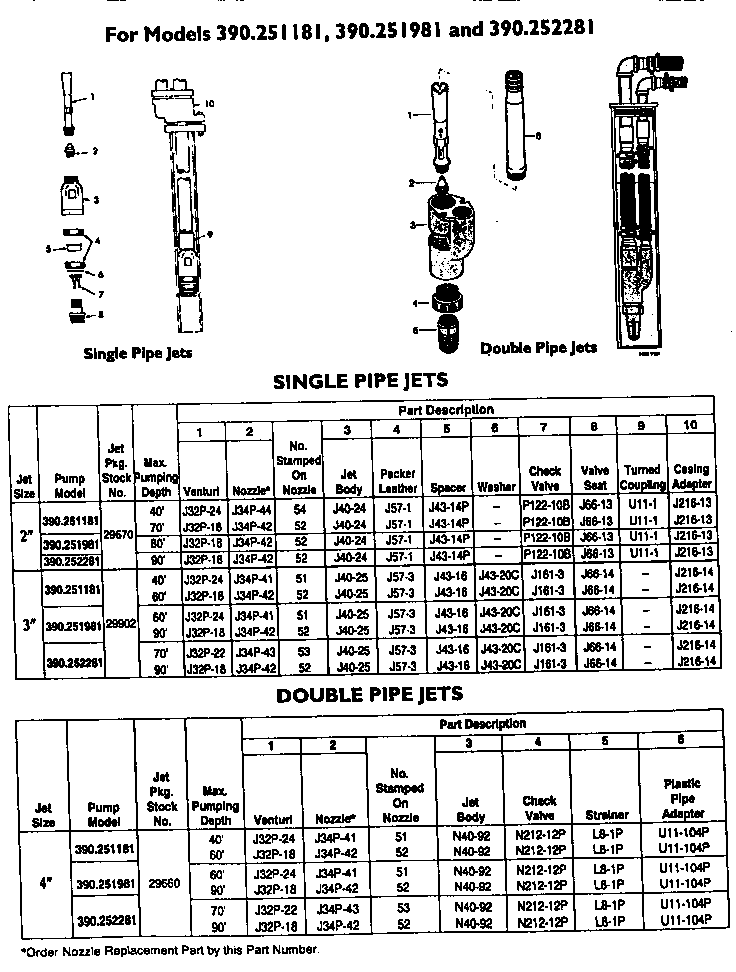

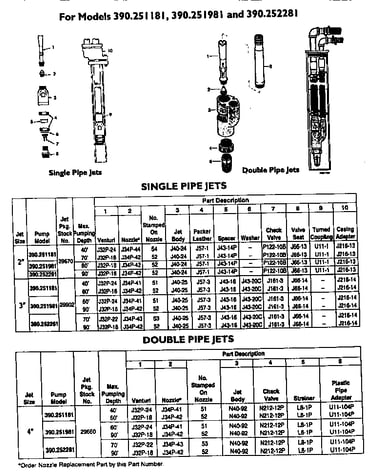

Jet and check valve assy. diagram

0-ring

Part #U9-226

$10.71
In Stock
Pump Housing O-ring U9-199
#10

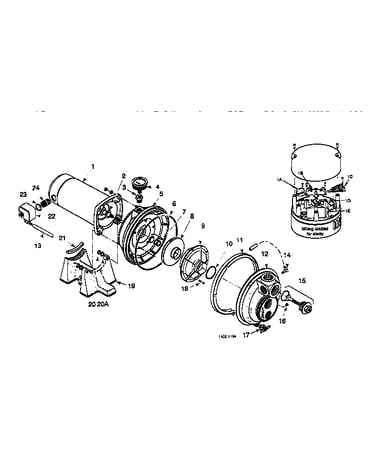

Motor and pump assembly diagram

Pump housing o-ring

Part #U9-199

This item is not returnable
$21.29 |
22% OFF Phone Price : $27.29
In Stock
Lock Nut U36-112ZP
#23

Motor and pump assembly diagram

Lock nut

Part #U36-112ZP

$14.40
Back Order
Connector L43-5C
#24

Motor and pump assembly diagram

Connector

Part #L43-5C

$19.77
Back Order
Pump Check Valve (replaces N12-12p) N166-5P
#10

Jet and check valve assy. diagram

Pump check valve (replaces n12-12p)

Part #N166-5P

$123.89 |
9% OFF Phone Price : $135.89
Back Order
Draincock U212-68T
#17

Motor and pump assembly diagram

Draincock

Part #U212-68T

The manufacturer no longer makes this part, and there's no substitute part

Pressure Gauge 2768
#4

Motor and pump assembly diagram

Pressure gauge

Part #2768

Replaced by #TC104-P2

?
Manufacturer substitution
This part replaces 2768. Substitute parts can look different from the original.
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Pump Impeller J105-42PT
#8

Motor and pump assembly diagram

Pump impeller

Part #J105-42PT

$151.89 |
7% OFF Phone Price : $163.89
In Stock
Pump Venturi N32P-72E
#4

Jet and check valve assy. diagram

Pump venturi

Part #N32P-72E

$38.03
In Stock
Pump Motor Base C4-42P
#19

Motor and pump assembly diagram

Pump motor base

Part #C4-42P

$118.62
In Stock
