Kenmore
Electric Range

Model # 7904253331A Official Kenmore electric slide-in range

Here are the diagrams and repair parts for Official Kenmore 7904253331A electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

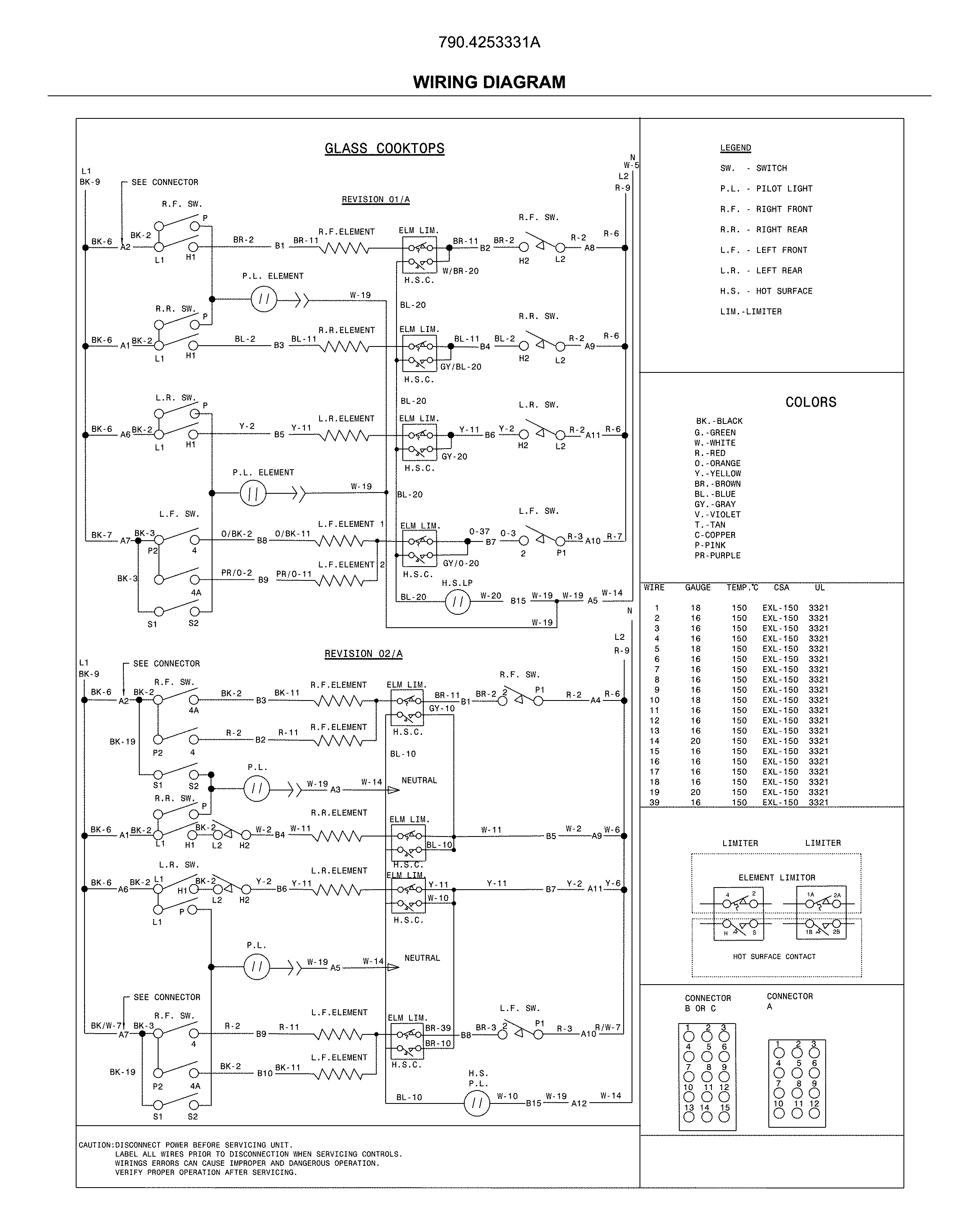

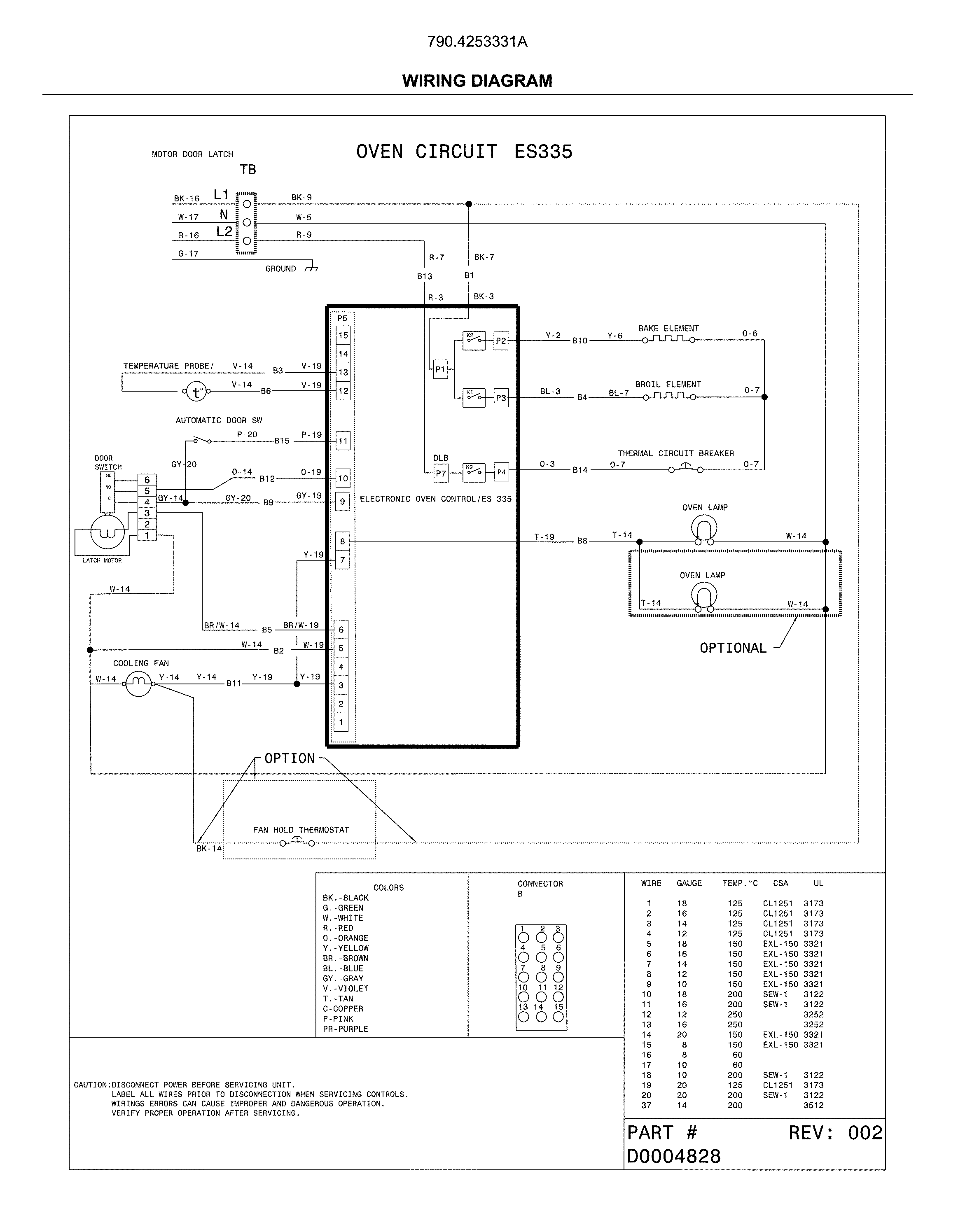

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Frigidaire Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

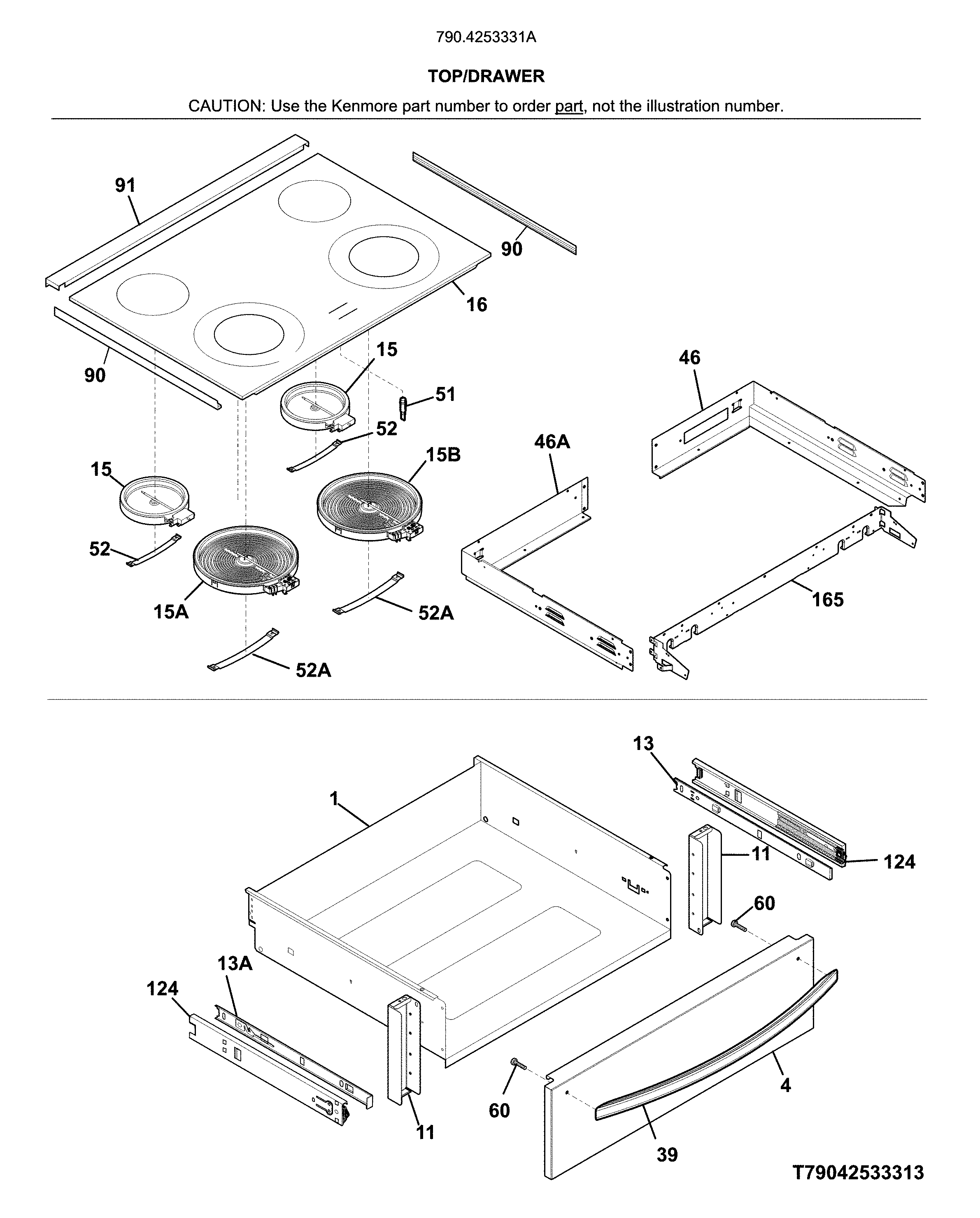

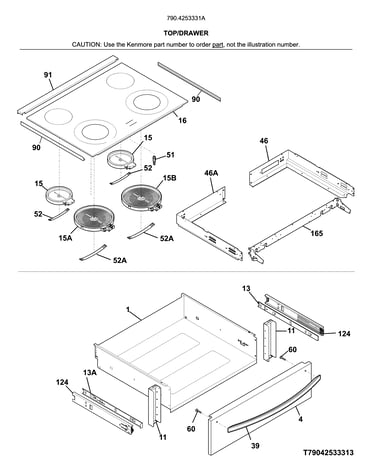

Top/drawer diagram

Frigidaire range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Frigidaire Range Dual Radiant Surface Element (replaces 316418400, 316418401) 316555800
#15B

Top/drawer diagram

Frigidaire range dual radiant surface element (replaces 316418400, 316418401)

Part #316555800

BEST SELLER
$162.16 |
7% OFF Phone Price : $174.16
In Stock
Range Oven Door Inner Glass 316117503
#8

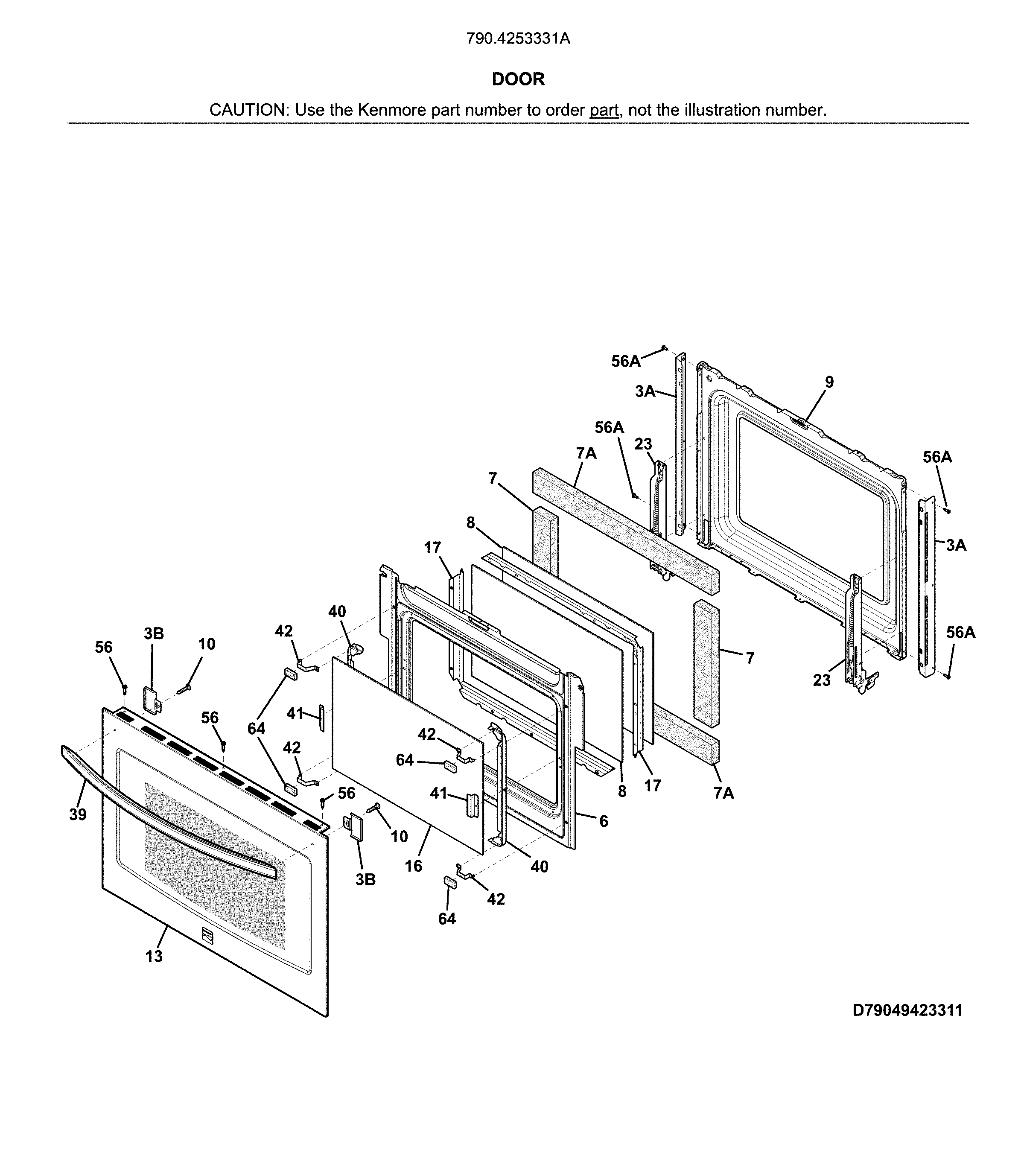

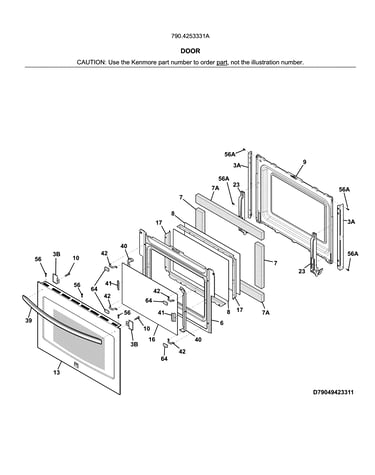

Door diagram

Range oven door inner glass

Part #316117503

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117503. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Range Oven Control Overlay (replaces 316352010, 316419309) 139091301
#20A

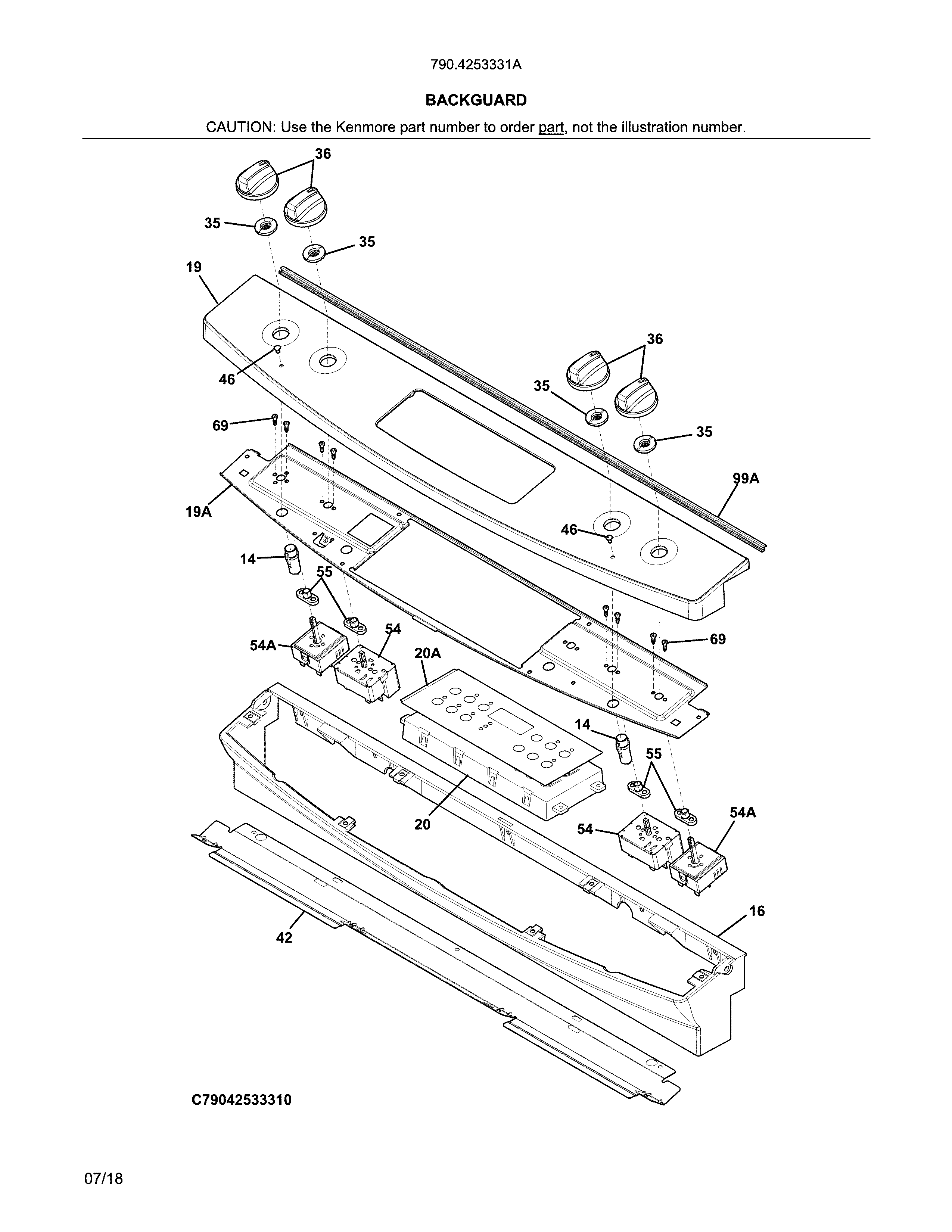

Backguard diagram

Range oven control overlay (replaces 316352010, 316419309)

Part #139091301

BEST SELLER
$31.04 |
16% OFF Phone Price : $37.04
In Stock
Range Broil Element 139008900
#66

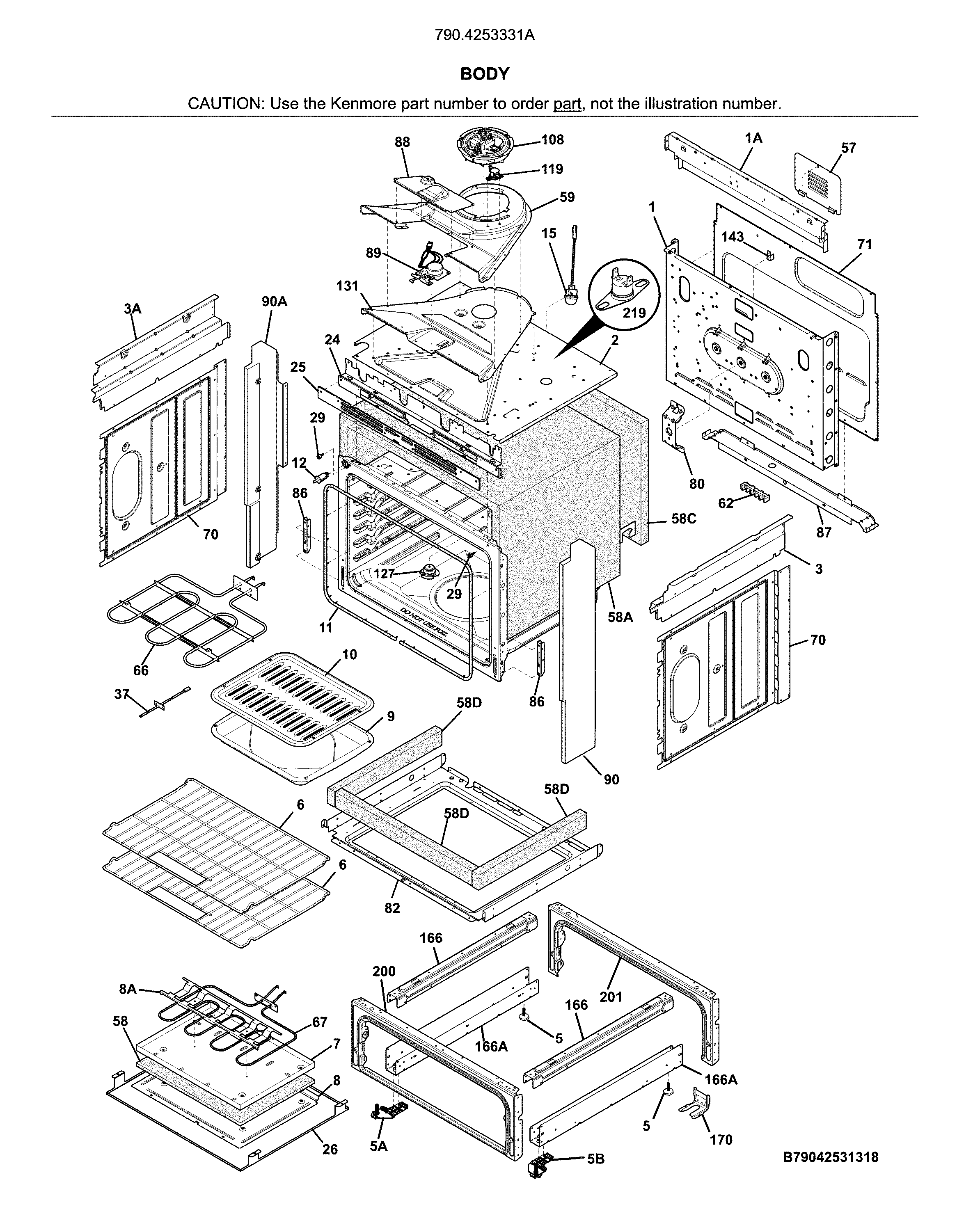

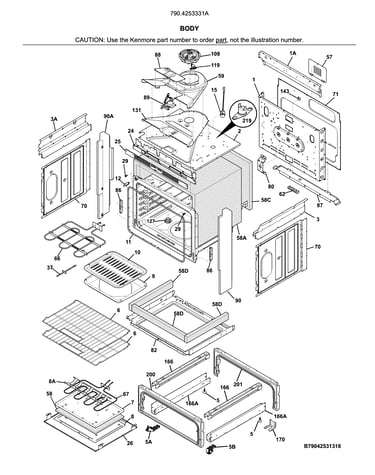

Body diagram

Range broil element

Part #139008900

Replaced by #5304521498

?
Manufacturer substitution
This part replaces 139008900. Substitute parts can look different from the original.
BEST SELLER
$56.03 |
10% OFF Phone Price : $62.03
In Stock
Range Oven Door Outer Glass 316446400
#16

Door diagram

Range oven door outer glass

Part #316446400

Replaced by #316446401

?
Manufacturer substitution
This part replaces 316446400. Substitute parts can look different from the original.
BEST SELLER
$51.96 |
10% OFF Phone Price : $57.96
In Stock
Range Control Panel Gasket (replaces 318313211) 318313231
#99A

Backguard diagram

Range control panel gasket (replaces 318313211)

Part #318313231

$65.29 |
8% OFF Phone Price : $71.29
In Stock
Range Control Panel Cooling Fan 318575612
#108

Body diagram

Range control panel cooling fan

Part #318575612

$167.94 |
7% OFF Phone Price : $179.94
In Stock
Range Oven Light Bulb (replaces 808564103) 318946500
#NI

Body diagram

Range oven light bulb (replaces 808564103)

Part #318946500

$38.98 |
13% OFF Phone Price : $44.98
In Stock
Range Door Light Switch 318394802
#12

Body diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
