Haier
Electric Range

Model # QAS740RM3SS Official Haier electric range

Here are the diagrams and repair parts for Official Haier QAS740RM3SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
40a15bulb STD372401
#235

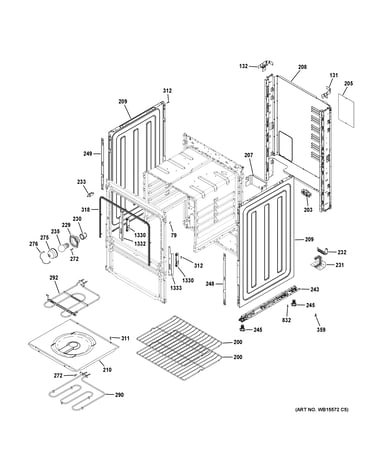

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Cooktop Indicator Light WB27T10668
#32

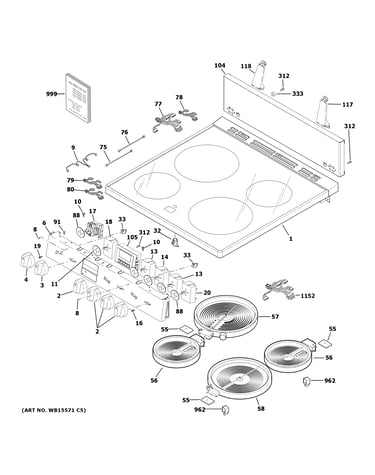

Control panel & cooktop diagram

Cooktop indicator light

Part #WB27T10668

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#230

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wb36x389 WB08K0005
#275

Body parts diagram

Wb36x389

Part #WB08K0005

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB08K0005. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Nut WB02T10017
#729

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Fan Motor Convect WB26X28953
#726

Convection fan diagram

Fan motor convect

Part #WB26X28953

$82.99 |
7% OFF Phone Price : $88.99
In Stock
Range Surface Element Spring WB09T10013
#962

Control panel & cooktop diagram

Range surface element spring

Part #WB09T10013

Replaced by #WB09X40389

?
Manufacturer substitution
This part replaces WB09T10013. Substitute parts can look different from the original.
$9.54
In Stock
Fan Blade WB02X8351
#721

Convection fan diagram

Fan blade

Part #WB02X8351

Replaced by #WB2X8351

?
Manufacturer substitution
This part replaces WB02X8351. Substitute parts can look different from the original.
This item is not returnable
$24.28 |
20% OFF Phone Price : $30.28
In Stock
Lens WB25X29379
#8

Control panel & cooktop diagram

Lens

Part #WB25X29379

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw (black) WB01K0042
#345

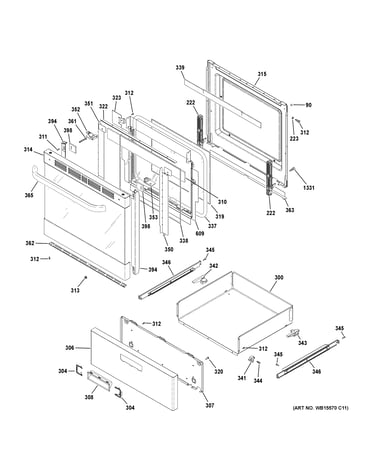

Door & drawer parts diagram

Screw (black)

Part #WB01K0042

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB01K0042. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
