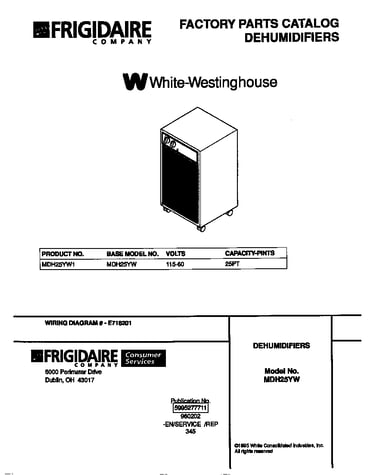

Model # MDH25YW1 Official White-Westinghouse dehumidifier - 5995277711

Here are the diagrams and repair parts for Official White-Westinghouse MDH25YW1 dehumidifier - 5995277711, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

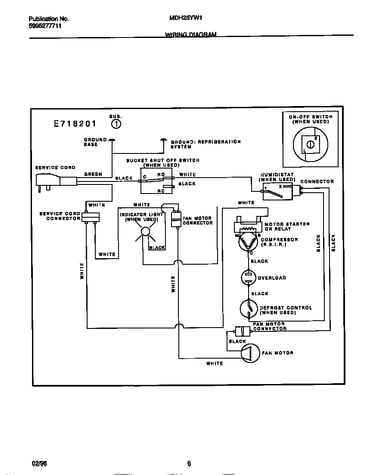

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Gibson Electronic Harness 5303289839
#33

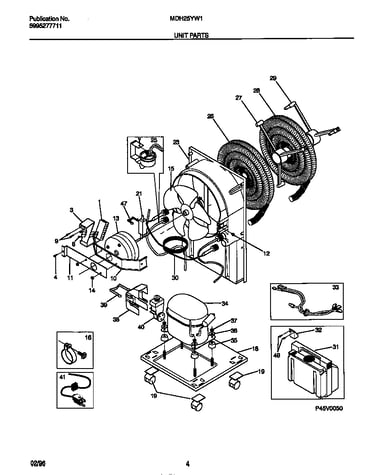

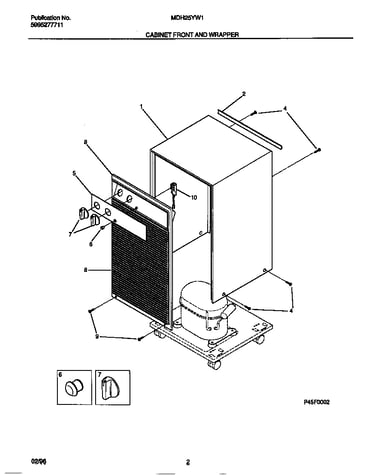

Unit parts diagram

Gibson electronic harness

Part #5303289839

In Stock
Kelvinator Room Air Conditioner Lock Nut 08007481
#14

Unit parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
In Stock
Cndnsr Coil 3017458
#26

Unit parts diagram

Cndnsr coil

Part #3017458

The manufacturer no longer makes this part, and there's no substitute part

Shroud 5303303501
#23

Unit parts diagram

Shroud

Part #5303303501

The manufacturer no longer makes this part, and there's no substitute part

Clamp 08016454
#29

Unit parts diagram

Clamp

Part #08016454

The manufacturer no longer makes this part, and there's no substitute part

Motor 5303289838
#13

Unit parts diagram

Motor

Part #5303289838

The manufacturer no longer makes this part, and there's no substitute part

Clamp 5303303699
#16

Unit parts diagram

Clamp

Part #5303303699

The manufacturer no longer makes this part, and there's no substitute part

Bracket 5303296829
#11

Unit parts diagram

Bracket

Part #5303296829

The manufacturer no longer makes this part, and there's no substitute part

Float 5303272520
#32

Unit parts diagram

Float

Part #5303272520

The manufacturer no longer makes this part, and there's no substitute part
