Model # 706658270 Official Craftsman 5-drawer roller cabinet

Here are the diagrams and repair parts for Official Craftsman 706658270 5-drawer roller cabinet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |

Caster A10218
#7

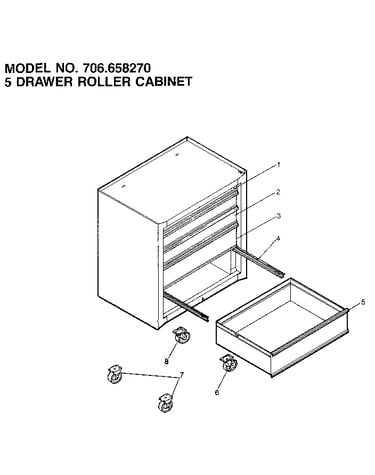

5 drawer roller cabinet diagram

Caster

Part #A10218

The manufacturer no longer makes this part, and there's no substitute part

Drawer Weldment A9318-BLK
#3

5 drawer roller cabinet diagram

Drawer weldment

Part #A9318-BLK

The manufacturer no longer makes this part, and there's no substitute part

Drawer Weldment A9109-BLK
#1

5 drawer roller cabinet diagram

Drawer weldment

Part #A9109-BLK

The manufacturer no longer makes this part, and there's no substitute part

Dwr Pull T14861A6
#5

5 drawer roller cabinet diagram

Dwr pull

Part #T14861A6

The manufacturer no longer makes this part, and there's no substitute part

Caster A10219
#6

5 drawer roller cabinet diagram

Caster

Part #A10219

The manufacturer no longer makes this part, and there's no substitute part

Caster A10220
#8

5 drawer roller cabinet diagram

Caster

Part #A10220

The manufacturer no longer makes this part, and there's no substitute part

Drawer Weldment A9110-BLK
#2

5 drawer roller cabinet diagram

Drawer weldment

Part #A9110-BLK

The manufacturer no longer makes this part, and there's no substitute part

Instructions F470A1

#NI

All parts diagram

Instructions

Part #F470A1

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer Slide T14153A5
#4

5 drawer roller cabinet diagram

Tool chest drawer slide

Part #T14153A5

The manufacturer no longer makes this part, and there's no substitute part
