Model # CMS210ACLWH Official Maytag freezer

Here are the diagrams and repair parts for Official Maytag CMS210ACLWH freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Drier 13900
#13

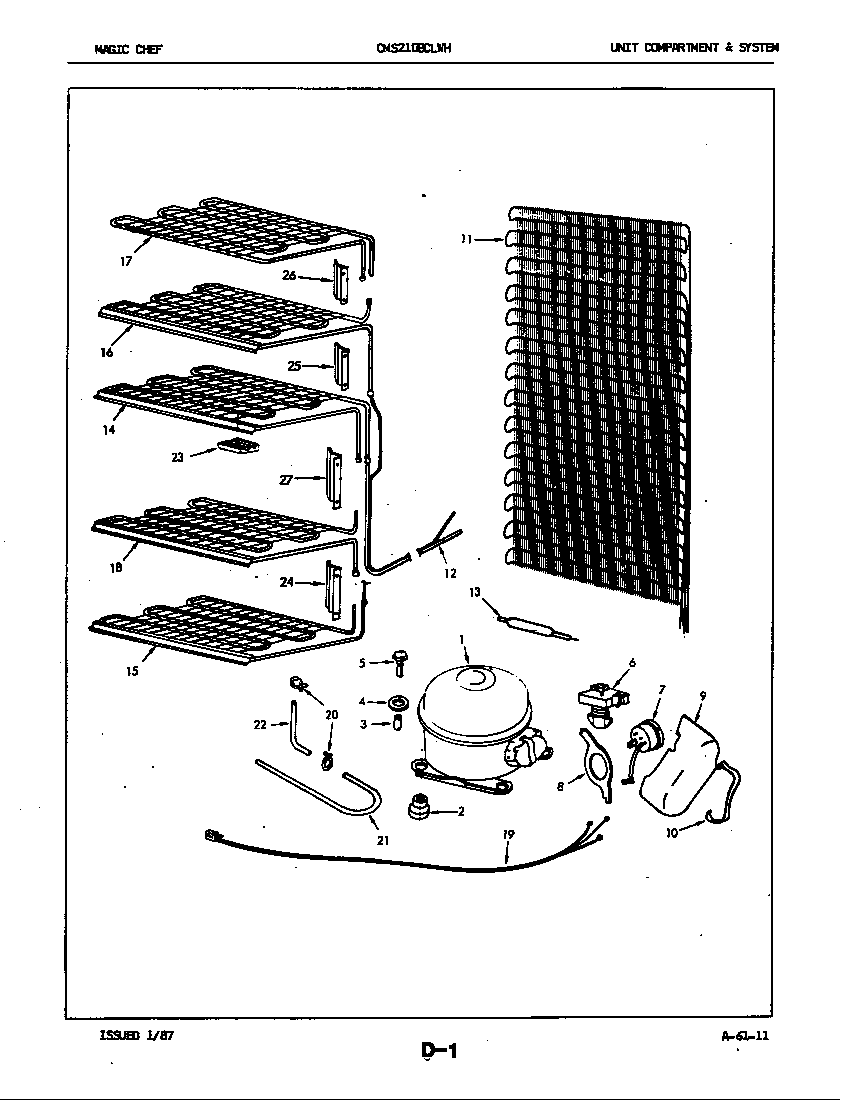

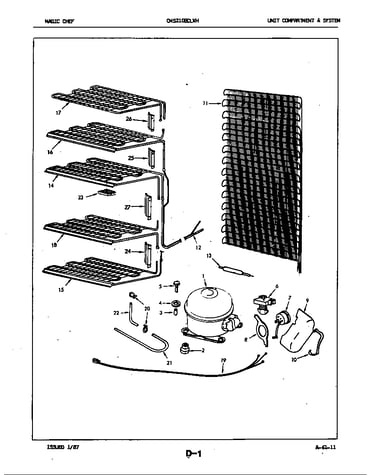

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Switch 046789-01
#5

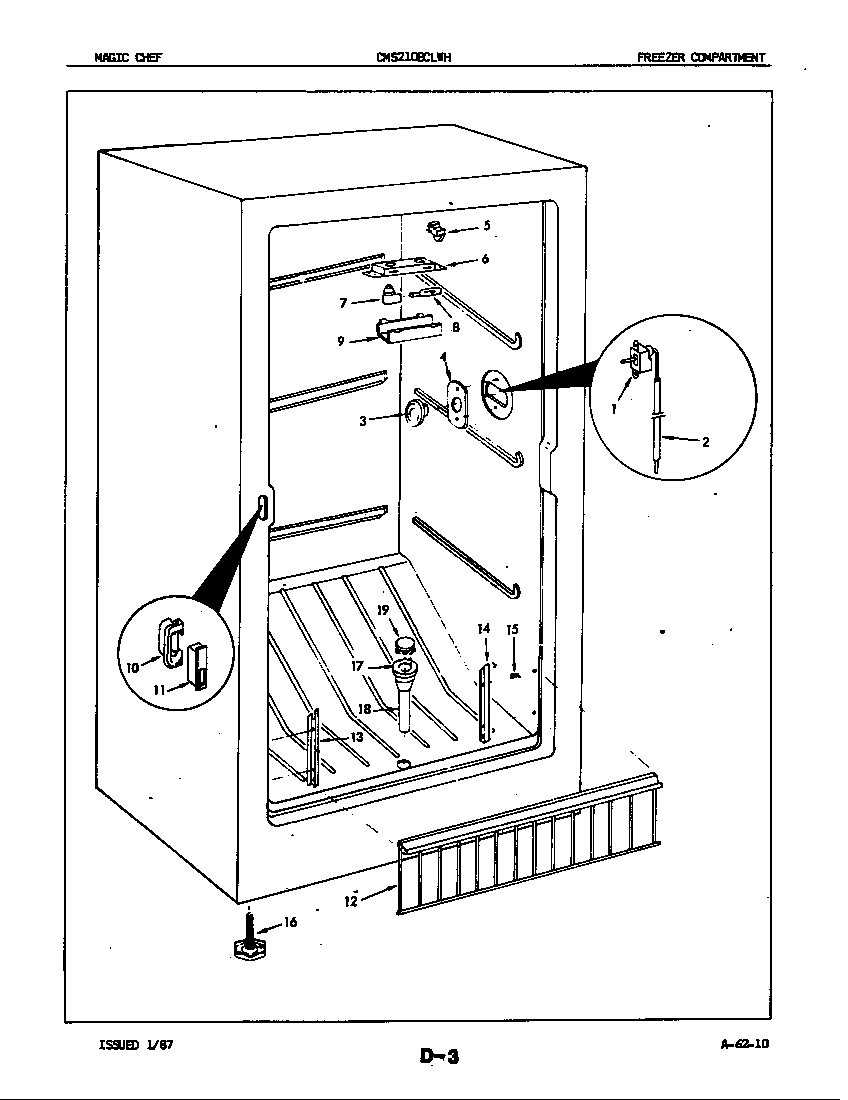

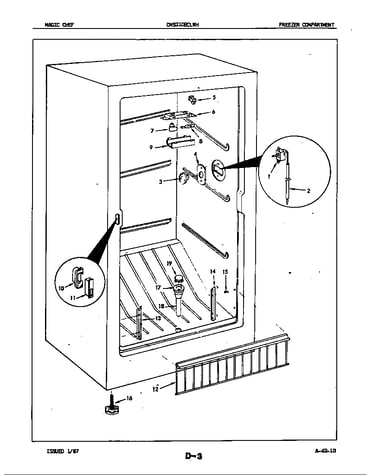

Freezer compartment diagram

Refrigerator light switch

Part #046789-01

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 046789-01. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Screw 046374-14
#15A

Freezer compartment diagram

Refrigerator screw

Part #046374-14

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 046374-14. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 9986-87
#13A

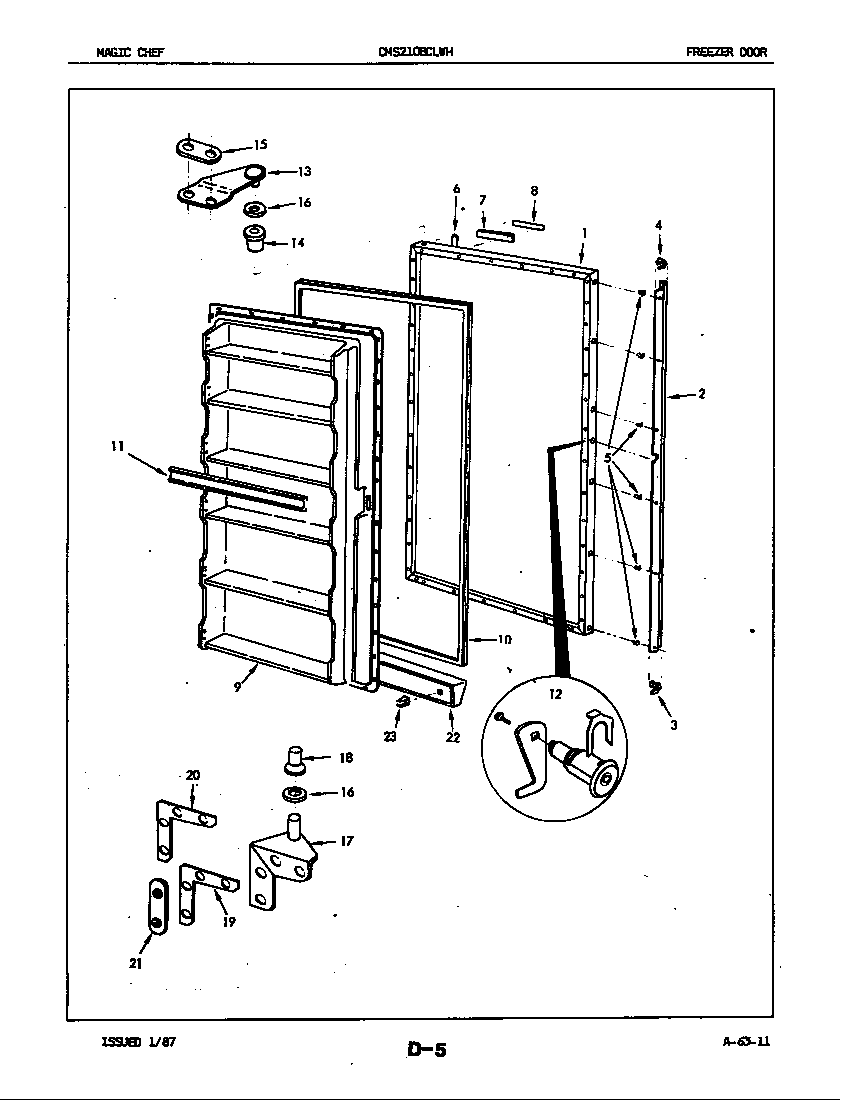

Freezer door diagram

Screw

Part #9986-87

Replaced by #WP3-24838-048

?
Manufacturer substitution
This part replaces 9986-87. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Rh Gate Brac 047126-02
#14

Freezer compartment diagram

Rh gate brac

Part #047126-02

Replaced by #4357293

?
Manufacturer substitution
This part replaces 047126-02. Substitute parts can look different from the original.
$37.51
In Stock
Lock 046906-01
#12D

Freezer door diagram

Lock

Part #046906-01

Replaced by #3-35284-001

?
Manufacturer substitution
This part replaces 046906-01. Substitute parts can look different from the original.
$20.56 |
23% OFF Phone Price : $26.56
In Stock
Screw 047231-01
#4A

Freezer door diagram

Screw

Part #047231-01

Replaced by #WP22001496

?
Manufacturer substitution
This part replaces 047231-01. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Clip 045520-01
#23

Freezer door diagram

Clip

Part #045520-01

Replaced by #1-80247-101

?
Manufacturer substitution
This part replaces 045520-01. Substitute parts can look different from the original.
$8.22 |
11% OFF Phone Price : $9.22
In Stock
Clamp 049137-01
#23

Unit compartment & system diagram

Clamp

Part #049137-01

Replaced by #1-80308-101

?
Manufacturer substitution
This part replaces 049137-01. Substitute parts can look different from the original.
$29.89
In Stock
Screw 046897-05
#12C

Freezer door diagram

Screw

Part #046897-05

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 046897-05. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
