Model # JCP67F3WW Official GE electric range

Here are the diagrams and repair parts for Official GE JCP67F3WW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
End Cap WB07X10594
#9

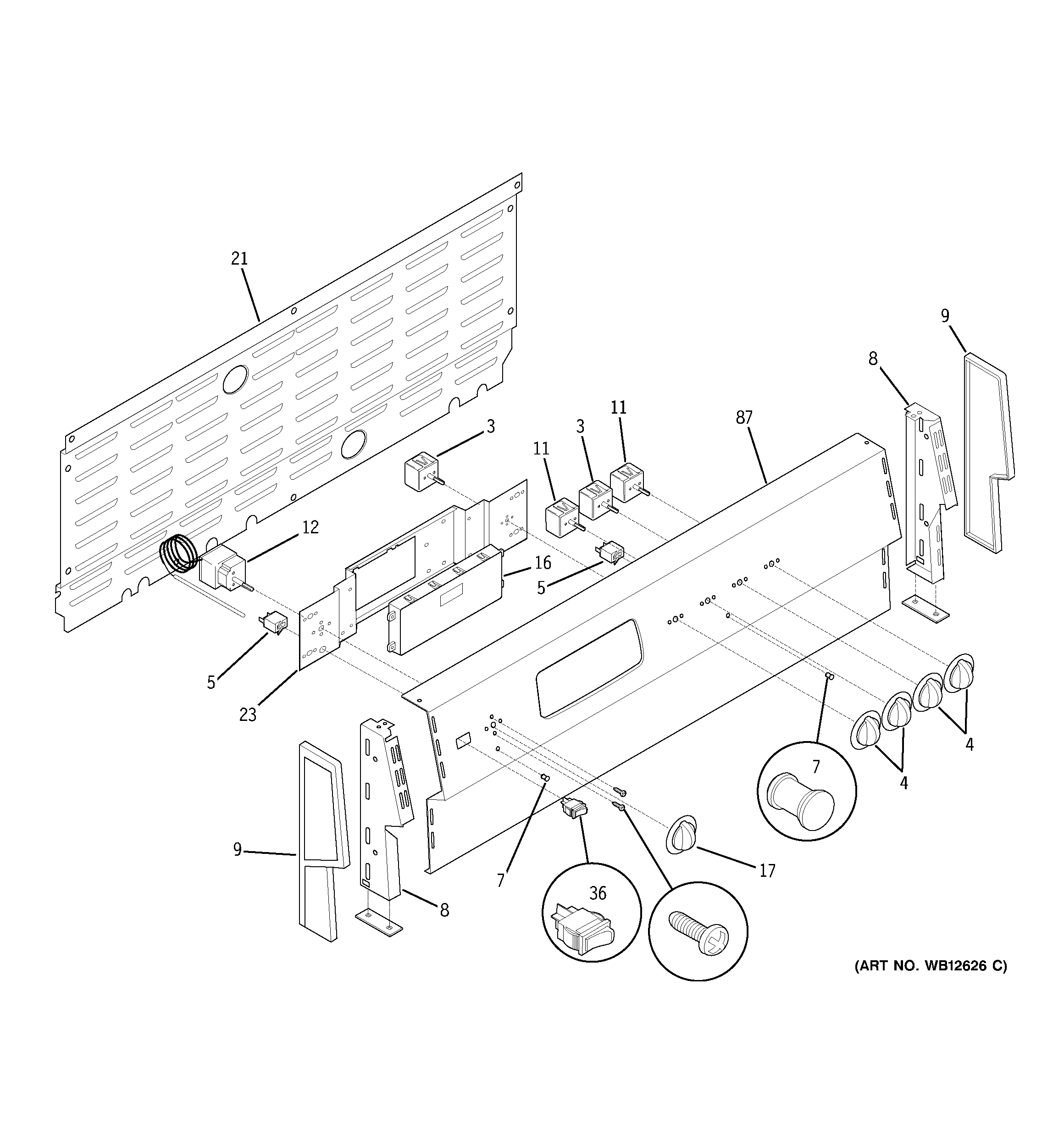

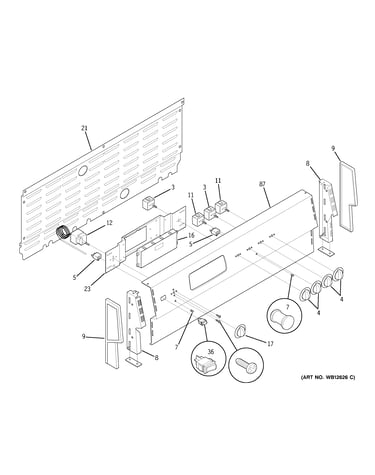

Control panel diagram

End cap

Part #WB07X10594

$42.99
In Stock
Drawer Guide WB02X10615
#453

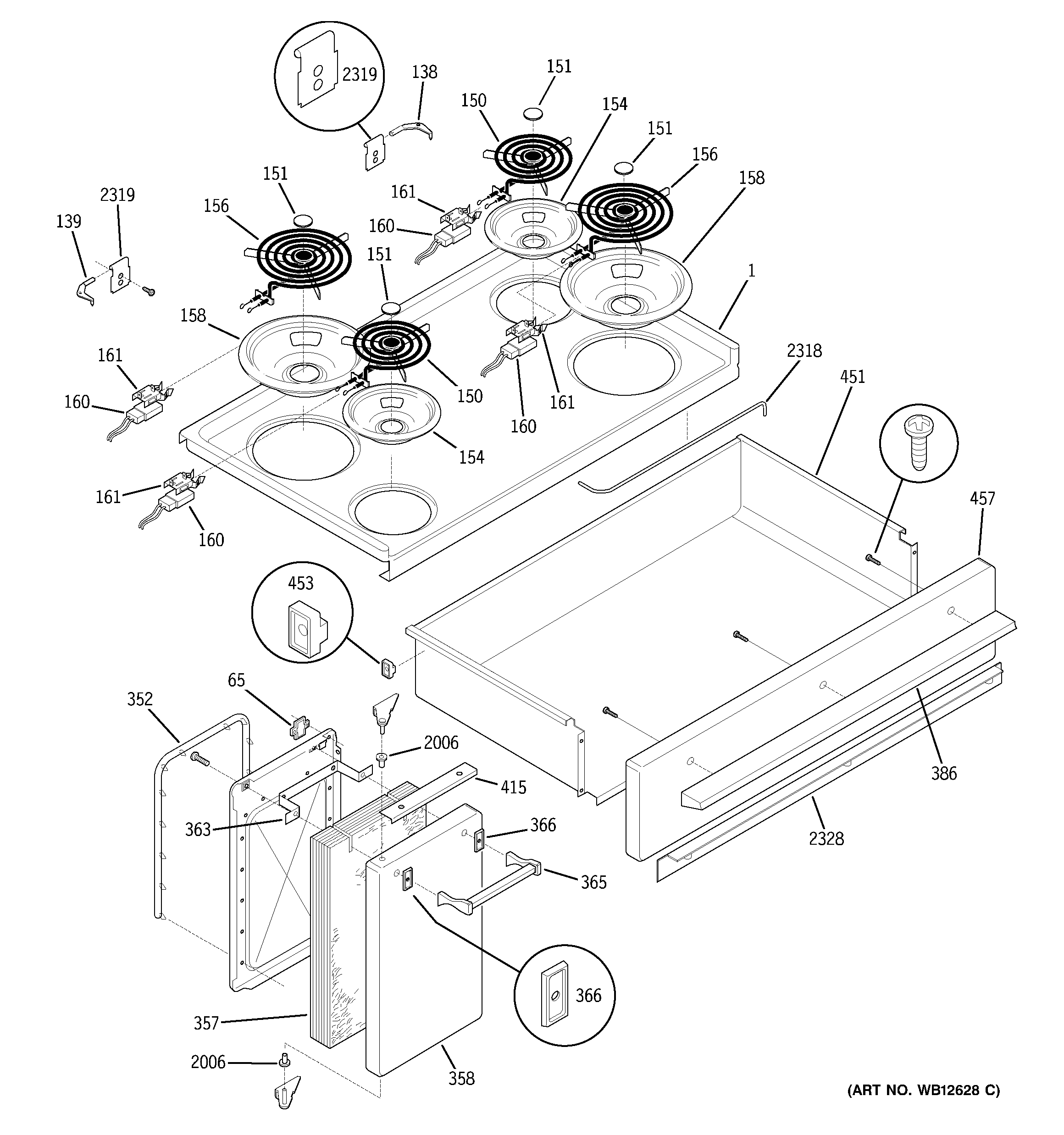

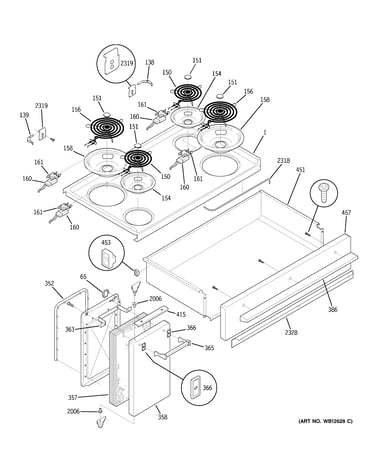

Cooktop diagram

Drawer guide

Part #WB02X10615

This item is not returnable
$6.99
In Stock
Range Small Surface Element Control Switch WB23X10014
#3

Control panel diagram

Range small surface element control switch

Part #WB23X10014

$61.11
In Stock
Broiler Pan WB49X5589
#529

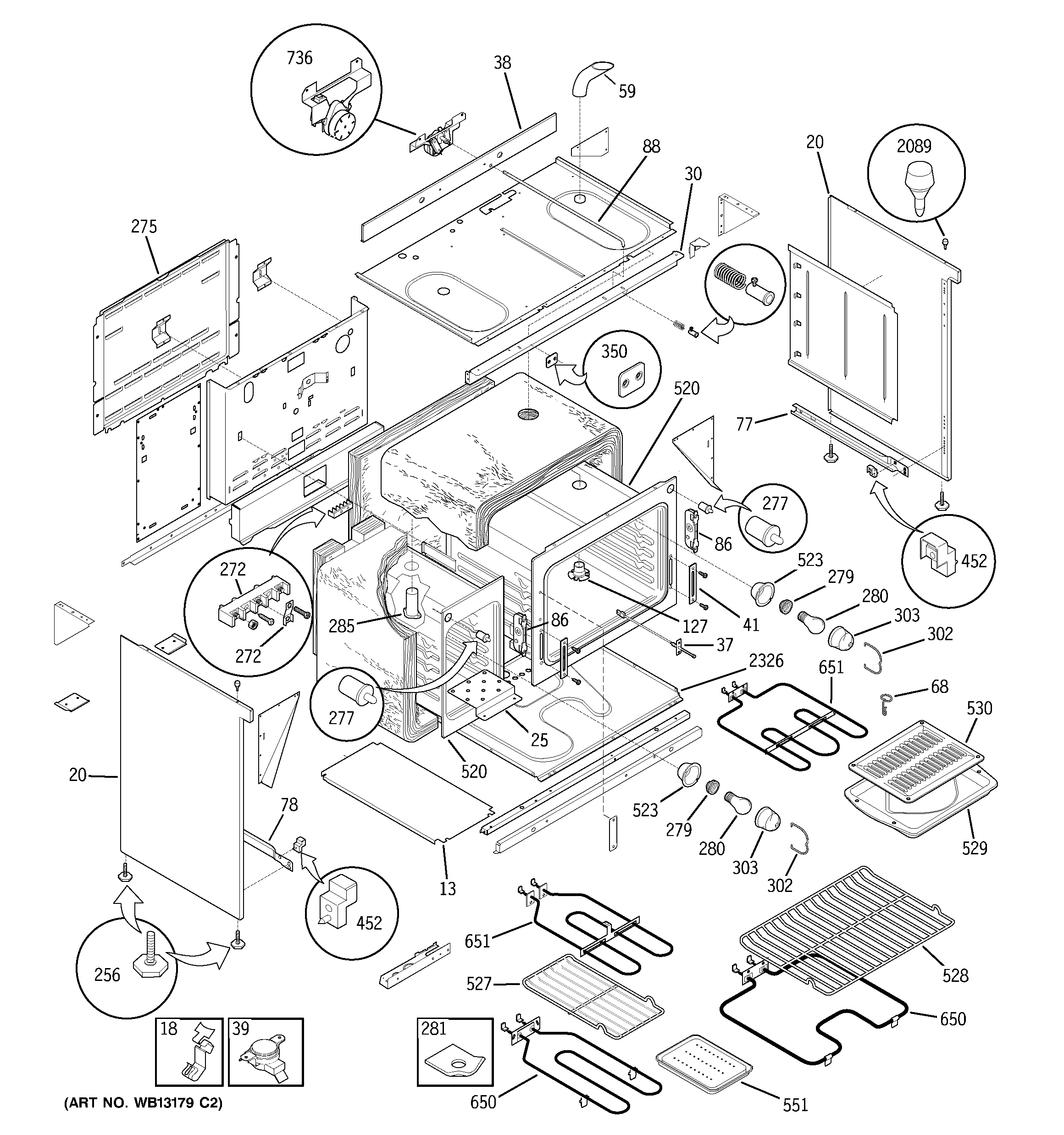

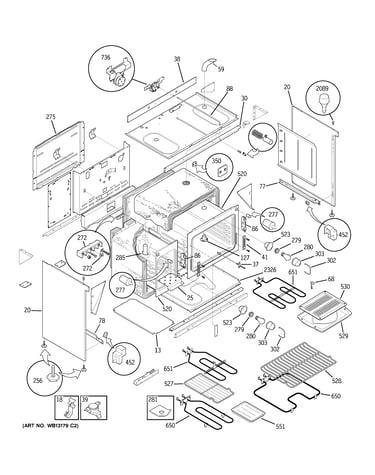

Body parts diagram

Broiler pan

Part #WB49X5589

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X5589. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Surface Pan WB32X10033
#154

Cooktop diagram

Surface pan

Part #WB32X10033

Replaced by #PM32X112

?
Manufacturer substitution
This part replaces WB32X10033. Substitute parts can look different from the original.
This item is not returnable
$5.00
In Stock
Broiler Rack WB48X5590
#530

Body parts diagram

Broiler rack

Part #WB48X5590

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48X5590. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Support Rod WB02X7436
#2318

Cooktop diagram

Support rod

Part #WB02X7436

The manufacturer no longer makes this part, and there's no substitute part

Rear Gasket WB02X8568
#374

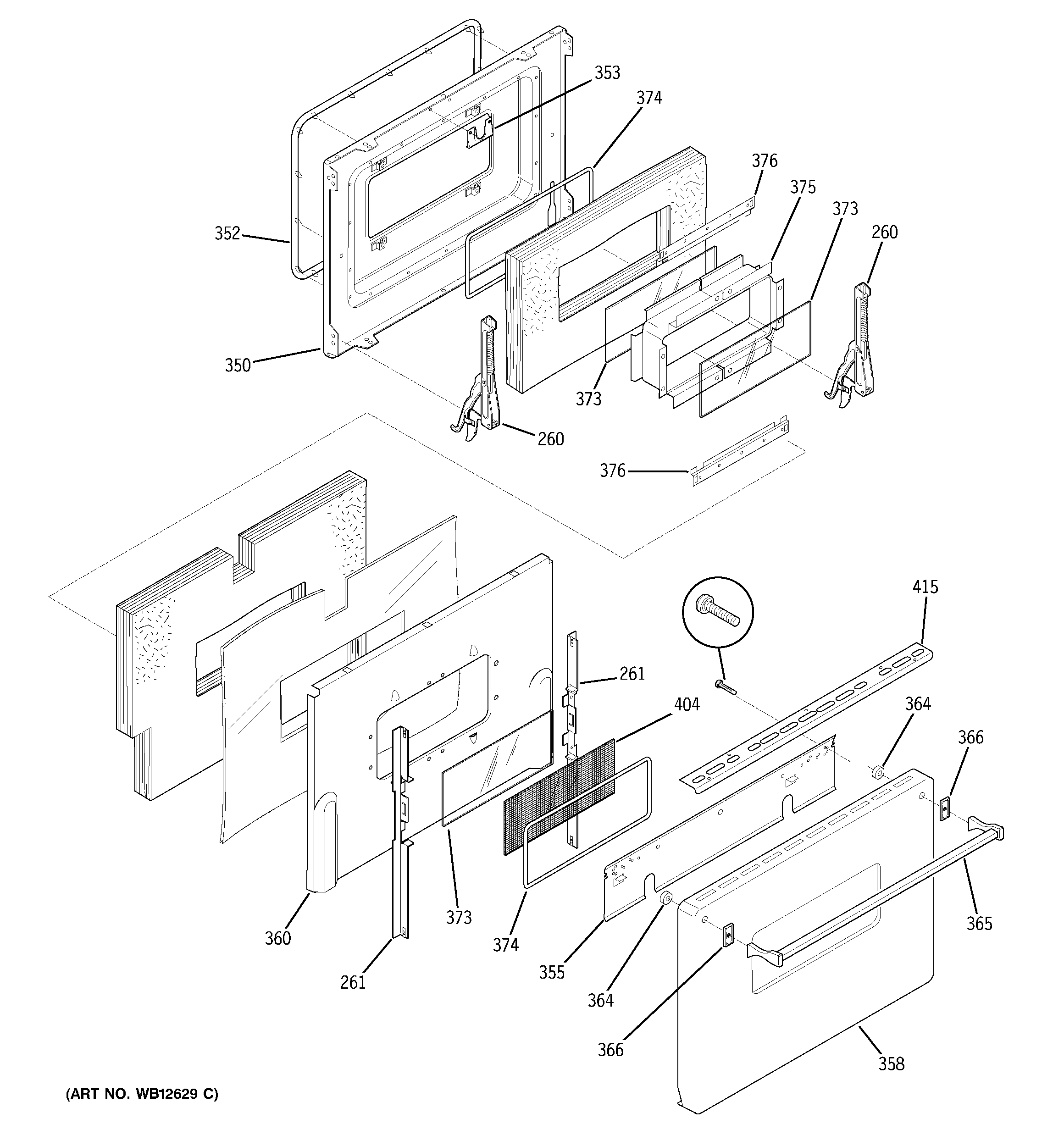

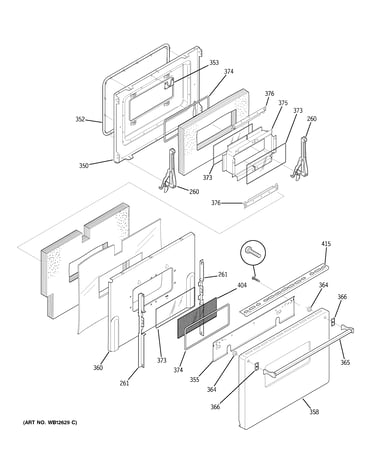

Door diagram

Rear gasket

Part #WB02X8568

The manufacturer no longer makes this part, and there's no substitute part

Latch Motor WB26X10122
#736

Body parts diagram

Latch motor

Part #WB26X10122

The manufacturer no longer makes this part, and there's no substitute part

Door Spacer WB02X10847
Door spacer

Part #WB02X10847

The manufacturer no longer makes this part, and there's no substitute part
