Front-Engine Lawn Tractor

Model # 917253650 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917253650 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

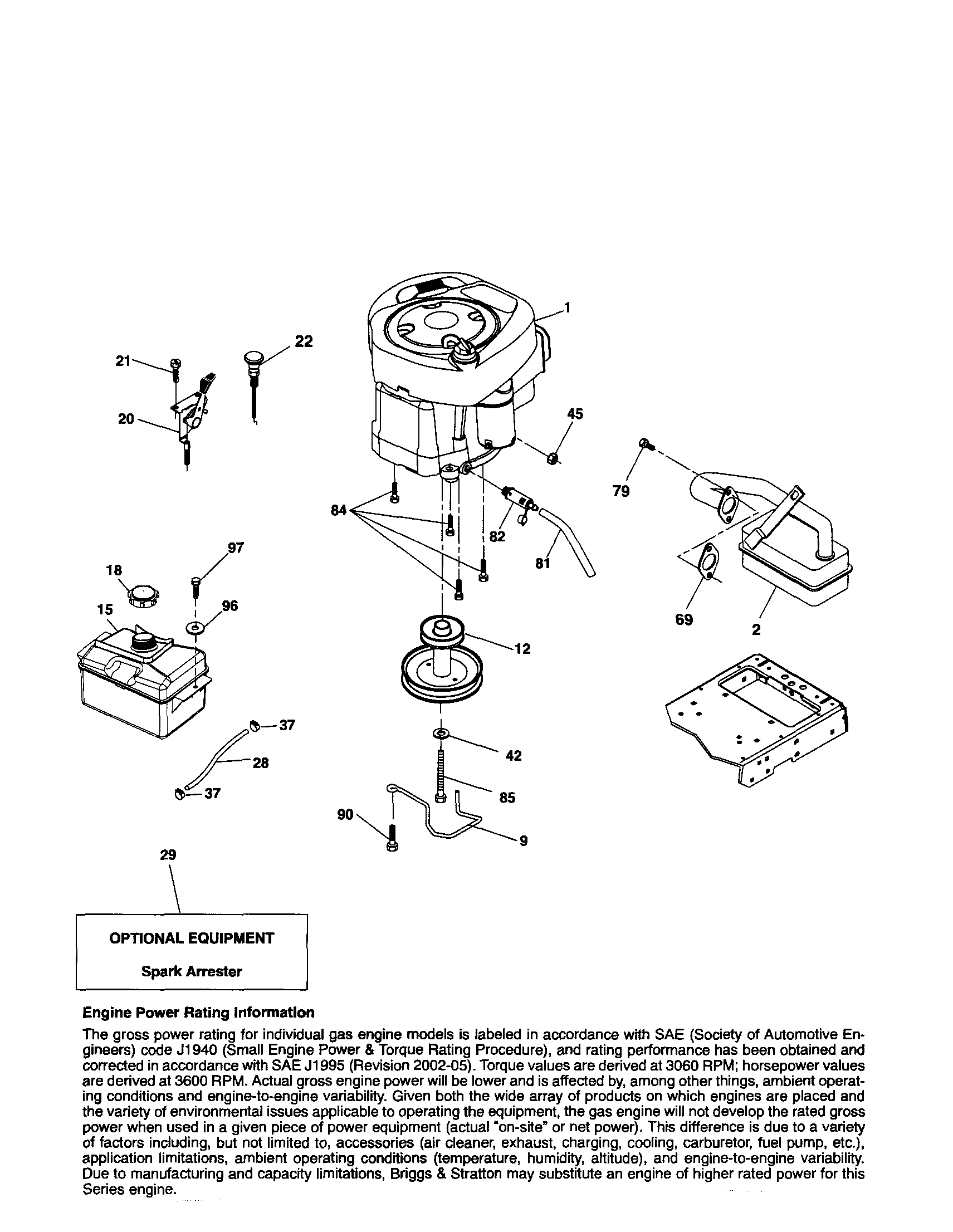

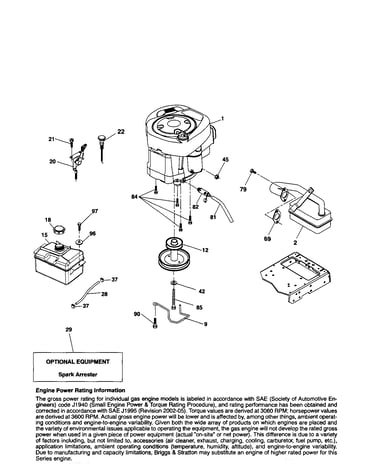

  View engine

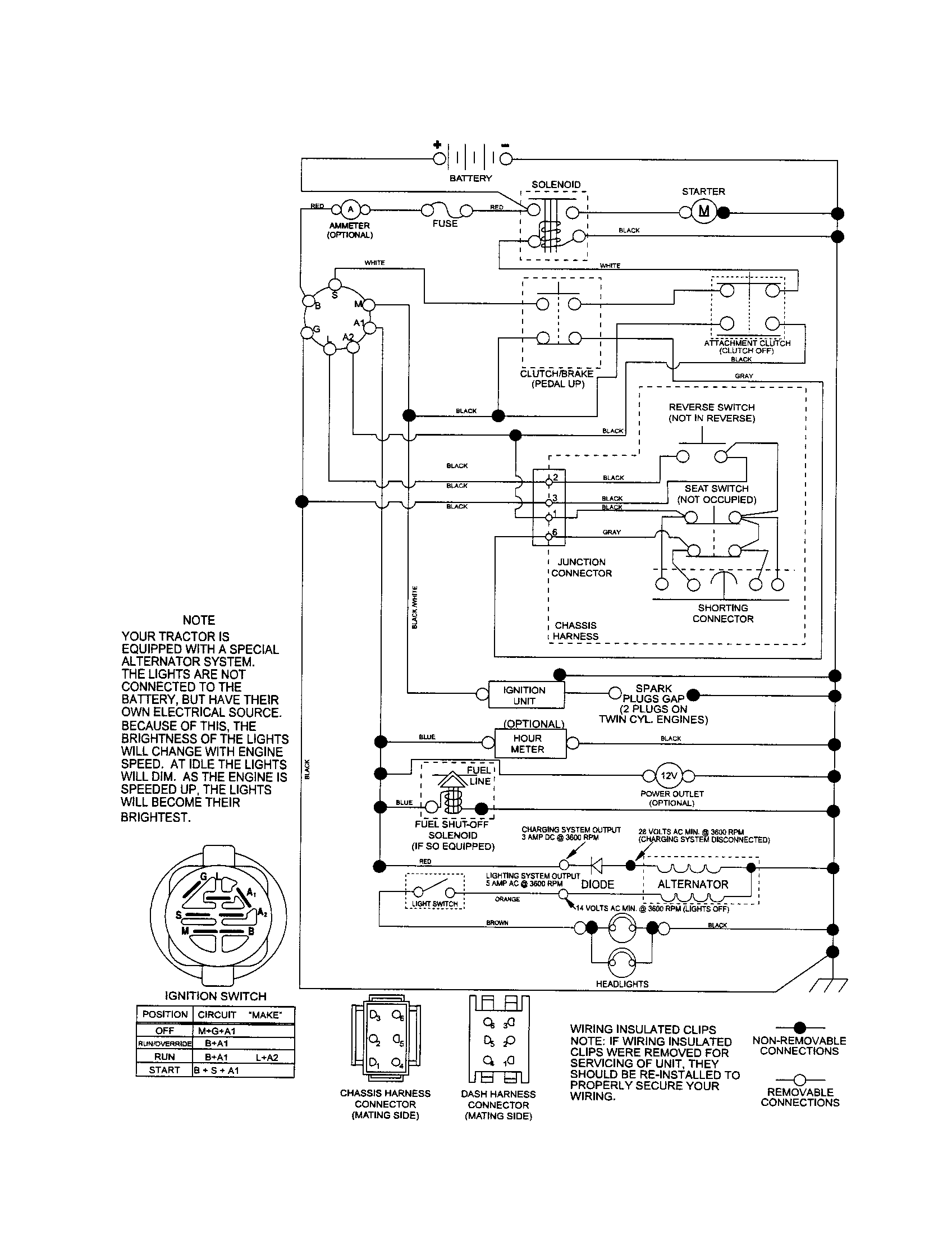

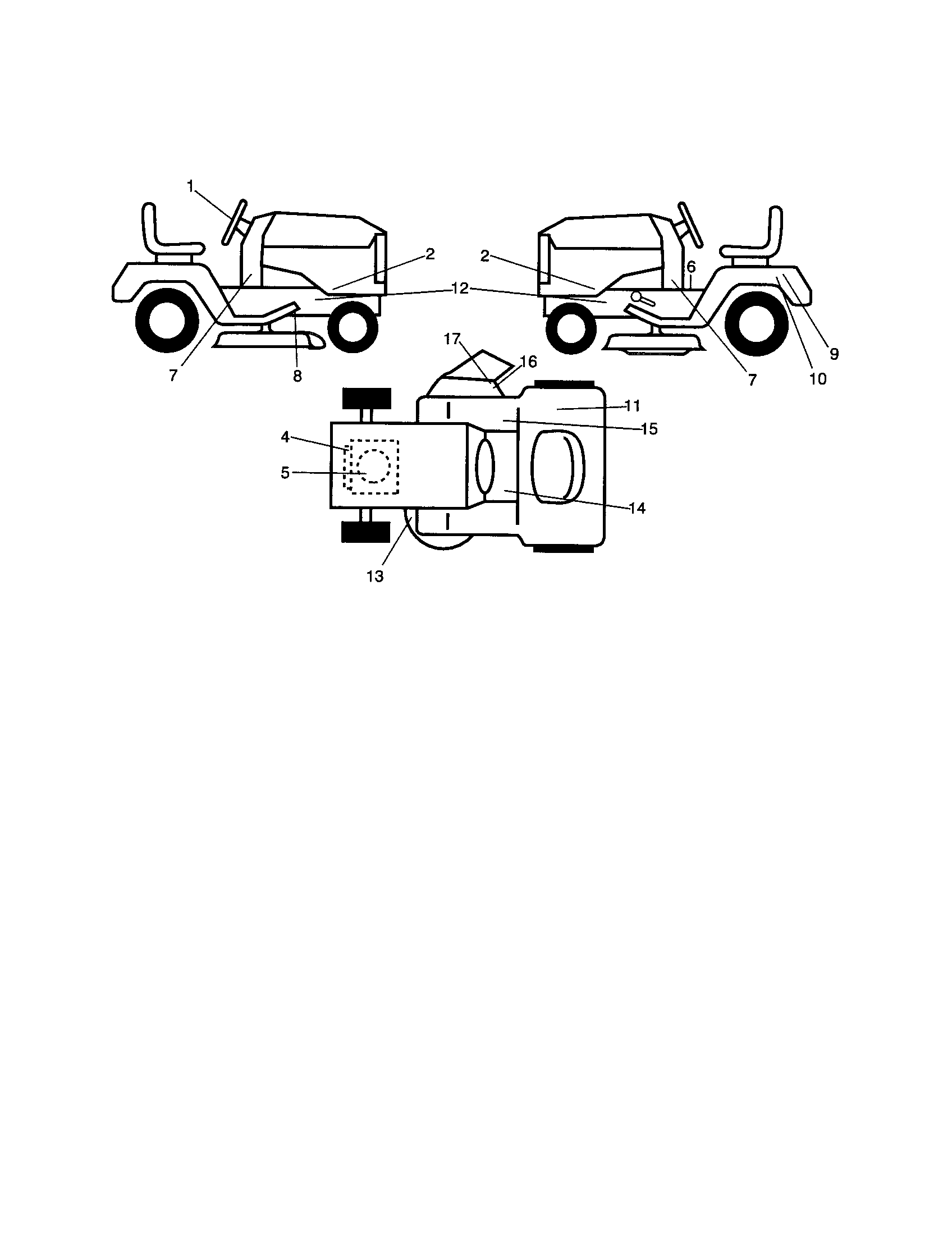

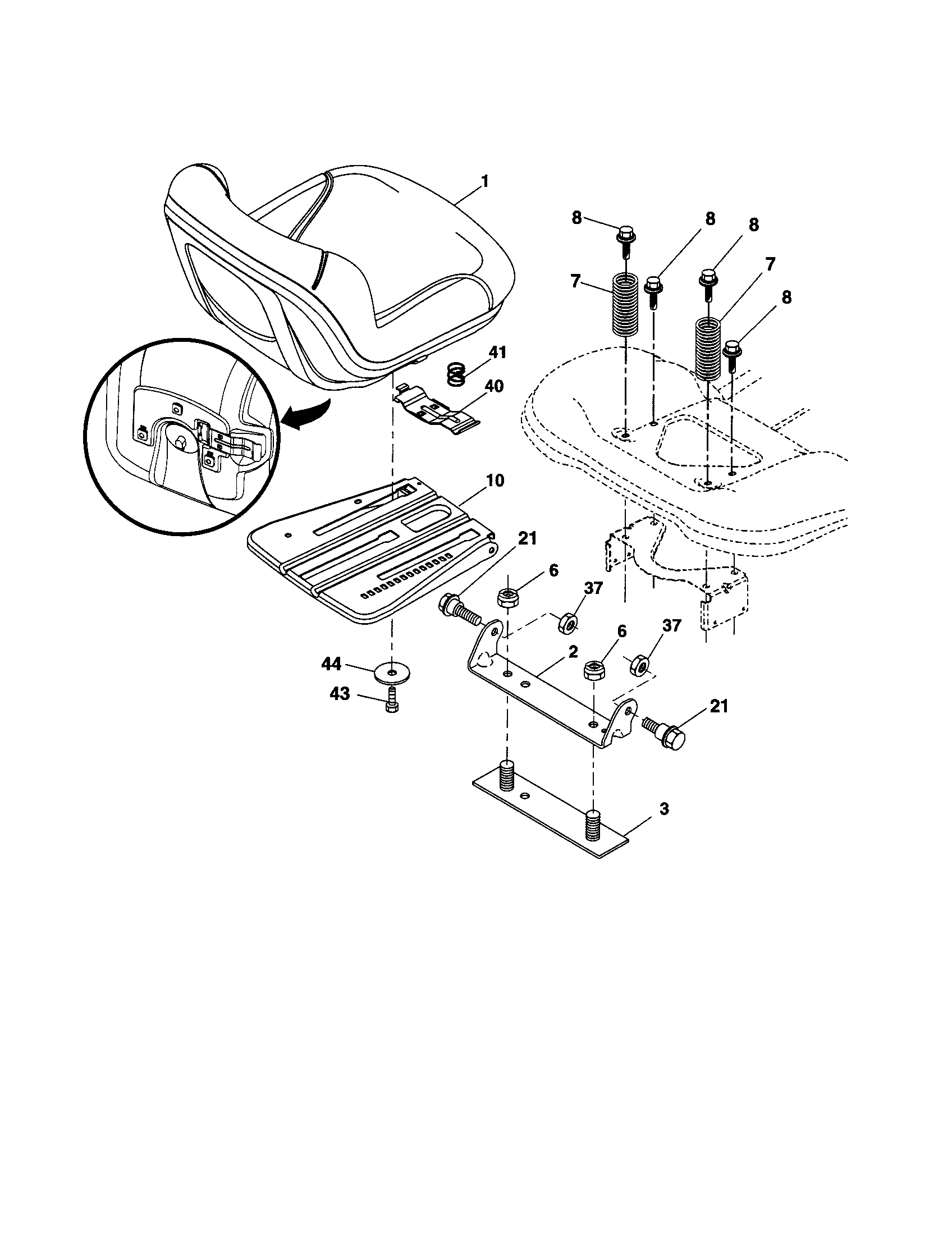

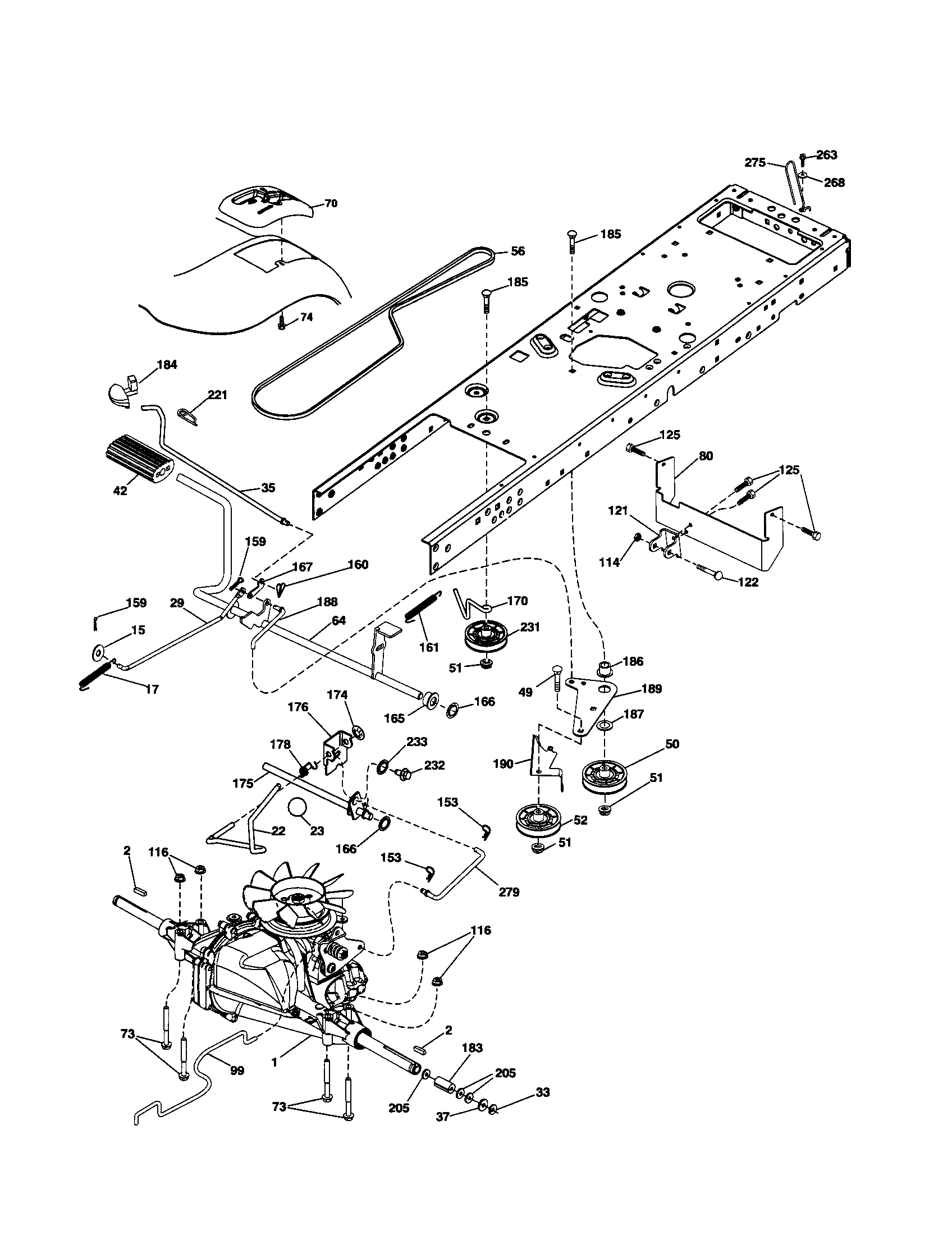

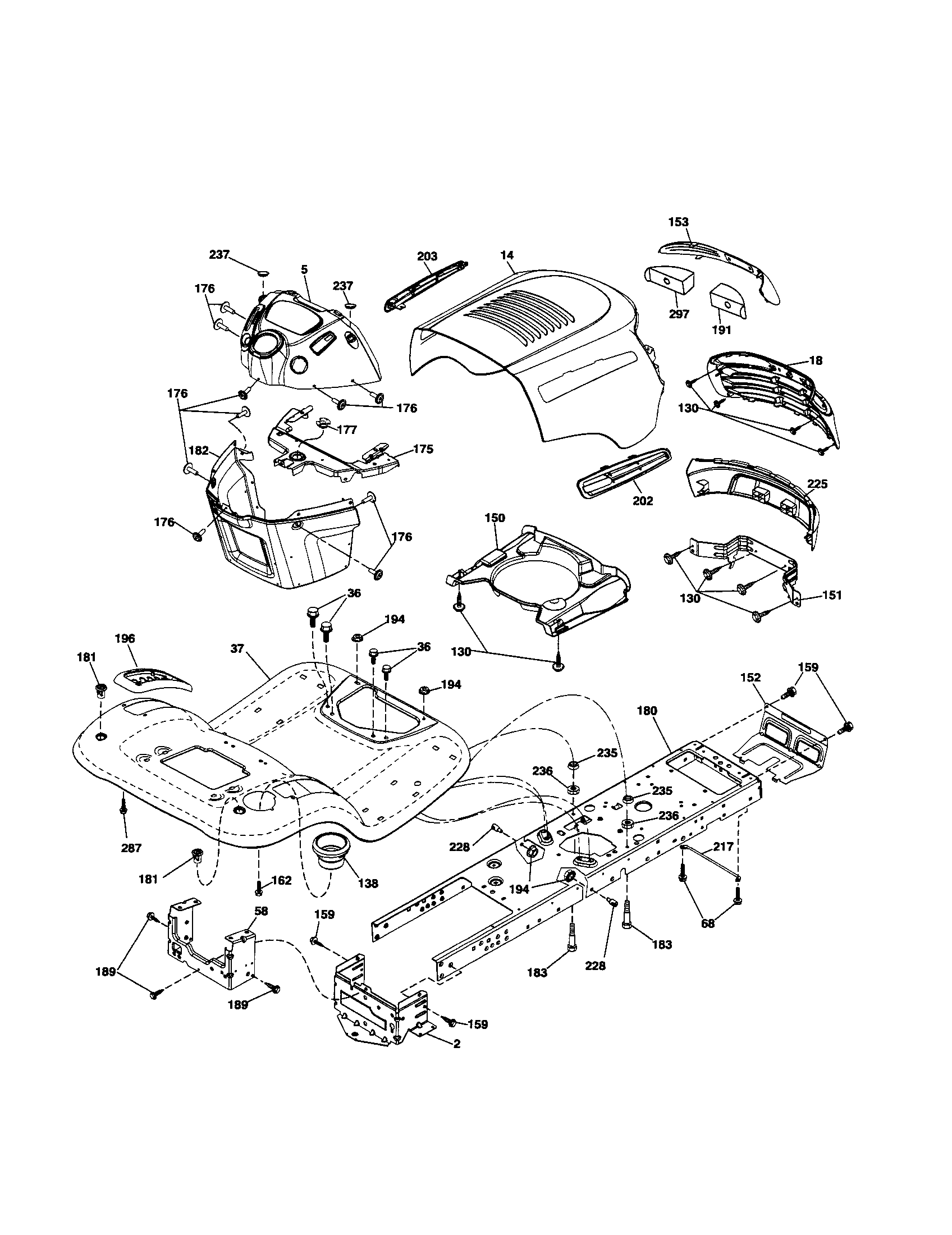

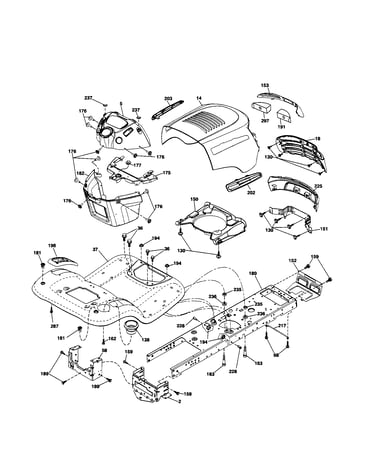

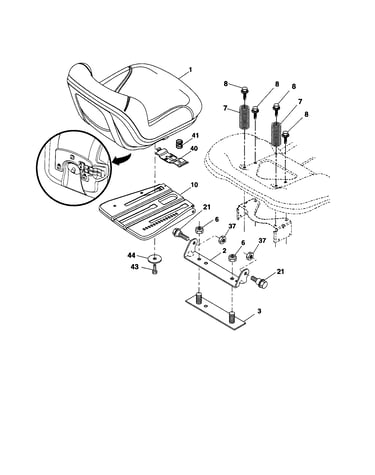

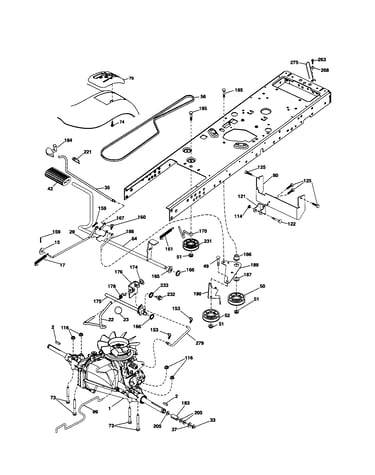

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 568 parts  |
Lawn Tractor Mandrel Shaft Assembly 192872
#13

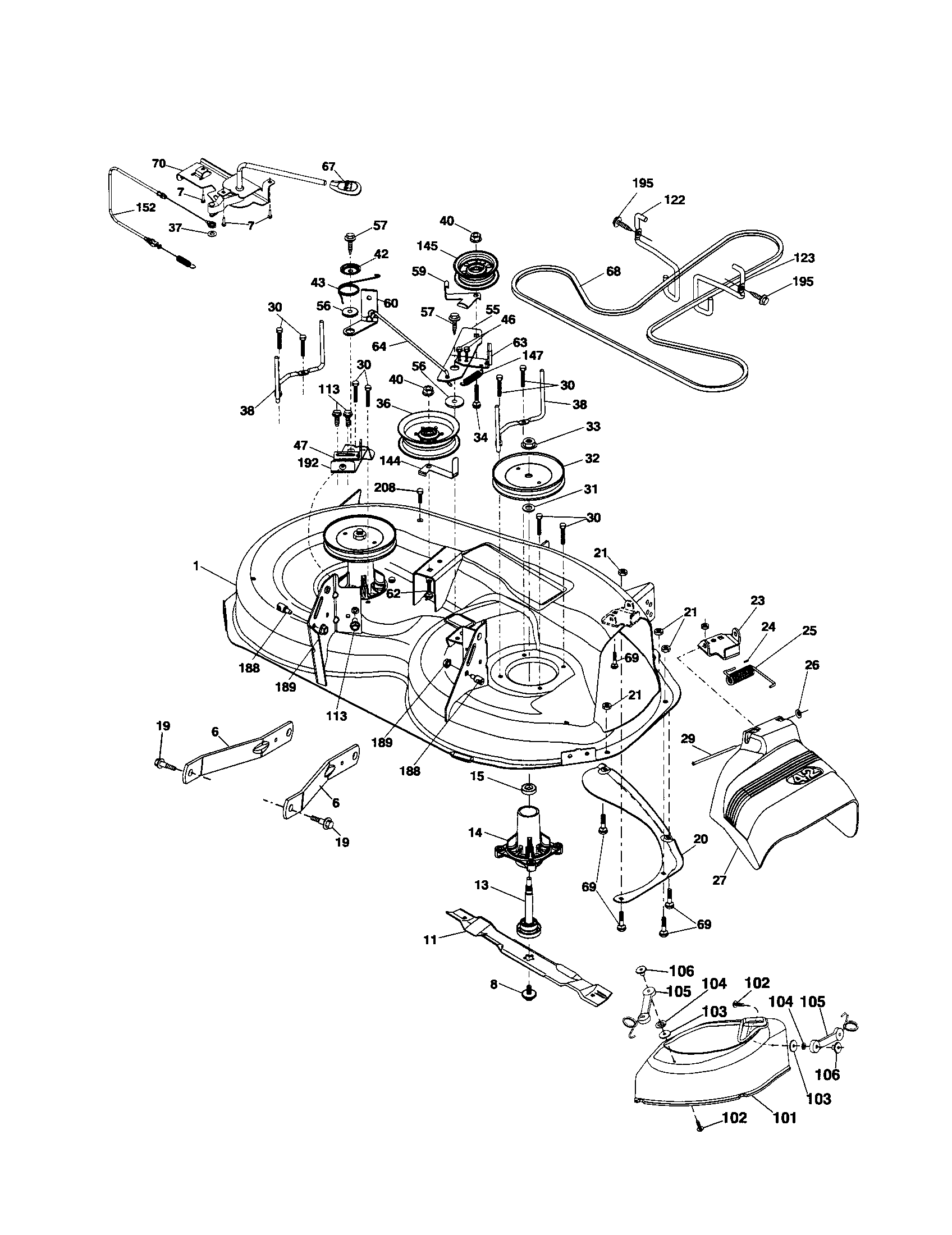

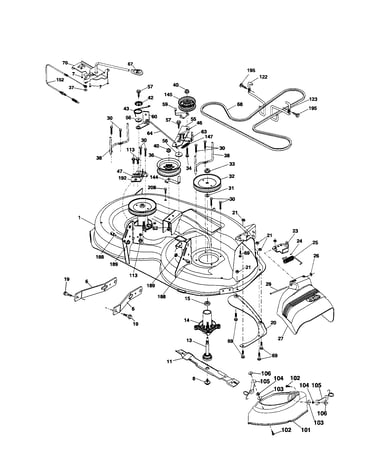

Mower diagram

Lawn tractor mandrel shaft assembly

Part #192872

Replaced by #587819701

?
Manufacturer substitution
This part replaces 192872. Substitute parts can look different from the original.
BEST SELLER
$46.13 |
12% OFF Phone Price : $52.13
In Stock
Lawn Tractor Mandrel Housing 187281
#14

Mower diagram

Lawn tractor mandrel housing

Part #187281

Replaced by #587819701

?
Manufacturer substitution
This part replaces 187281. Substitute parts can look different from the original.
BEST SELLER
$46.13 |
12% OFF Phone Price : $52.13
In Stock
Lawn Tractor Belt, 1/2 X 101-1/6-in 197253
#68

Mower diagram

Lawn tractor belt, 1/2 x 101-1/6-in

Part #197253

Replaced by #592855001

?
Manufacturer substitution
This part replaces 197253. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.30 |
16% OFF Phone Price : $38.30
In Stock
Lawn Tractor Axle Cap 104757X428
#8

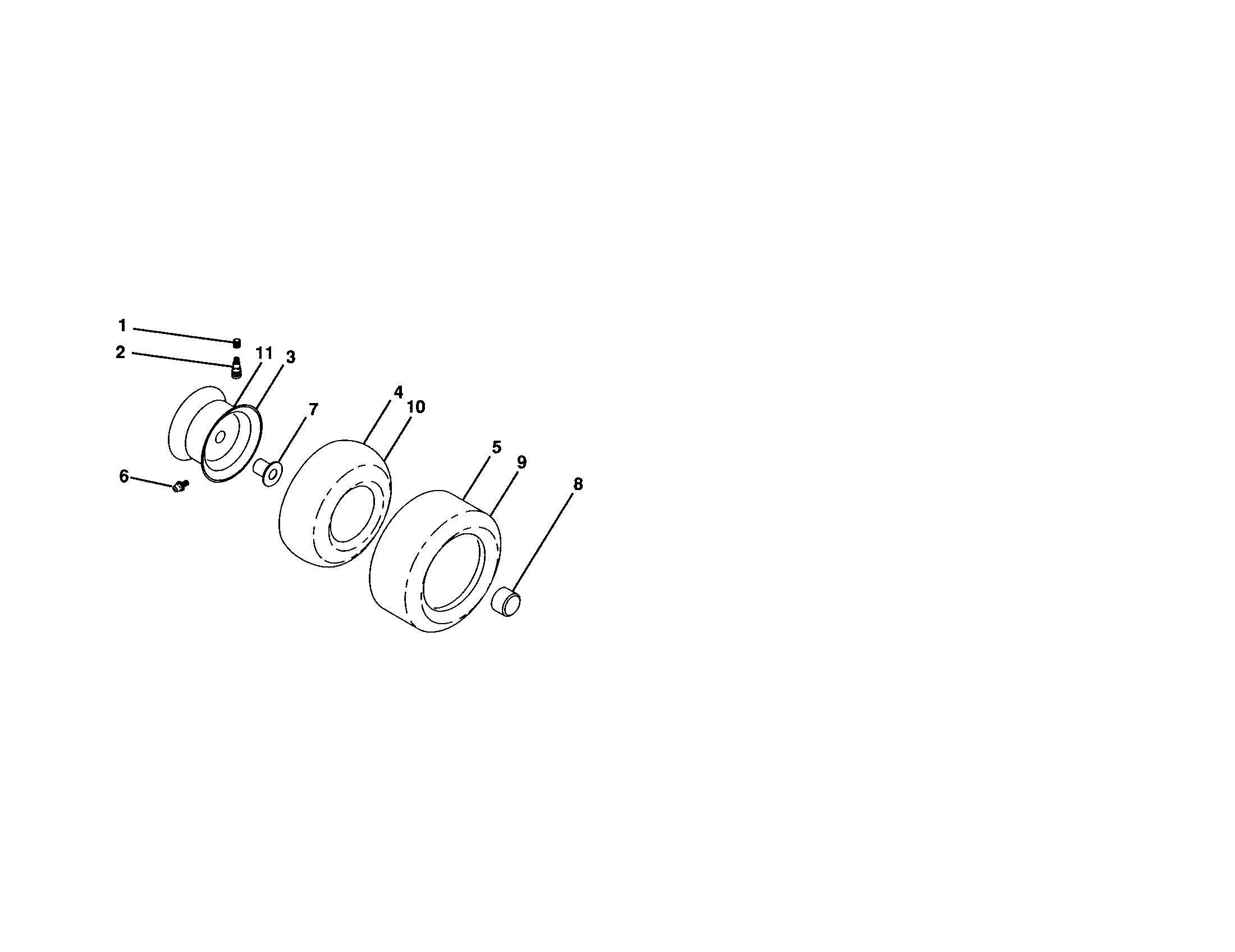

Wheels and tires diagram

Lawn tractor axle cap

Part #104757X428

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Bolt 173984
#30

Mower diagram

Lawn tractor bolt

Part #173984

Replaced by #584953901

?
Manufacturer substitution
This part replaces 173984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Ignition Switch 193350
#30

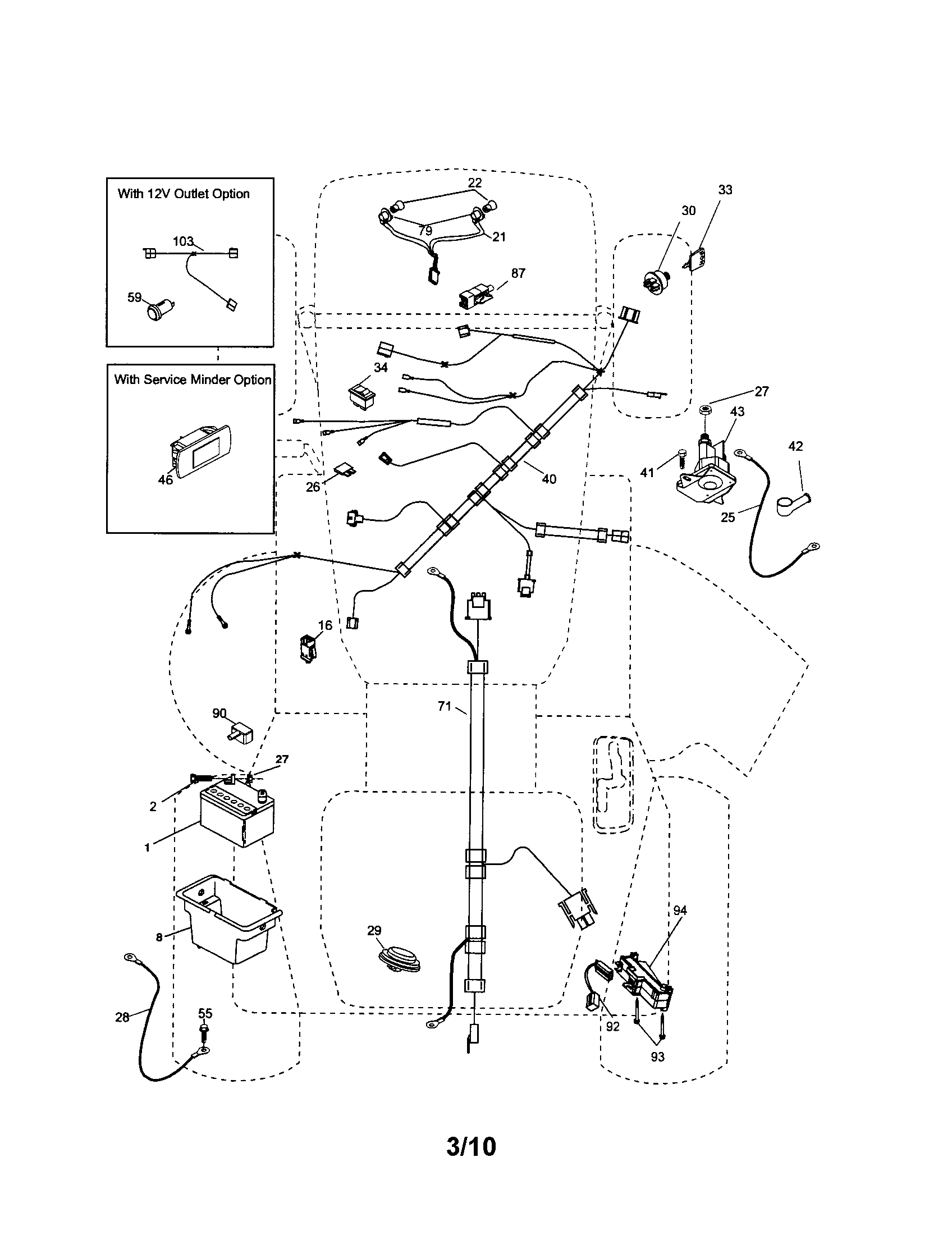

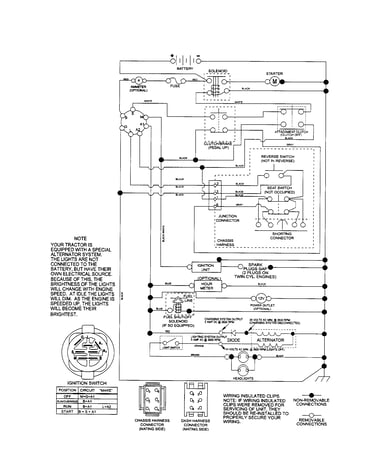

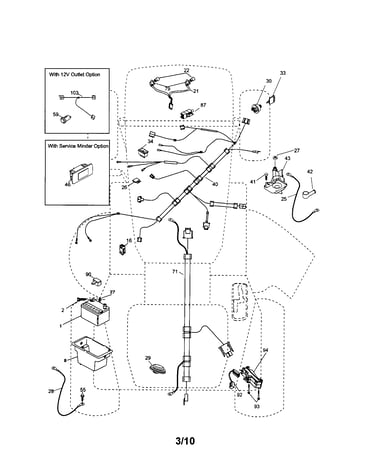

Electrical diagram

Lawn tractor ignition switch

Part #193350

Replaced by #532193350

?
Manufacturer substitution
This part replaces 193350. Substitute parts can look different from the original.
BEST SELLER
$24.60 |
20% OFF Phone Price : $30.60
In Stock
Lawn Tractor Deflector Shield Hinge Rod 131491
#29

Mower diagram

Lawn tractor deflector shield hinge rod

Part #131491

Replaced by #595297001

?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
BEST SELLER
$7.05 |
12% OFF Phone Price : $8.05
In Stock
Lawn Tractor Deck Link 195270
#98

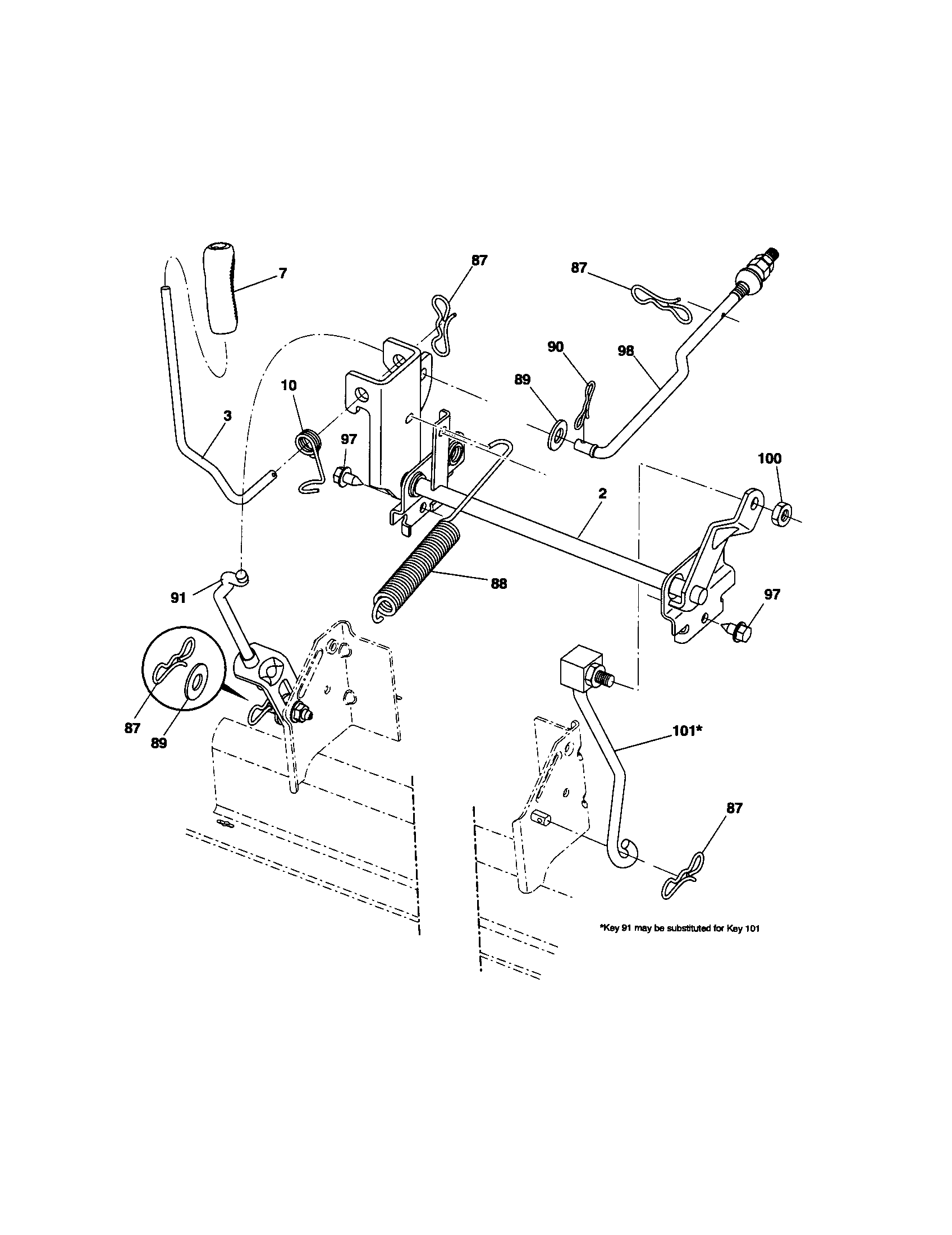

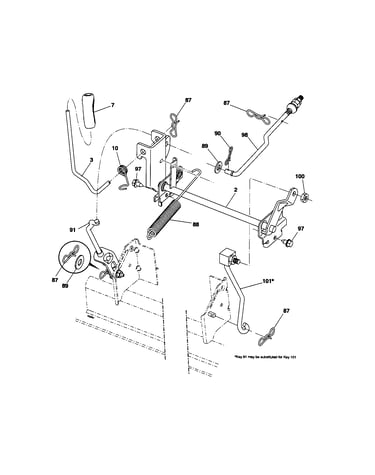

Mower lift diagram

Lawn tractor deck link

Part #195270

Replaced by #581506903

?
Manufacturer substitution
This part replaces 195270. Substitute parts can look different from the original.
BEST SELLER
$13.70 |
13% OFF Phone Price : $15.70
In Stock
Lawn Tractor Drag Link, Left 194740
#61

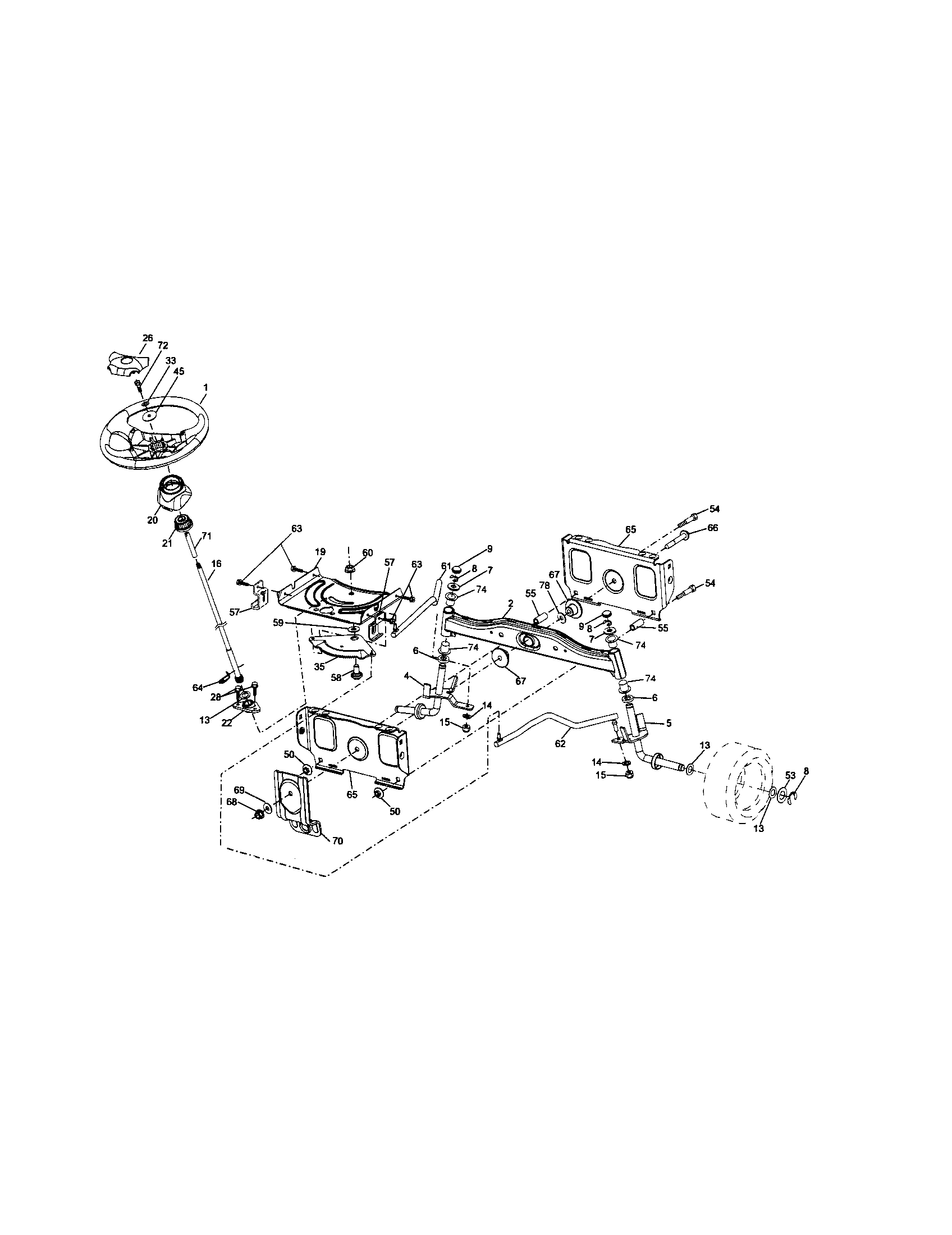

Steering diagram

Lawn tractor drag link, left

Part #194740

Replaced by #597047802

?
Manufacturer substitution
This part replaces 194740. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Lawn Tractor Wheel Rim, Front 106732X613
#3

Wheels and tires diagram

Lawn tractor wheel rim, front

Part #106732X613

Replaced by #532106732

?
Manufacturer substitution
This part replaces 106732X613. Substitute parts can look different from the original.
BEST SELLER
$76.59 |
7% OFF Phone Price : $82.59
In Stock
