Husqvarna
Front-Engine Lawn Tractor

Model # HCYTH180C Official Husqvarna tractor

Here are the diagrams and repair parts for Official Husqvarna HCYTH180C tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

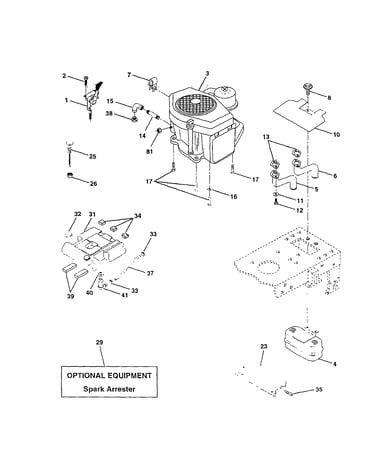

  View engine

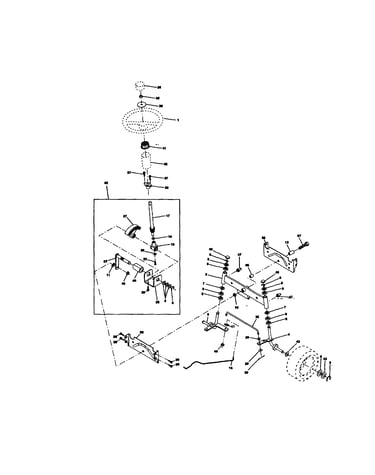

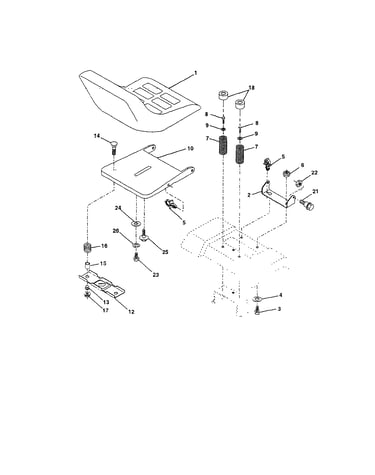

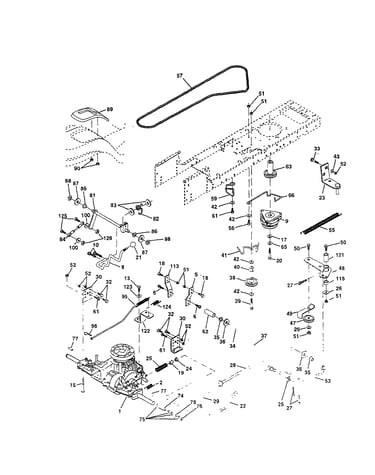

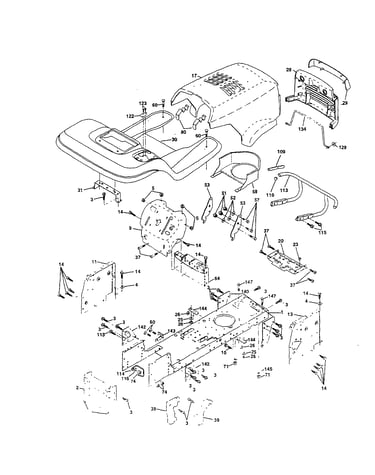

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 386 parts  |
Lawn Tractor Blade Drive Belt, 1/2 X 95-1/4-in (replaces 144959) 532144959
#47

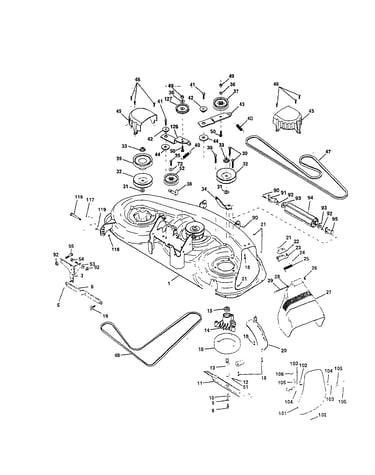

Mower deck diagram

Lawn tractor blade drive belt, 1/2 x 95-1/4-in (replaces 144959)

Part #532144959

BEST SELLER

Get free shipping with Automatic Reorder

$36.74 |
14% OFF Phone Price : $42.74
In Stock
Lawn Tractor Axle Cap (replaces 104757x428) 532104757
#11

Wheels and tires diagram

Lawn tractor axle cap (replaces 104757x428)

Part #532104757

BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Nut 532145212
#49

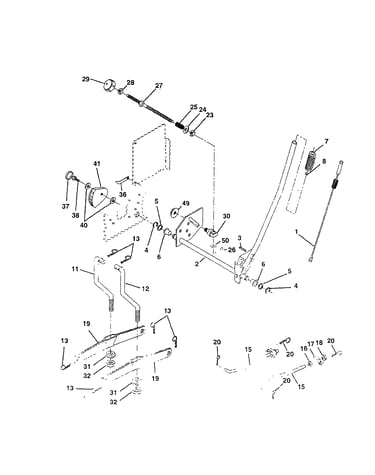

Mower lift diagram

Hex flange nut

Part #532145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 532145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Solenoid 532145673
#43

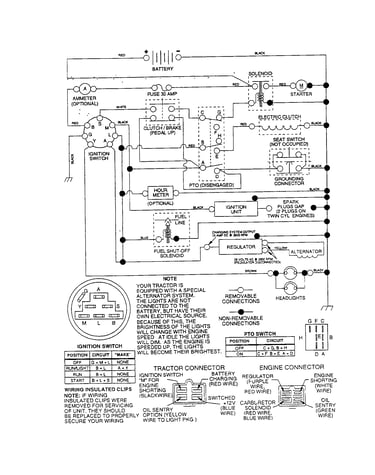

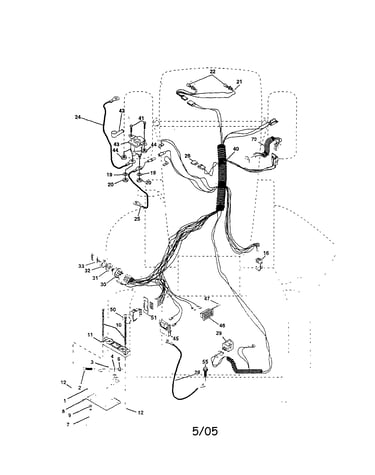

Electrical diagram

Solenoid

Part #532145673

Replaced by #532146154

?
Manufacturer substitution
This part replaces 532145673. Substitute parts can look different from the original.
BEST SELLER
$24.60 |
20% OFF Phone Price : $30.60
In Stock
Idler Pulley 532131494
#37

Mower deck diagram

Idler pulley

Part #532131494

Replaced by #532173438

?
Manufacturer substitution
This part replaces 532131494. Substitute parts can look different from the original.
BEST SELLER
$16.90 |
11% OFF Phone Price : $18.90
In Stock
Shoulder Bolt 532137644
#116

Mower deck diagram

Shoulder bolt

Part #532137644

Replaced by #596434404

?
Manufacturer substitution
This part replaces 532137644. Substitute parts can look different from the original.
BEST SELLER
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Tire 532106222
#3

Wheels and tires diagram

Tire

Part #532106222

Replaced by #532122073

?
Manufacturer substitution
This part replaces 532106222. Substitute parts can look different from the original.
BEST SELLER
$61.64 |
9% OFF Phone Price : $67.64
In Stock
Lawn & Garden Equipment Washer 819121414
#119

Mower deck diagram

Lawn & garden equipment washer

Part #819121414

Replaced by #596134901

?
Manufacturer substitution
This part replaces 819121414. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Lawn Tractor Primary Blade Drive Belt, 1/2 X 83-1/2-in (replaces 139573) 532139573
#48

Mower deck diagram

Lawn tractor primary blade drive belt, 1/2 x 83-1/2-in (replaces 139573)

Part #532139573

BEST SELLER

Get free shipping with Automatic Reorder

$44.99 |
12% OFF Phone Price : $50.99
In Stock
Rim 6" 532138336
#5

Wheels and tires diagram

Rim 6"

Part #532138336

Replaced by #532106732

?
Manufacturer substitution
This part replaces 532138336. Substitute parts can look different from the original.
BEST SELLER
$78.96 |
7% OFF Phone Price : $84.96
In Stock
