Model # 143236062 Official Craftsman 4-cycle engine
Here are the diagrams and repair parts for Official Craftsman 143236062 4-cycle engine, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

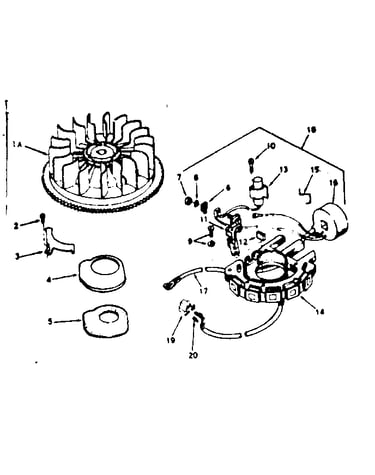

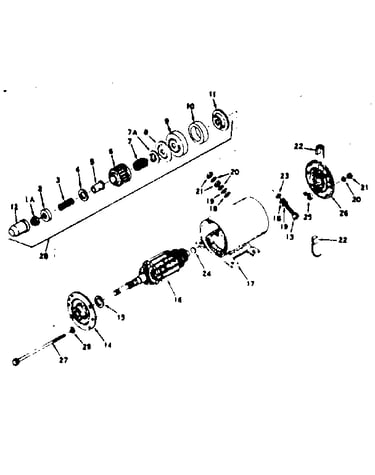

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 211 parts |
#20

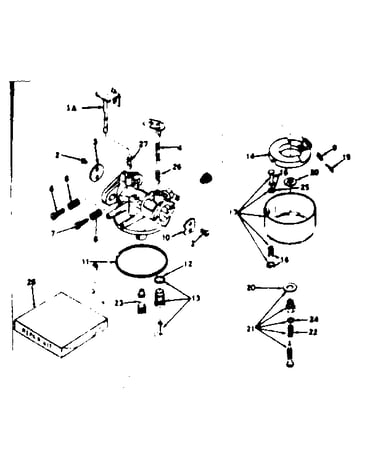

Carburetor no. 631697 diagram
Gasket
Part #27110
The manufacturer no longer makes this part, and there's no substitute part
#82

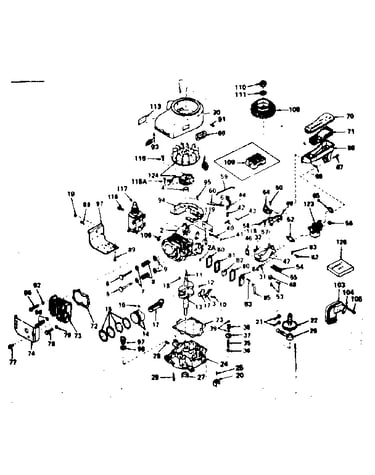

Basic engine diagram
Breather element air filter
Part #28424
The manufacturer no longer makes this part, and there's no substitute part
#65
Basic engine diagram
Gasket
Part #33629
The manufacturer no longer makes this part, and there's no substitute part
#37
Basic engine diagram
Governor gear assembly
Part #30591
The manufacturer no longer makes this part, and there's no substitute part
#85
Basic engine diagram
Tube
Part #27627
The manufacturer no longer makes this part, and there's no substitute part
#25
Carburetor no. 631697 diagram
Gasket
Part #27554
The manufacturer no longer makes this part, and there's no substitute part
#111
Basic engine diagram
Flat washer
Part #650490
The manufacturer no longer makes this part, and there's no substitute part
#3
Starter motor 33605 (71/143) diagram
Spring retainer
Part #33430
Replaced by #33843
?
Manufacturer substitution
This part replaces 33430. Substitute parts can look different from the original.
$8.80
In Stock
#105
Basic engine diagram
Screw
Part #650729
The manufacturer no longer makes this part, and there's no substitute part
#1
Starter motor 33605 (71/143) diagram
Motor
Part #33605
Replaced by #36680
?
Manufacturer substitution
This part replaces 33605. Substitute parts can look different from the original.
$183.97 |
6% OFF Phone Price : $195.97
In Stock
