Model # CYG1000AWW Official Magic Chef washer/dryer

Here are the diagrams and repair parts for Official Magic Chef CYG1000AWW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

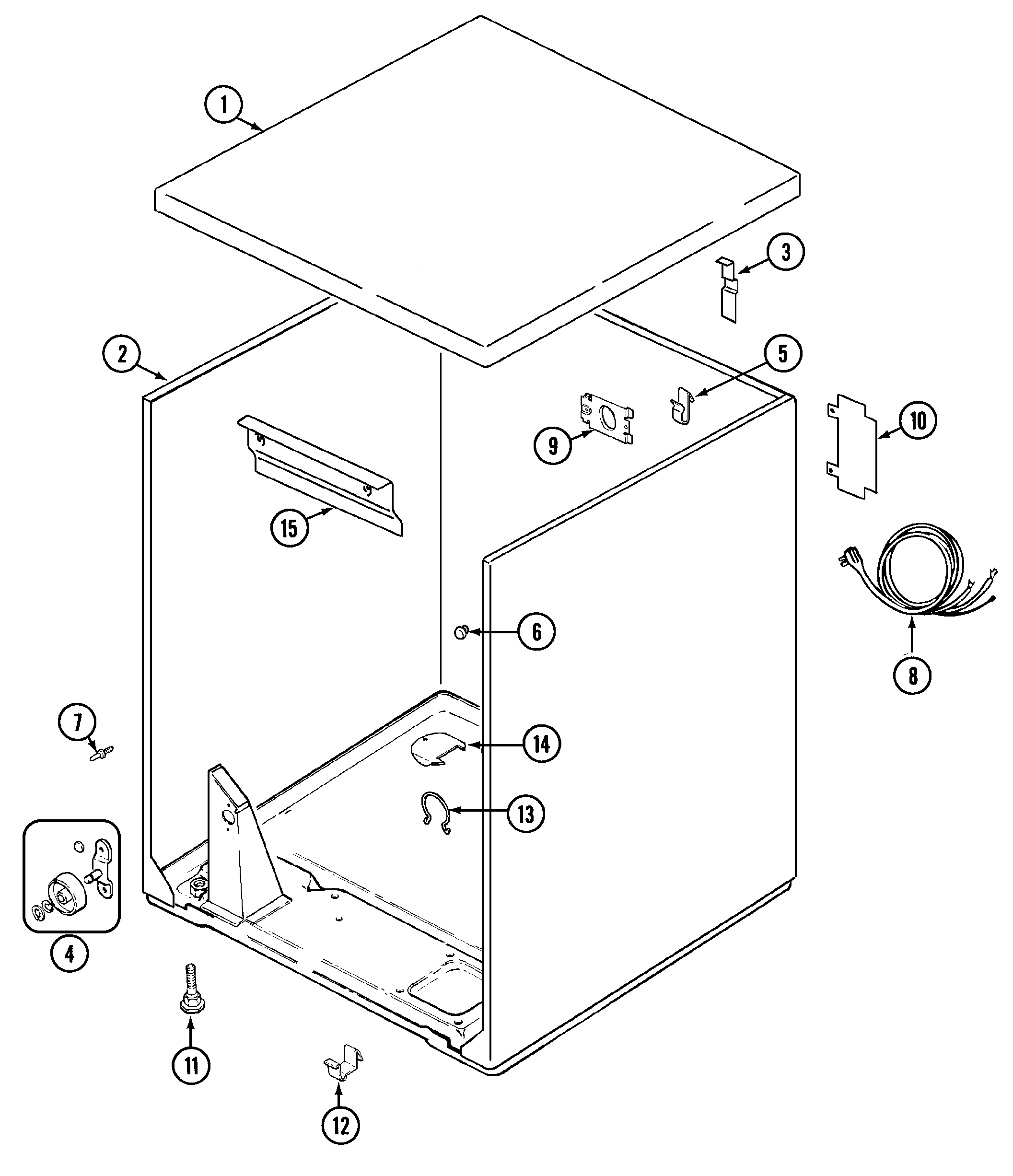

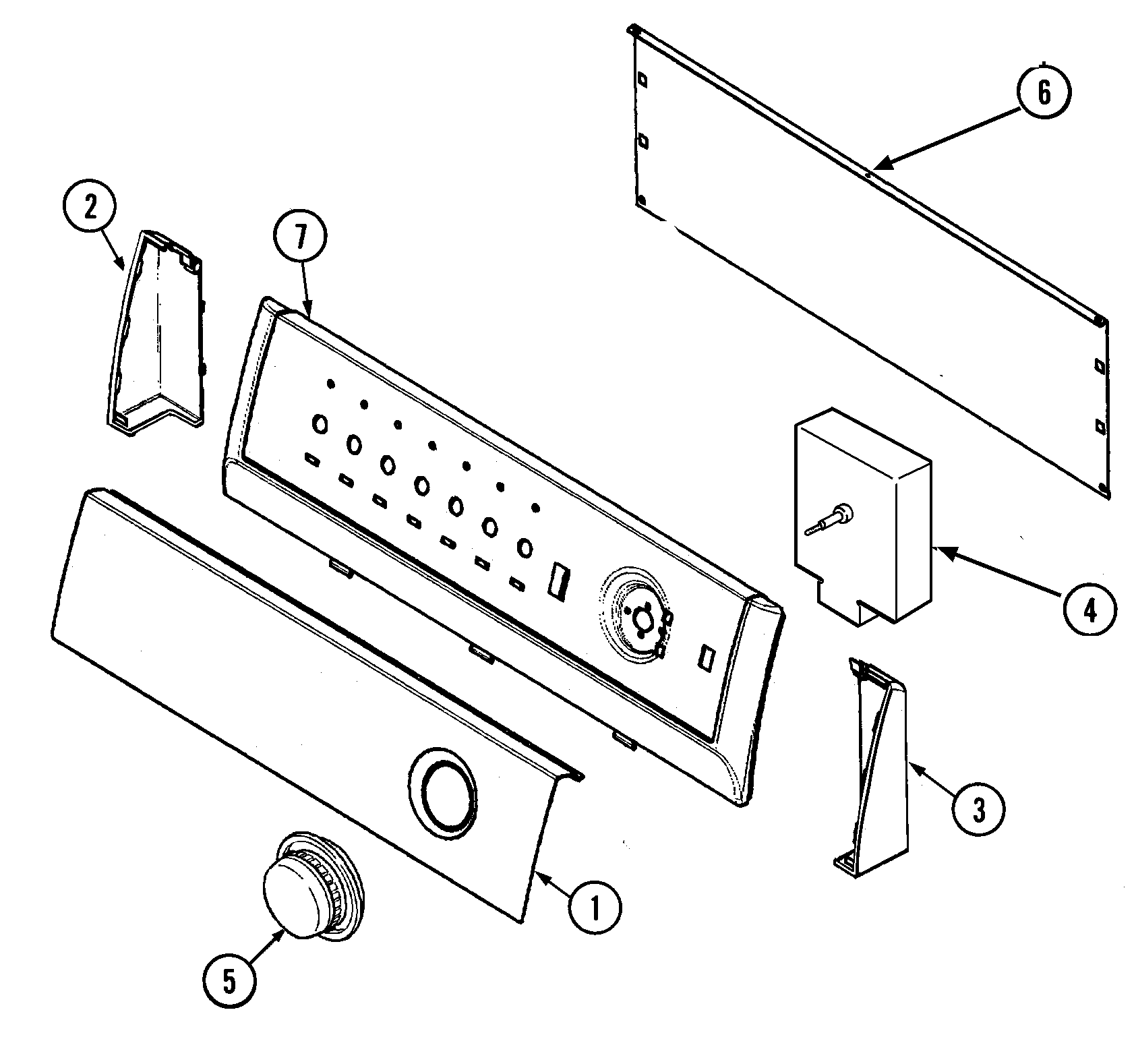

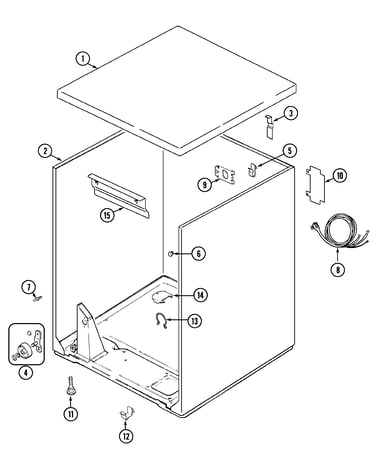

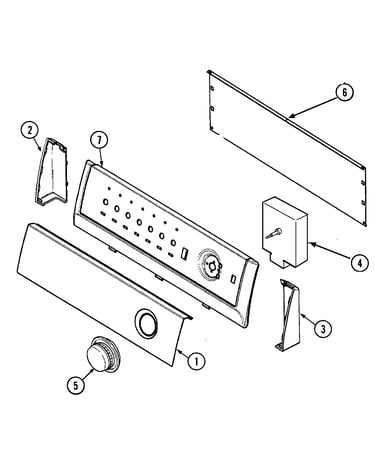

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Dryer Drum Belt 31531589
#5

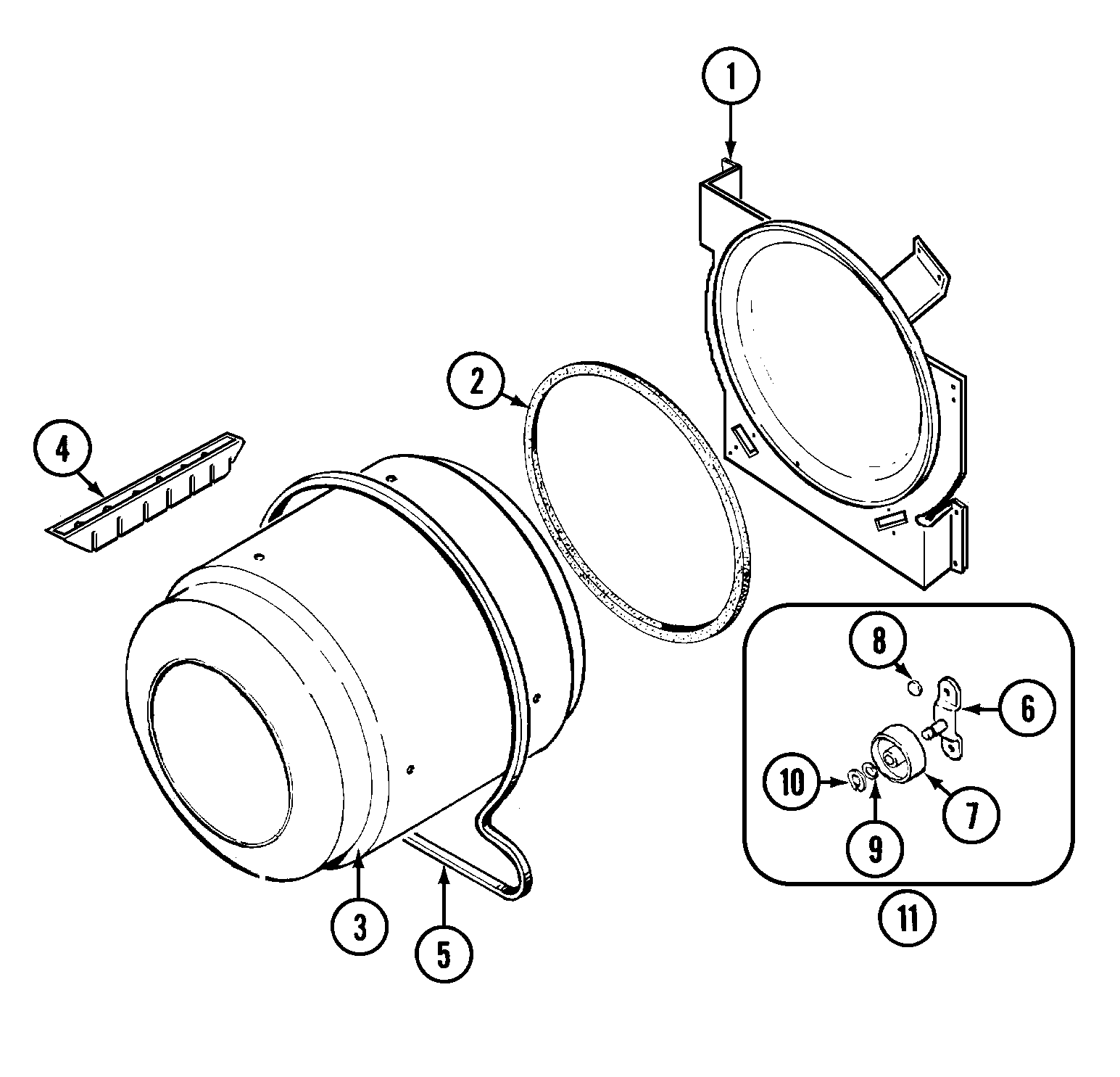

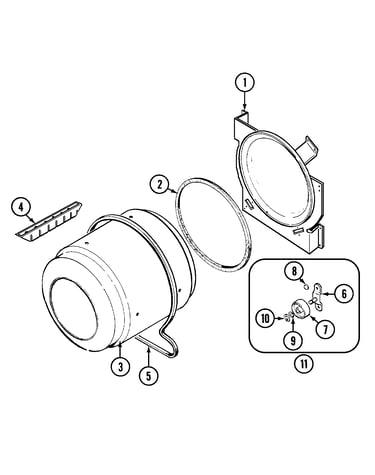

Tumbler diagram

Dryer drum belt

Part #31531589

Replaced by #341241

?
Manufacturer substitution
This part replaces 31531589. Substitute parts can look different from the original.
BEST SELLER
$12.18 |
14% OFF Phone Price : $14.18
In Stock
Dryer Valve Coil Kit 12001349
#3

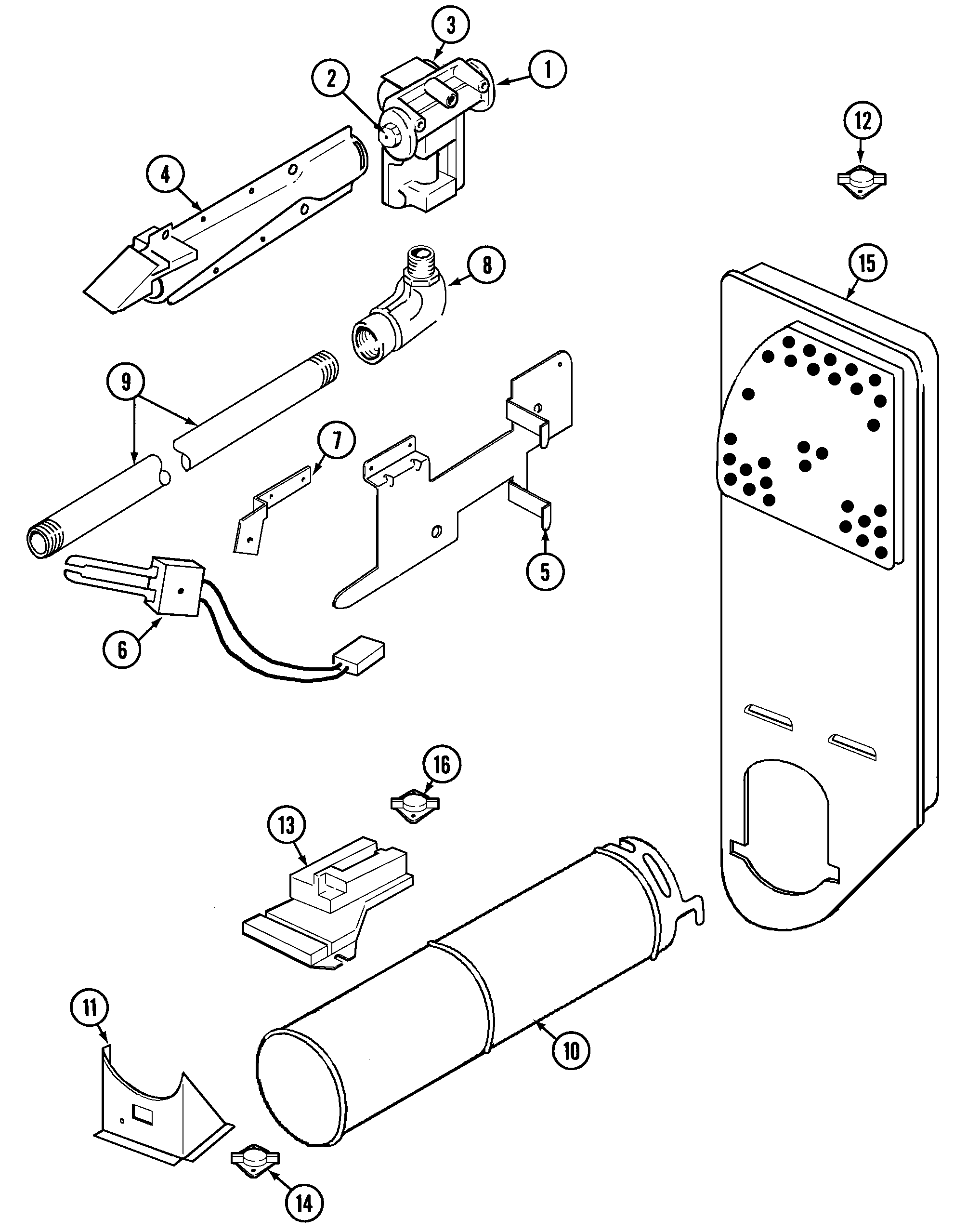

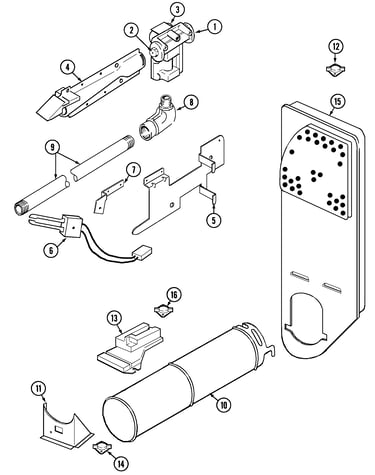

Gas carrying diagram

Dryer valve coil kit

Part #12001349

Replaced by #279834

?
Manufacturer substitution
This part replaces 12001349. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Sensor 63-5013
#13

Gas carrying diagram

Sensor

Part #63-5013

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 63-5013. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Dryer Thermal Fuse Kit (replaces 53-0143, 53-0261, 53-1096, 53-1133, 53-1182, 53-1526) LA-1053
#14

Gas carrying diagram

Dryer thermal fuse kit (replaces 53-0143, 53-0261, 53-1096, 53-1133, 53-1182, 53-1526)

Part #LA-1053

$35.29 |
15% OFF Phone Price : $41.29
In Stock
Outer Screw 25-7770
#11A

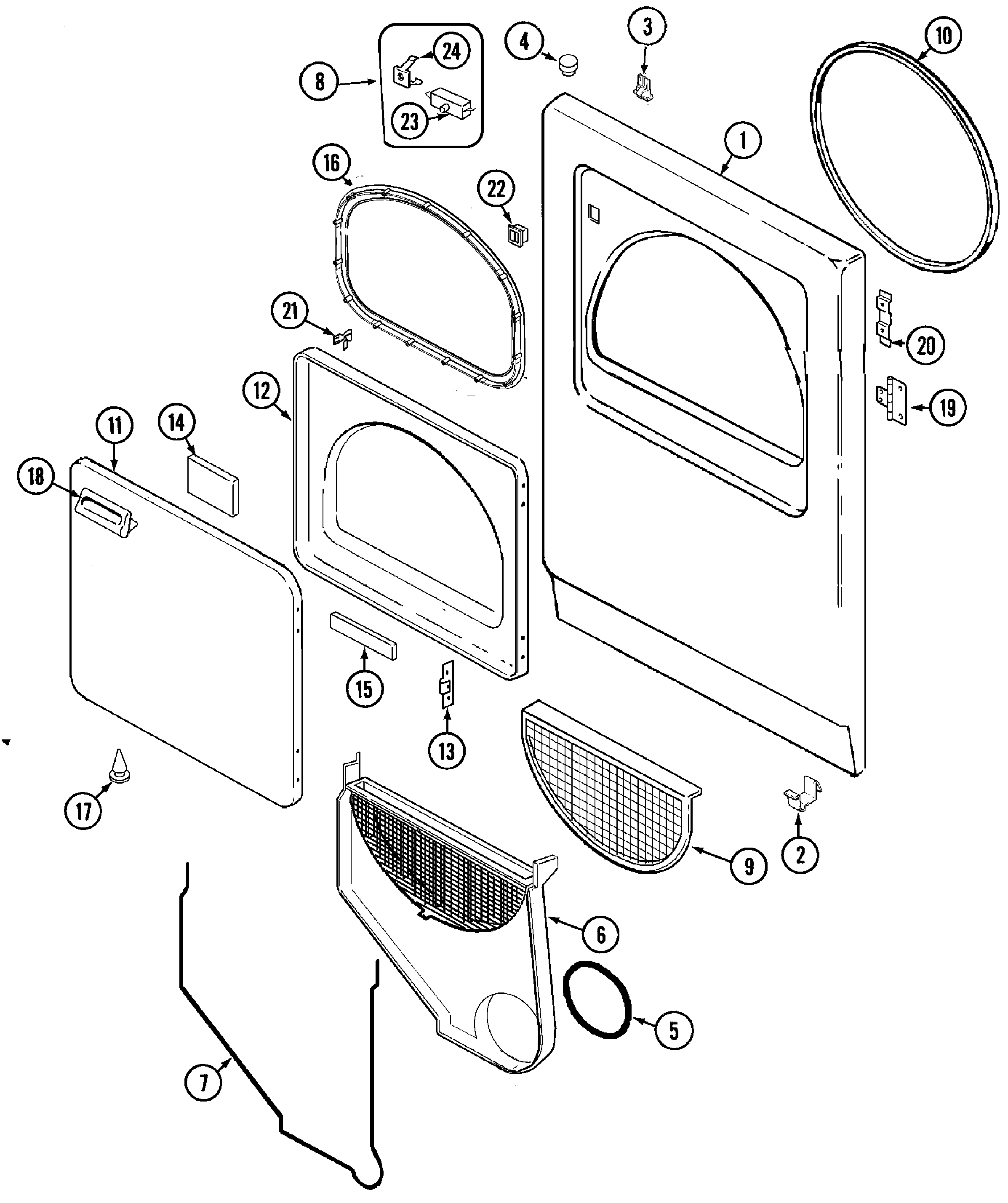

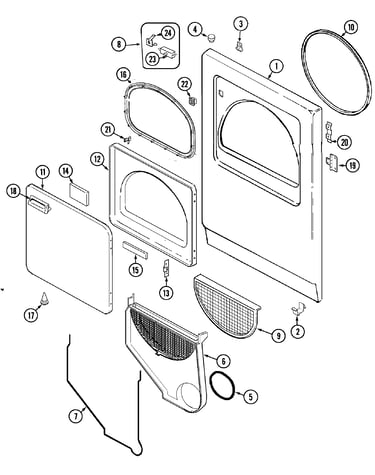

Door diagram

Outer screw

Part #25-7770

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 25-7770. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dryer Drive Motor Pulley 31001535
#1A

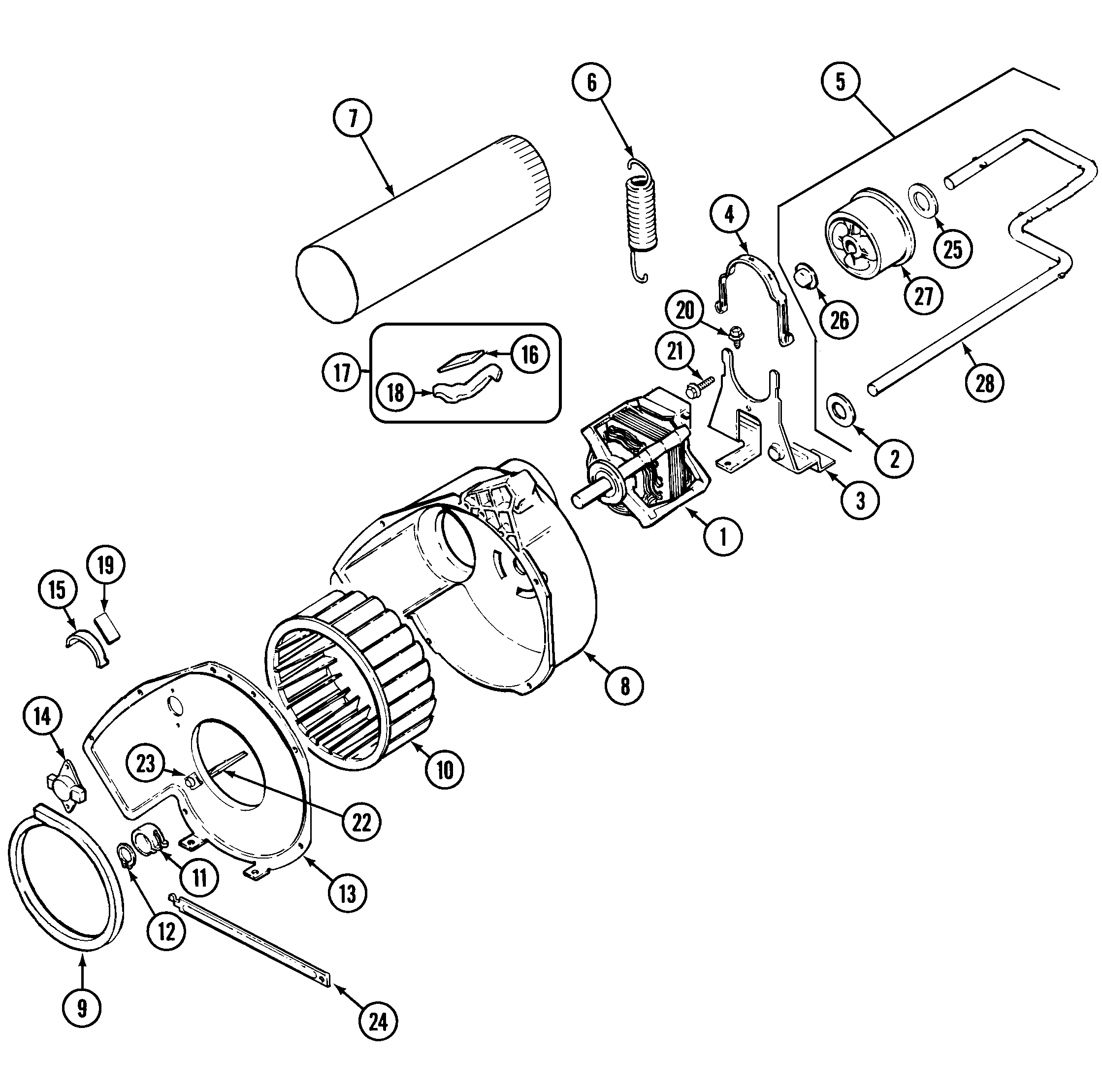

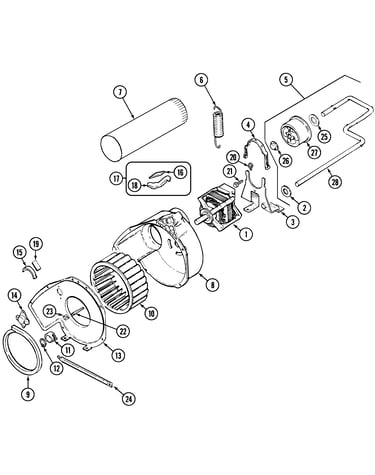

Motor & drive diagram

Dryer drive motor pulley

Part #31001535

Replaced by #WP31001535

?
Manufacturer substitution
This part replaces 31001535. Substitute parts can look different from the original.
$53.03 |
10% OFF Phone Price : $59.03
In Stock
Idler Arm 53-2250
#28

Motor & drive diagram

Idler arm

Part #53-2250

Replaced by #WP53-2287

?
Manufacturer substitution
This part replaces 53-2250. Substitute parts can look different from the original.
$79.27 |
7% OFF Phone Price : $85.27
In Stock
Idler Assembly 53-2287
#5

Motor & drive diagram

Idler assembly

Part #53-2287

Replaced by #WP53-2287

?
Manufacturer substitution
This part replaces 53-2287. Substitute parts can look different from the original.
$79.27 |
7% OFF Phone Price : $85.27
In Stock
Dryer Screw 25-7101
#6A

Tumbler diagram

Dryer screw

Part #25-7101

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 25-7101. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Door Seal 53-0648
#16

Door diagram

Door seal

Part #53-0648

Replaced by #WP31001529

?
Manufacturer substitution
This part replaces 53-0648. Substitute parts can look different from the original.
$54.80 |
10% OFF Was : $60.89
In Stock
