Model # MR15F1 Official Frigidaire dehumidifier - lf34588010

Here are the diagrams and repair parts for Official Frigidaire MR15F1 dehumidifier - lf34588010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Cover, Term. 8012922
#3

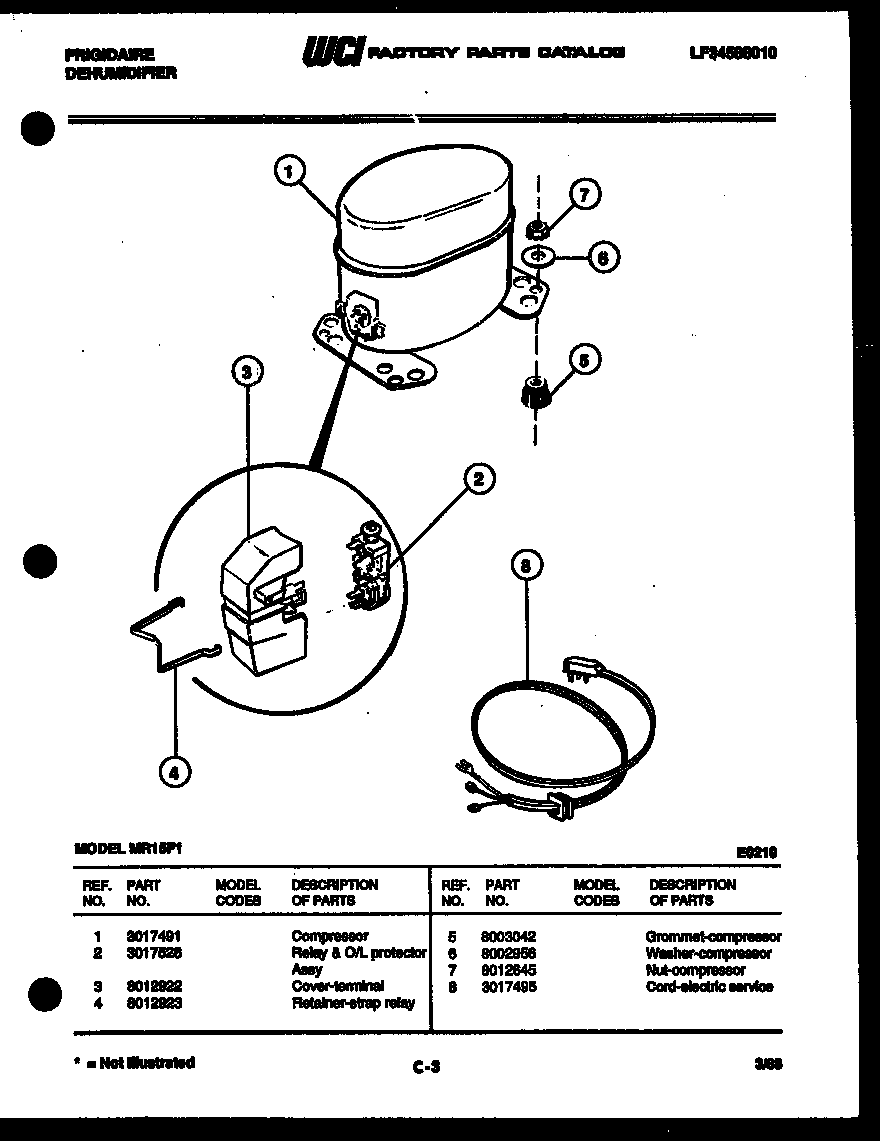

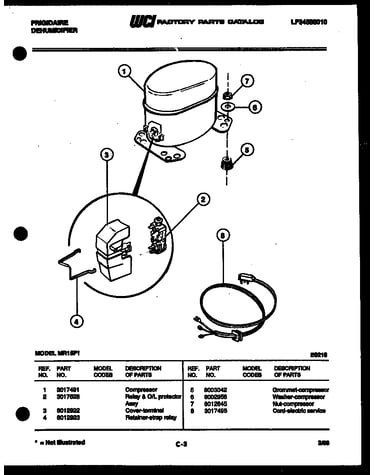

Compressor parts diagram

Cover, term.

Part #8012922

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 3017496
#4

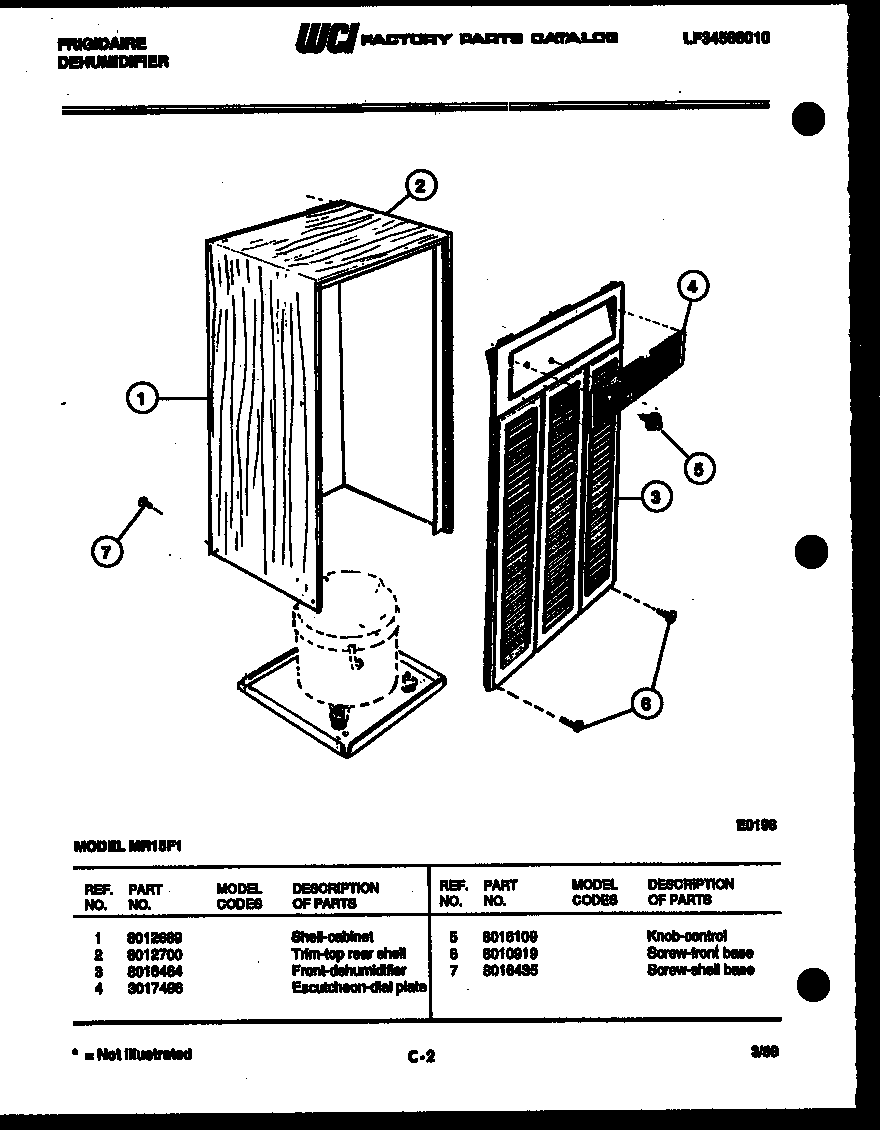

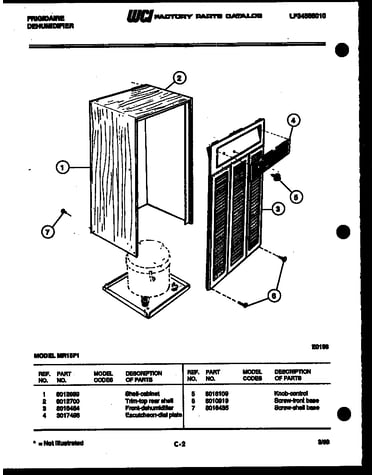

Cabinet and control parts diagram

Escutcheon

Part #3017496

The manufacturer no longer makes this part, and there's no substitute part

Front 8016464
#3

Cabinet and control parts diagram

Front

Part #8016464

The manufacturer no longer makes this part, and there's no substitute part

Blade-w/ Clamp 8016449
#8

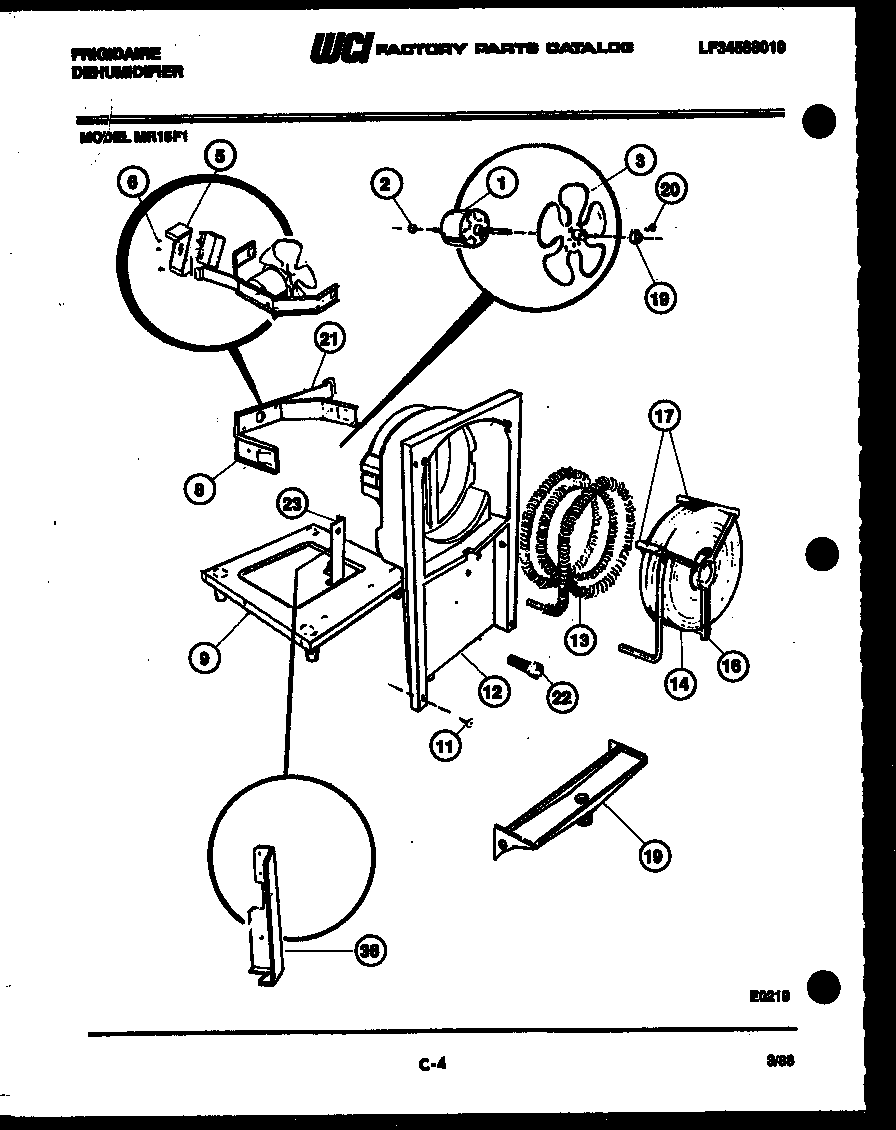

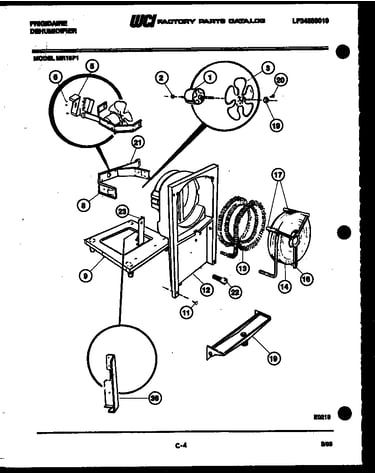

Air, water and condensing parts diagram

Blade-w/ clamp

Part #8016449

The manufacturer no longer makes this part, and there's no substitute part

Nut (non-illustrated) 8007481
#2

Air, water and condensing parts diagram

Nut (non-illustrated)

Part #8007481

The manufacturer no longer makes this part, and there's no substitute part

Switch, 2 Spd. 8017384
#4

Air, water and condensing parts diagram

Switch, 2 spd.

Part #8017384

The manufacturer no longer makes this part, and there's no substitute part

Clamp 8013805
#19

Air, water and condensing parts diagram

Clamp

Part #8013805

The manufacturer no longer makes this part, and there's no substitute part

Housing, Shroud Module 8016450
#12

Air, water and condensing parts diagram

Housing, shroud module

Part #8016450

The manufacturer no longer makes this part, and there's no substitute part

Screw 8007473
#20

Air, water and condensing parts diagram

Screw

Part #8007473

The manufacturer no longer makes this part, and there's no substitute part

Tube 3014460
#15

Air, water and condensing parts diagram

Tube

Part #3014460

The manufacturer no longer makes this part, and there's no substitute part
