Model # FDD50J4 Official Frigidaire dehumidifier

Here are the diagrams and repair parts for Official Frigidaire FDD50J4 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

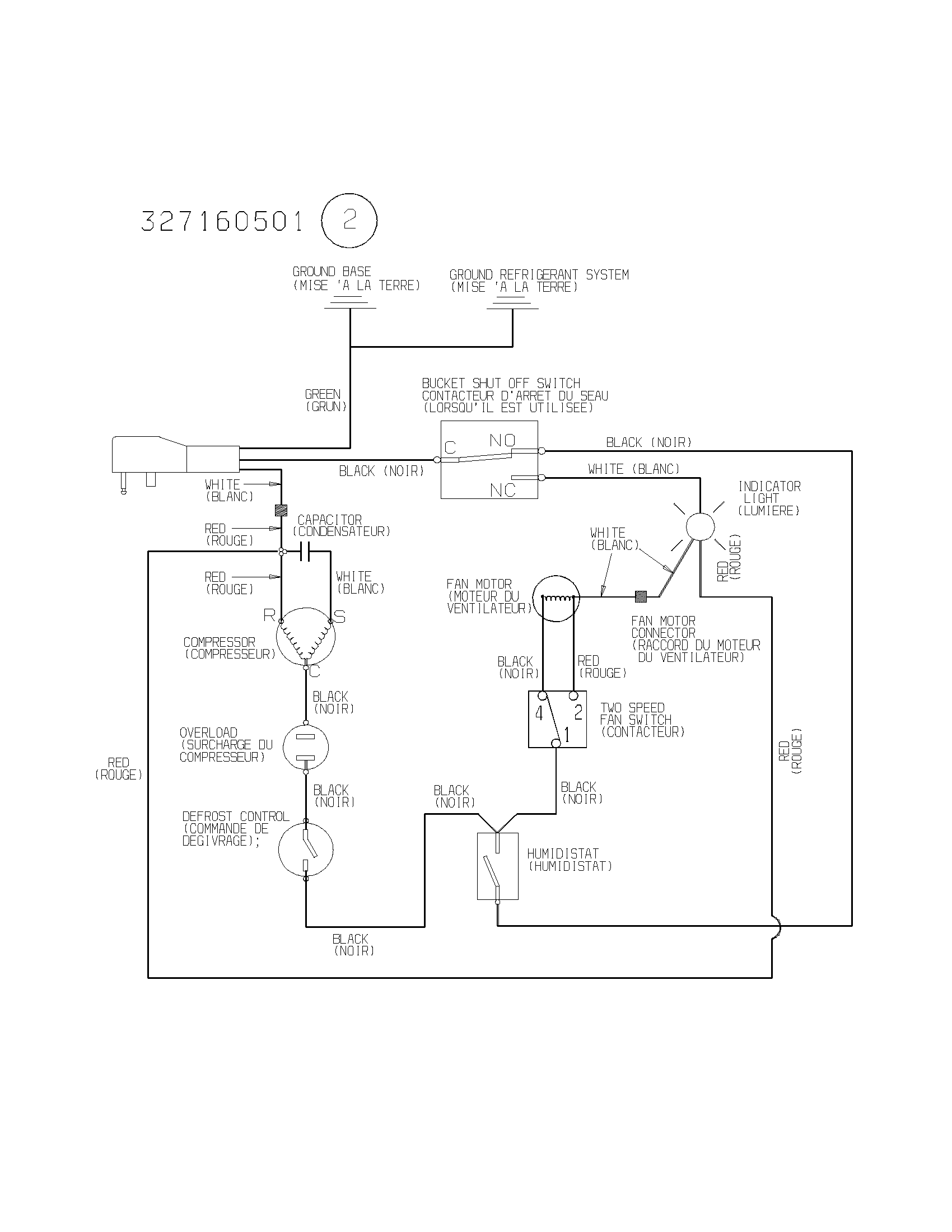

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Bucket 327660701
#31

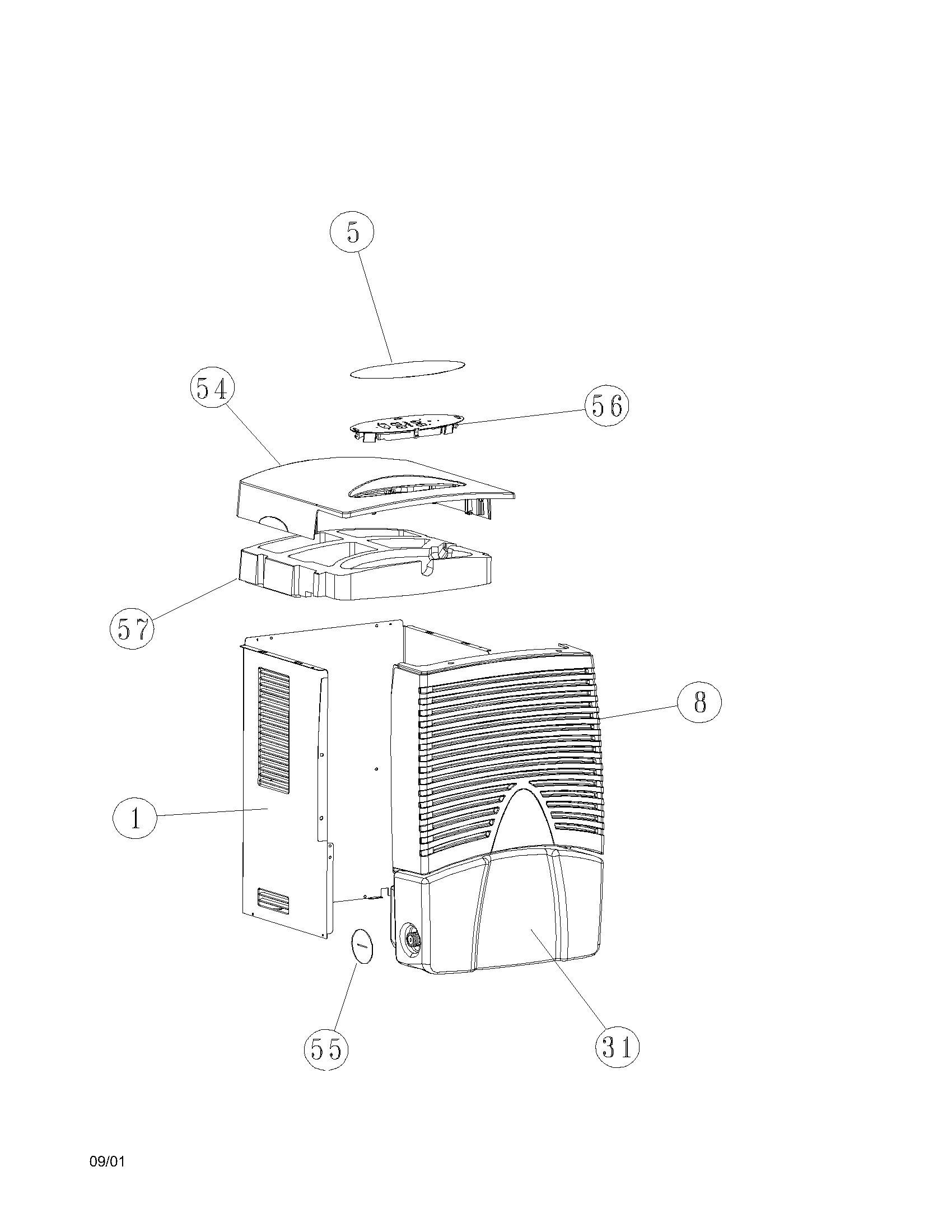

Front & wrapper diagram

Bucket

Part #327660701

$25.99
In Stock
Kelvinator Room Air Conditioner Lock Nut 08007481
#NI

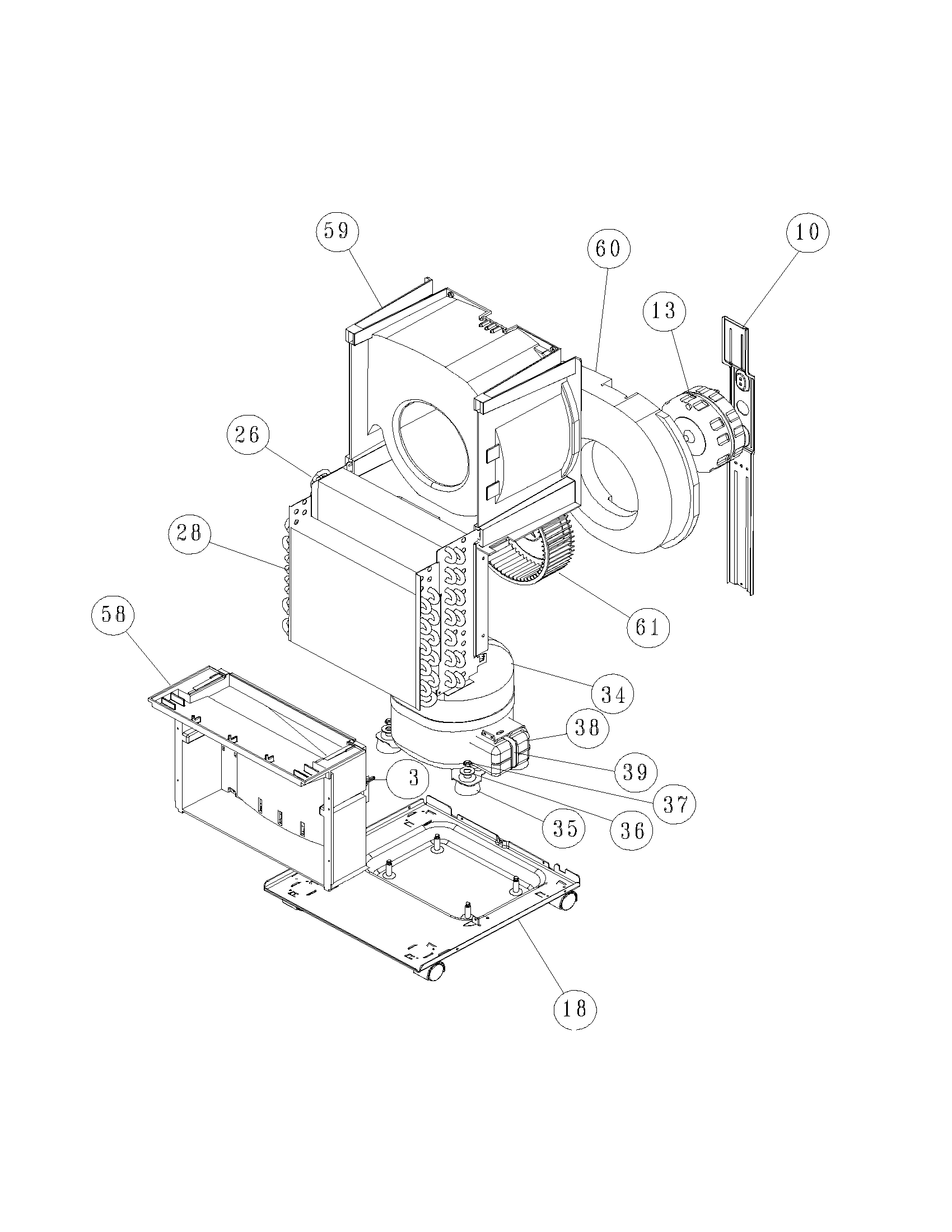

System diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable
$5.74
In Stock
Scroll 327660201
#59

System diagram

Scroll

Part #327660201

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 327361403
#28

System diagram

Evaporator

Part #327361403

The manufacturer no longer makes this part, and there's no substitute part

Base-stud Assy 327661104
#18

System diagram

Base-stud assy

Part #327661104

The manufacturer no longer makes this part, and there's no substitute part

Grommet 327160901
#35

System diagram

Grommet

Part #327160901

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 5304416426
#NI

System diagram

Power cord

Part #5304416426

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 327660002
#1

Front & wrapper diagram

Cabinet

Part #327660002

The manufacturer no longer makes this part, and there's no substitute part

Front 327661501
#8

Front & wrapper diagram

Front

Part #327661501

The manufacturer no longer makes this part, and there's no substitute part

Condenser 327361007
#26

System diagram

Condenser

Part #327361007

The manufacturer no longer makes this part, and there's no substitute part
