Kenmore
Room Air Conditioner

Model # 58072126200 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58072126200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Room Air Conditioner Fan Blade Clamp 3H02932B
#9-C

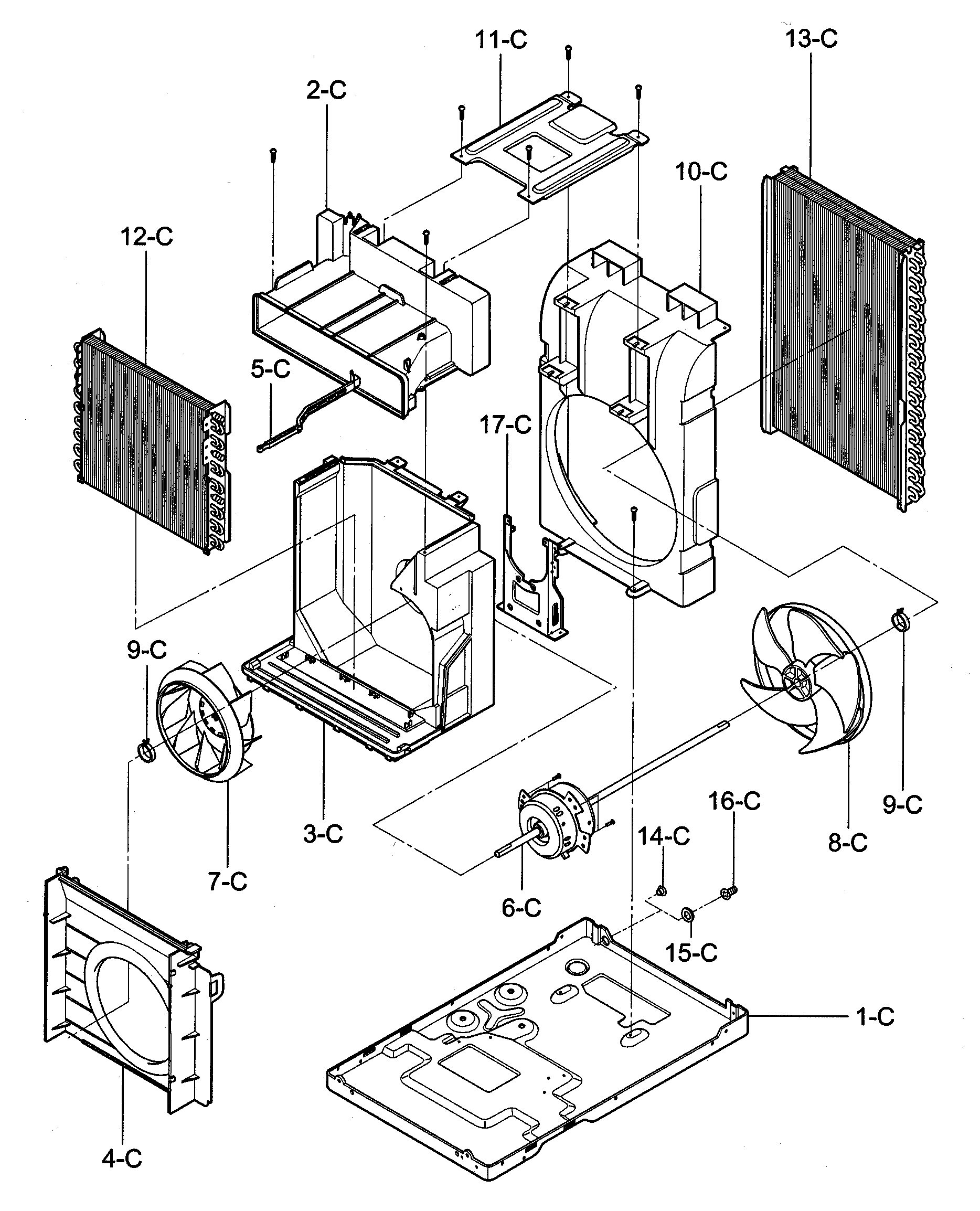

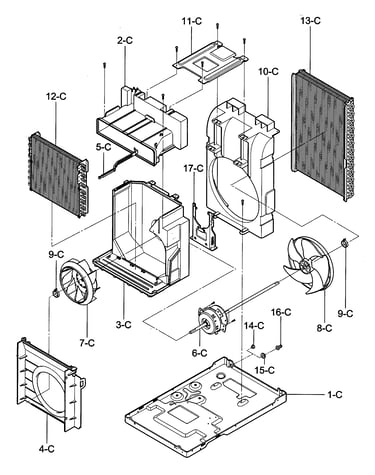

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Drain Pipe 3H02773A
#16-C

Air handling/cycle parts diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Lg Connector 6631AR2687A
#9-B

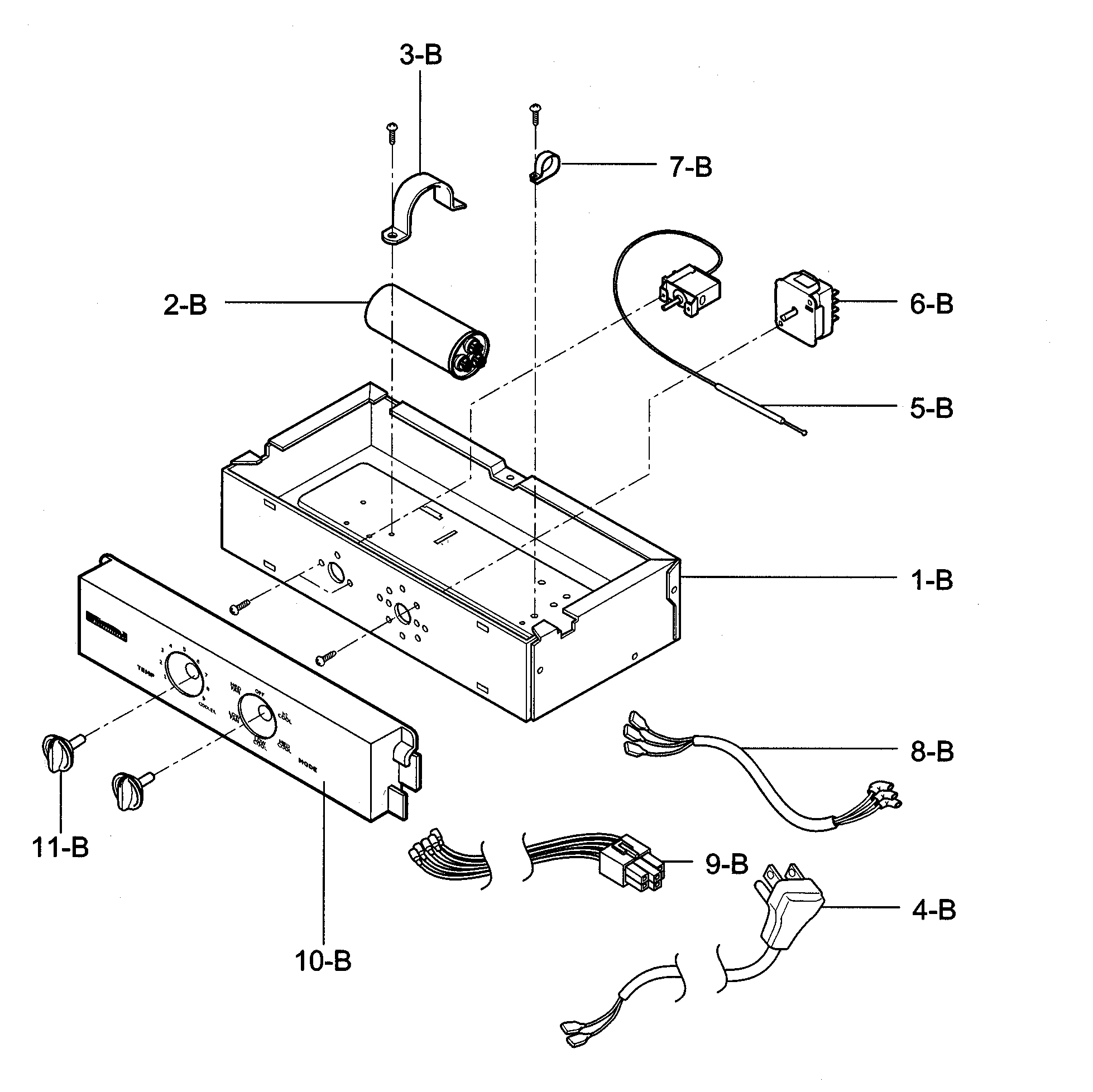

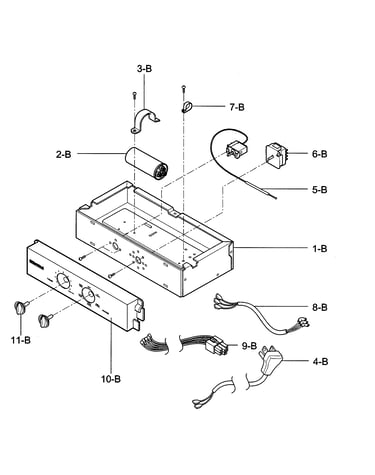

Control box assy diagram

Lg connector

Part #6631AR2687A

$18.83
In Stock
Goldstar Room Air Conditioner Window Lock Bracket 4H01785B
#7-E

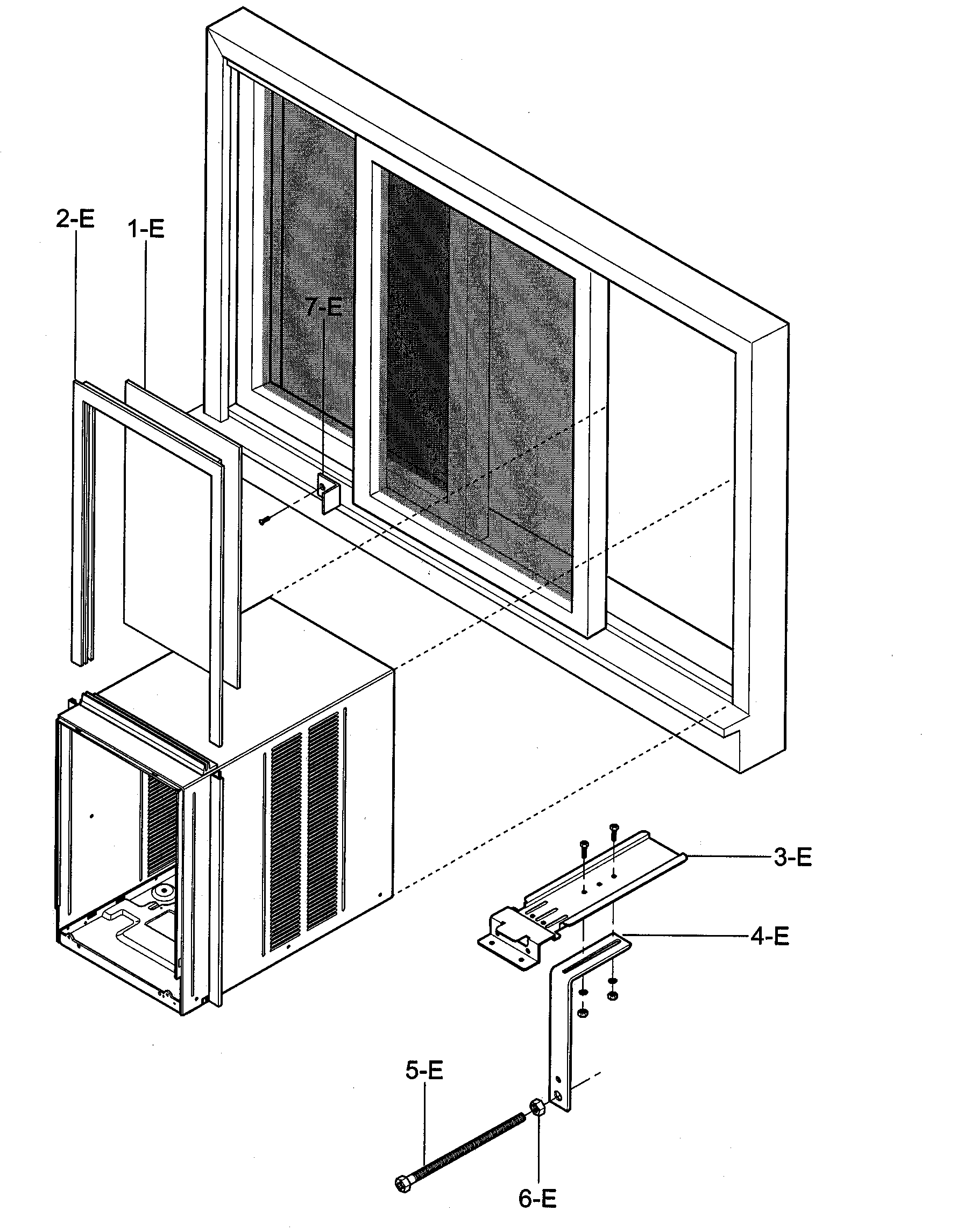

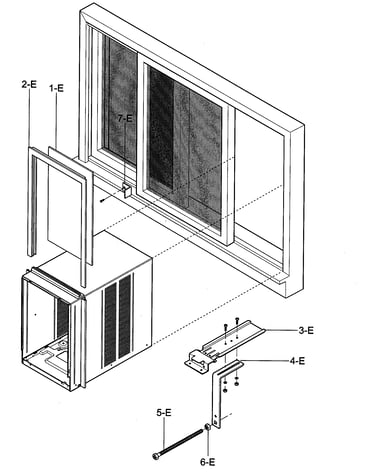

Installation kit assy diagram

Goldstar room air conditioner window lock bracket

Part #4H01785B

This item is not returnable
$4.06 |
20% OFF Phone Price : $5.06
In Stock
Motor Mount 4960A20034A
#17-C

Air handling/cycle parts diagram

Motor mount

Part #4960A20034A

This item is not returnable
$24.09
In Stock
Room Air Conditioner Fan Motor Capacitor (replaces Oczza20001n) 0CZZA20001N
#2-B

Control box assy diagram

Room air conditioner fan motor capacitor (replaces oczza20001n)

Part #0CZZA20001N

$33.61 |
15% OFF Phone Price : $39.61
In Stock
Louvr Vert 4758A20017B
#6-A

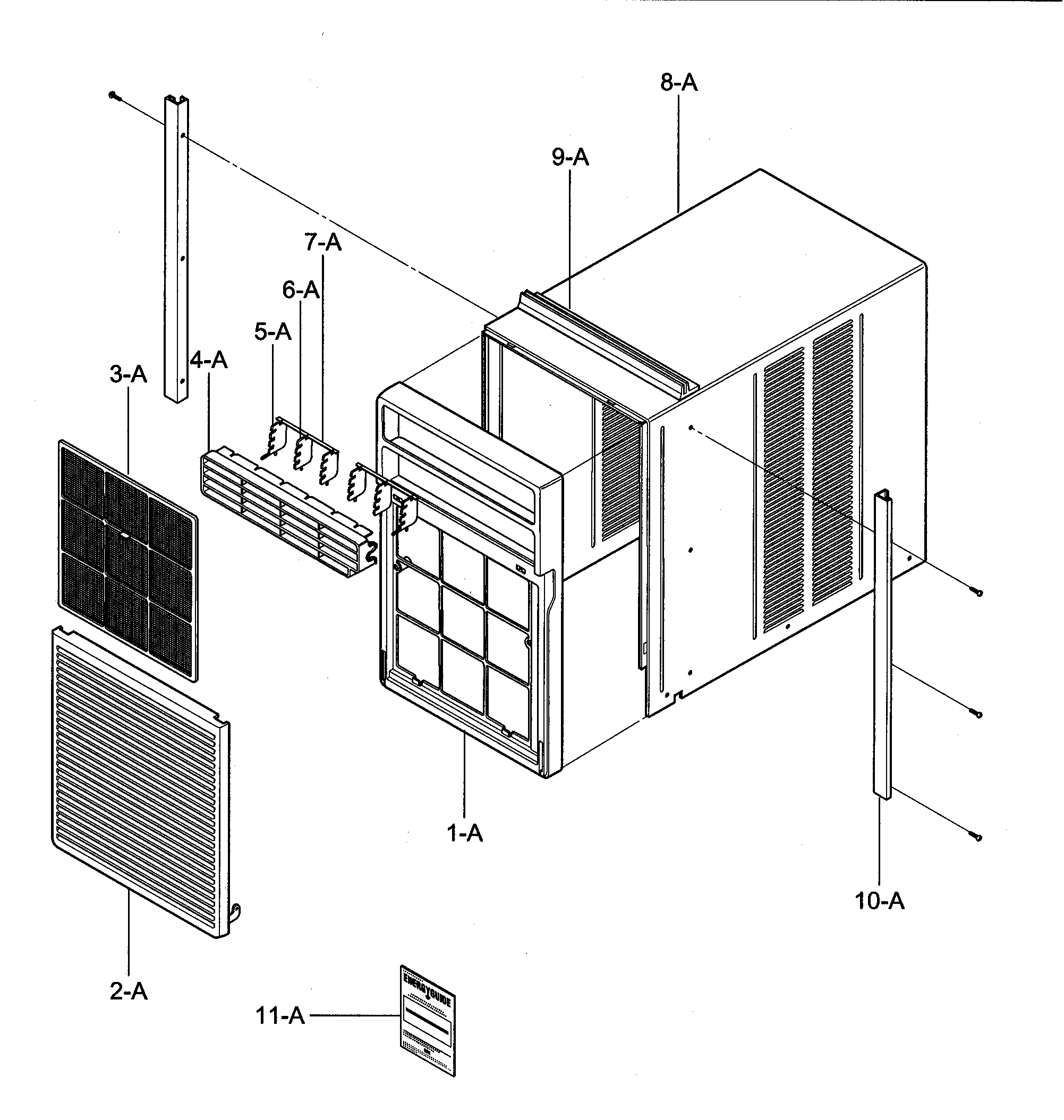

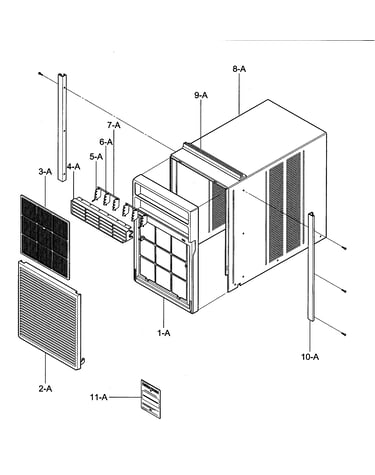

Cabinet/front grille assy diagram

Louvr vert

Part #4758A20017B

This item is not returnable
$3.99
In Stock
Bracket 4810AR4155B
#3-D

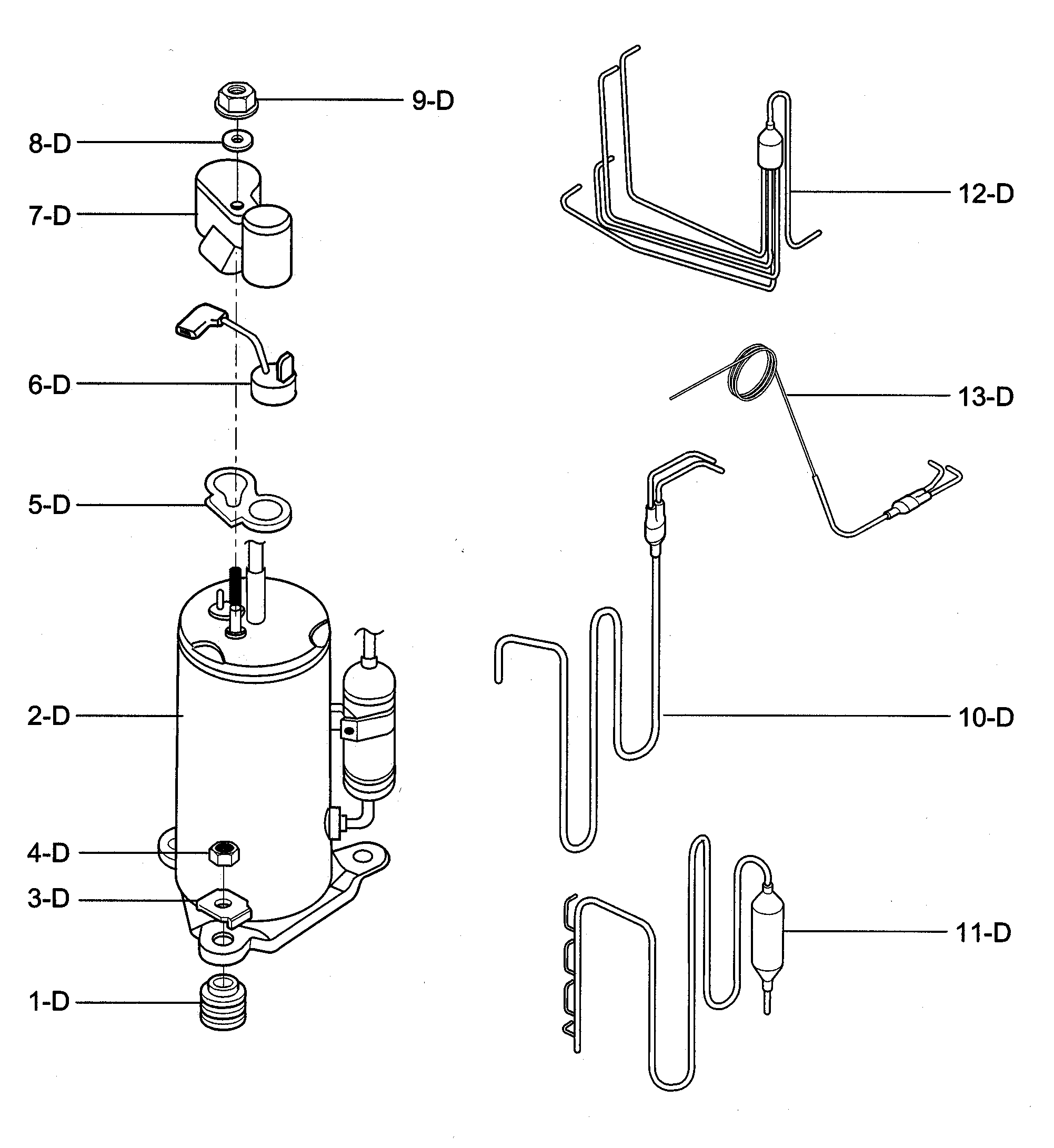

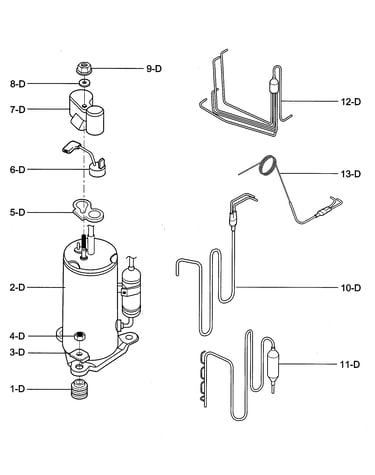

Compressor parts diagram

Bracket

Part #4810AR4155B

This item is not returnable
$4.51
In Stock
Nut 4H00947A
#9-D

Compressor parts diagram

Nut

Part #4H00947A

This item is not returnable
$4.51
In Stock
Room Air Conditioner Compressor Overload Protector 6750U-L029A
#6-D

Compressor parts diagram

Room air conditioner compressor overload protector

Part #6750U-L029A

This item is not returnable
$18.83
In Stock
