Carpet Cleaner

Model # 1758325290 Official Kenmore spraymate attachment

Here are the diagrams and repair parts for Official Kenmore 1758325290 spraymate attachment, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
1758325290 Spraymate Attachment
Retaining Ring 640791-001
#44

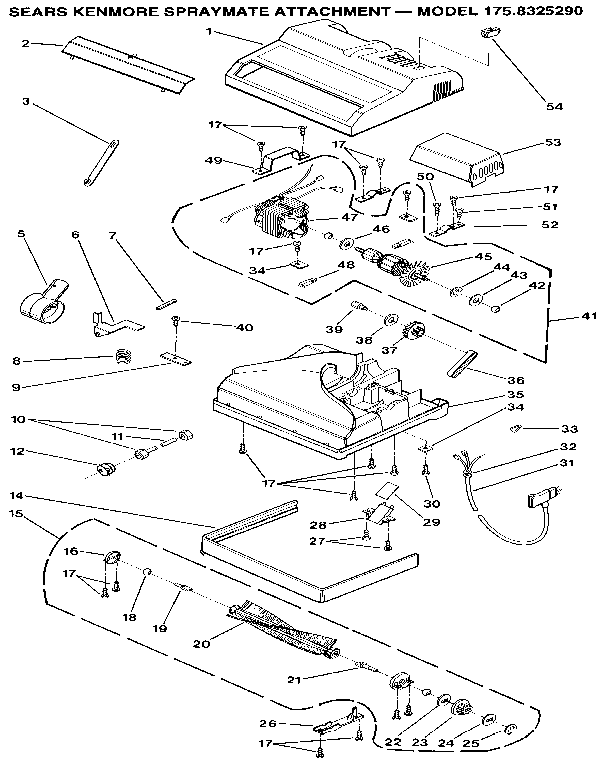

Attachment parts diagram

Retaining ring

Part #640791-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 644439-001
#46

Attachment parts diagram

Washer

Part #644439-001

The manufacturer no longer makes this part, and there's no substitute part

Swivel 644014-004
#5

Attachment parts diagram

Swivel

Part #644014-004

The manufacturer no longer makes this part, and there's no substitute part

Pigtail 644041-005
#31

Attachment parts diagram

Pigtail

Part #644041-005

The manufacturer no longer makes this part, and there's no substitute part

Bumper 644029-002
#14

Attachment parts diagram

Bumper

Part #644029-002

The manufacturer no longer makes this part, and there's no substitute part

Screw 643875-001
#30

Attachment parts diagram

Screw

Part #643875-001

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover 661163-002
#53

Attachment parts diagram

Motor cover

Part #661163-002

The manufacturer no longer makes this part, and there's no substitute part

Lower Housing 644025-015
#35

Attachment parts diagram

Lower housing

Part #644025-015

The manufacturer no longer makes this part, and there's no substitute part

Lens W/screw 644525-001
#2

Attachment parts diagram

Lens w/screw

Part #644525-001

The manufacturer no longer makes this part, and there's no substitute part

Bearing 829981-001
#42

Attachment parts diagram

Bearing

Part #829981-001

The manufacturer no longer makes this part, and there's no substitute part
