Hotpoint
Top-Mount Refrigerator

Model # HTS20GBNCWW Official Hotpoint refrigerator - n series

Here are the diagrams and repair parts for Official Hotpoint HTS20GBNCWW refrigerator - n series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Dryer Filter WR86X0096
#740

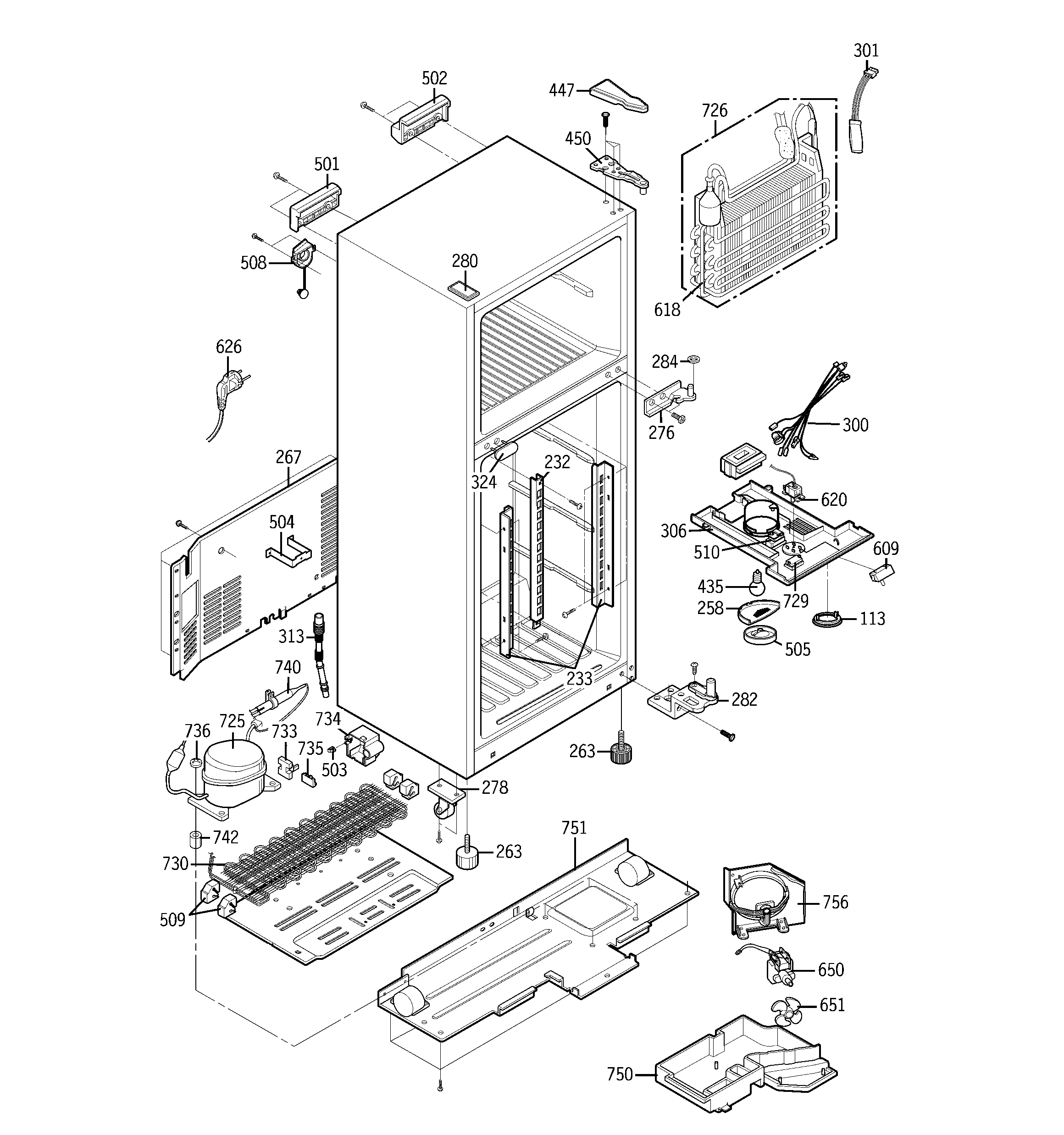

Cabinet diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Defrost Timer WR55X10229
#510

Cabinet diagram

Refrigerator defrost timer

Part #WR55X10229

$85.59 |
7% OFF Phone Price : $91.59
In Stock
Cord Pwr Asm WR23X0420
#626

Cabinet diagram

Cord pwr asm

Part #WR23X0420

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0420. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Shelf Ass'y WR71X10457
#212

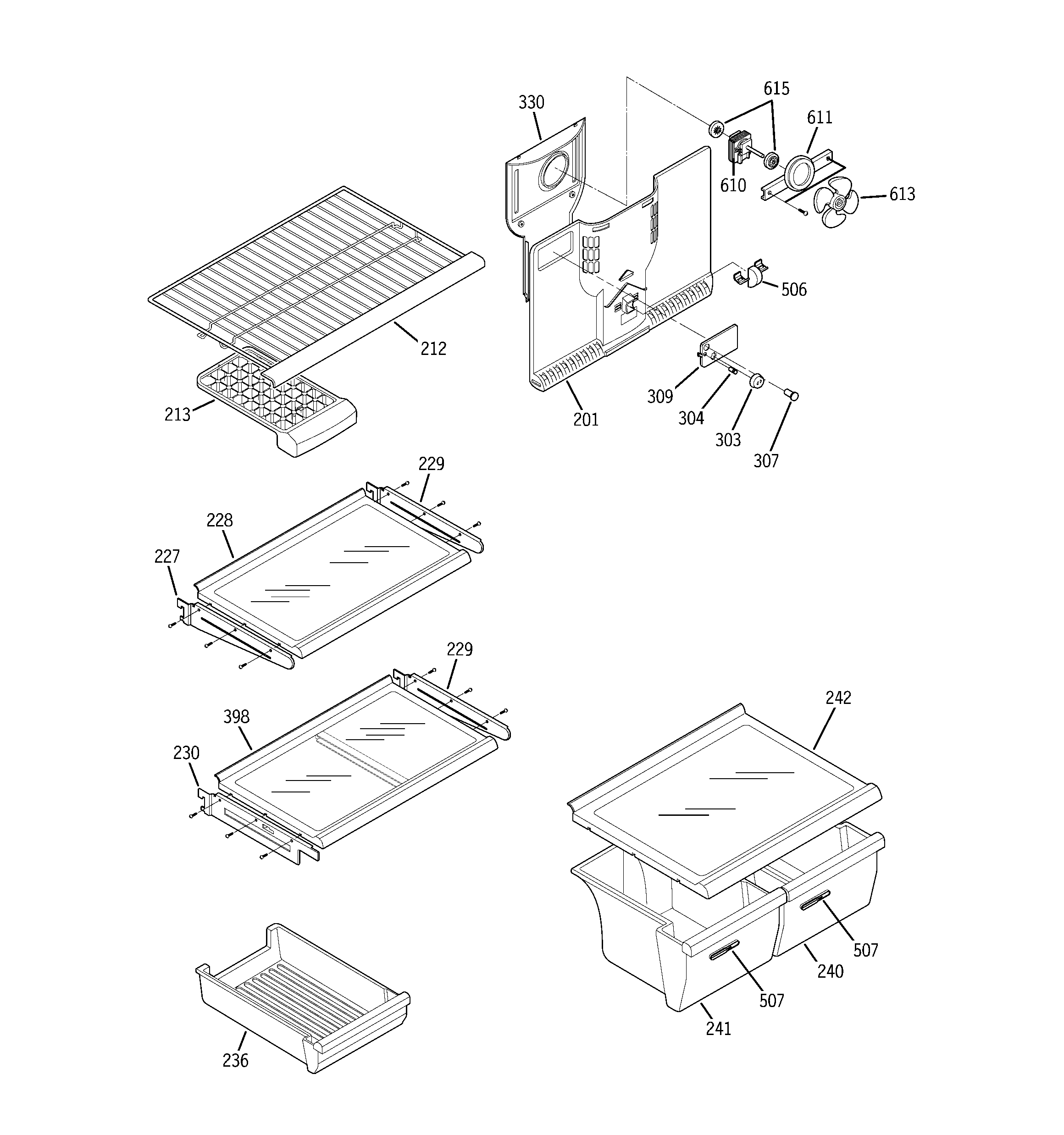

Shelves diagram

Shelf ass'y

Part #WR71X10457

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Button Plug WR02X11314
#129

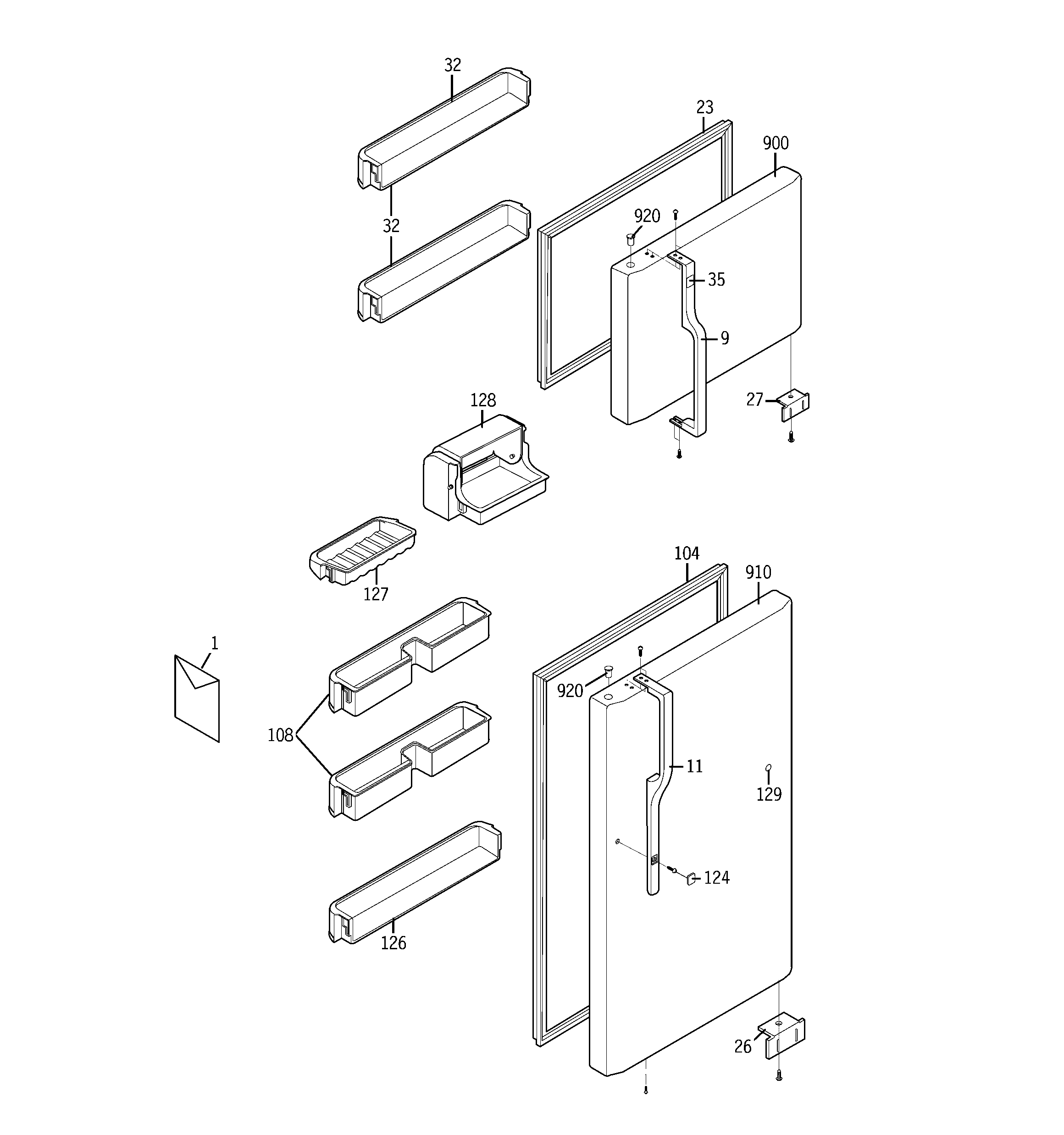

Doors diagram

Refrigerator button plug

Part #WR02X11314

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Stopper WR02X11300
#27

Doors diagram

Refrigerator door stopper

Part #WR02X11300

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Button Plug WR02X11309
#129

Doors diagram

Refrigerator button plug

Part #WR02X11309

The manufacturer no longer makes this part, and there's no substitute part

Cover,back-m WR82X10081
#267

Cabinet diagram

Cover,back-m

Part #WR82X10081

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Handle WR12X10582
#9

Doors diagram

Refrigerator door handle

Part #WR12X10582

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Complete Base WR32X10359
#751

Cabinet diagram

Refrigerator complete base

Part #WR32X10359

The manufacturer no longer makes this part, and there's no substitute part
