Model # NCHAA58AK01 Official ICP heat pump
Here are the diagrams and repair parts for Official ICP NCHAA58AK01 heat pump, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
NCHAA58AK01 Heat Pump
#2

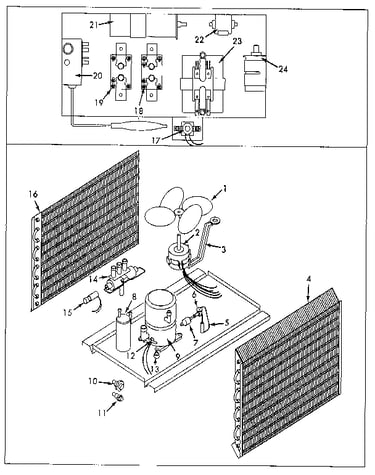

Functional replacement parts diagram
Fan motor
Part #95883
Replaced by #WG840465
?
Manufacturer substitution
This part replaces 95883. Substitute parts can look different from the original.
$234.47
In Stock
#7
Functional replacement parts diagram
Dryer filter
Part #713894
$69.76
In Stock
#20
Functional replacement parts diagram
Control
Part #710440
Replaced by #E15-2601
?
Manufacturer substitution
This part replaces 710440. Substitute parts can look different from the original.
$326.74
In Stock
#6
Functional replacement parts diagram
Valve expand
Part #1052035
Replaced by #1053141
?
Manufacturer substitution
This part replaces 1052035. Substitute parts can look different from the original.
$160.04
In Stock
#8
Functional replacement parts diagram
Accumulator
Part #1056037
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Thermostat
Part #708217
Replaced by #1160255
?
Manufacturer substitution
This part replaces 708217. Substitute parts can look different from the original.
$223.29
In Stock
#NI
All parts diagram
Relay
Part #707950
The manufacturer no longer makes this part, and there's no substitute part
#15
Functional replacement parts diagram
Coil
Part #707780
Replaced by #1066549
?
Manufacturer substitution
This part replaces 707780. Substitute parts can look different from the original.
$126.60
In Stock
#22
Functional replacement parts diagram
Start device
Part #704415
The manufacturer no longer makes this part, and there's no substitute part
#5
Functional replacement parts diagram
Valve check
Part #709749
Replaced by #1052910
?
Manufacturer substitution
This part replaces 709749. Substitute parts can look different from the original.
$84.67
In Stock
