Model # 11621173 Official Kenmore powermate vacuum attachment parts

Here are the diagrams and repair parts for Official Kenmore 11621173 powermate vacuum attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

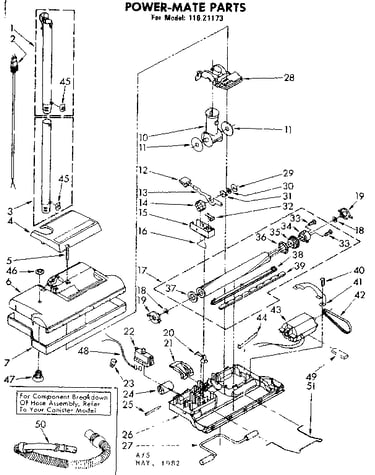

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Bridge 742422
#41

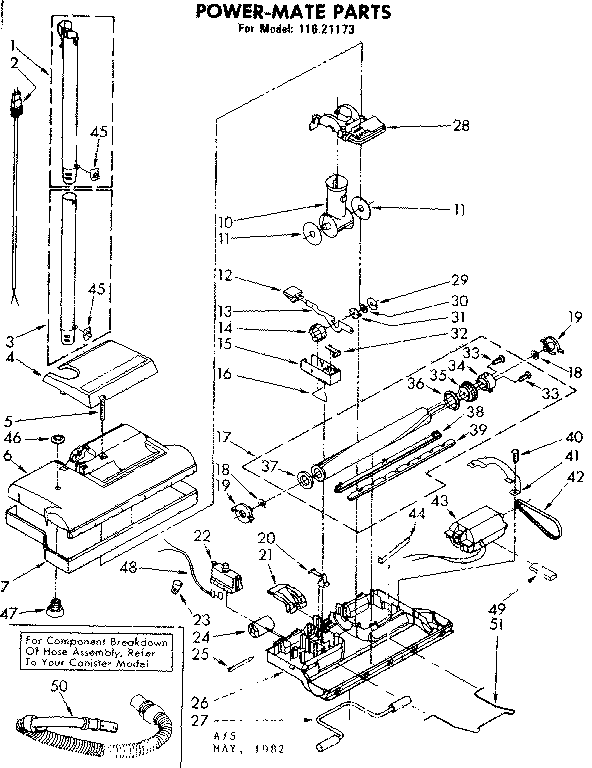

Powermate parts diagram

Bridge

Part #742422

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

Powermate parts diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
#50

Powermate parts diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Catch 722955
#31

Powermate parts diagram

Catch

Part #722955

The manufacturer no longer makes this part, and there's no substitute part

Bar 742689
#51

Powermate parts diagram

Bar

Part #742689

The manufacturer no longer makes this part, and there's no substitute part

Manual List LIT742696

#NI

All parts diagram

Manual list

Part #LIT742696

The manufacturer no longer makes this part, and there's no substitute part

Swivel 741762
#10

Powermate parts diagram

Swivel

Part #741762

The manufacturer no longer makes this part, and there's no substitute part

Bumper 742324
#7

Powermate parts diagram

Bumper

Part #742324

The manufacturer no longer makes this part, and there's no substitute part

Cam 725725
#14

Powermate parts diagram

Cam

Part #725725

The manufacturer no longer makes this part, and there's no substitute part

Washer 725635
#30

Powermate parts diagram

Washer

Part #725635

The manufacturer no longer makes this part, and there's no substitute part
