Model # WL075011 Official Weslo aero 750 exercise bike

Here are the diagrams and repair parts for Official Weslo WL075011 aero 750 exercise bike, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |

Magnet,rnd,m 100498
#48

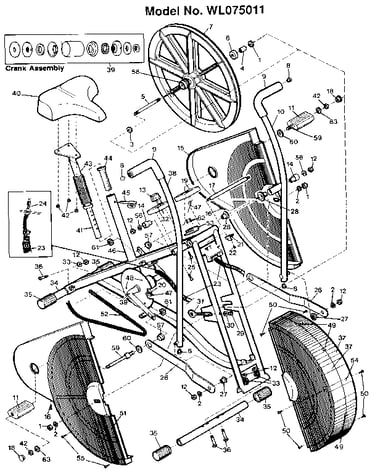

Unit parts diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
In Stock
Wshr,flat,sa 101494
#60

Unit parts diagram

Wshr,flat,sa

Part #101494

This item is not returnable
In Stock
Clip,fan Grd 054035
#49

Unit parts diagram

Clip,fan grd

Part #054035

This item is not returnable
In Stock
Weider Carriage Bolt 100326
#36

Unit parts diagram

Weider carriage bolt

Part #100326

This item is not returnable
In Stock
Socket Tool 045028

#NI

All parts diagram

Socket tool

Part #045028

This item is not returnable
In Stock
Brng,608z,se 018007
#6

Unit parts diagram

Brng,608z,se

Part #018007

In Stock
Exercise Equipment Flat Washer 014073
#56

Unit parts diagram

Exercise equipment flat washer

Part #014073

This item is not returnable
In Stock
Deflecto Exercise Equipment Screw 013497
#62

Unit parts diagram

Deflecto exercise equipment screw

Part #013497

This item is not returnable
In Stock
Exercise Equipment Hex Nut 012169
#3

Unit parts diagram

Exercise equipment hex nut

Part #012169

This item is not returnable
In Stock
Exercise Equipment Hex Nut 012056
#12

Unit parts diagram

Exercise equipment hex nut

Part #012056

This item is not returnable
In Stock
