Model # 11657614701 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11657614701 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Vacuum Beater Bar Belt KC28SBZTZ000
#33

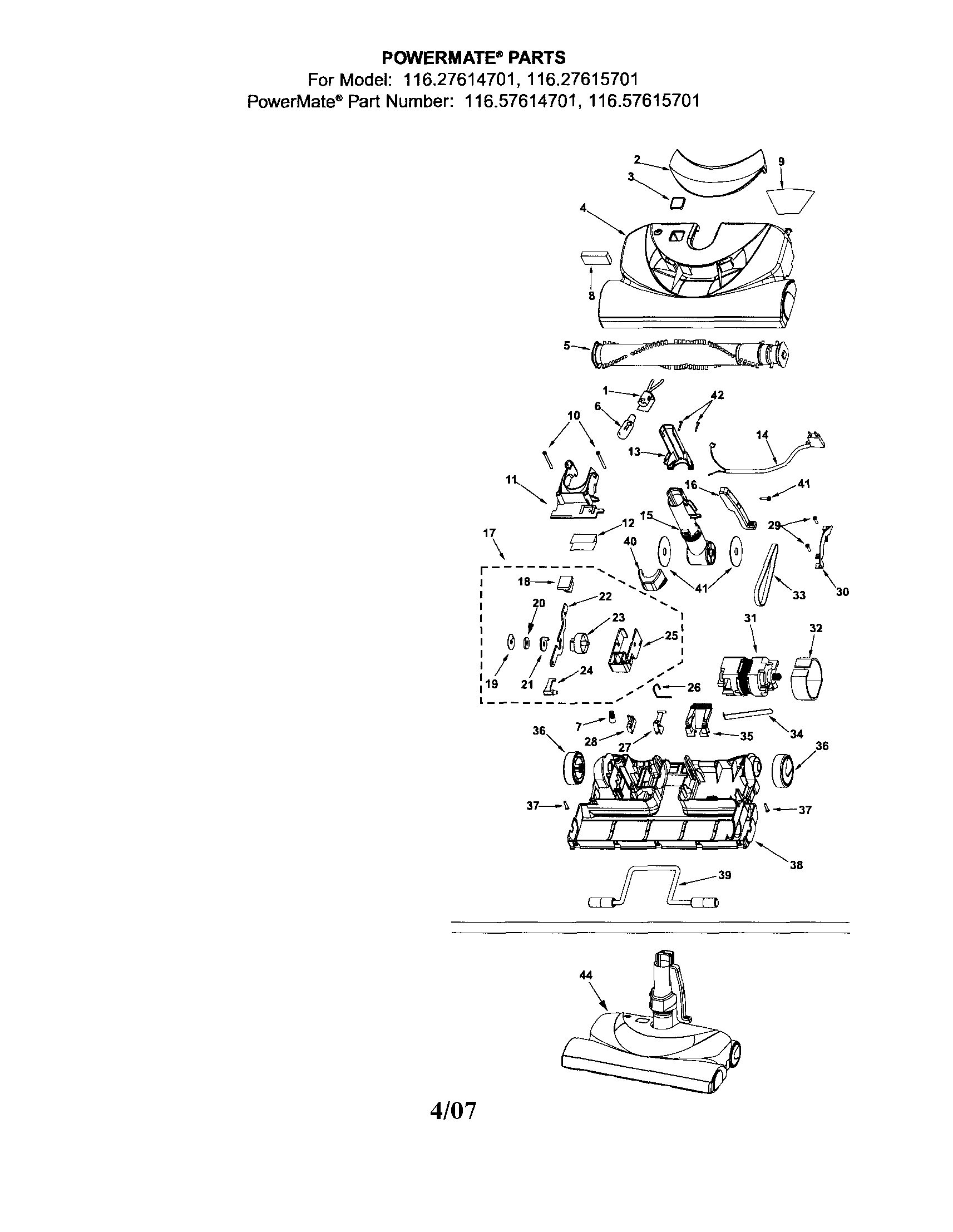

Powermate diagram

Vacuum beater bar belt

Part #KC28SBZTZ000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Front Axle KS744029
#39

Powermate diagram

Vacuum powermate front axle

Part #KS744029

The manufacturer no longer makes this part, and there's no substitute part

Block 8191506
#25

Powermate diagram

Block

Part #8191506

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Swivel Seal KS742019
#43

Powermate diagram

Vacuum powermate swivel seal

Part #KS742019

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Wheel KC99CBZTZV04
#36

Powermate diagram

Vacuum powermate wheel

Part #KC99CBZTZV04

The manufacturer no longer makes this part, and there's no substitute part

Wiring Label LITKC30ZAENZ000

#NI01

All parts diagram

Wiring label

Part #LITKC30ZAENZ000

Replaced by #LITKC30ZAENZ000

?
Manufacturer substitution
This part replaces LITKC30ZAENZ000. Substitute parts can look different from the original.
This item is not returnable
$2.40
In Stock
Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Foam Filter 4370713
#8

Powermate diagram

Vacuum foam filter

Part #4370713

The manufacturer no longer makes this part, and there's no substitute part

Power Mate Assembly (available In Black Only) C50XCMWZU01
#44

Powermate diagram

Power mate assembly (available in black only)

Part #C50XCMWZU01

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Height Adjuster Foot Pedal Pad 4370577
#18

Powermate diagram

Vacuum height adjuster foot pedal pad

Part #4370577

The manufacturer no longer makes this part, and there's no substitute part
