Model # LD200SL8B Official Sylvania tv/dvd combo

Here are the diagrams and repair parts for Official Sylvania LD200SL8B tv/dvd combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
6.8k 1/10w RRXAFR5H6801
#NI

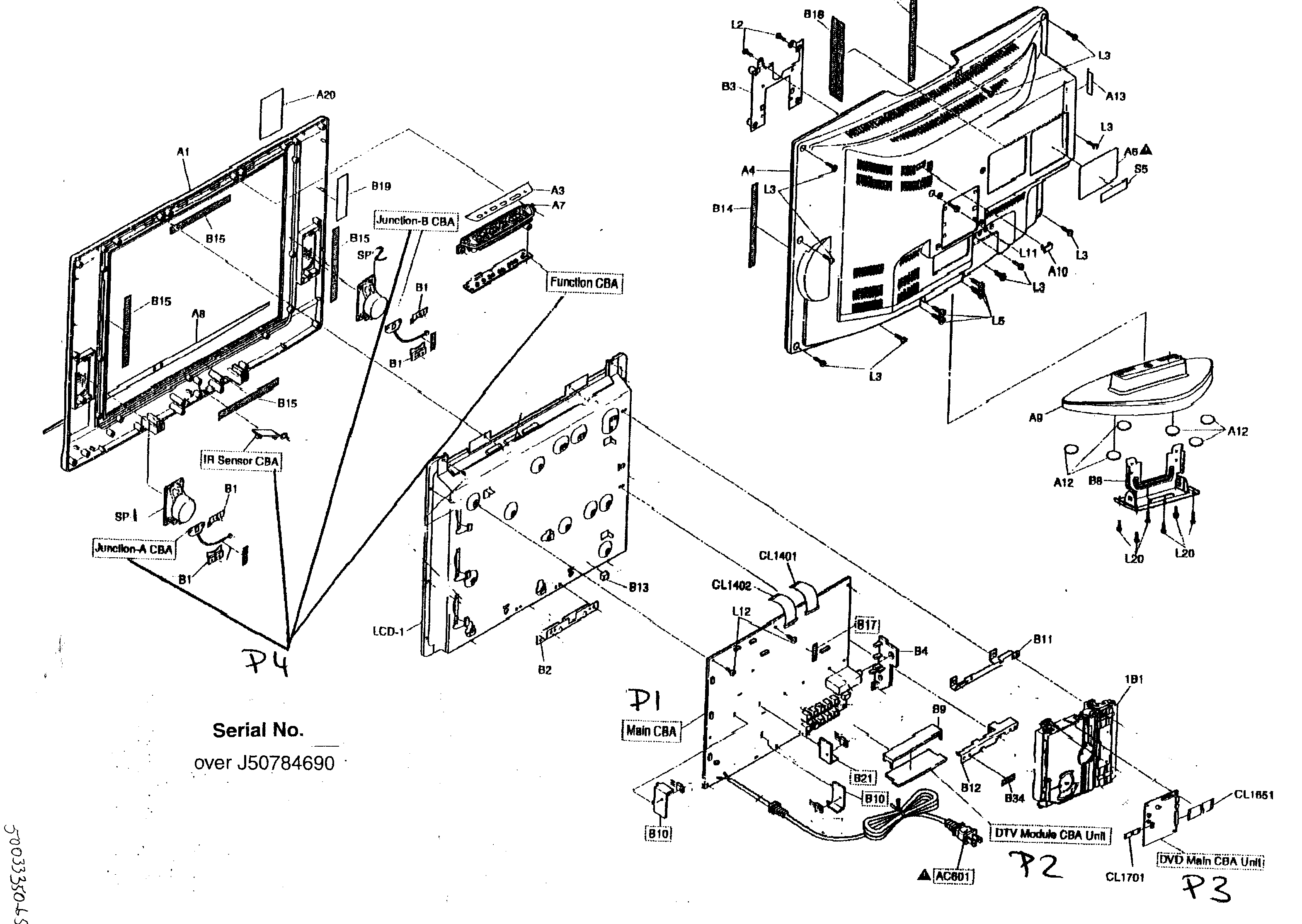

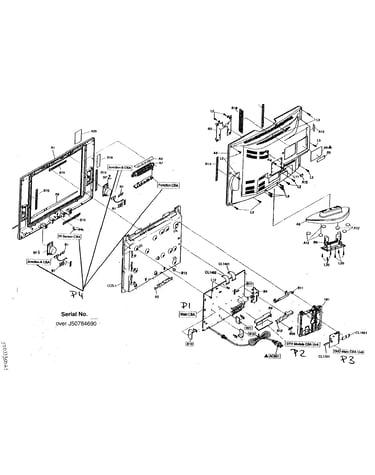

Cabinet parts diagram

6.8k 1/10w

Part #RRXAFR5H6801

The manufacturer no longer makes this part, and there's no substitute part

Television Remote Control NF602UD
#NI

Cabinet parts diagram

Television remote control

Part #NF602UD

The manufacturer no longer makes this part, and there's no substitute part

Rear Cab 1EM121850
#A4

Cabinet parts diagram

Rear cab

Part #1EM121850

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit NSZBA0SSS046
#NI

Cabinet parts diagram

Integrated circuit

Part #NSZBA0SSS046

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker DSD0807XQ002
Television speaker

Part #DSD0807XQ002

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit QSZAA0RHT156
#NI

Cabinet parts diagram

Integrated circuit

Part #QSZAA0RHT156

The manufacturer no longer makes this part, and there's no substitute part

Control Label 1EM322467
#A3

Cabinet parts diagram

Control label

Part #1EM322467

The manufacturer no longer makes this part, and there's no substitute part

Dtv Pcb 1ESA14067
#P2

Cabinet parts diagram

Dtv pcb

Part #1ESA14067

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit NSZBA0TAZ083
#NI

Cabinet parts diagram

Integrated circuit

Part #NSZBA0TAZ083

The manufacturer no longer makes this part, and there's no substitute part

Magnavox Integrated Circuit QSZBA0TMS003
#NI

Cabinet parts diagram

Magnavox integrated circuit

Part #QSZBA0TMS003

The manufacturer no longer makes this part, and there's no substitute part
