Model # LE9012/P7804814W Official Amana heavy-duty dryer

Here are the diagrams and repair parts for Official Amana LE9012-P7804814W heavy-duty dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

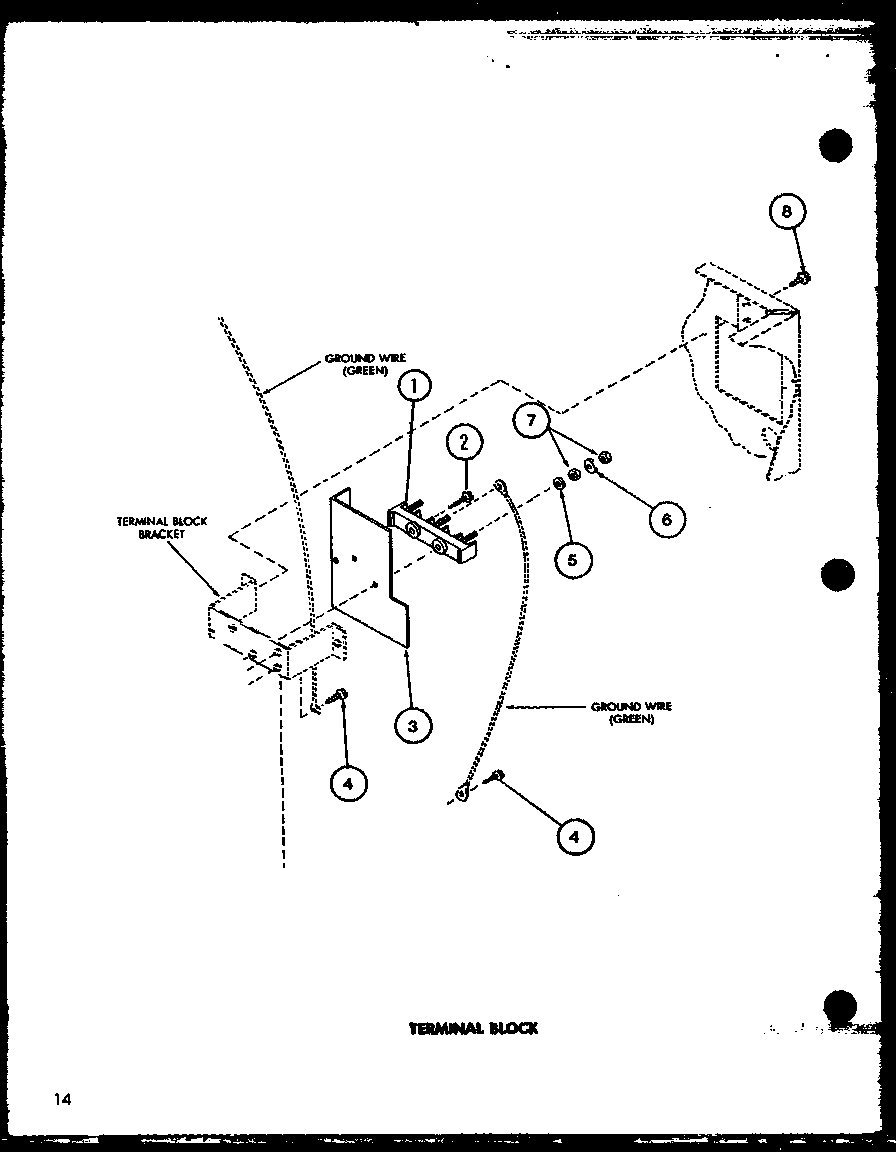

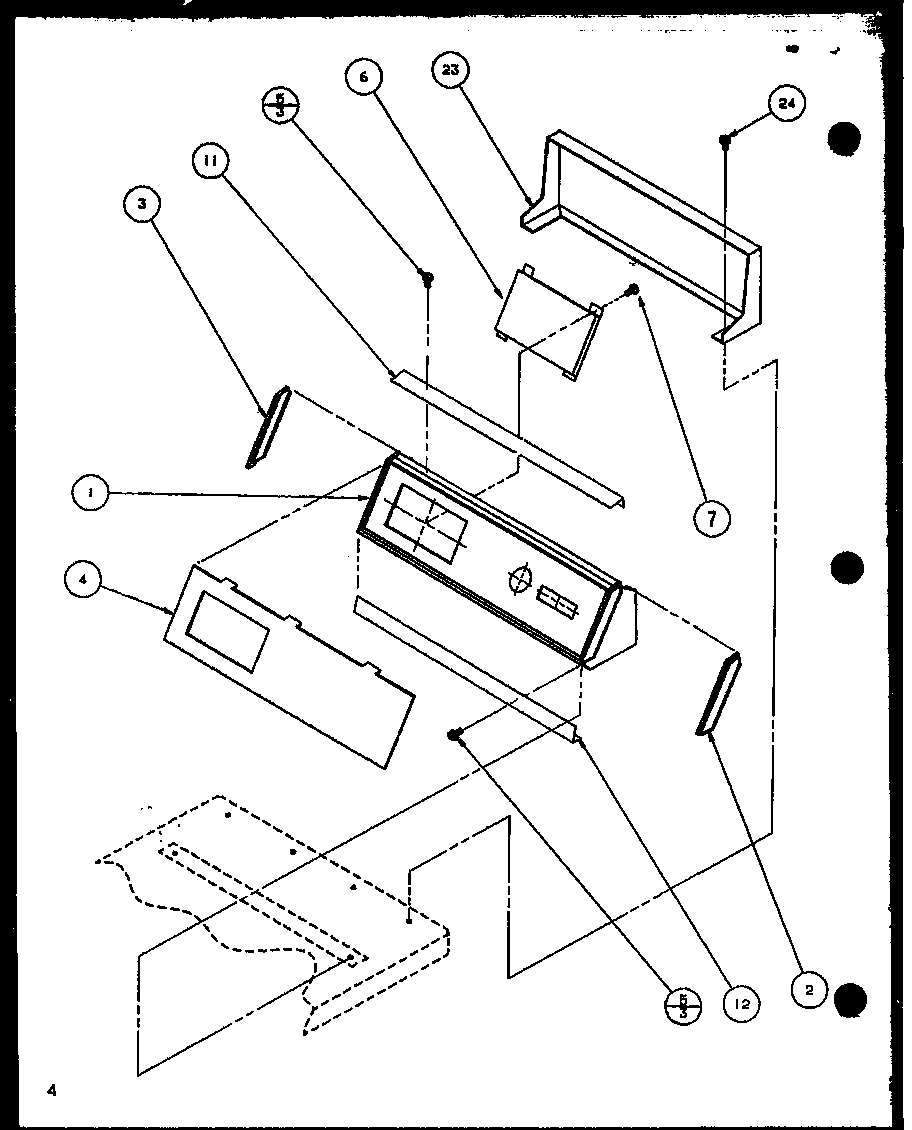

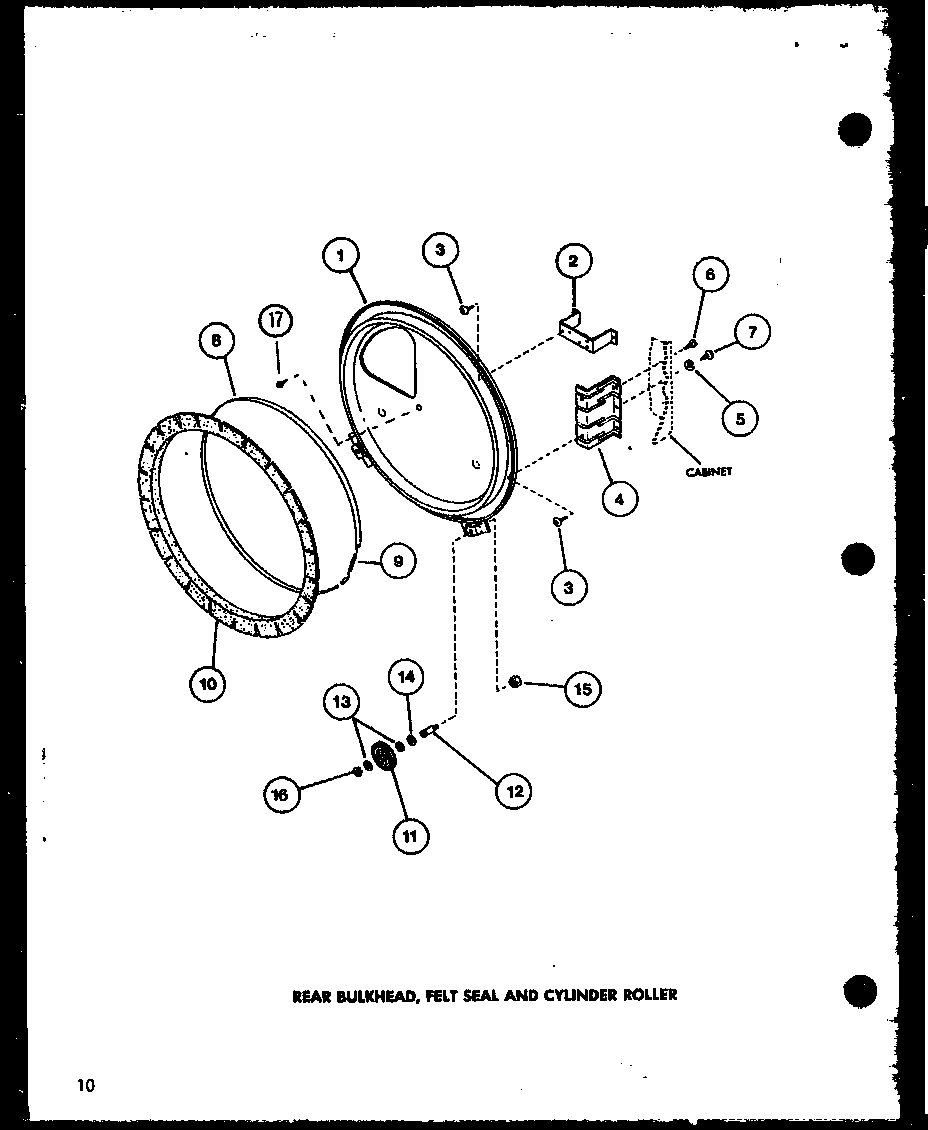

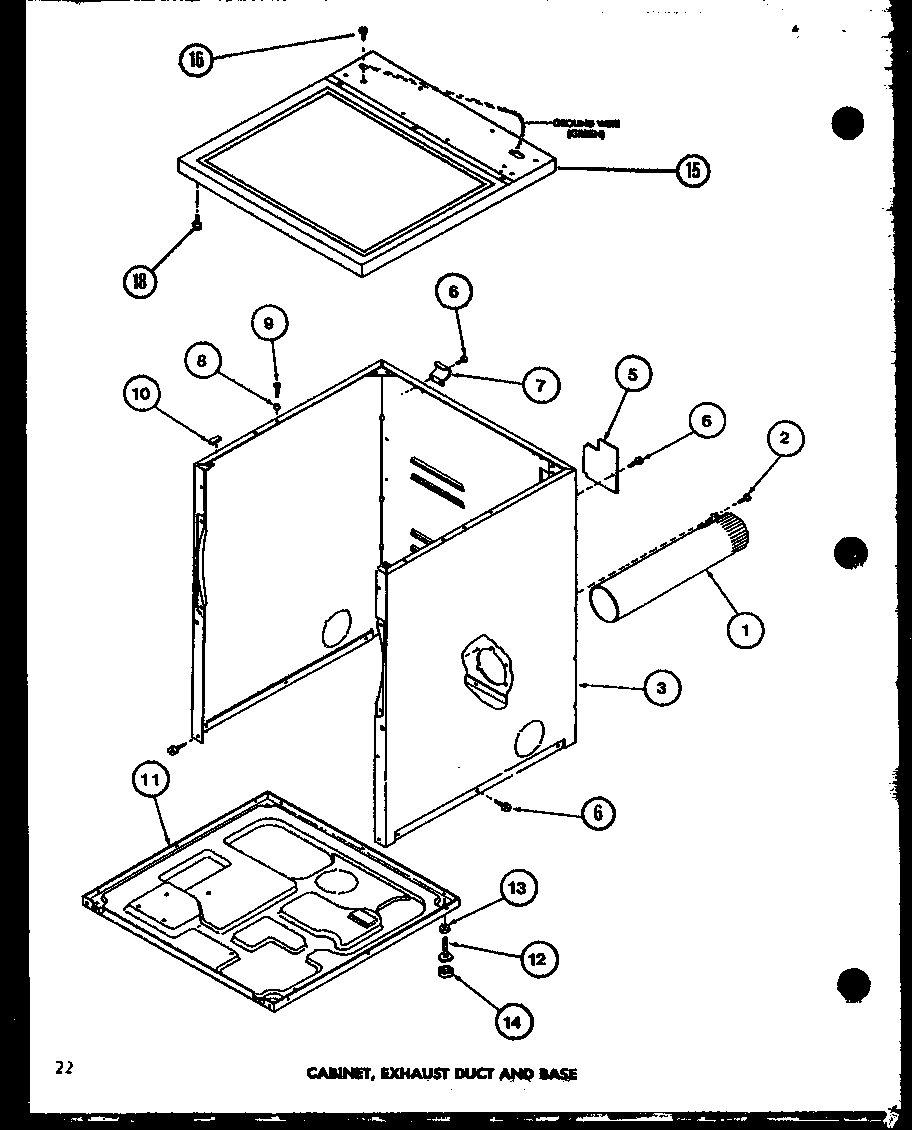

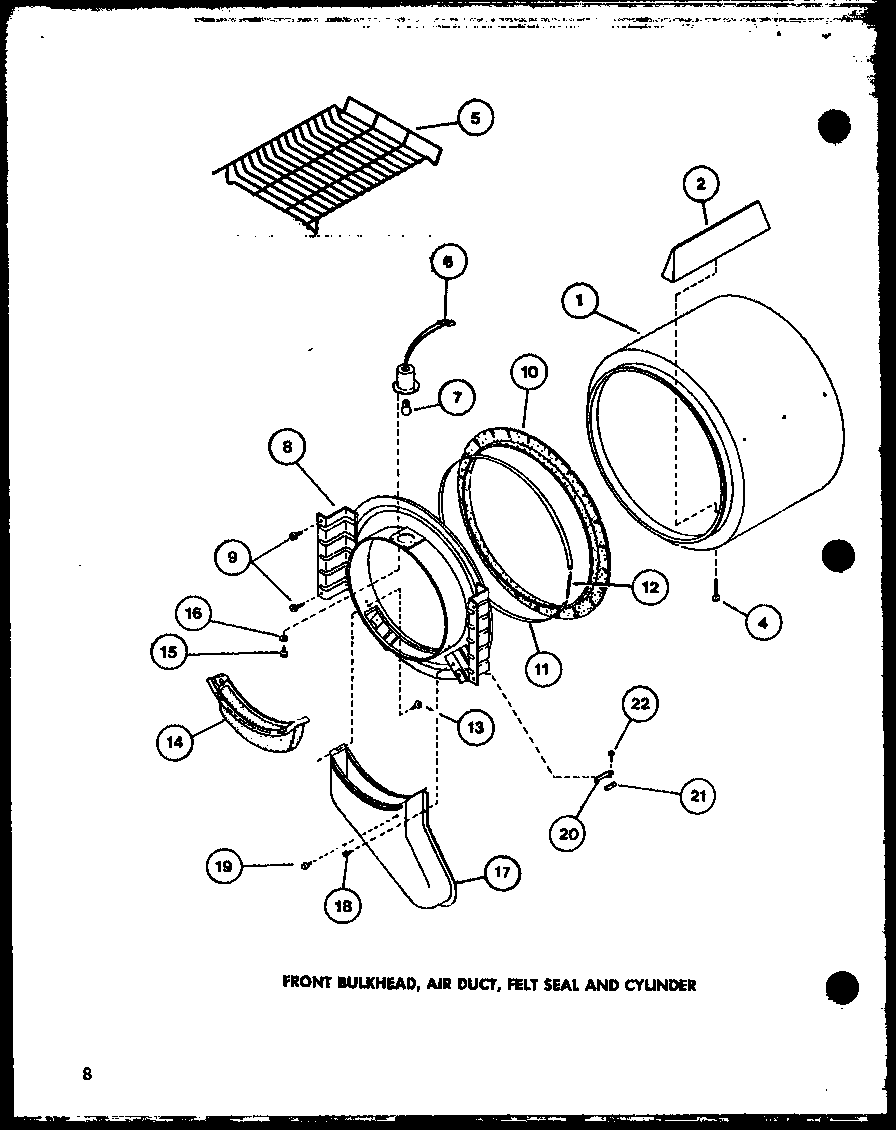

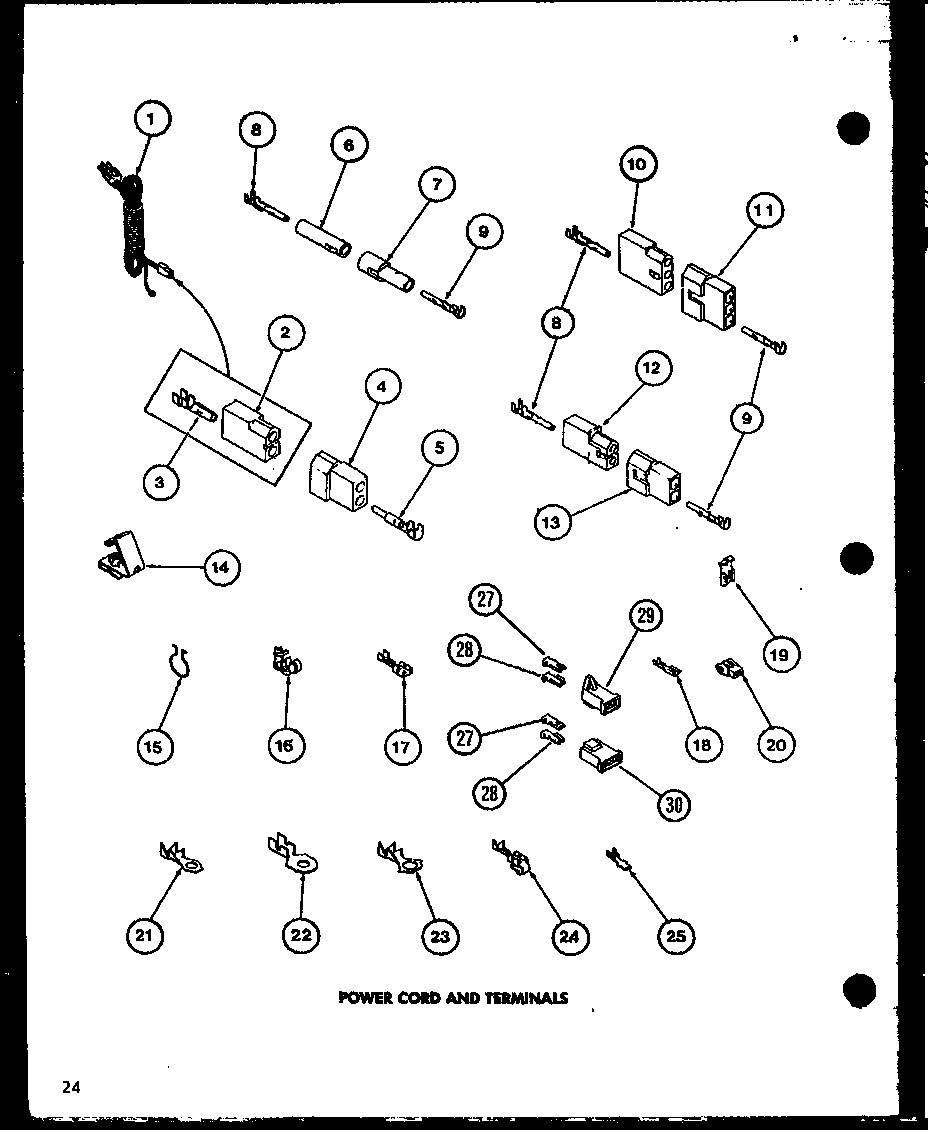

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Dryer Drum B R0606549
#6

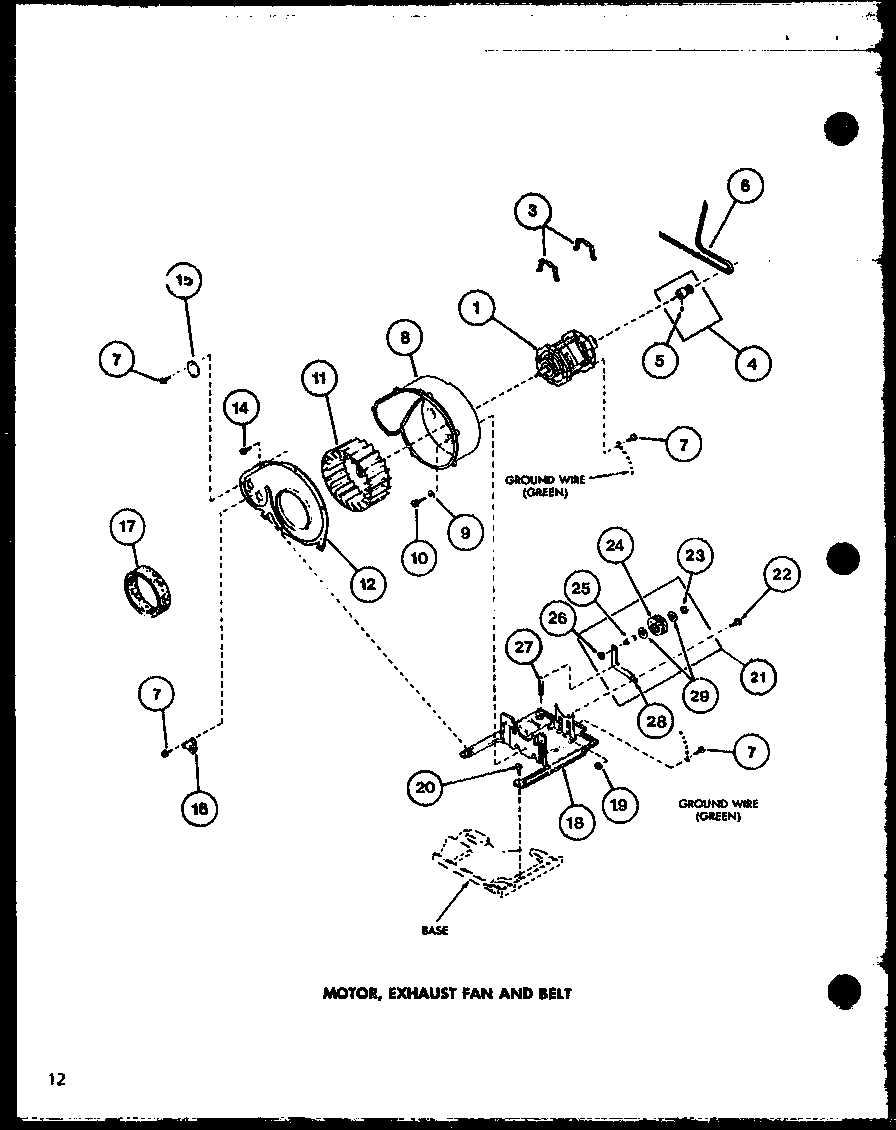

Motor (le2802/p7804815w) (lg2812/p7804816w) (le2902/p7804817w) (lg2912/p7804818w) (le9002/p7804813w) (lg9012/p7804814w) diagram

Dryer drum b

Part #R0606549

Replaced by #661570V

?
Manufacturer substitution
This part replaces R0606549. Substitute parts can look different from the original.
BEST SELLER
$19.35 |
9% OFF Phone Price : $21.35
In Stock
Coil R0610003
#2

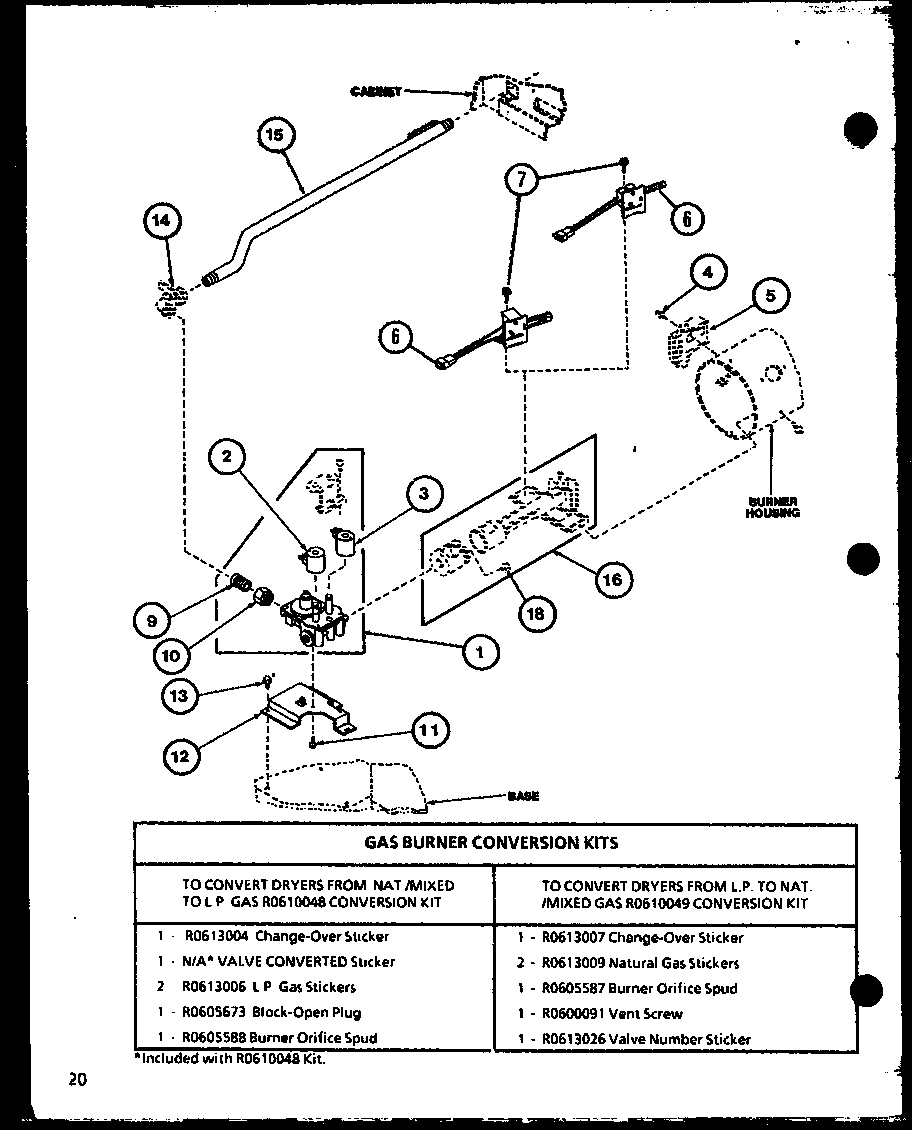

Gas burner conversion kits (lg2912/p7804818w) (le2812/p7804816w) (le9012/p7804814w) diagram

Coil

Part #R0610003

Replaced by #279834

?
Manufacturer substitution
This part replaces R0610003. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Coil R0610050
#3

Gas burner conversion kits (lg2912/p7804818w) (le2812/p7804816w) (le9012/p7804814w) diagram

Coil

Part #R0610050

Replaced by #279834

?
Manufacturer substitution
This part replaces R0610050. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Washer R0600526
#29

Motor (le2802/p7804815w) (lg2812/p7804816w) (le2902/p7804817w) (lg2912/p7804818w) (le9002/p7804813w) (lg9012/p7804814w) diagram

Washer

Part #R0600526

Replaced by #WP233520

?
Manufacturer substitution
This part replaces R0600526. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Use 40064801 R0600032
Use 40064801

Part #R0600032

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces R0600032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Heater Kit R0610022
#6C

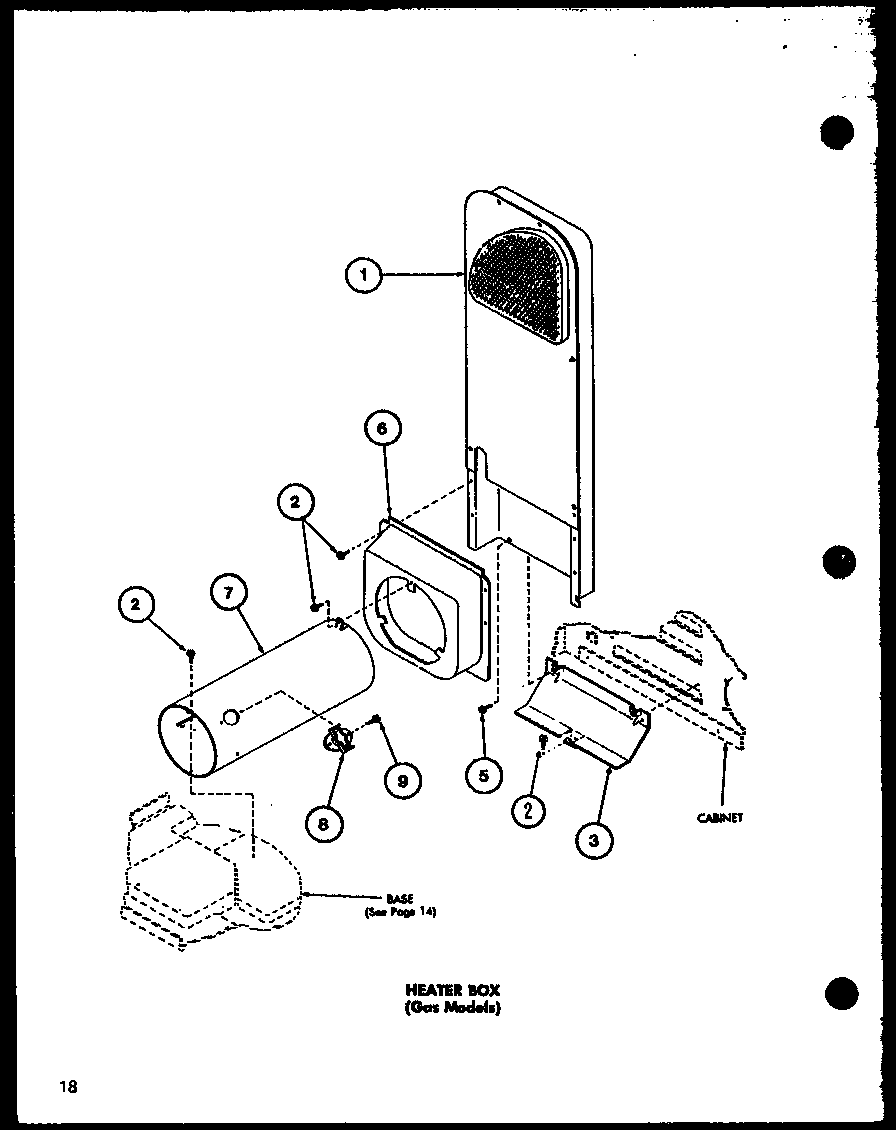

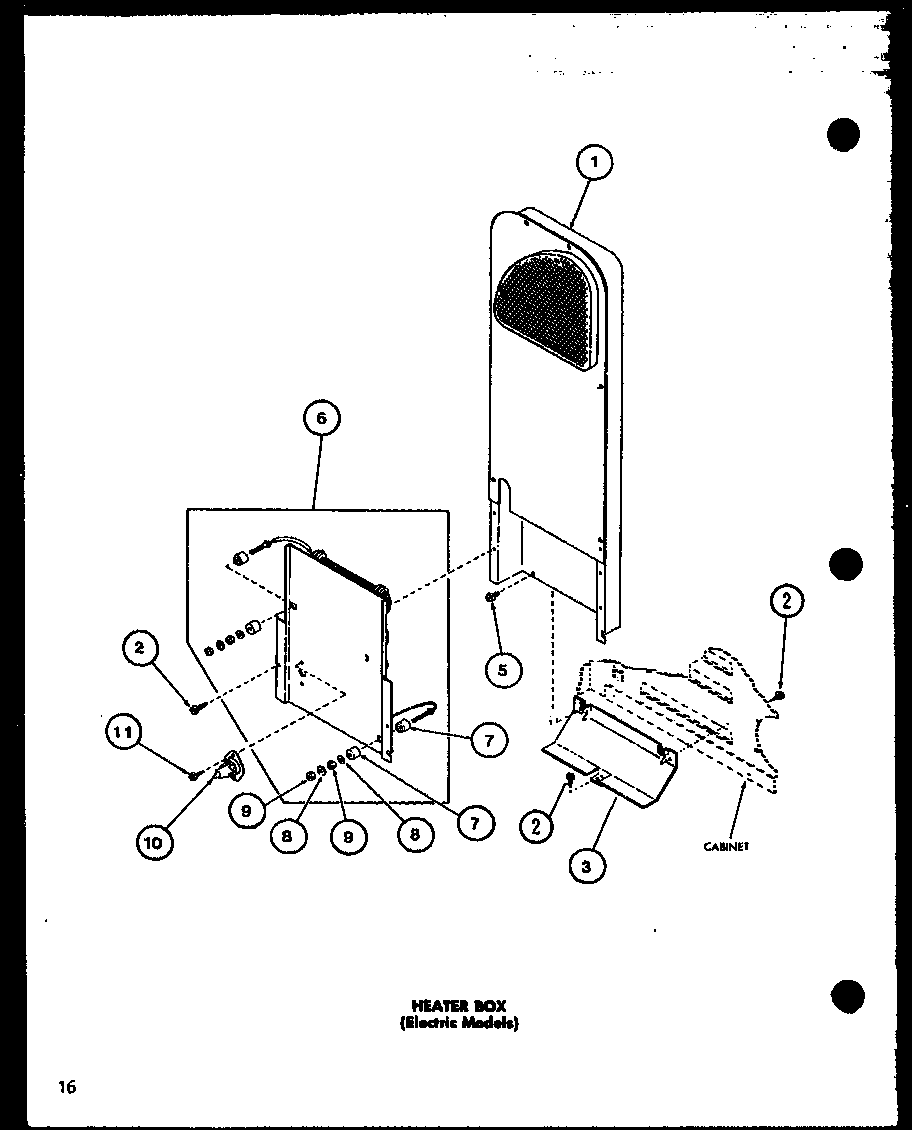

Hetaer box (gas models) (le2802/p7804815w) (le9002/p7804813w) (lg2902/p7804817w) diagram

Heater kit

Part #R0610022

Replaced by #61927

?
Manufacturer substitution
This part replaces R0610022. Substitute parts can look different from the original.
$89.44 |
6% OFF Phone Price : $95.44
In Stock
Heater Element R0610020
#6A

Hetaer box (gas models) (le2802/p7804815w) (le9002/p7804813w) (lg2902/p7804817w) diagram

Heater element

Part #R0610020

The manufacturer no longer makes this part, and there's no substitute part

Strike R0601524
#11

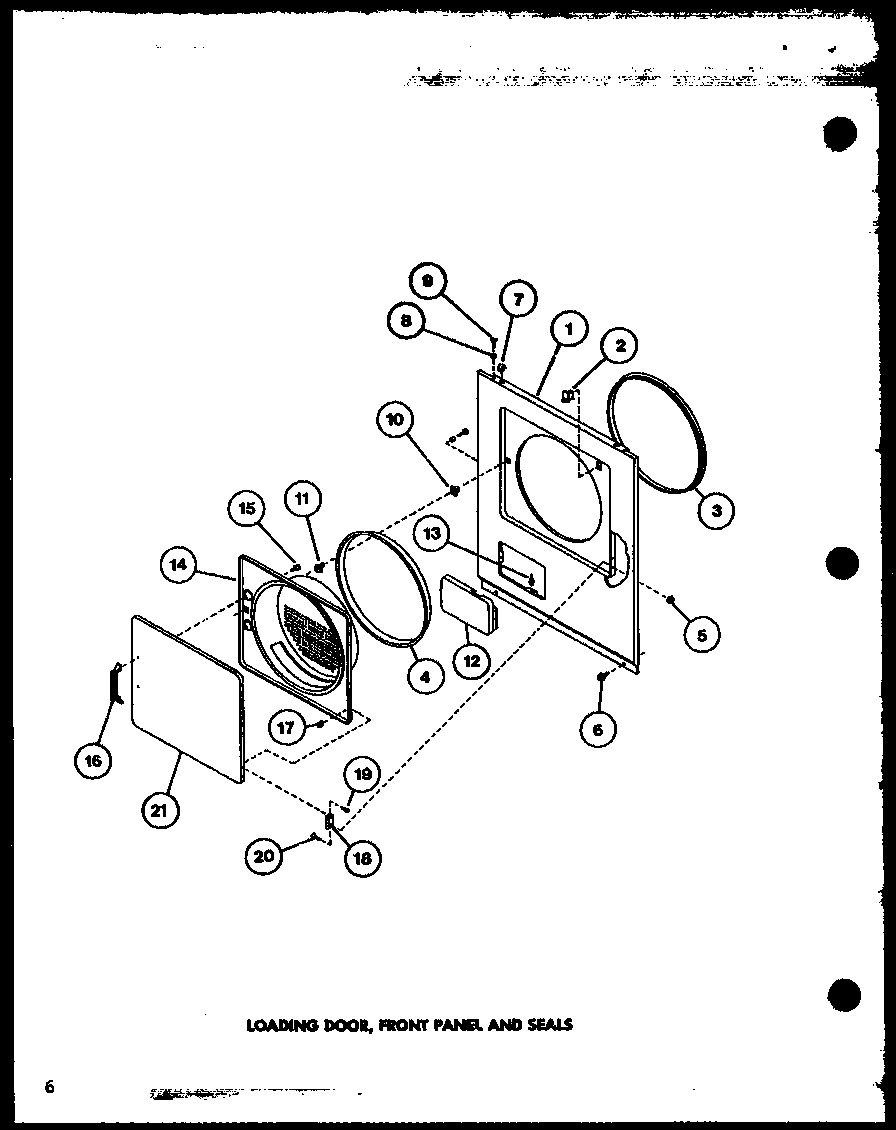

Loading door (le2802/p7804815w) (lg2812/p7804816w) (le2902/p7804817w) (lg2912/p7804818w) (le9002/p7804813w) (lg9012/p7804814w) diagram
