Thermador
Gas Grill

Model # CGBD48RSBX Official Thermador barbecue grill

Here are the diagrams and repair parts for Official Thermador CGBD48RSBX barbecue grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

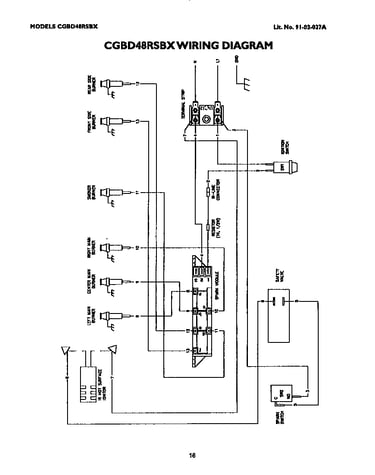

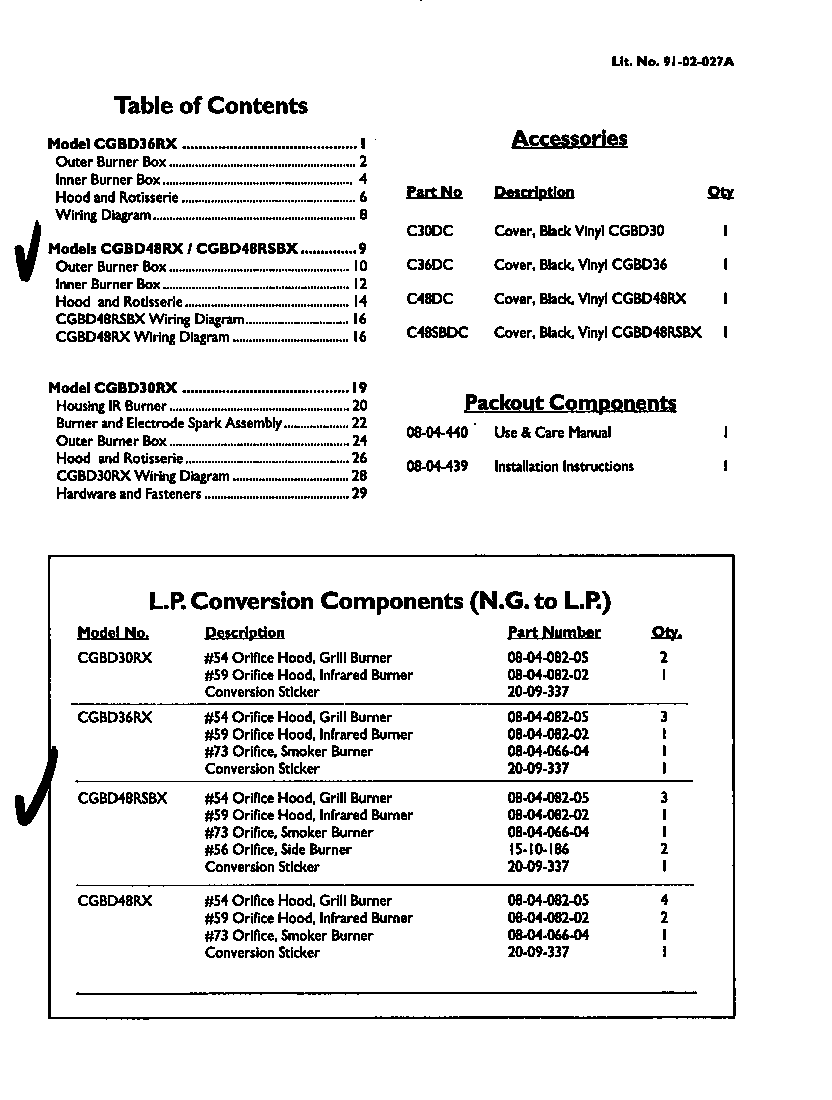

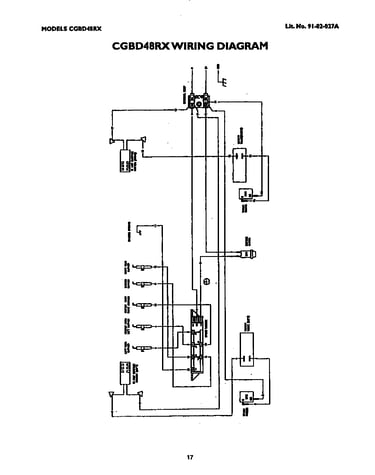

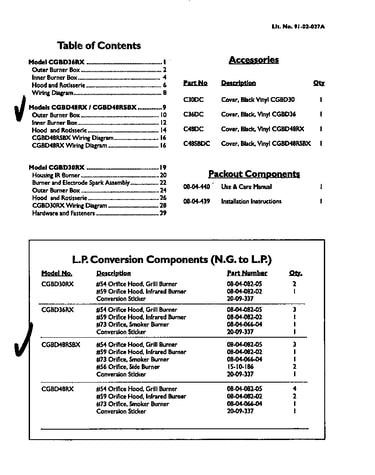

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Electrode Spark (starting With Serial Number 9910) 08-04-587
#34

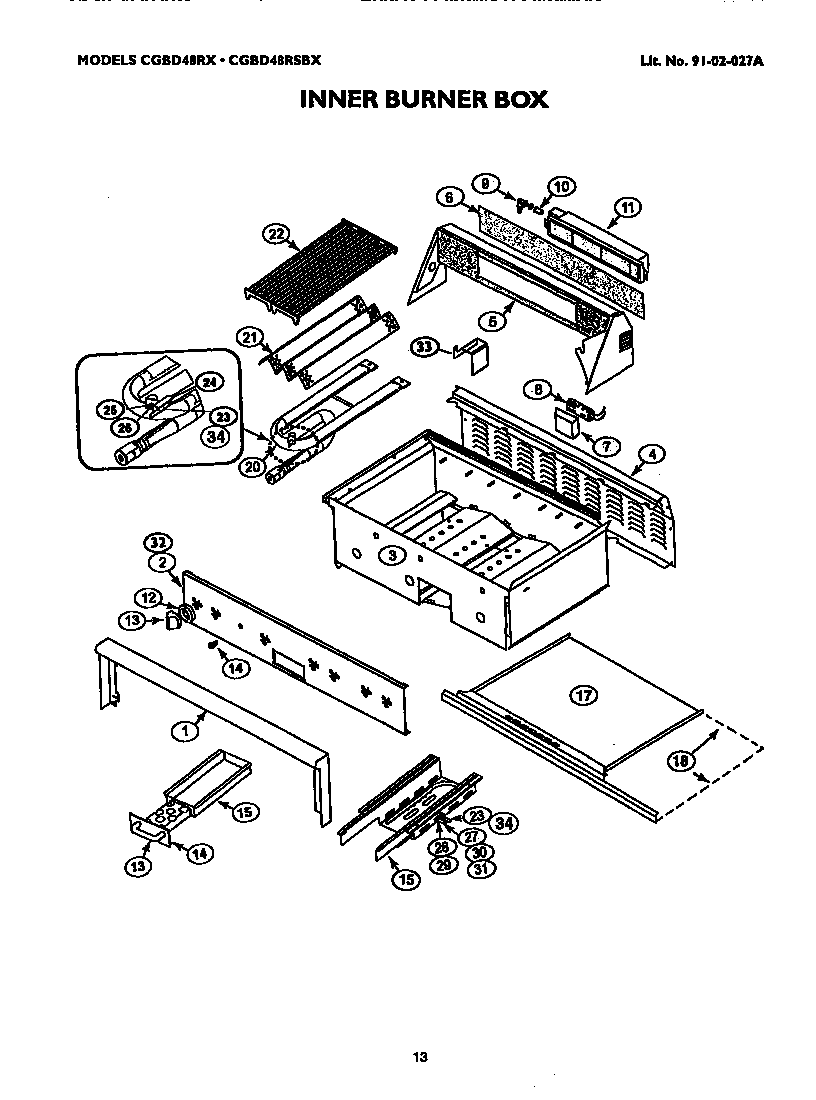

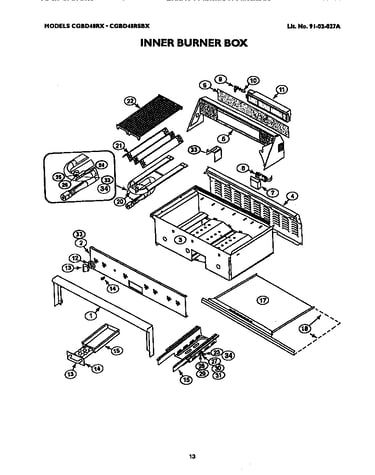

Inner burner box diagram

Electrode spark (starting with serial number 9910)

Part #08-04-587

The manufacturer no longer makes this part, and there's no substitute part

Valve Assembly, Main Burner 15-12-085-01
#15

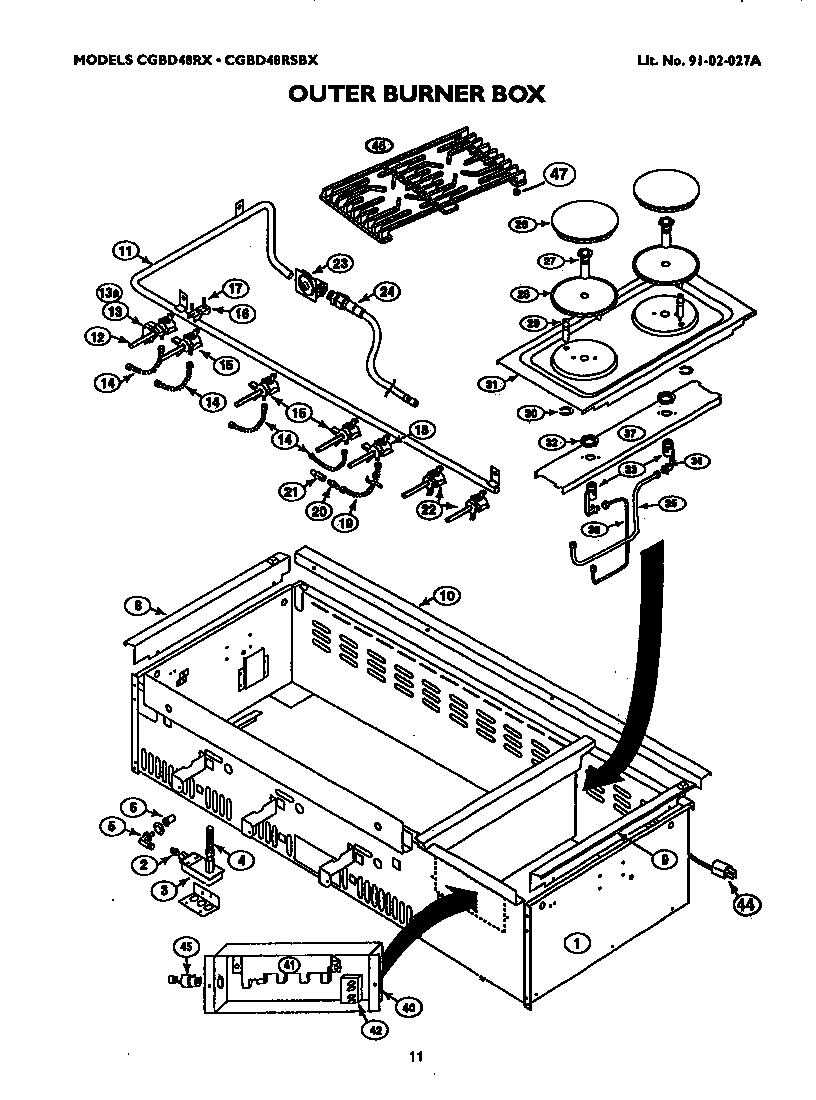

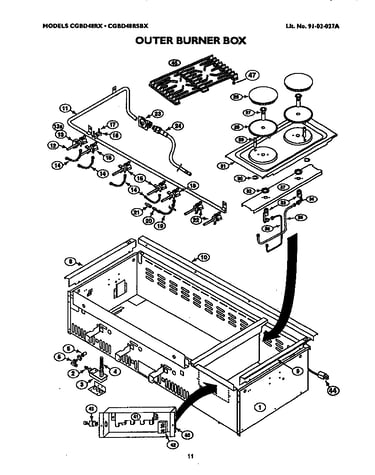

Outer burner box diagram

Valve assembly, main burner

Part #15-12-085-01

The manufacturer no longer makes this part, and there's no substitute part

Harness Assembly (model Cgb48ru) 08-04-341

#NI

All parts diagram

Harness assembly (model cgb48ru)

Part #08-04-341

The manufacturer no longer makes this part, and there's no substitute part

Infrared Burner 08-04-081
#11

Inner burner box diagram

Infrared burner

Part #08-04-081

The manufacturer no longer makes this part, and there's no substitute part

Harness Assembly (model Cgb46rsbu)(prior To Serial Numbe 08-04-340

#NI

All parts diagram

Harness assembly (model cgb46rsbu)(prior to serial numbe

Part #08-04-340

The manufacturer no longer makes this part, and there's no substitute part

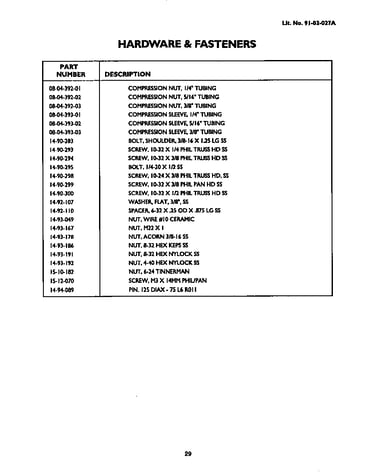

Bolt, Shoulder 3/8-16 X 1.25 (2) 14-90-283
#4

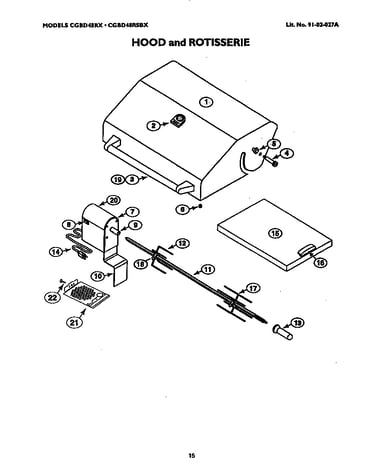

Hood and rotisserie diagram

Bolt, shoulder 3/8-16 x 1.25 (2)

Part #14-90-283

The manufacturer no longer makes this part, and there's no substitute part

Pressure Regulator 15-10-320
#23

Outer burner box diagram

Pressure regulator

Part #15-10-320

The manufacturer no longer makes this part, and there's no substitute part

Panel, Rear, Ir 08-04-228
#4

Inner burner box diagram

Panel, rear, ir

Part #08-04-228

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief 15-10-110
#45

Outer burner box diagram

Strain relief

Part #15-10-110

The manufacturer no longer makes this part, and there's no substitute part

Clip, Ignitor Plug 20-02-042
#30

Outer burner box diagram

Clip, ignitor plug

Part #20-02-042

The manufacturer no longer makes this part, and there's no substitute part
