Sony
Digital Camcorder

Model # DCR-SR88R Official Sony camcorder

Here are the diagrams and repair parts for Official Sony DCR-SR88R camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Harddiskdr 184036721
#4

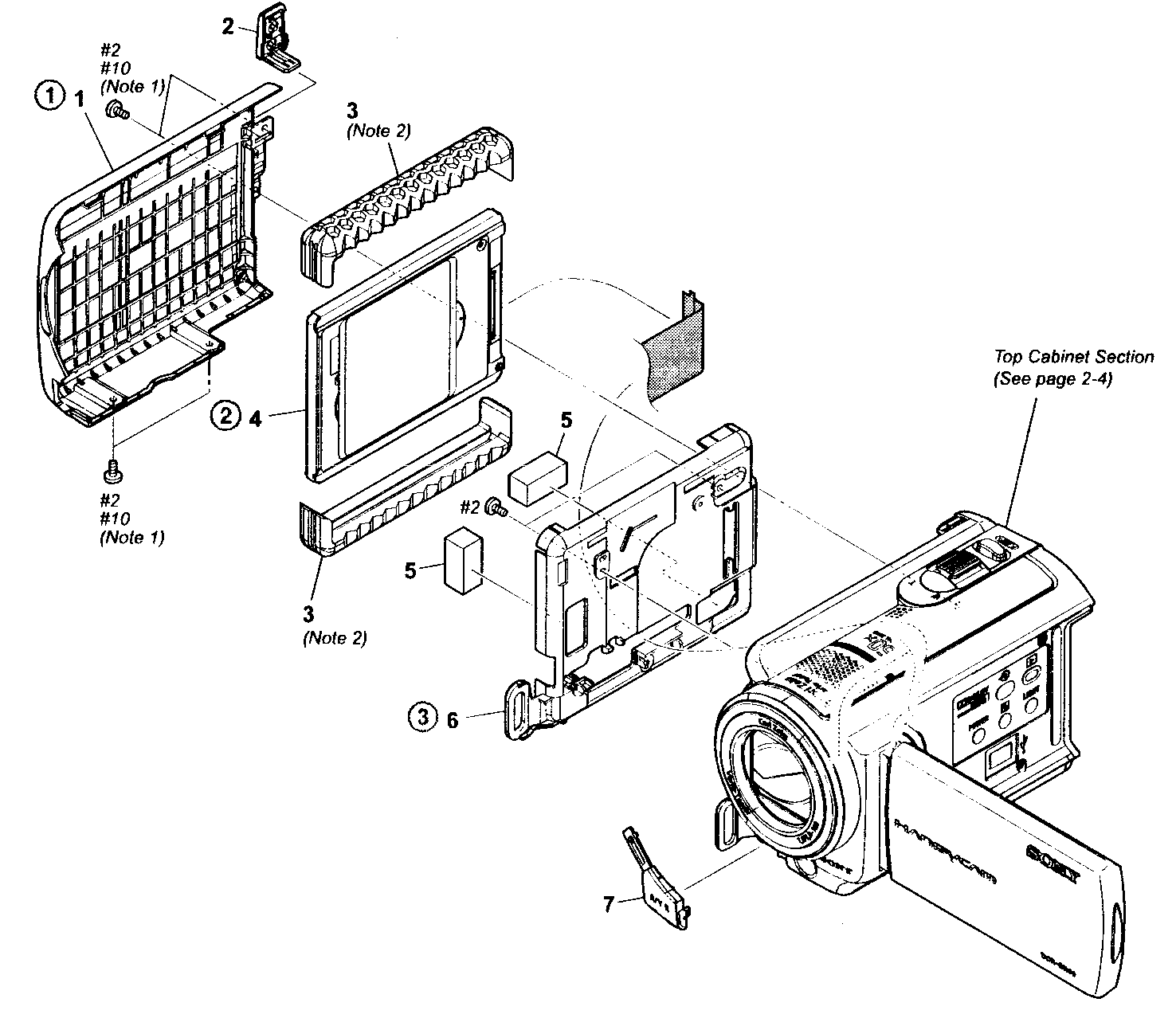

Hdd assy diagram

Harddiskdr

Part #184036721

The manufacturer no longer makes this part, and there's no substitute part

Pcb,da-049 A1759223A
#155

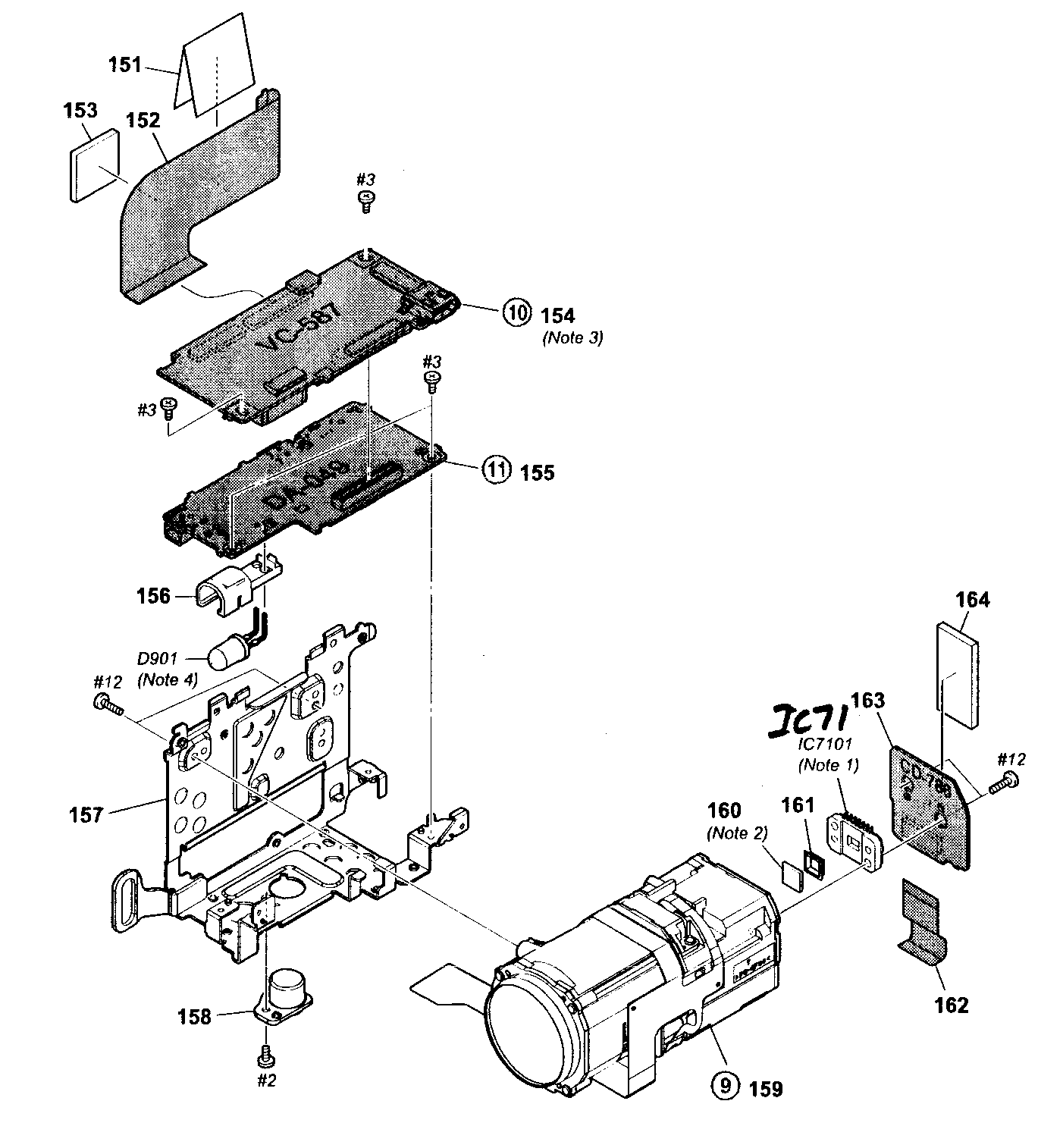

Lens assy diagram

Pcb,da-049

Part #A1759223A

The manufacturer no longer makes this part, and there's no substitute part

Flex Clamp 416645101
#212

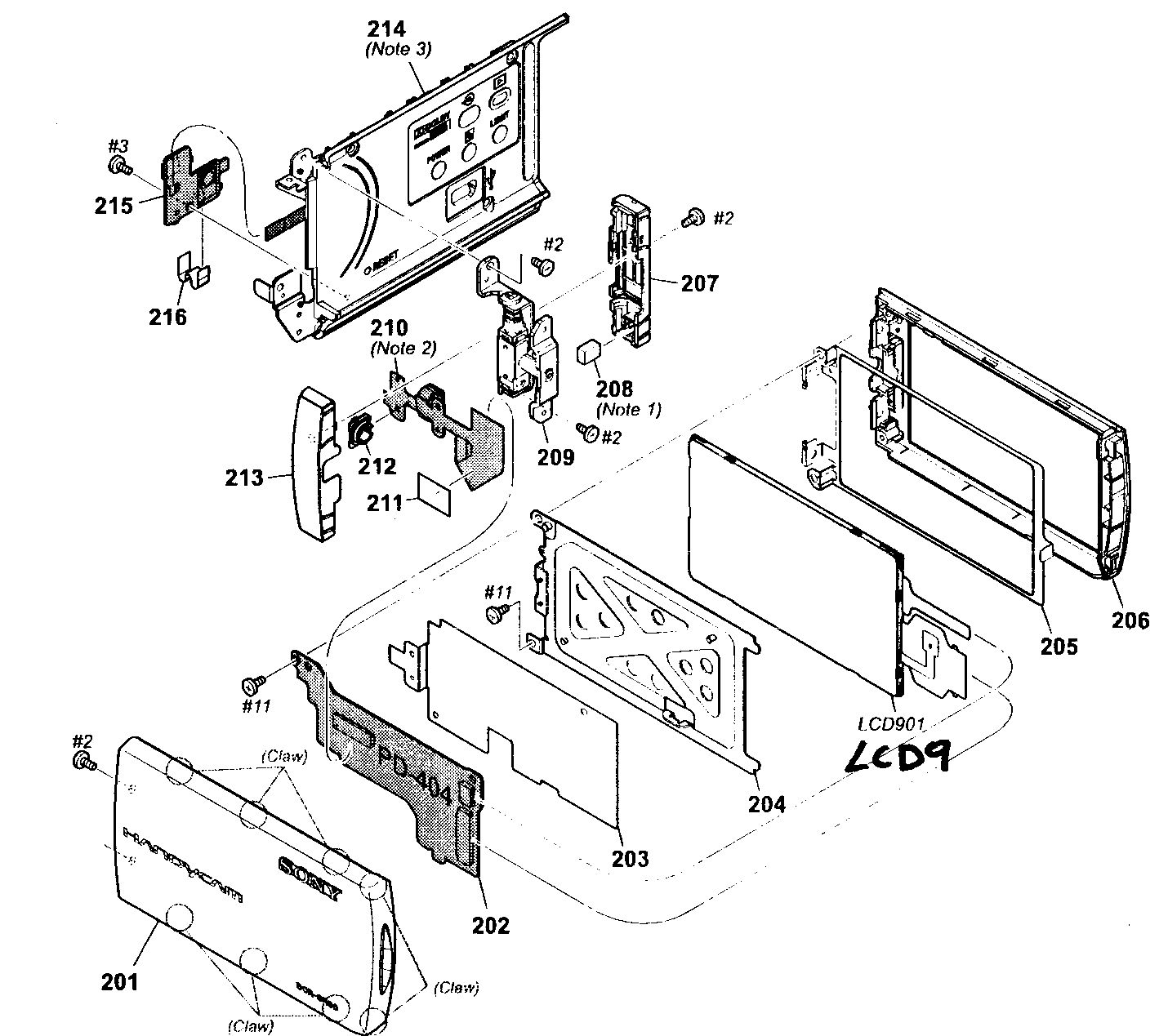

Lcd assy diagram

Flex clamp

Part #416645101

The manufacturer no longer makes this part, and there's no substitute part

Diode 650295401
#D901

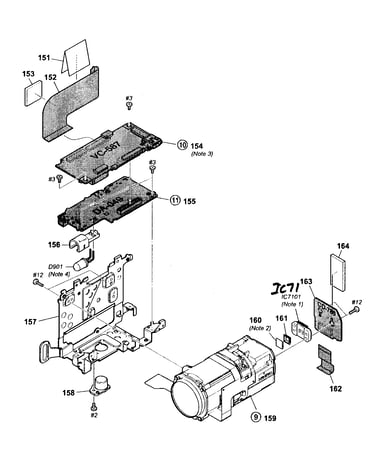

Lens assy diagram

Diode

Part #650295401

The manufacturer no longer makes this part, and there's no substitute part

Holder 415577001
#156

Lens assy diagram

Holder

Part #415577001

The manufacturer no longer makes this part, and there's no substitute part

Ac Adapter 148715051
#NI

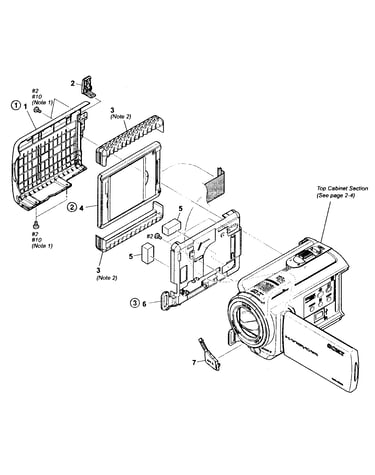

Hdd assy diagram

Ac adapter

Part #148715051

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Assembly A1750480A
#201

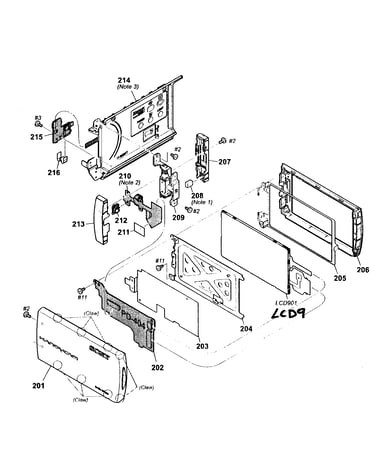

Lcd assy diagram

Cabinet assembly

Part #A1750480A

The manufacturer no longer makes this part, and there's no substitute part

Rechrg Bat A1738740A
#NI

Hdd assy diagram

Rechrg bat

Part #A1738740A

The manufacturer no longer makes this part, and there's no substitute part

Microphone 154281411
#MIC9

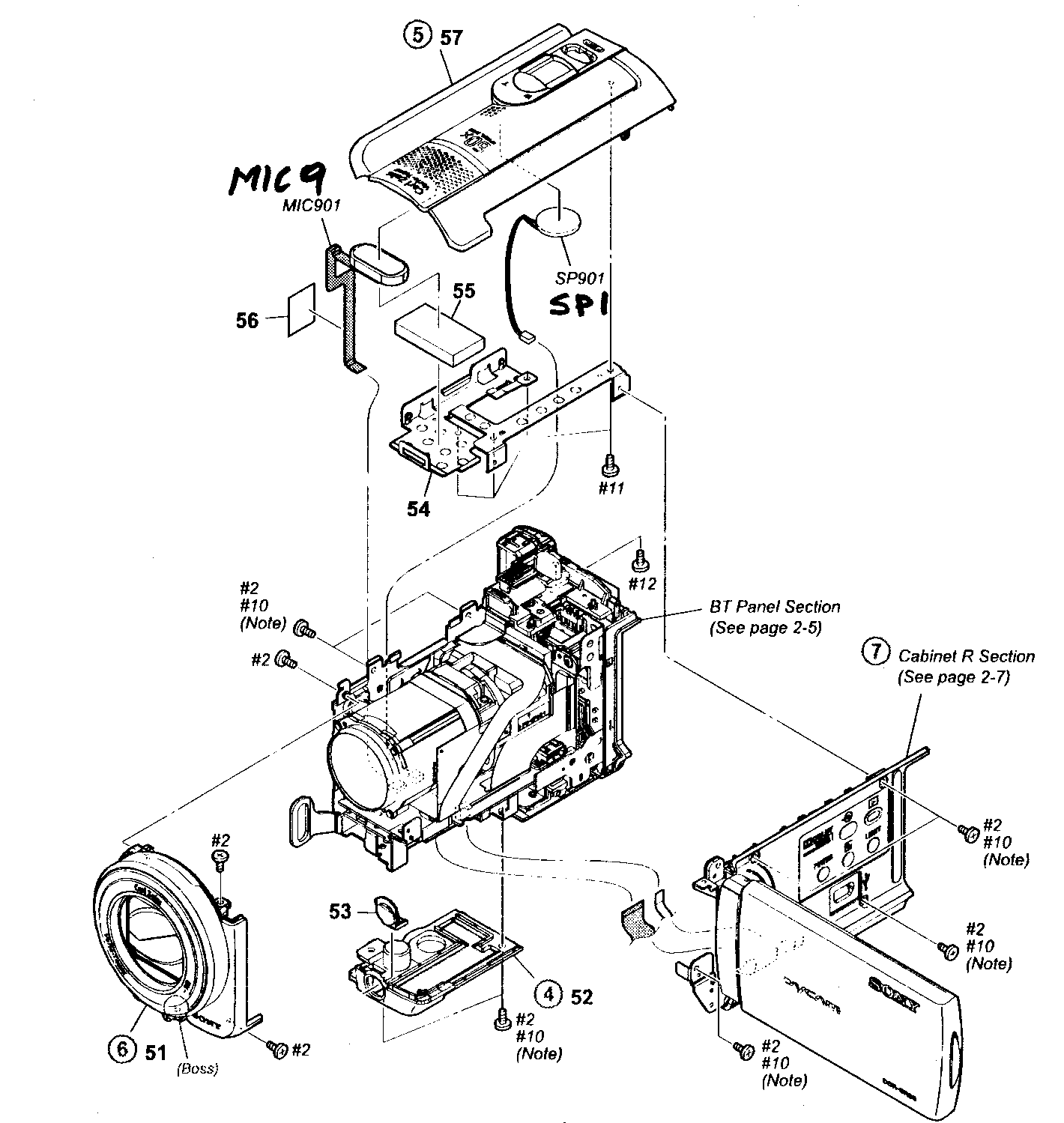

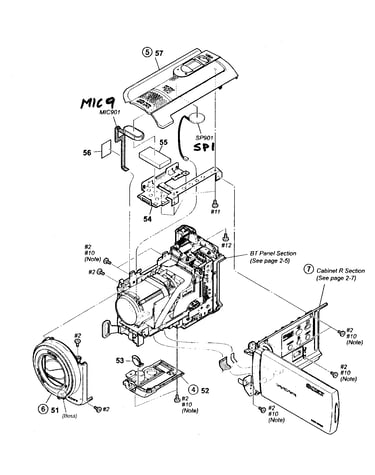

Top cabinet diagram

Microphone

Part #154281411

The manufacturer no longer makes this part, and there's no substitute part

Pcb,ms-432 A1750997A
#104

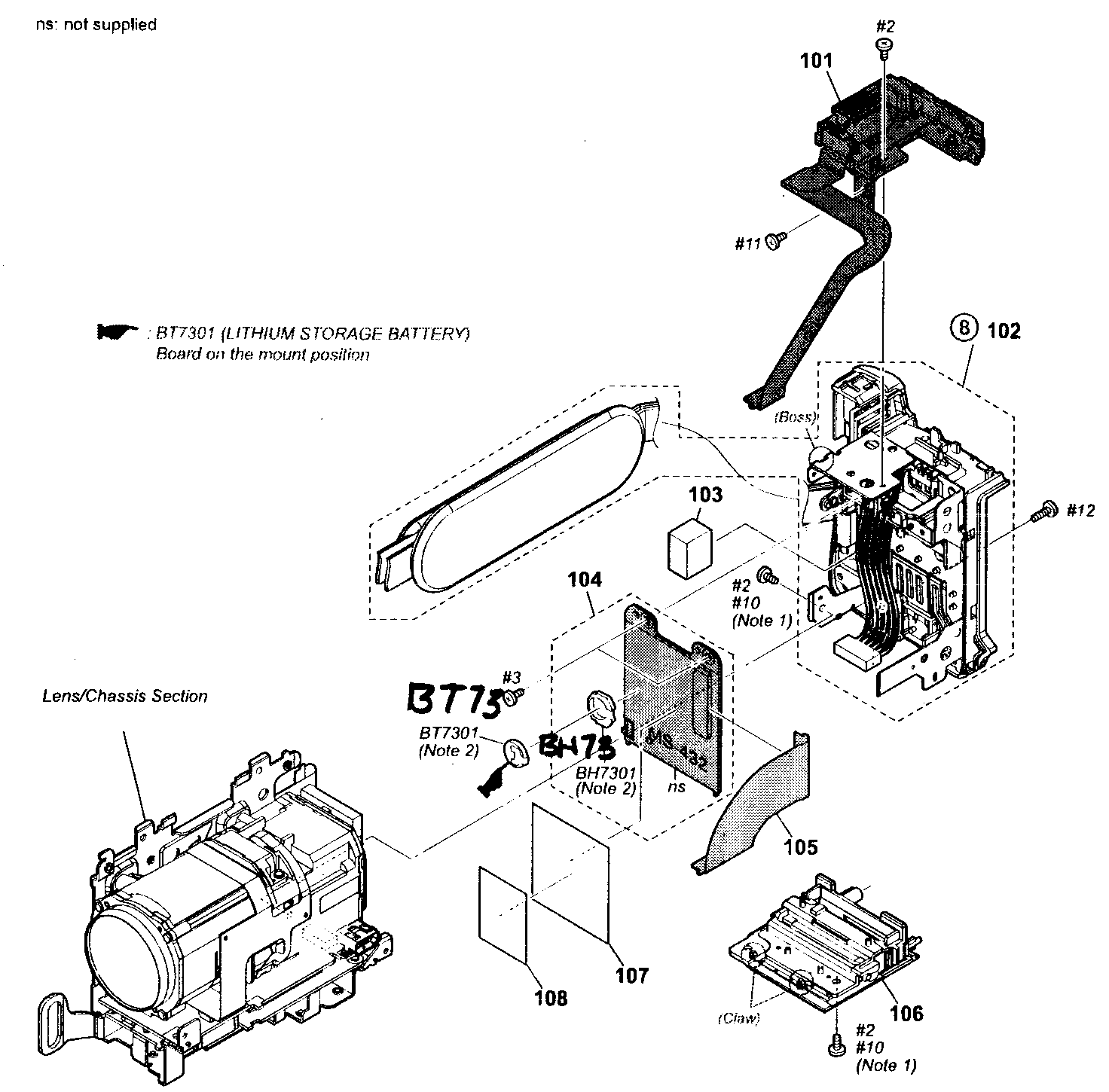

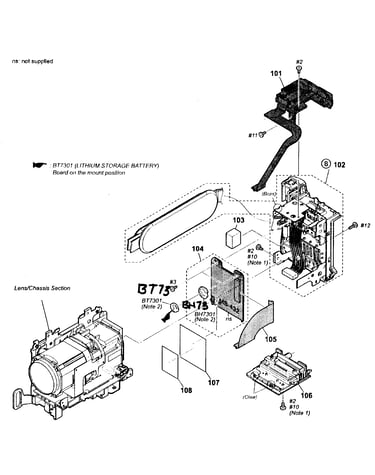

Back panel diagram

Pcb,ms-432

Part #A1750997A

The manufacturer no longer makes this part, and there's no substitute part
