Hoover
Upright Vacuum

Model # U5268900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5268900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

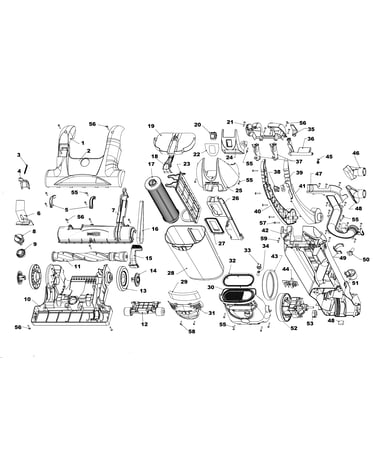

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |

Vacuum Trunnion Bracket 36131118
#5

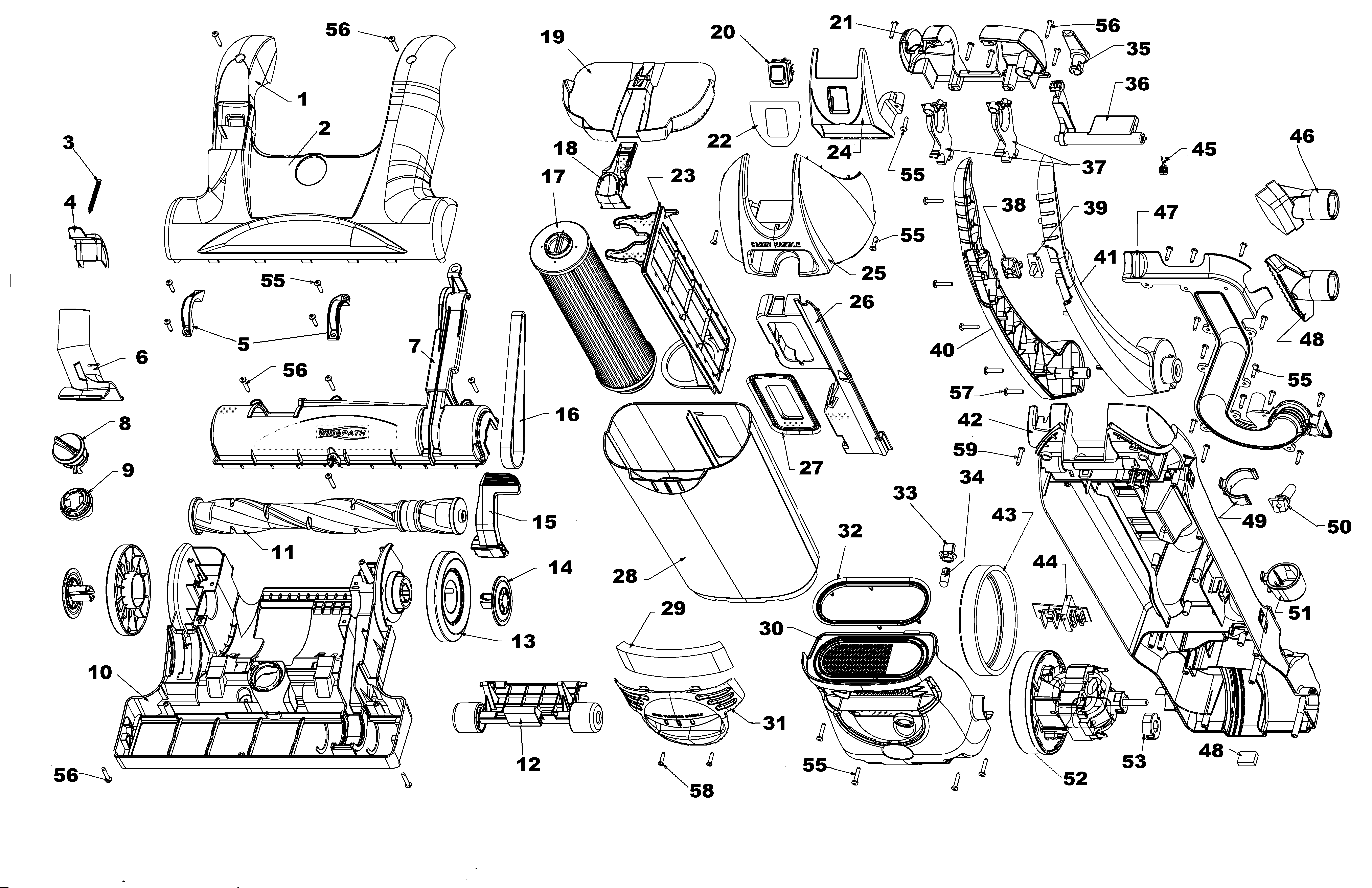

Complete assembly diagram

Vacuum trunnion bracket

Part #36131118

The manufacturer no longer makes this part, and there's no substitute part

Retainer Cover 37258177
#21

Complete assembly diagram

Retainer cover

Part #37258177

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mount 36322030
#53

Complete assembly diagram

Vacuum motor mount

Part #36322030

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
#56

Complete assembly diagram

Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Support 36426067
#23

Complete assembly diagram

Support

Part #36426067

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord Strain Relief 36215028
#50

Complete assembly diagram

Vacuum power cord strain relief

Part #36215028

The manufacturer no longer makes this part, and there's no substitute part

Screw 21447266
#55

Complete assembly diagram

Screw

Part #21447266

The manufacturer no longer makes this part, and there's no substitute part

Wand Holder 36433192
#51

Complete assembly diagram

Wand holder

Part #36433192

The manufacturer no longer makes this part, and there's no substitute part

Wr Grommet 36218023
#54

Complete assembly diagram

Wr grommet

Part #36218023

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528040
#16

Complete assembly diagram

Vacuum beater bar belt

Part #38528040

The manufacturer no longer makes this part, and there's no substitute part
