Model # JDB1255AWS2 Official Jenn-Air undercounter dishwasher

Here are the diagrams and repair parts for Official Jenn-Air JDB1255AWS2 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

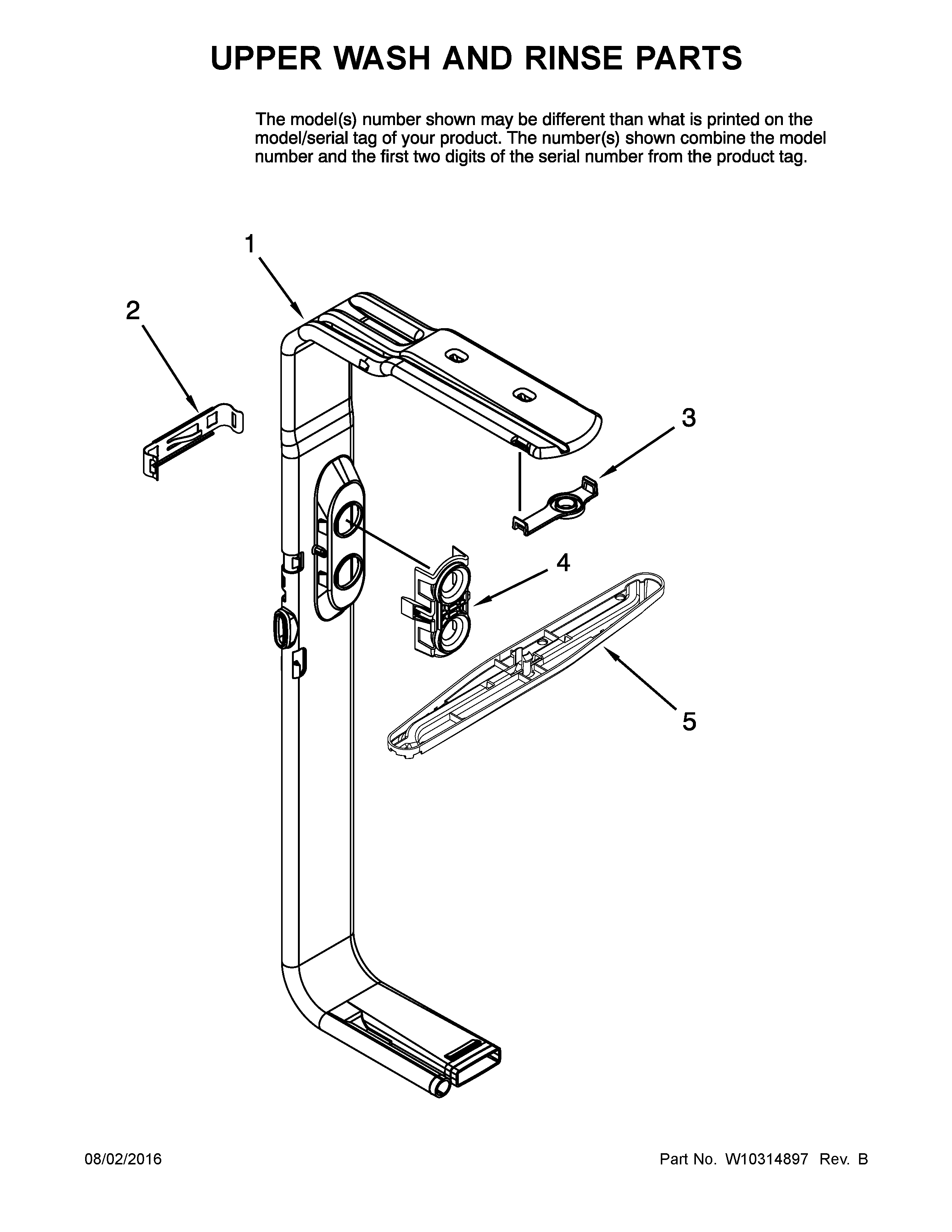

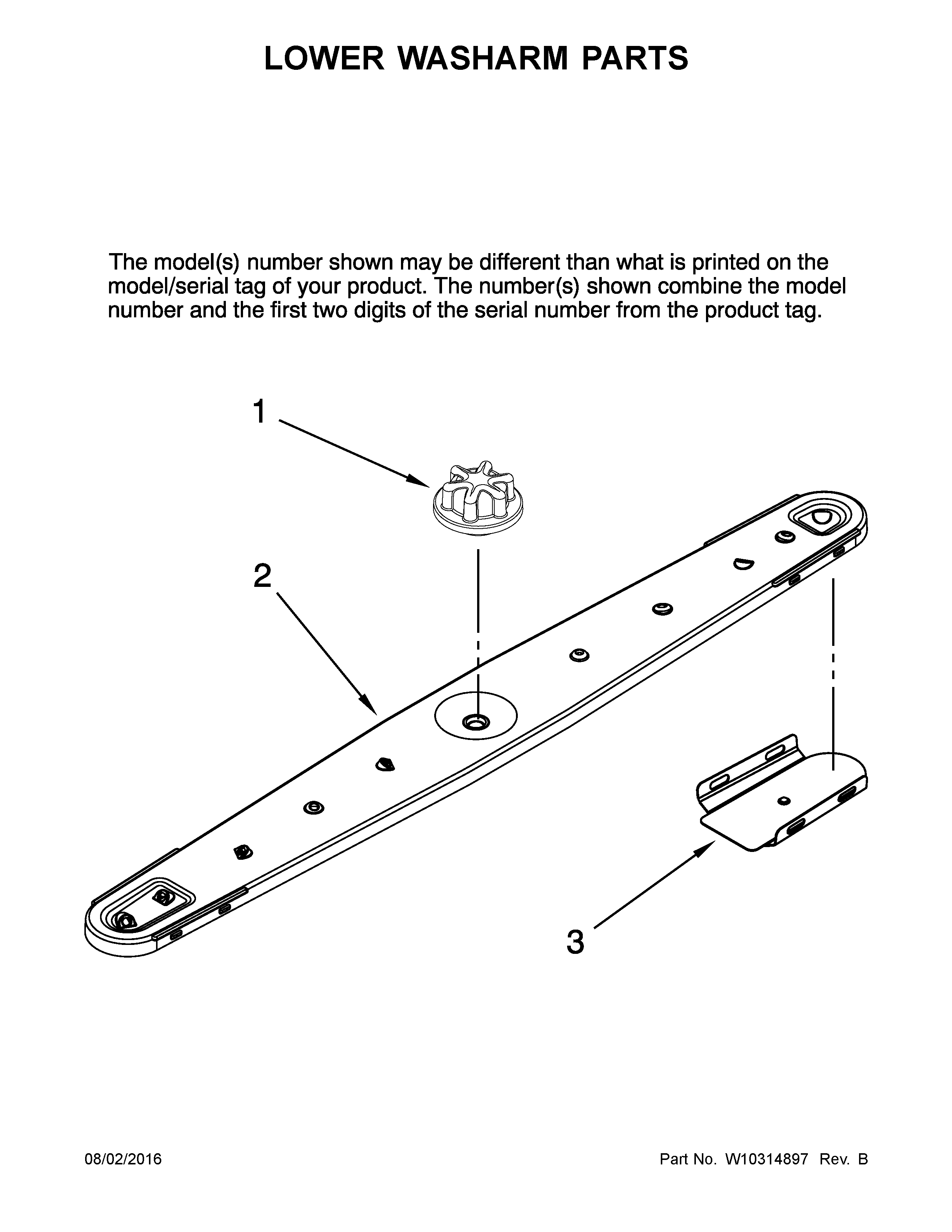

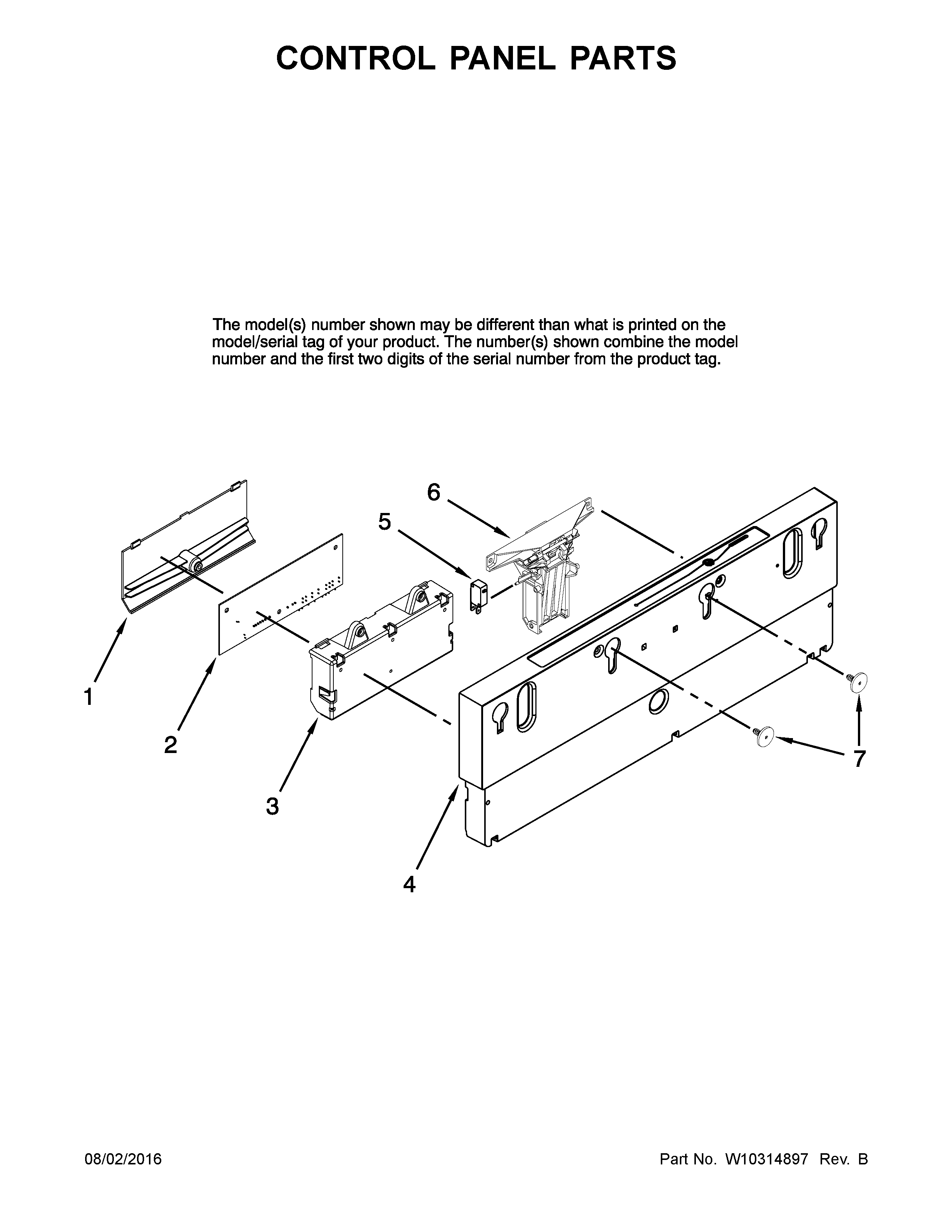

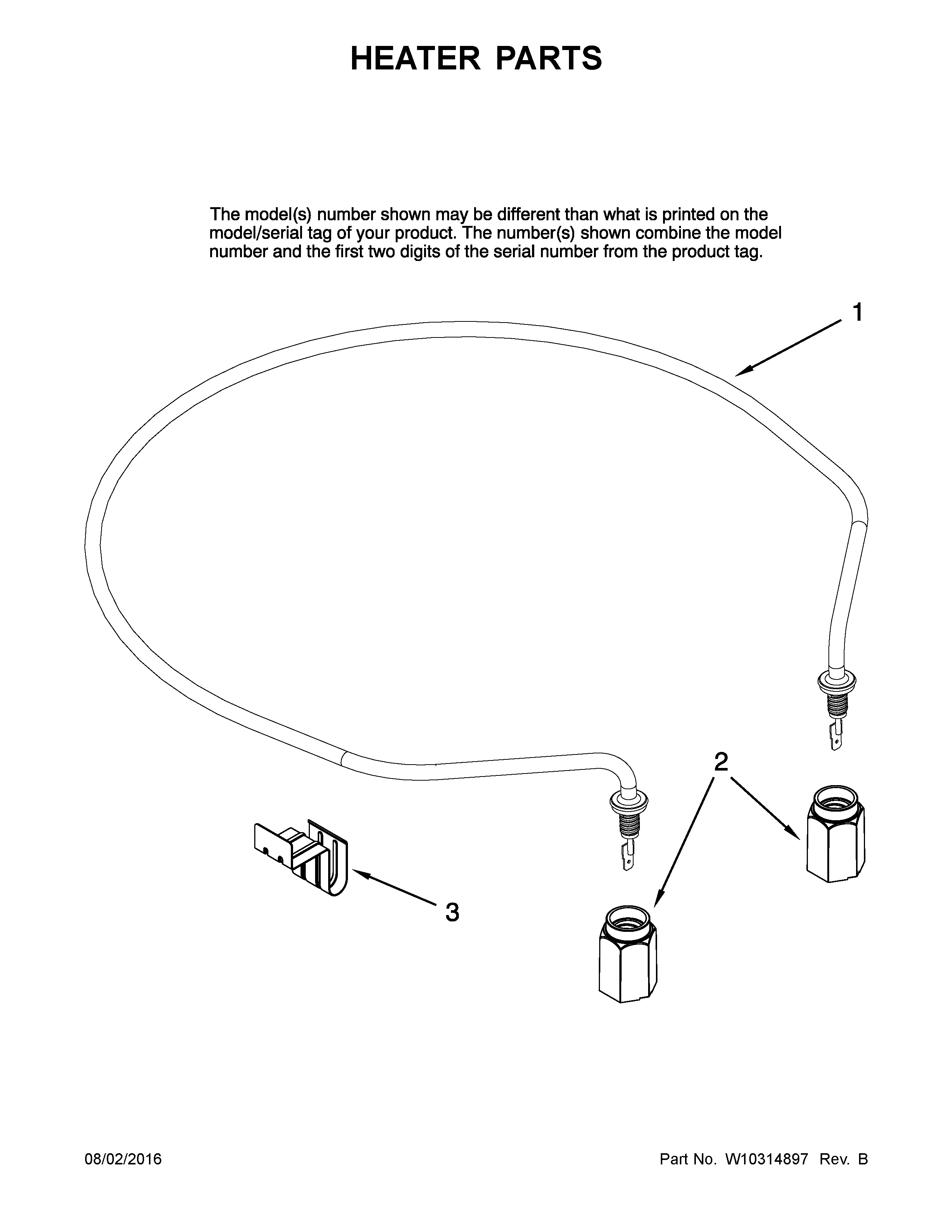

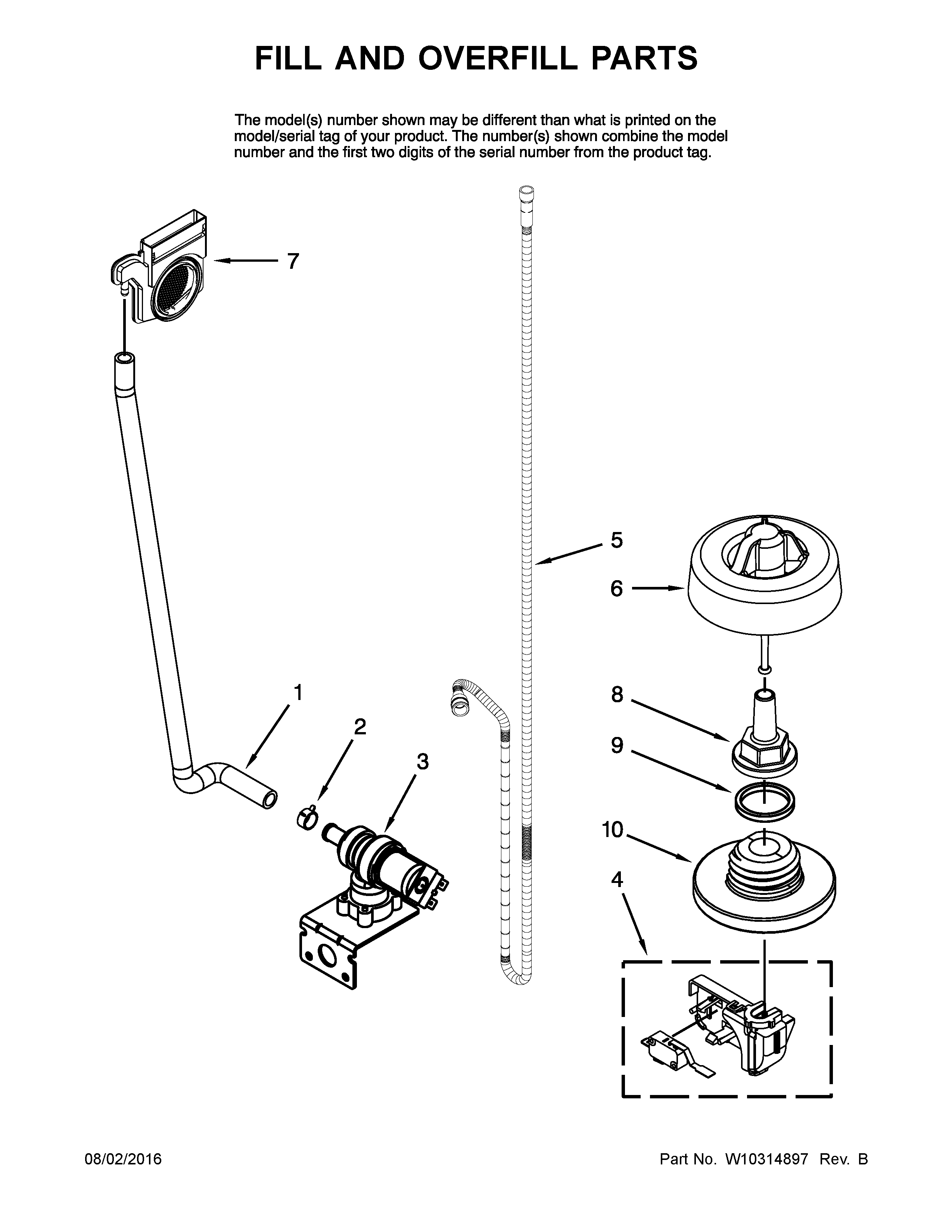

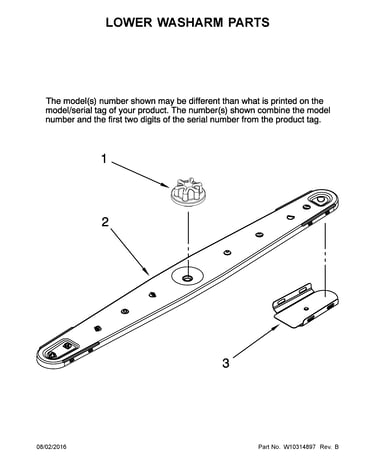

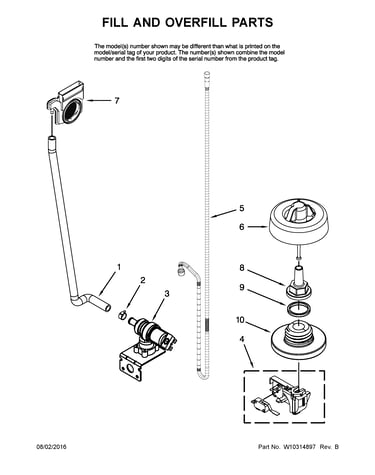

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Appliance Touch-up Paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, W10831982) 72032
#NI

Optional parts (not included) diagram

Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)

Part #72032

BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Wheel Assembly 6-918869
#22

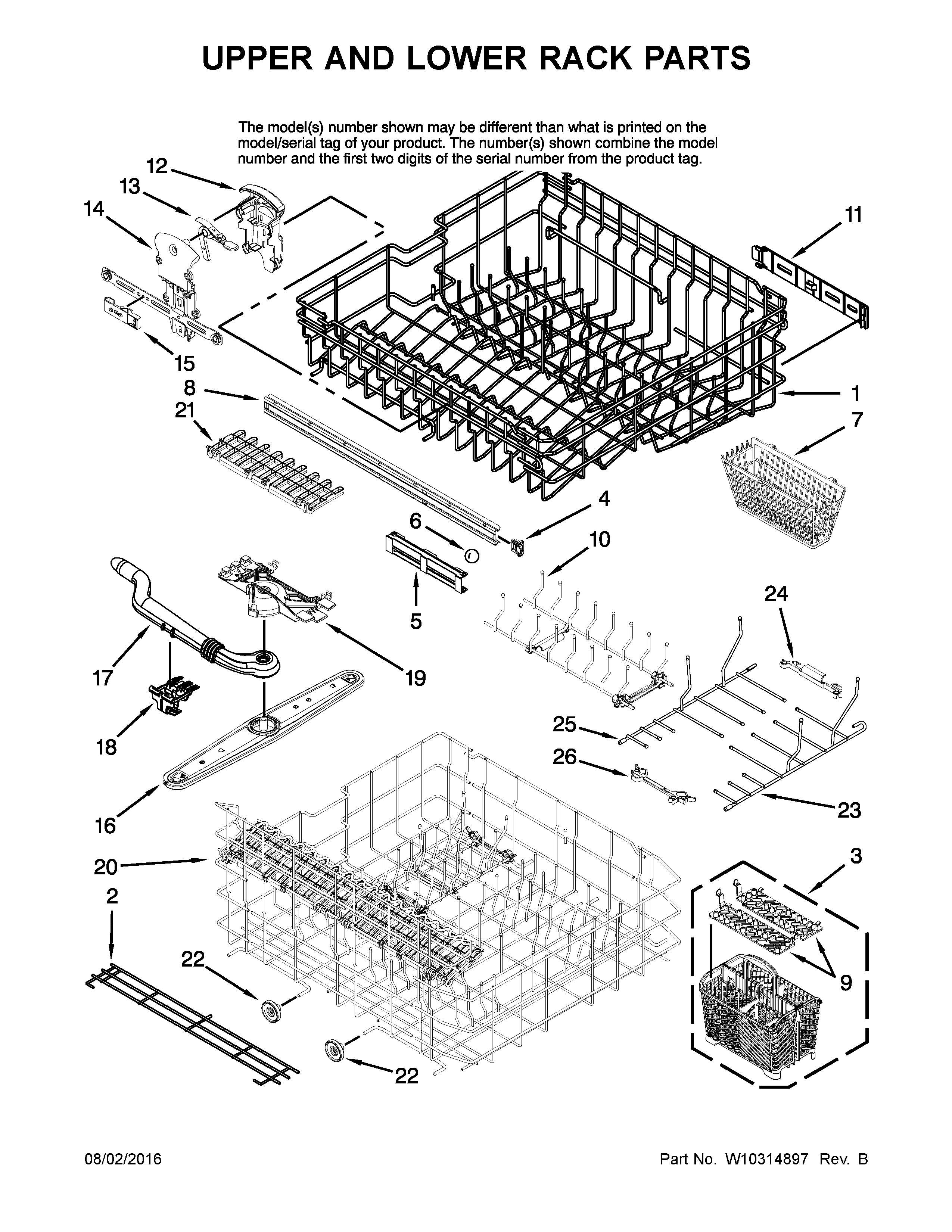

Upper and lower rack parts diagram

Wheel assembly

Part #6-918869

Replaced by #WP99003149

?
Manufacturer substitution
This part replaces 6-918869. Substitute parts can look different from the original.
$10.06 |
17% OFF Phone Price : $12.06
In Stock
Accumulator W10192800
#6

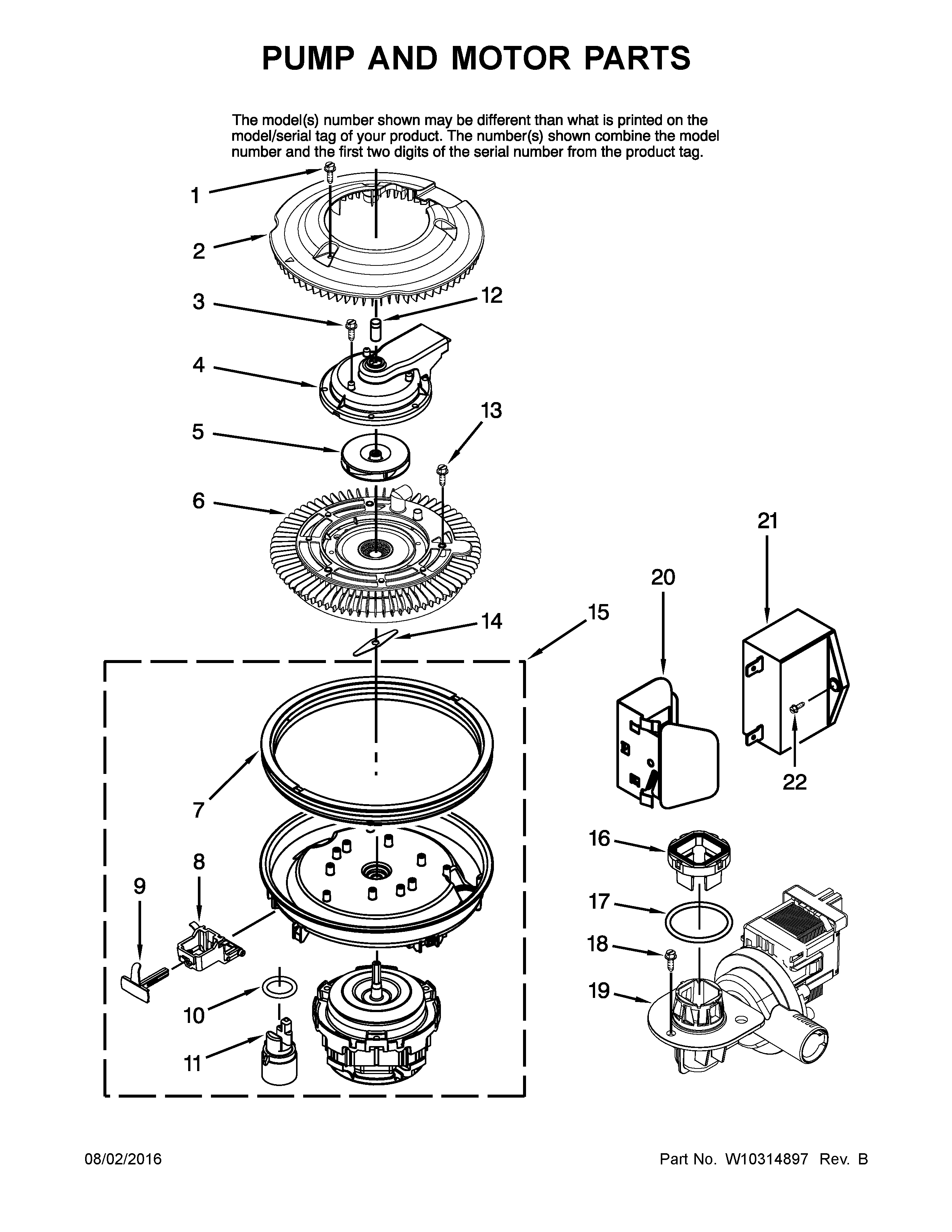

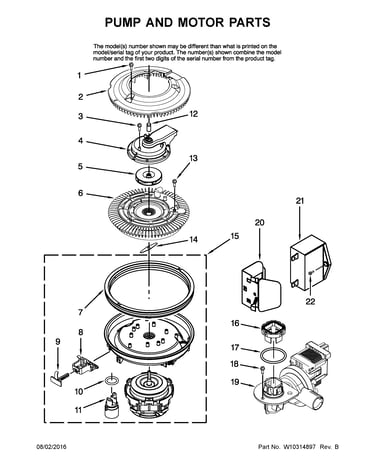

Pump and motor parts diagram

Accumulator

Part #W10192800

Replaced by #WPW10192799

?
Manufacturer substitution
This part replaces W10192800. Substitute parts can look different from the original.
$101.20 |
11% OFF Phone Price : $113.20
In Stock
Installation Kit 4396897RP
#NI

Optional parts (not included) diagram

Installation kit

Part #4396897RP

Replaced by #W10278635RP

?
Manufacturer substitution
This part replaces 4396897RP. Substitute parts can look different from the original.
$28.29 |
17% OFF Phone Price : $34.29
In Stock
Sears Dishwasher Installation Kit 8212488RC
#NI

Optional parts (not included) diagram

Sears dishwasher installation kit

Part #8212488RC

$47.69 |
11% OFF Phone Price : $53.69
In Stock
Bracket W10167660
#18

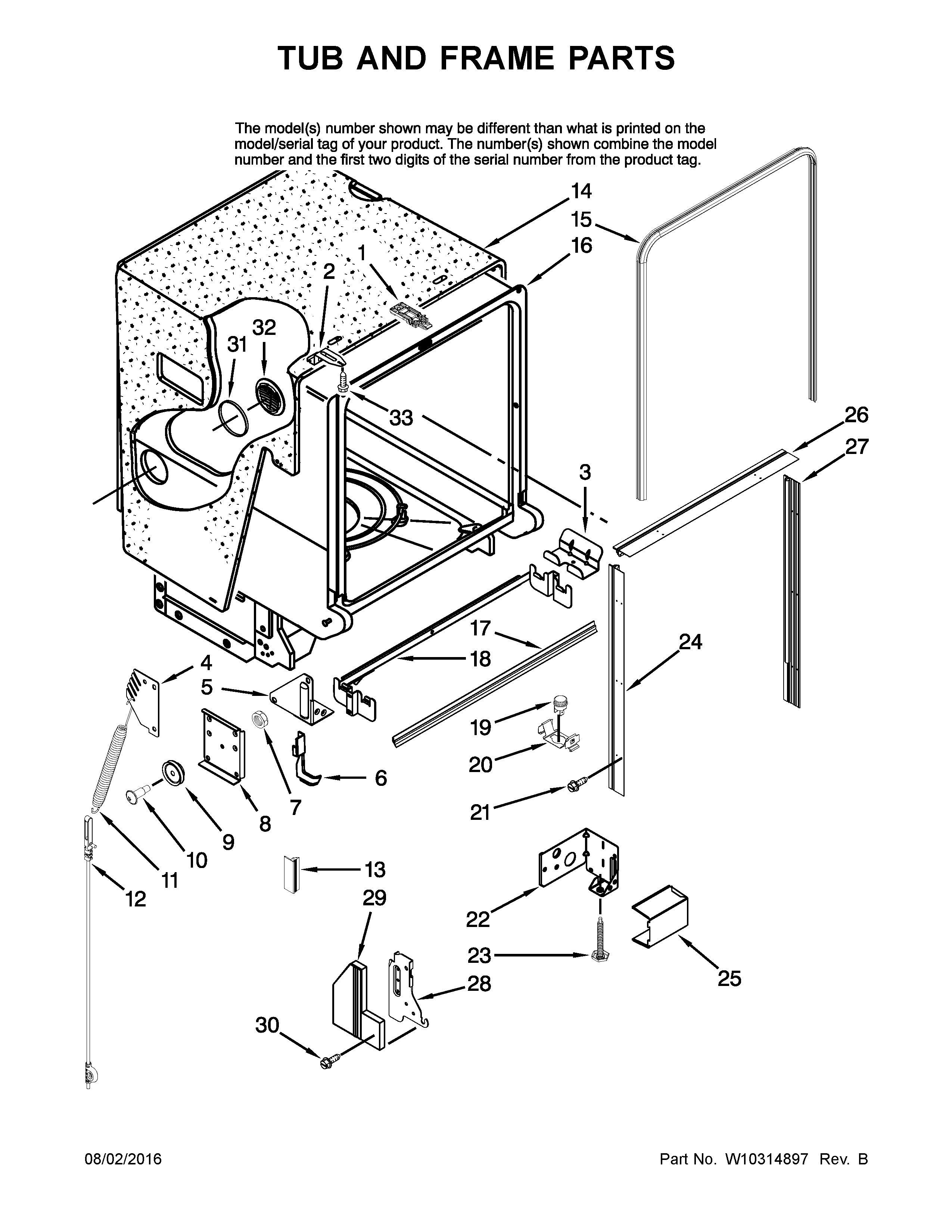

Tub and frame parts diagram

Bracket

Part #W10167660

$26.69 |
18% OFF Phone Price : $32.69
In Stock
Dishwasher Wire Harness W10237912
#1

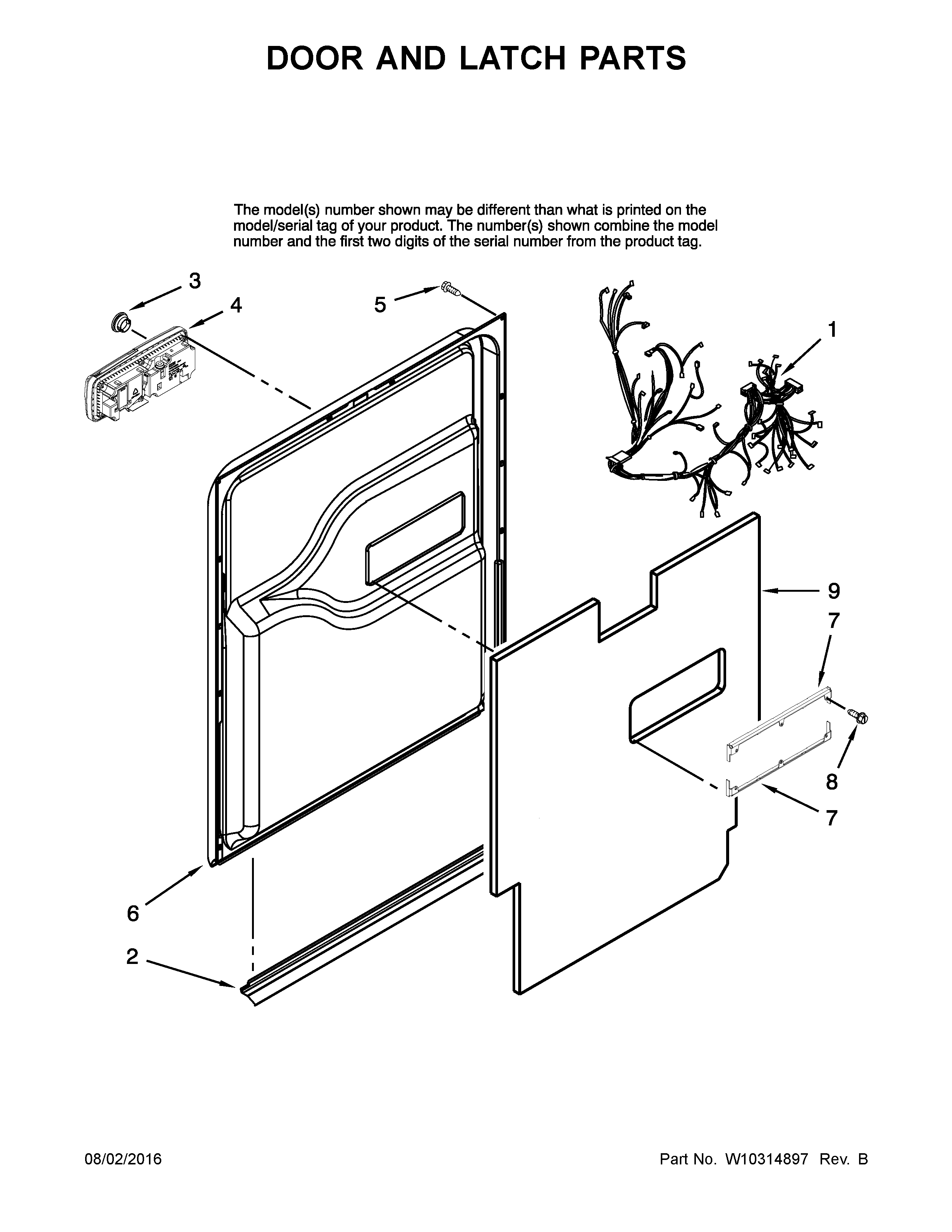

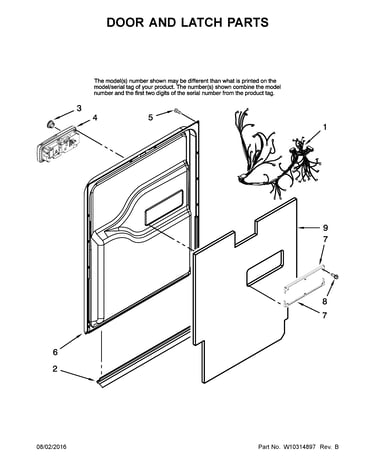

Door and latch parts diagram

Dishwasher wire harness

Part #W10237912

$134.76
In Stock
Plate W10167659
#13

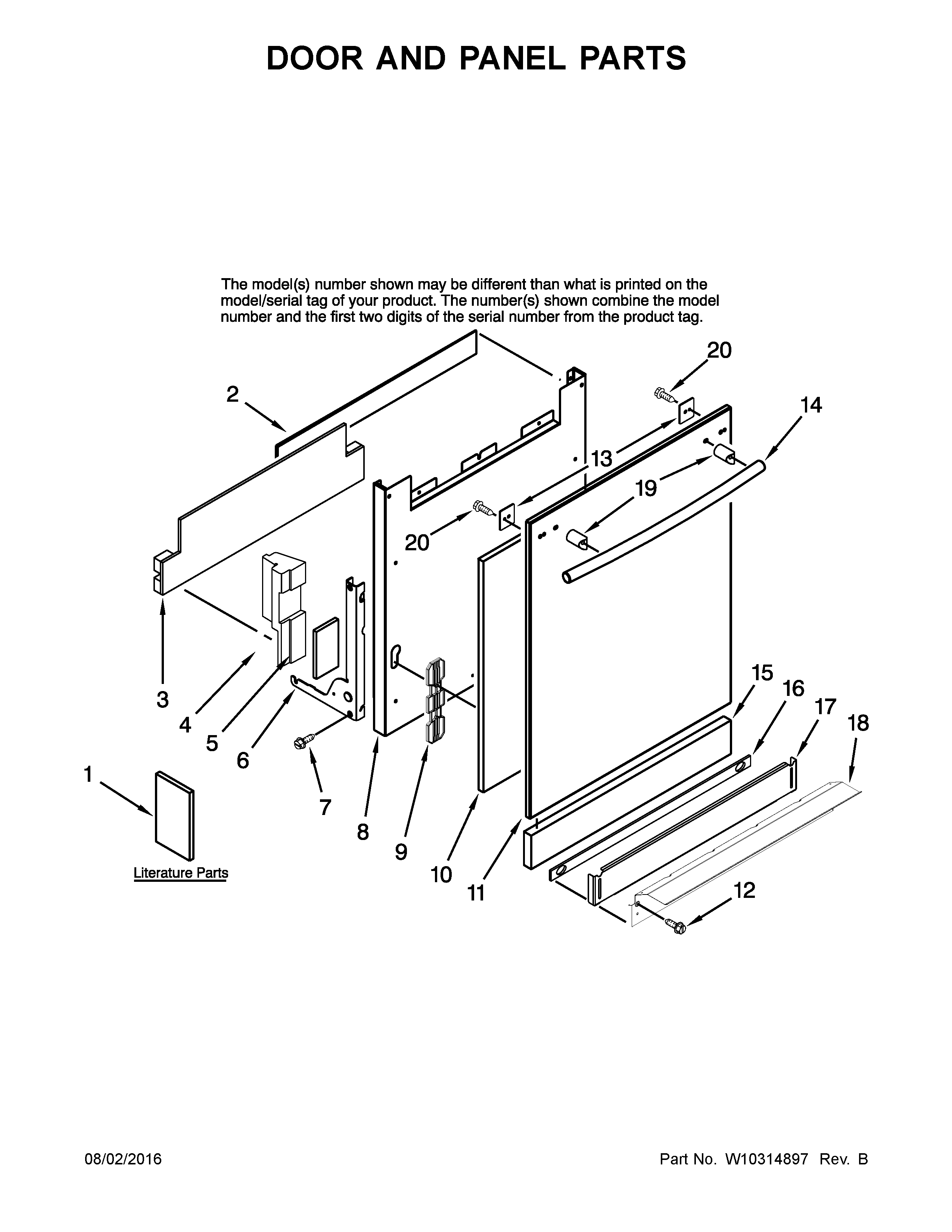

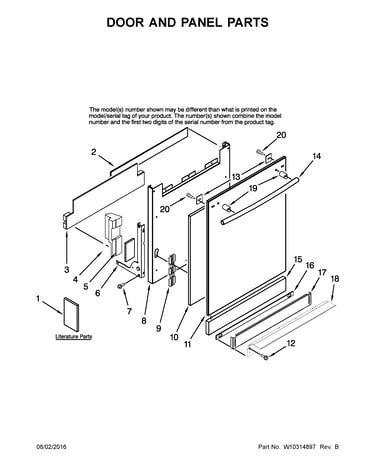

Door and panel parts diagram

Plate

Part #W10167659

$17.13
In Stock
Sears Dishwasher Fill Hose, 10-ft 8212486
#NI

Optional parts (not included) diagram

Sears dishwasher fill hose, 10-ft

Part #8212486

$37.19 |
14% OFF Phone Price : $43.19
In Stock
