Room Air Conditioner

Model # 1U09AP2HDB1 Official Haier room air conditioner

Here are the diagrams and repair parts for Official Haier 1U09AP2HDB1 room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
1U09AP2HDB1 Room Air Conditioner
Liquid Service Valve WJ53X24973
#15

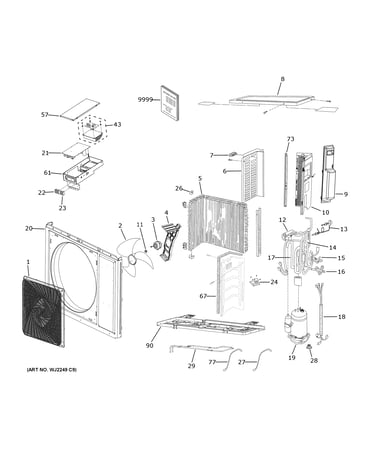

Room air conditioner diagram

Liquid service valve

Part #WJ53X24973

$22.89
In Stock
Outdoor Fan Motor Bracket WJ65X22976
#4

Room air conditioner diagram

Outdoor fan motor bracket

Part #WJ65X22976

$26.91
In Stock
Compressor WJ98X22969
#19

Room air conditioner diagram

Compressor

Part #WJ98X22969

$367.20
In Stock
Condenser Assembly. WJ88X33045
#5

Room air conditioner diagram

Condenser assembly.

Part #WJ88X33045

$400.05
In Stock
Sensor Clip WJ01X23219
#26

Room air conditioner diagram

Sensor clip

Part #WJ01X23219

$9.23
In Stock
Flange Nut WJ01X23150
#11

Room air conditioner diagram

Flange nut

Part #WJ01X23150

$14.74
In Stock
Vapor Service Valve WJ53X24974
#16

Room air conditioner diagram

Vapor service valve

Part #WJ53X24974

$27.82
In Stock
Outdoor Wire Harness WJ35X22978
#18

Room air conditioner diagram

Outdoor wire harness

Part #WJ35X22978

$68.96
In Stock
Basepan Heater WJ27X24656
#29

Room air conditioner diagram

Basepan heater

Part #WJ27X24656

$87.02
In Stock
Outdoor Fan Motor WJ94X22975
#3

Room air conditioner diagram

Outdoor fan motor

Part #WJ94X22975

$118.47 |
9% OFF Phone Price : $130.47
In Stock
