Model # GF625LW1 Official White-Westinghouse gas range - lw32489240

Here are the diagrams and repair parts for Official White-Westinghouse GF625LW1 gas range - lw32489240, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

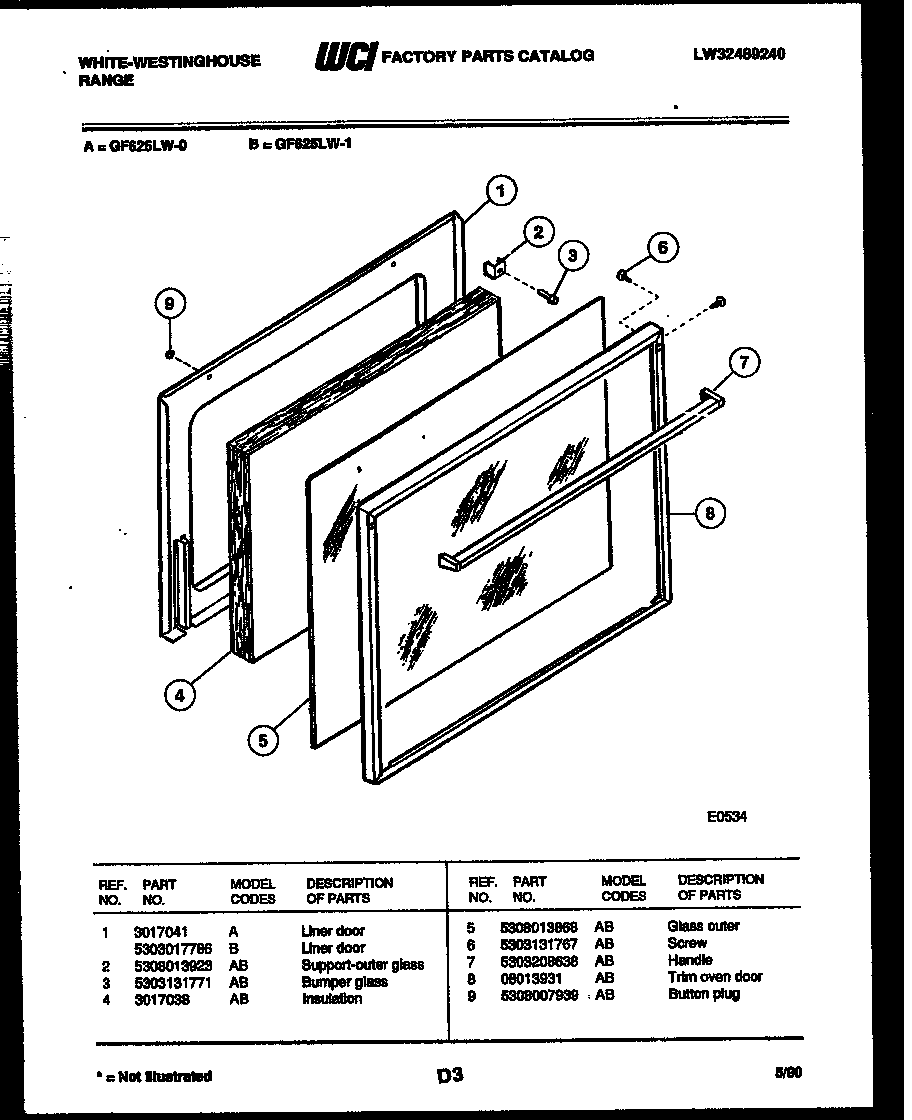

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Igniter 5308009420
#14

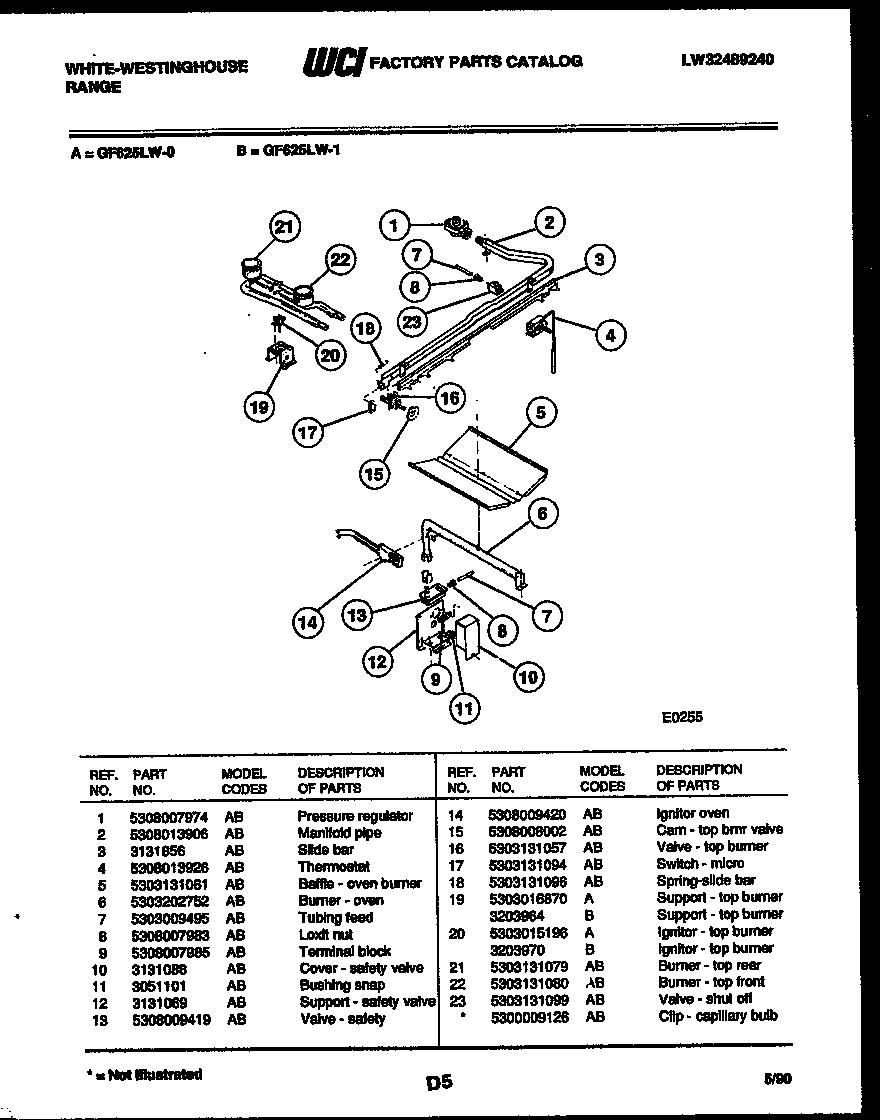

Burner, manifold and gas control diagram

Igniter

Part #5308009420

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5308009420. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Oven Hinge 5303204672
#7

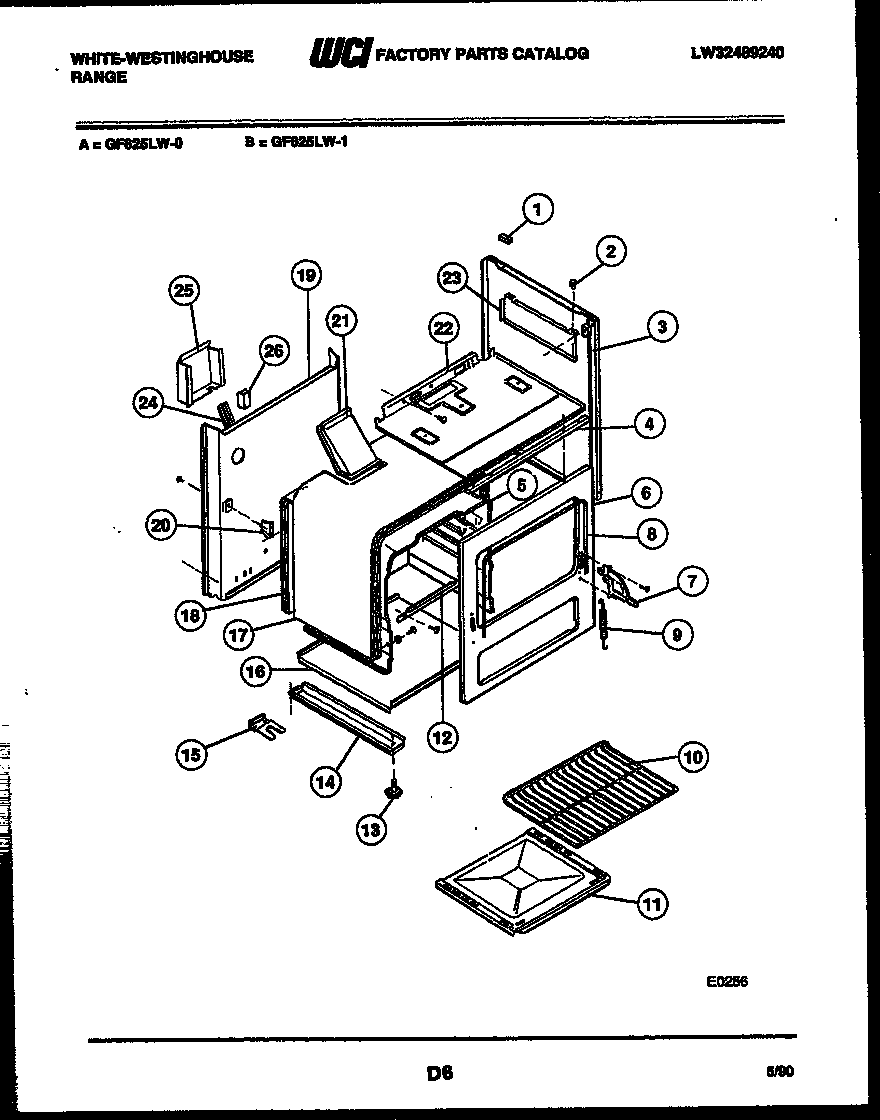

Body parts diagram

Oven hinge

Part #5303204672

Replaced by #318348801

?
Manufacturer substitution
This part replaces 5303204672. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Insert 3131021
#1

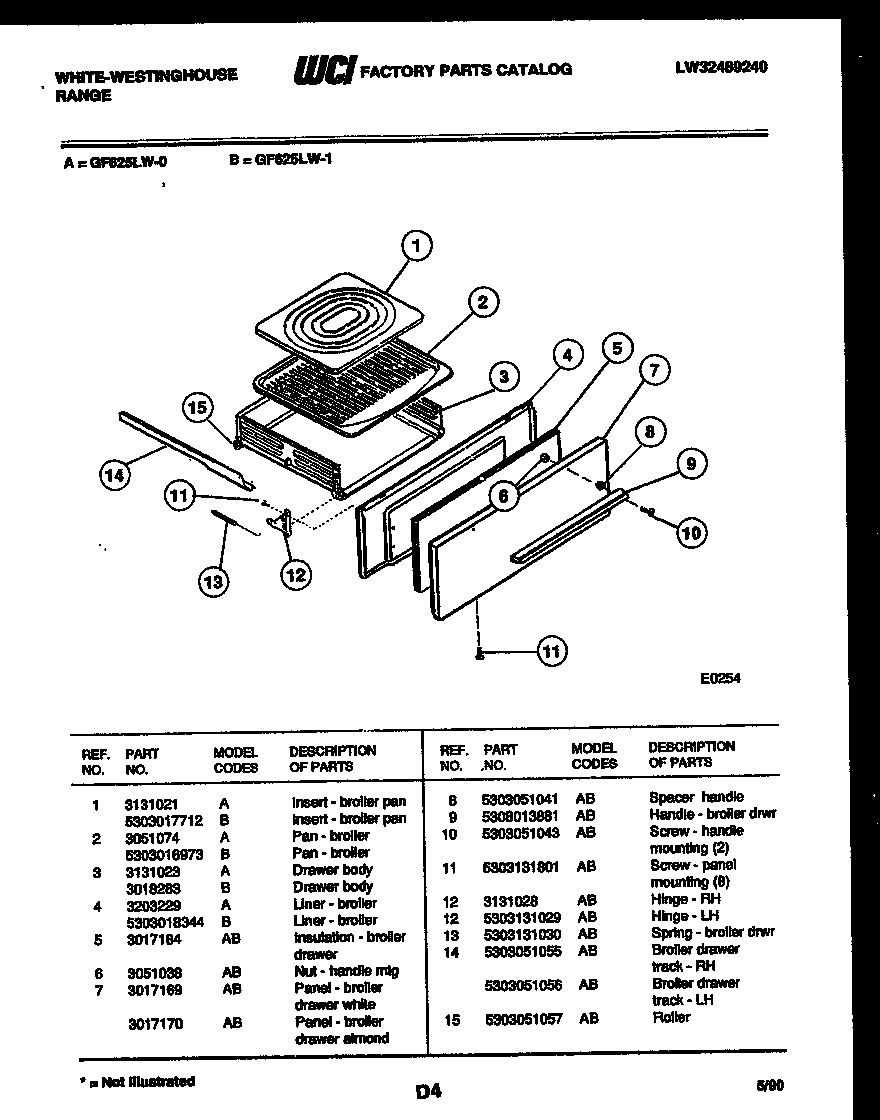

Broiler drawer parts diagram

Insert

Part #3131021

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 3131021. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Module 5303200669
#26

Body parts diagram

Module

Part #5303200669

Replaced by #5303912606

?
Manufacturer substitution
This part replaces 5303200669. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Nut 3051038
#6

Broiler drawer parts diagram

Nut

Part #3051038

This item is not returnable
$2.91
In Stock
Range Pressure Regulator 5308007974
#1

Burner, manifold and gas control diagram

Range pressure regulator

Part #5308007974

$186.45 |
6% OFF Phone Price : $198.45
In Stock
Top 5308014033
#2

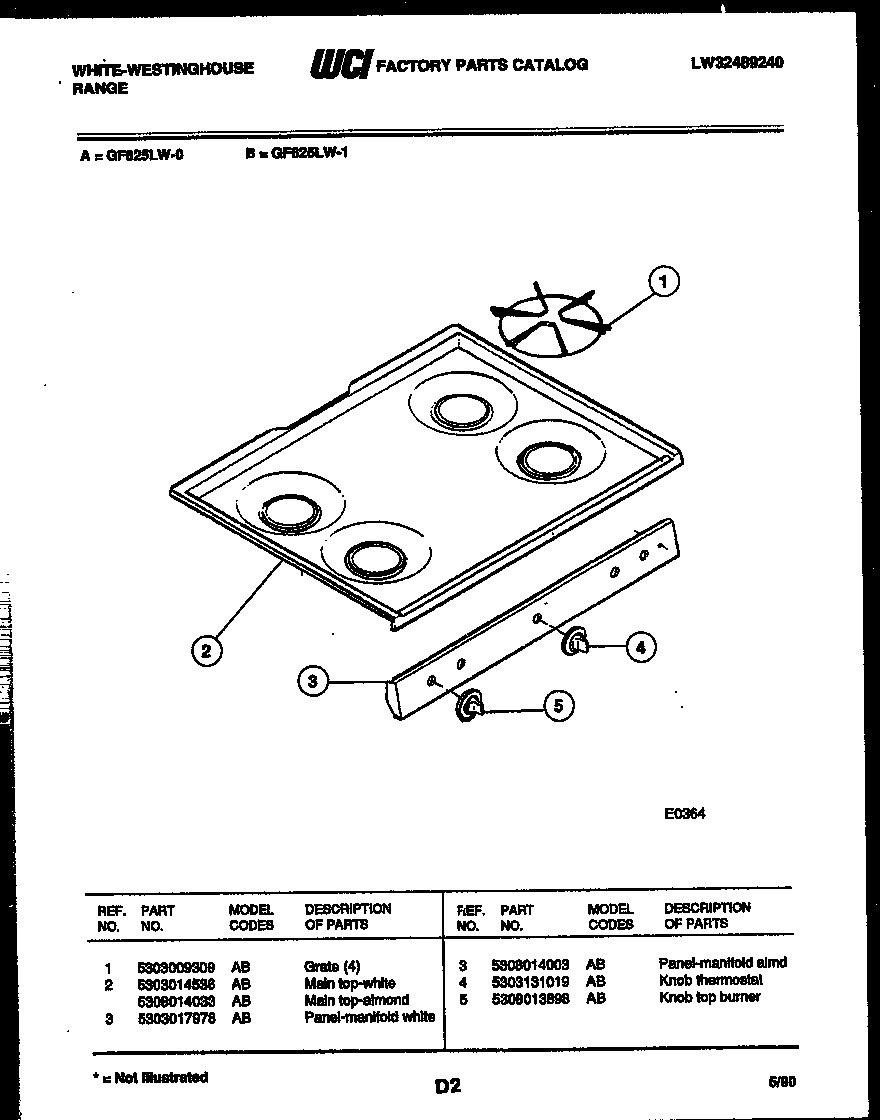

Cooktop parts diagram

Top

Part #5308014033

$203.78
In Stock
Range Surface Burner Knob 5308013898
#5

Cooktop parts diagram

Range surface burner knob

Part #5308013898

$26.73
In Stock
Drawer 3018283
#3

Broiler drawer parts diagram

Drawer

Part #3018283

Replaced by #5304504568

?
Manufacturer substitution
This part replaces 3018283. Substitute parts can look different from the original.
$182.07 |
6% OFF Phone Price : $194.07
In Stock
Screw 5303051043
#10

Broiler drawer parts diagram

Screw

Part #5303051043

Replaced by #5303292012

?
Manufacturer substitution
This part replaces 5303051043. Substitute parts can look different from the original.
$13.29
In Stock
