Model # 298586191 Official Craftsman 3.0-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 298586191 3.0-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

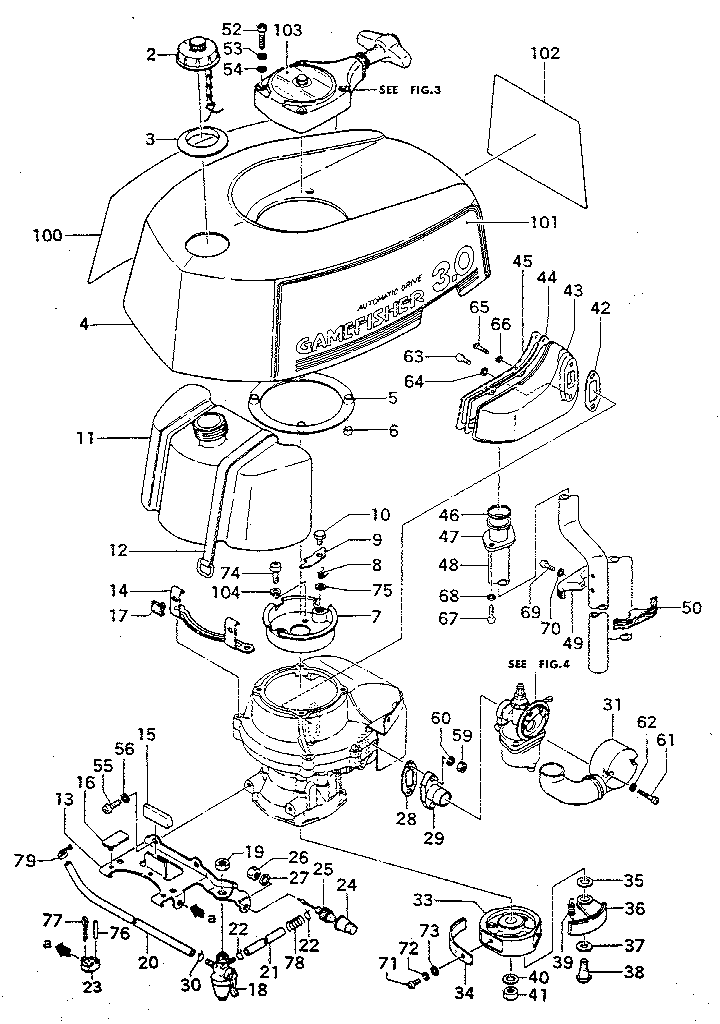

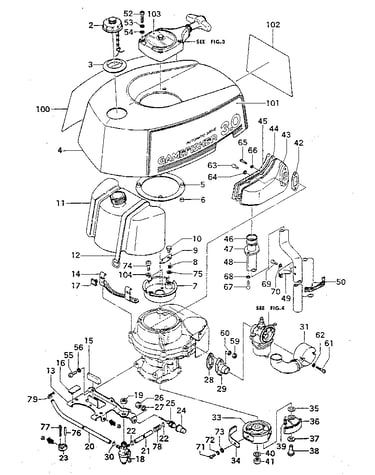

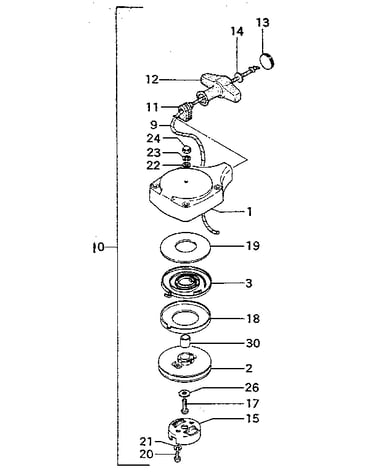

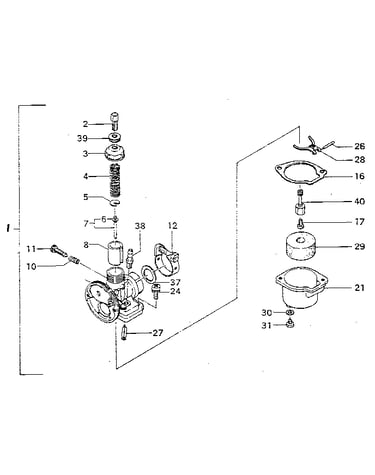

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 240 parts  |

Washer 992-01060-041
#44

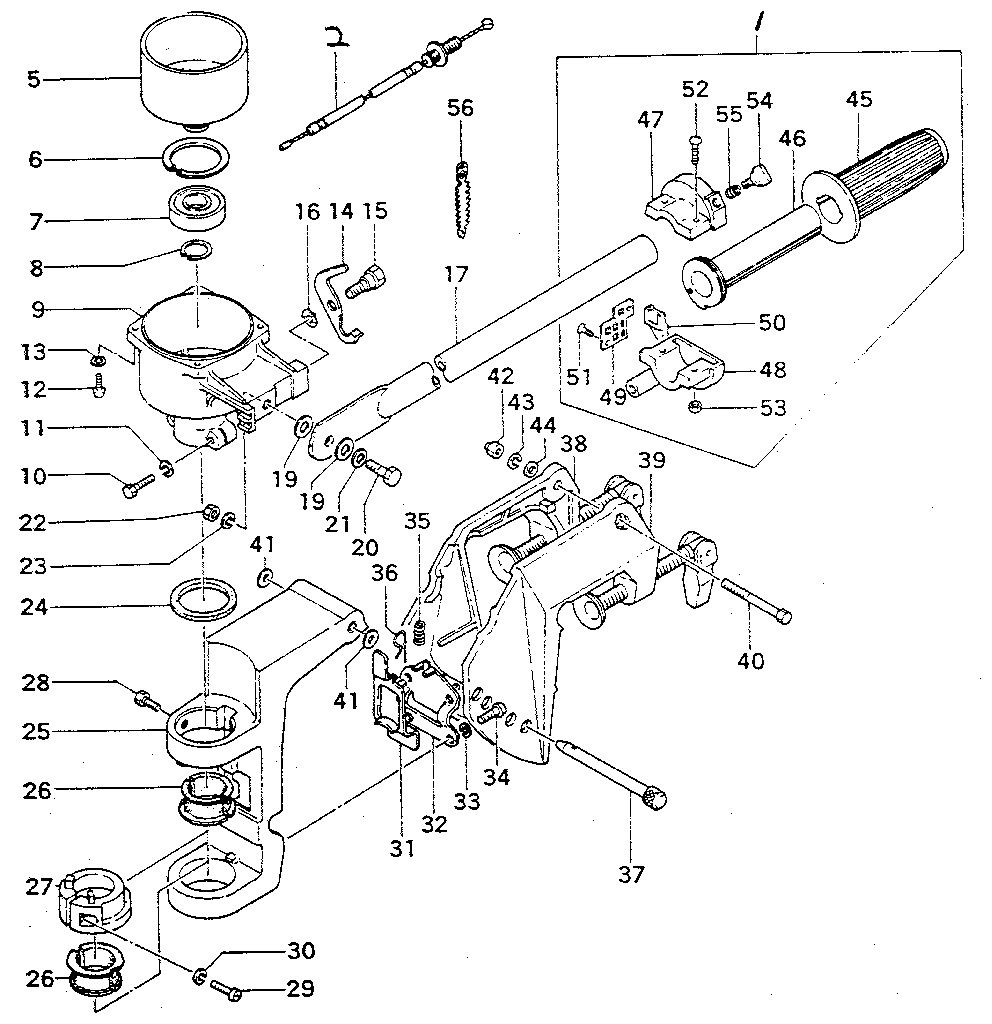

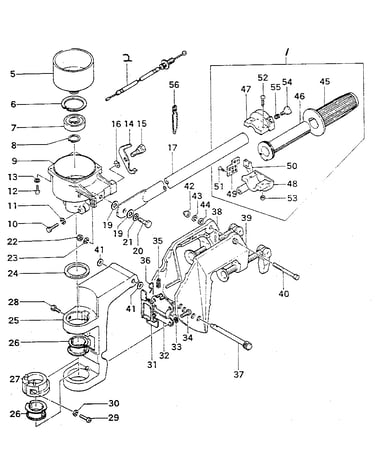

Handle & bracket diagram

Washer

Part #992-01060-041

Replaced by #STD551025

?
Manufacturer substitution
This part replaces 992-01060-041. Substitute parts can look different from the original.
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Gs Shim 330-00200-240
#20B

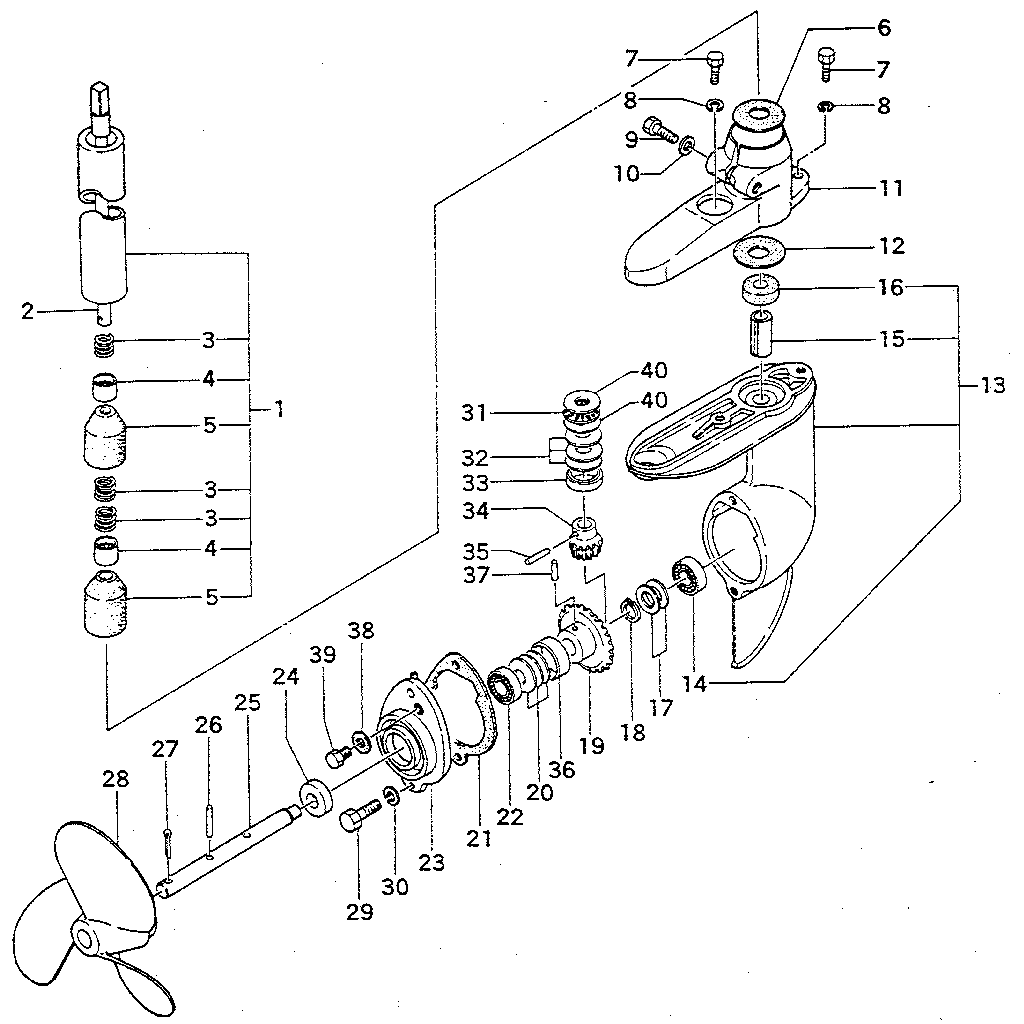

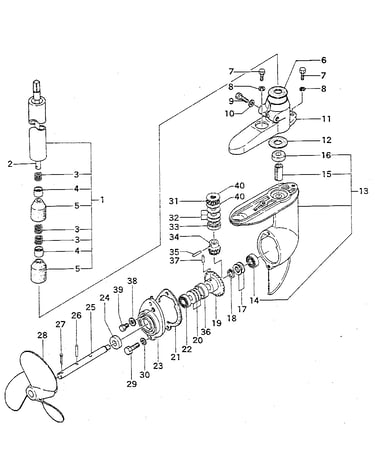

Drive shaft pipe & gear case diagram

Gs shim

Part #330-00200-240

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 999-61620-200
#25

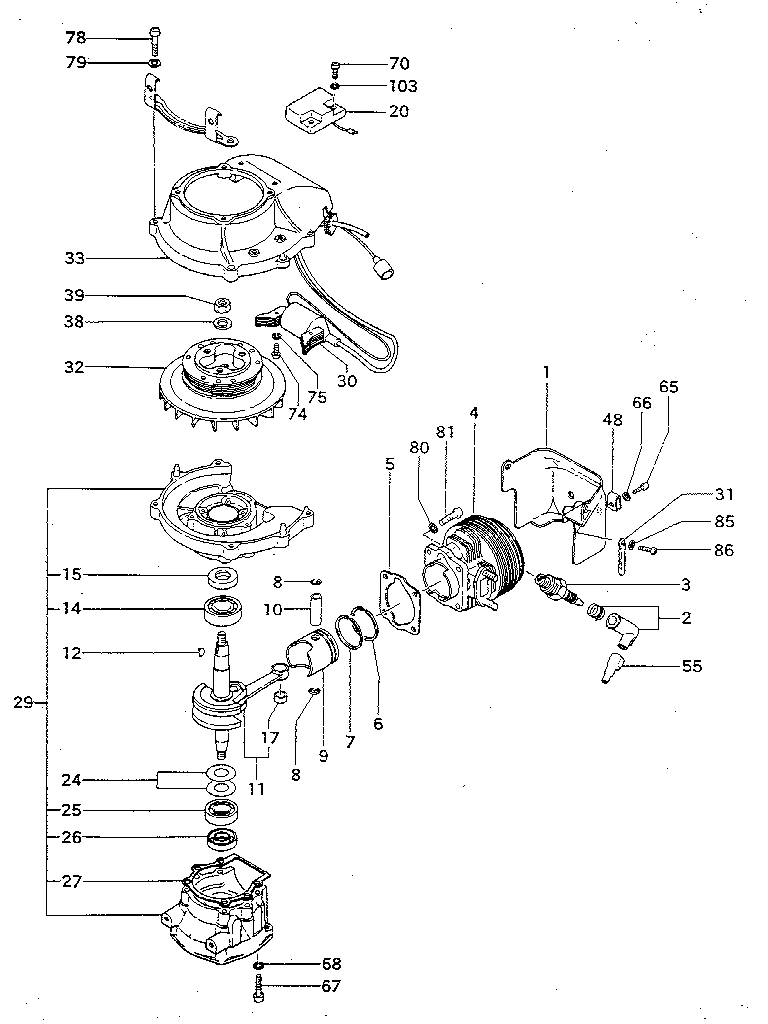

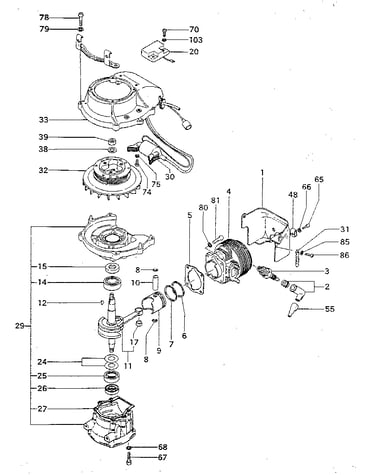

Engine diagram

Ball bearing

Part #999-61620-200

The manufacturer no longer makes this part, and there's no substitute part

Gs Shim 330-00200-230
#20A

Drive shaft pipe & gear case diagram

Gs shim

Part #330-00200-230

The manufacturer no longer makes this part, and there's no substitute part

Piston 031-10100-210
#9

Engine diagram

Piston

Part #031-10100-210

The manufacturer no longer makes this part, and there's no substitute part

Bolt 990-21060-182
Bolt

Part #990-21060-182

The manufacturer no longer makes this part, and there's no substitute part

Tool Kit 985-35304-900

#NI

All parts diagram

Tool kit

Part #985-35304-900

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug 018-00546-200
#3

Engine diagram

Spark plug

Part #018-00546-200

The manufacturer no longer makes this part, and there's no substitute part

Bolt 990-21060-082
#39

Drive shaft pipe & gear case diagram

Bolt

Part #990-21060-082

The manufacturer no longer makes this part, and there's no substitute part

Shim 0.10 071-02007-210
#24

Engine diagram

Shim 0.10

Part #071-02007-210

The manufacturer no longer makes this part, and there's no substitute part
