York
Central Air Conditioner

Model # B1HA048A25 Official York heat pump

Here are the diagrams and repair parts for Official York B1HA048A25 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

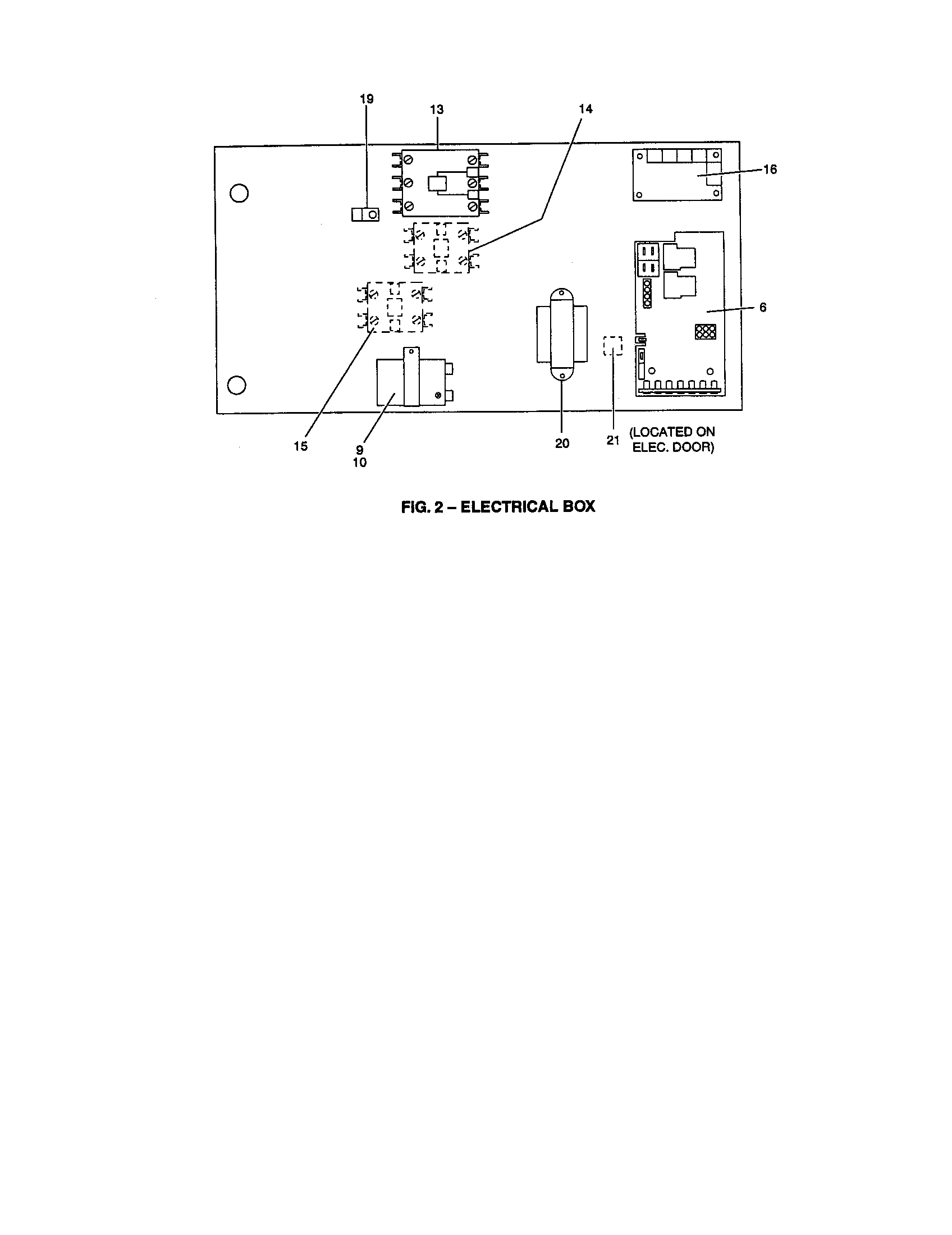

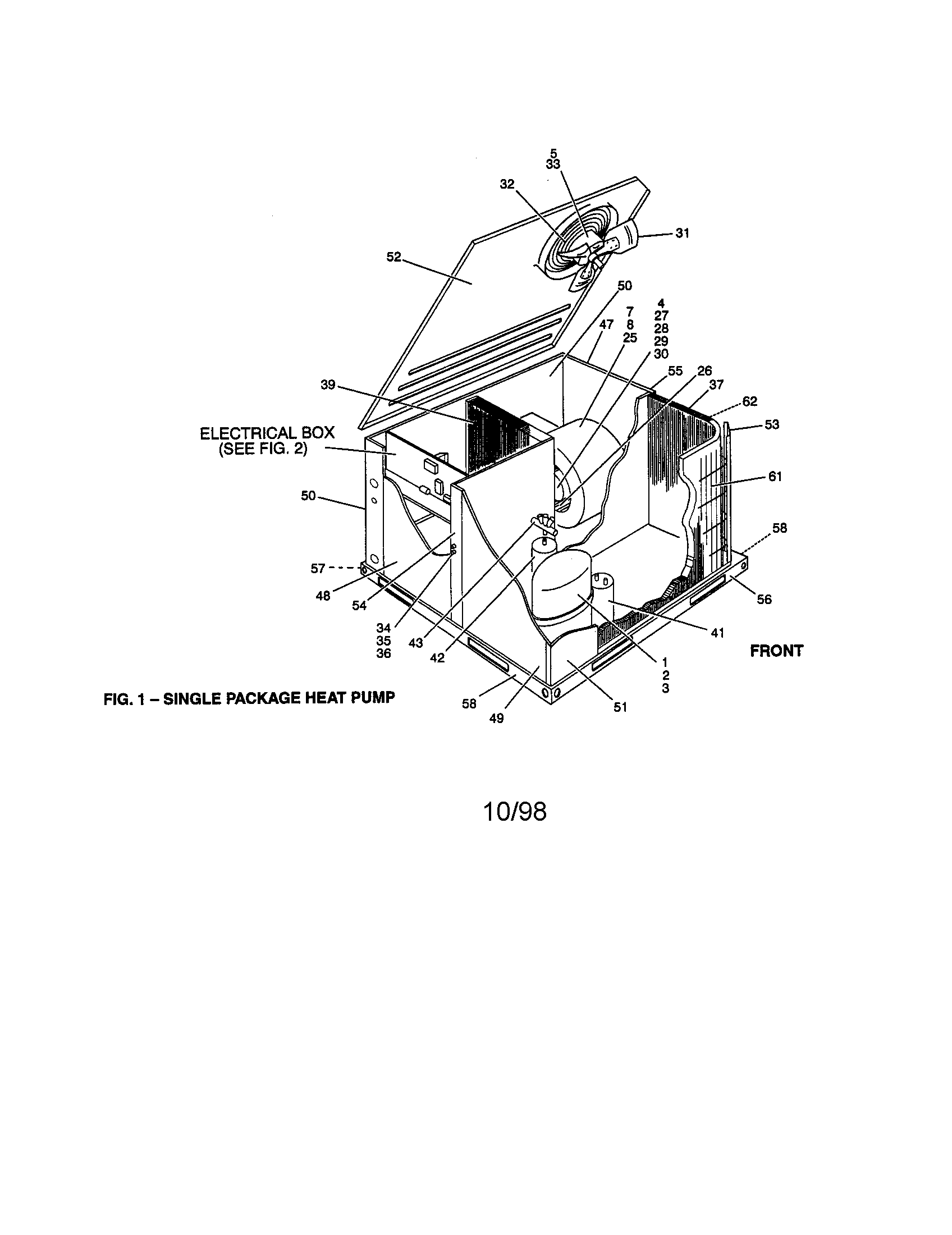

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Central Air Conditioner Air Handler Blower Motor 024-25973-000

#4

All parts diagram

Central air conditioner air handler blower motor

Part #024-25973-000

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Electronic Control Board 031-01264-002

#6

All parts diagram

Central air conditioner electronic control board

Part #031-01264-002

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 024-20043-000

#10

All parts diagram

Capacitor

Part #024-20043-000

Replaced by #12005

?
Manufacturer substitution
This part replaces 024-20043-000. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Blower Wheel 026-32088-003

#26

All parts diagram

Blower wheel

Part #026-32088-003

The manufacturer no longer makes this part, and there's no substitute part

Accumulator 026-25573-002

#41

All parts diagram

Accumulator

Part #026-25573-002

The manufacturer no longer makes this part, and there's no substitute part

Distributor Assembly (evap) #84 Orifice (contains Body, Orifice, Distributor Tubes And Sleeving) 022-06844-134

#40

All parts diagram

Distributor assembly (evap) #84 orifice (contains body, orifice, distributor tubes and sleeving)

Part #022-06844-134

The manufacturer no longer makes this part, and there's no substitute part

Plug, Plastic (drain Pan) 028-08567-000

#65

All parts diagram

Plug, plastic (drain pan)

Part #028-08567-000

The manufacturer no longer makes this part, and there's no substitute part

Plug Plastic (drain Pan Btm) 028-12480-000

#66

All parts diagram

Plug plastic (drain pan btm)

Part #028-12480-000

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 026-34093-000

#31

All parts diagram

Fan blade

Part #026-34093-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 028-09412-002

#29

All parts diagram

Washer

Part #028-09412-002

The manufacturer no longer makes this part, and there's no substitute part
