Model # JB870ST1SS Official GE electric range

Here are the diagrams and repair parts for Official GE JB870ST1SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Oven Lamp WB08T10022
#457

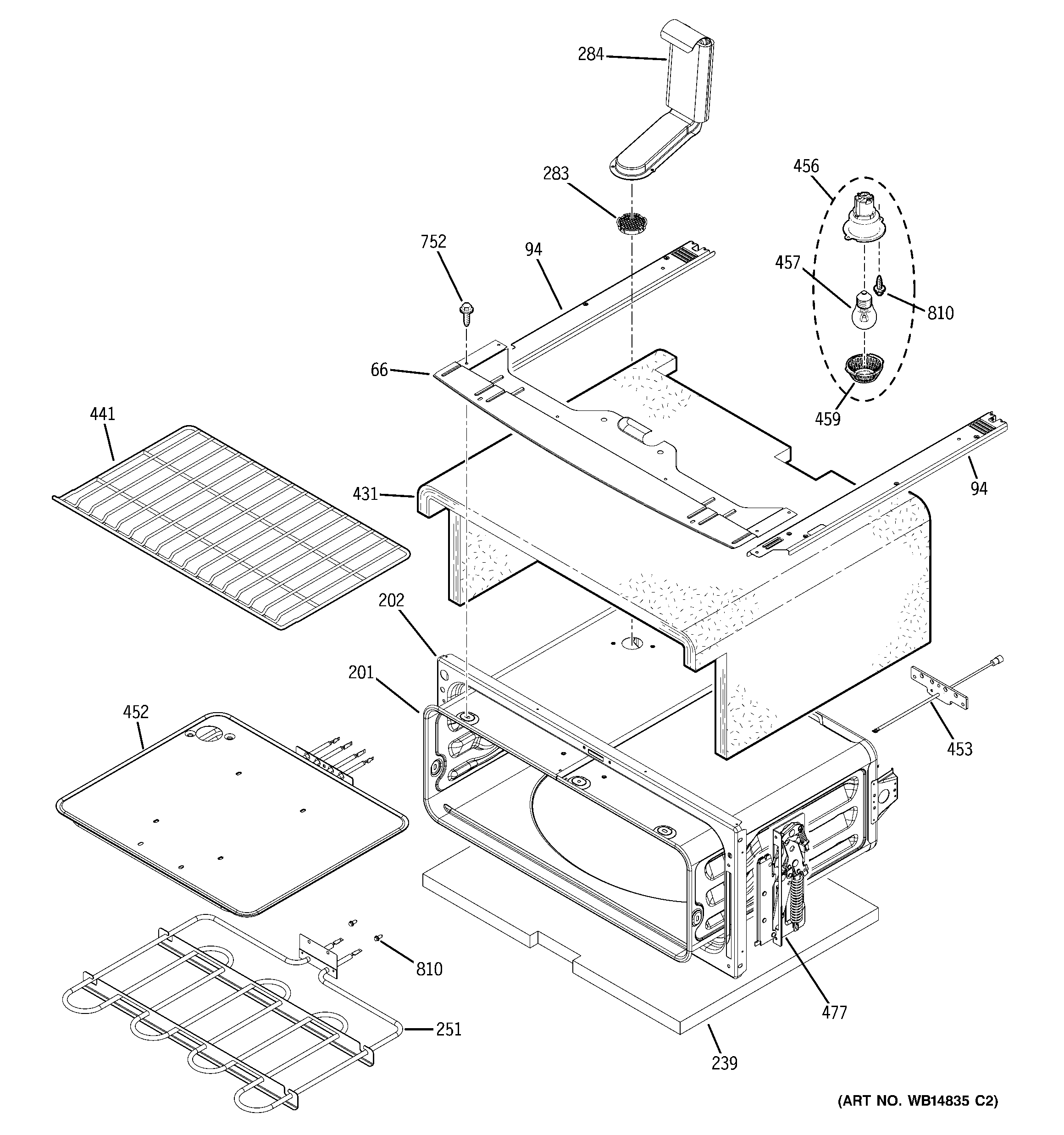

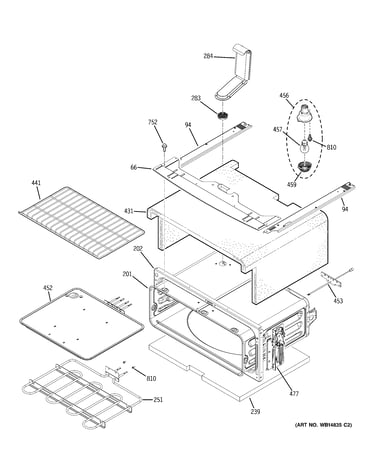

Upper oven diagram

Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Wall Oven Temperature Sensor WB21T10007
#253

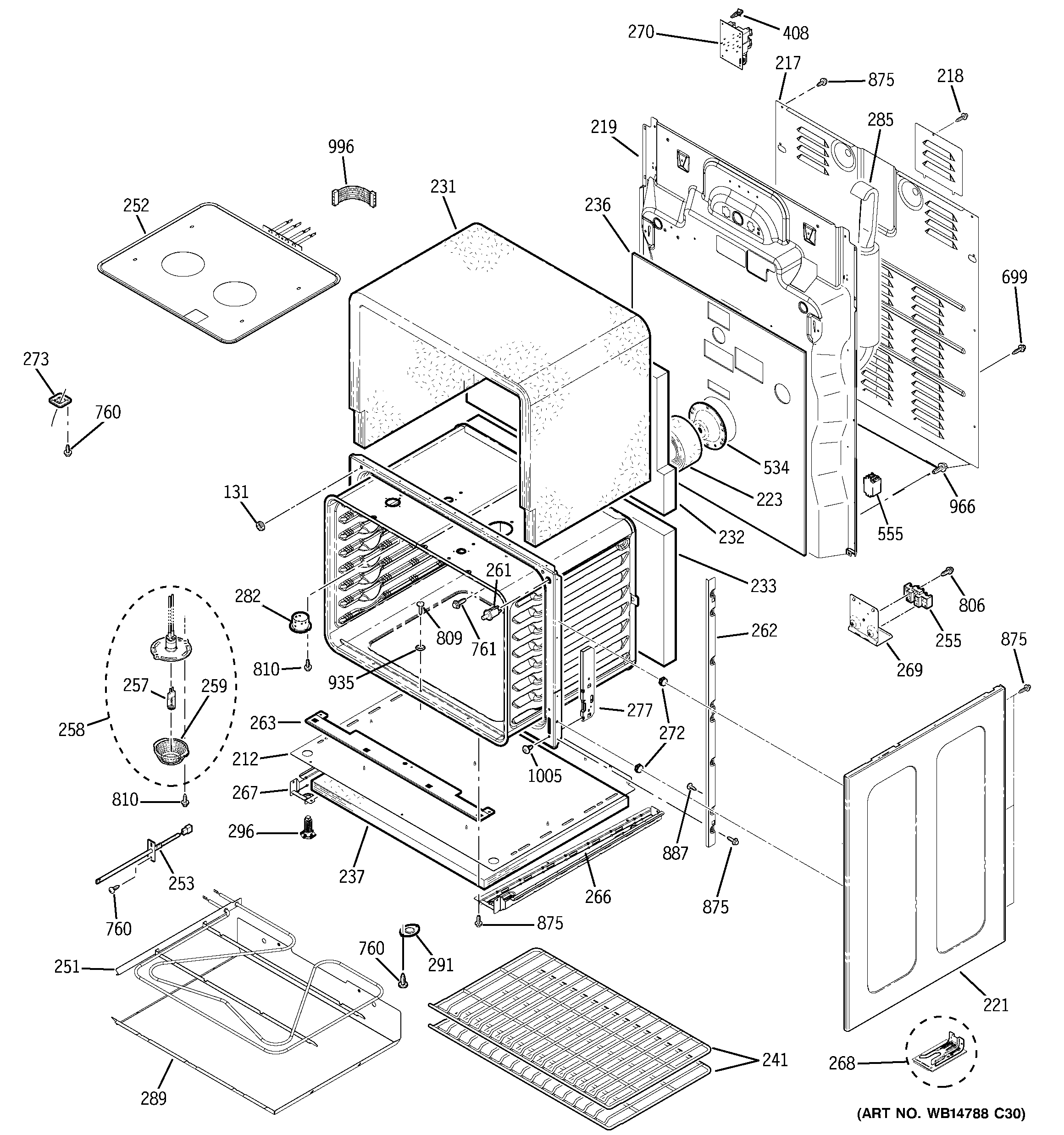

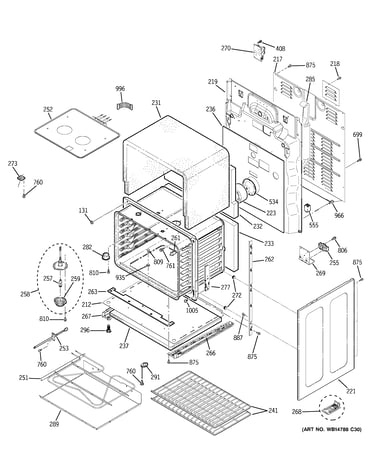

Lower oven diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$23.33 |
20% OFF Phone Price : $29.33
In Stock
Wall Oven Temperature Sensor WB23T10015
#453

Upper oven diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Range Surface Element, Right Front WB30T10126
#58

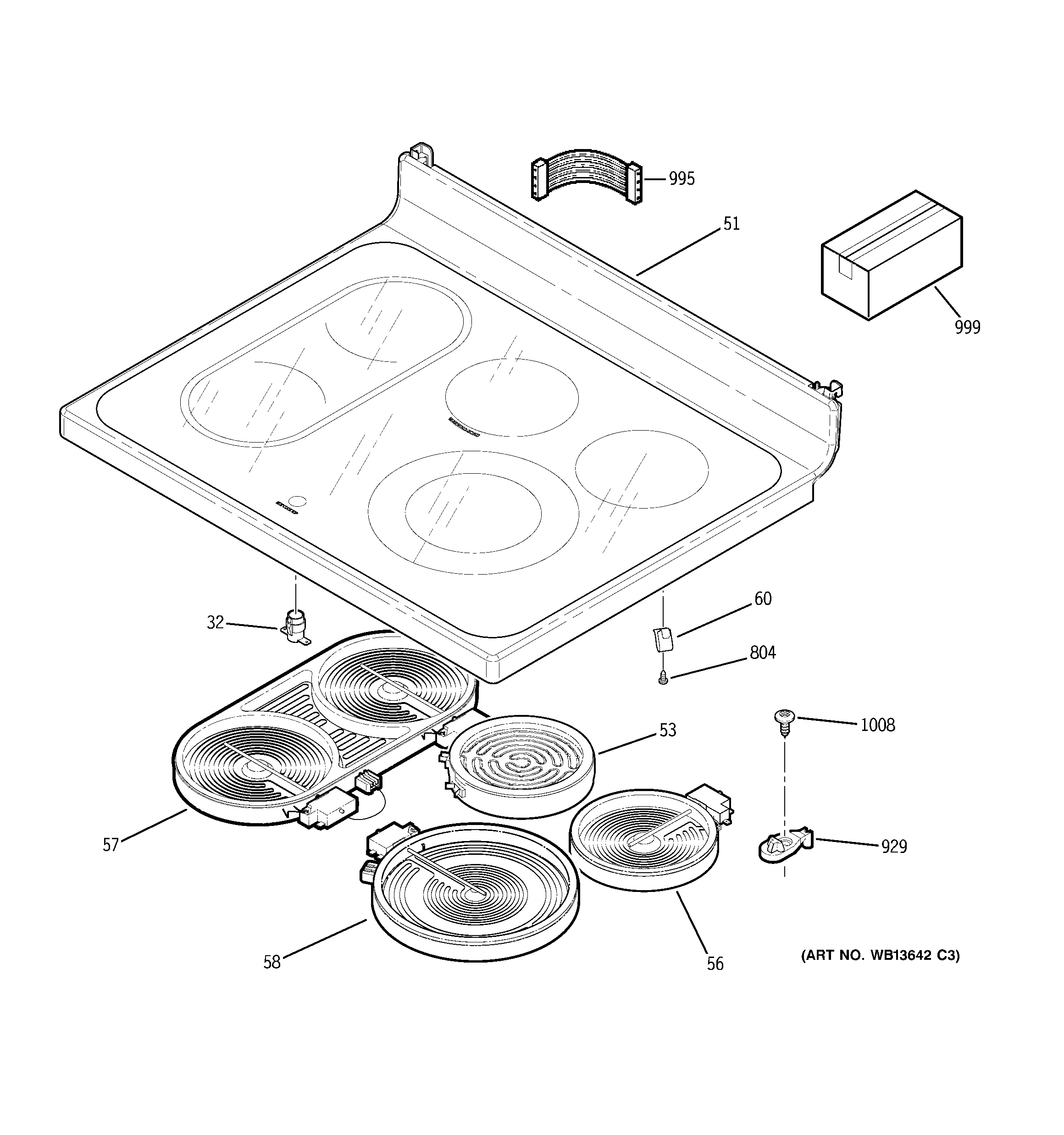

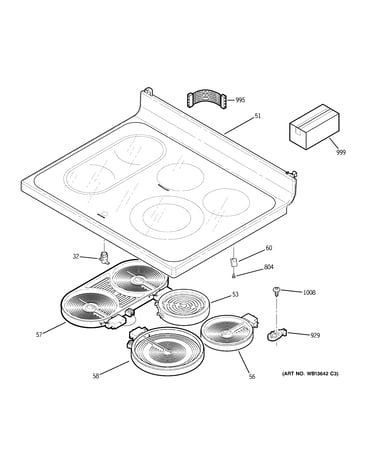

Cooktop diagram

Range surface element, right front

Part #WB30T10126

BEST SELLER
$175.49 |
6% OFF Phone Price : $187.49
In Stock
Range Surface Element Control Switch (replaces Wb27t10384) WB24T10153
#22

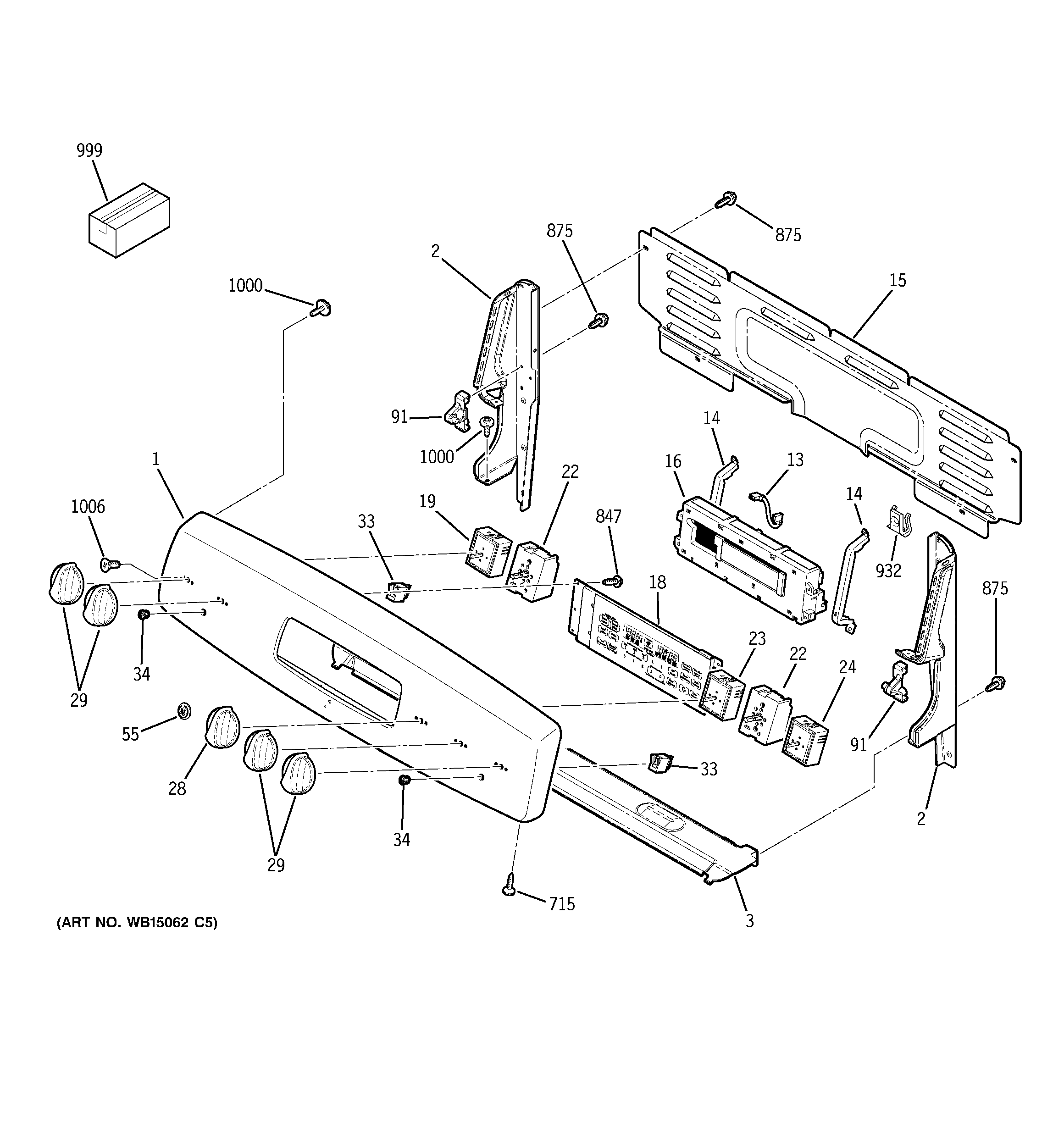

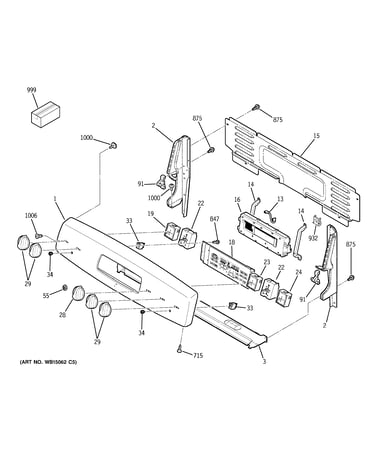

Control panel diagram

Range surface element control switch (replaces wb27t10384)

Part #WB24T10153

BEST SELLER
$98.13 |
11% OFF Phone Price : $110.13
In Stock
Cooktop Indicator Light WB27T10668
#32

Cooktop diagram

Cooktop indicator light

Part #WB27T10668

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Pack Window WB55T10160
#338

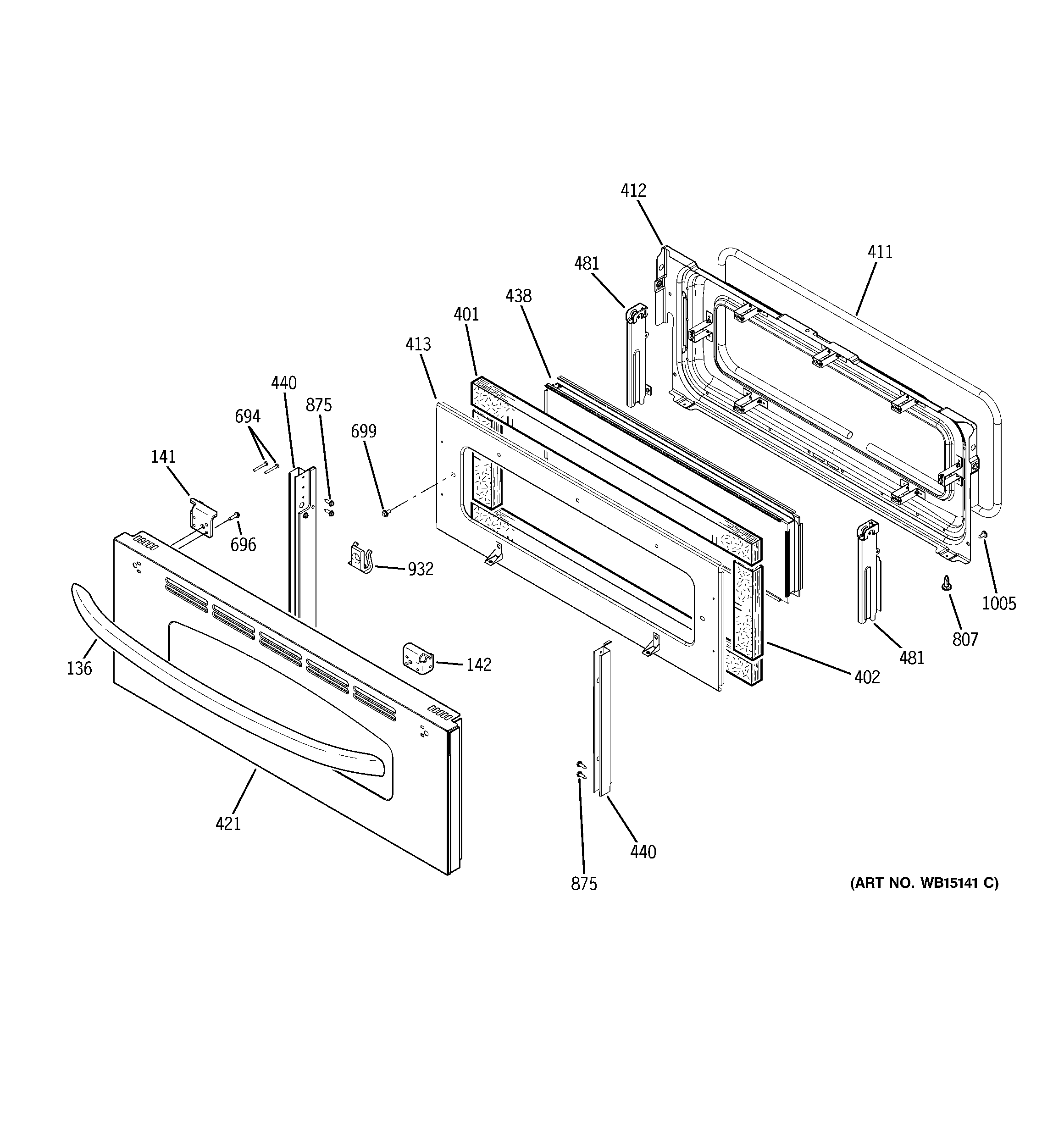

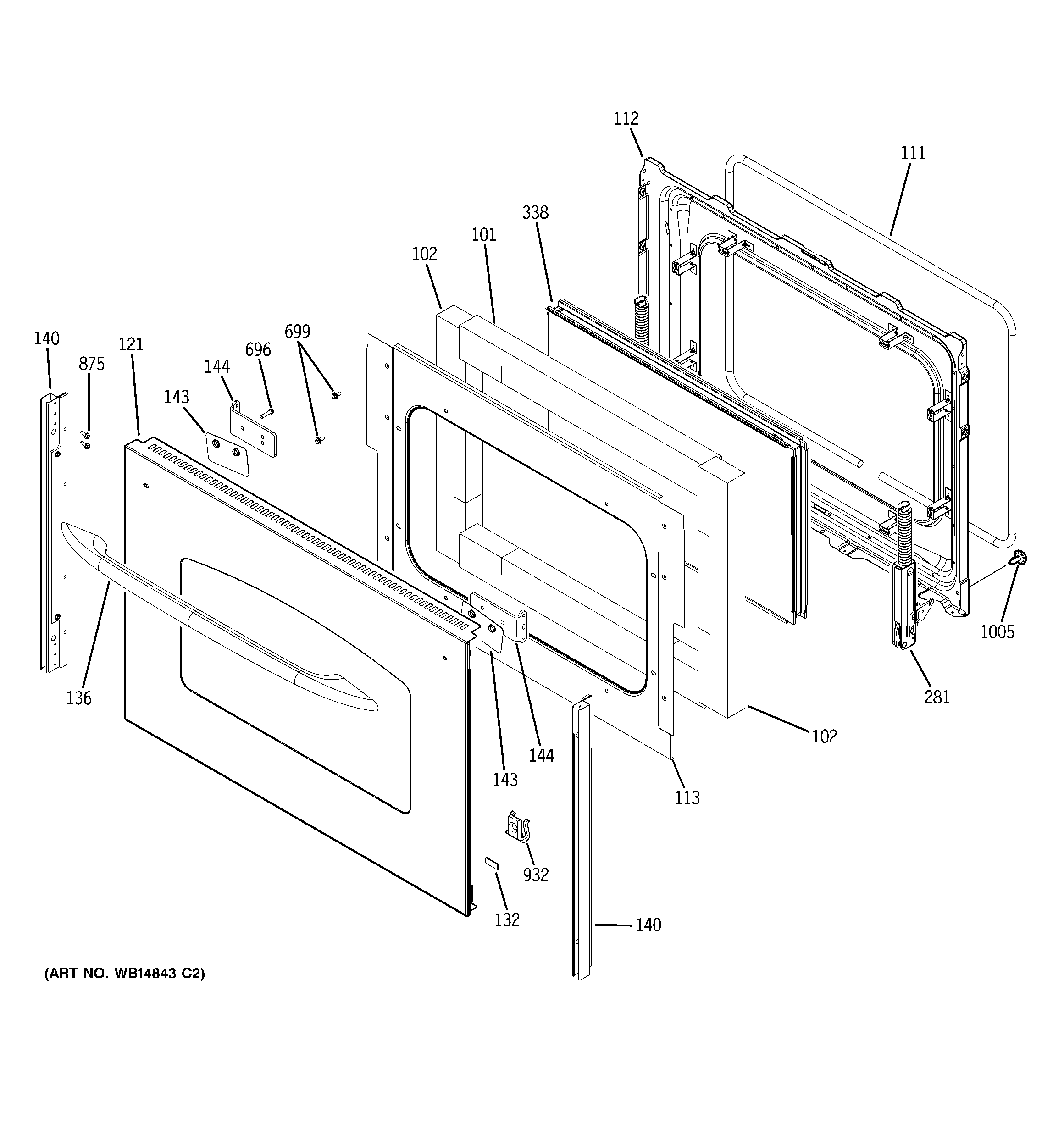

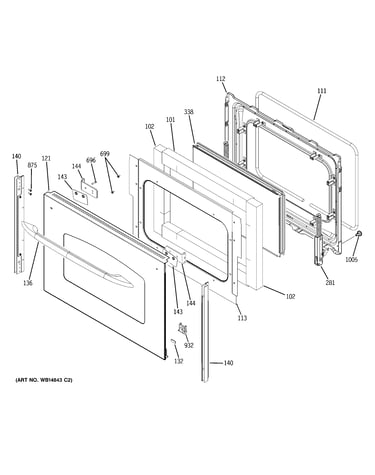

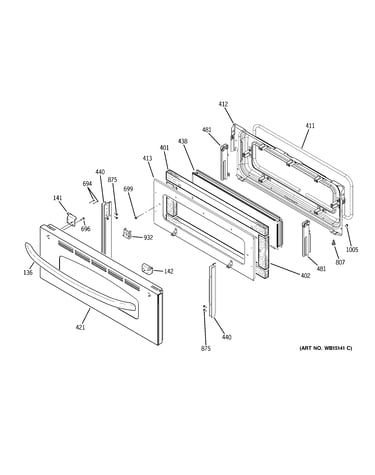

Lower door diagram

Pack window

Part #WB55T10160

Replaced by #WB56T10105

?
Manufacturer substitution
This part replaces WB55T10160. Substitute parts can look different from the original.
BEST SELLER
$98.87 |
11% OFF Phone Price : $110.87
In Stock
Range Surface Element Control Switch WB24T10145
#19

Control panel diagram

Range surface element control switch

Part #WB24T10145

BEST SELLER
This item is not returnable
$72.78 |
8% OFF Phone Price : $78.78
In Stock
Nut WB02T10017
#977

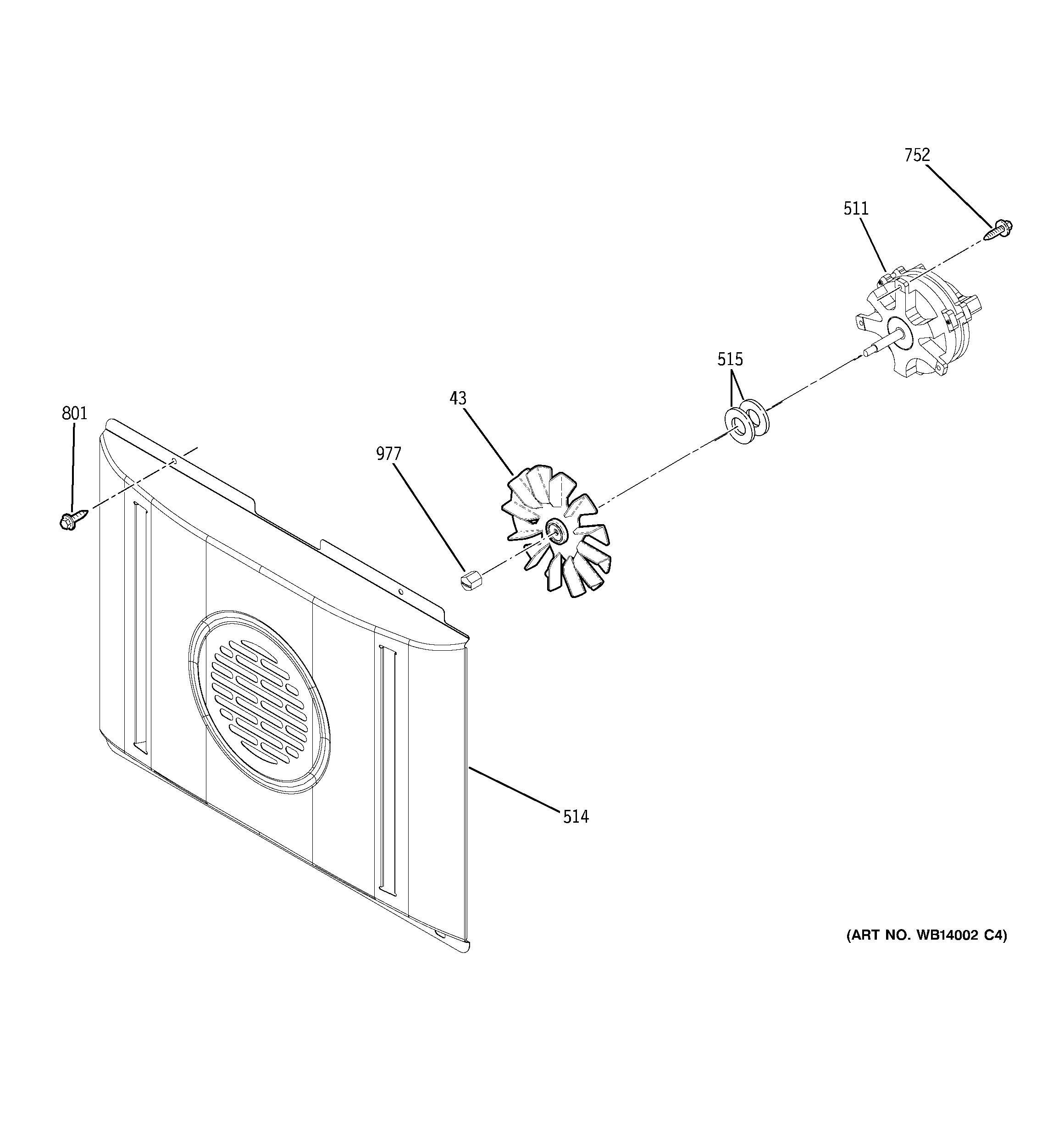

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Convection Fan Blade WB02T10289
#43

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
