Model # S3XI Official BH Fitness elliptical machine

Here are the diagrams and repair parts for Official BH Fitness S3XI elliptical machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |

Bh Fitness Hex Screw S3XI-A-8
#A-8

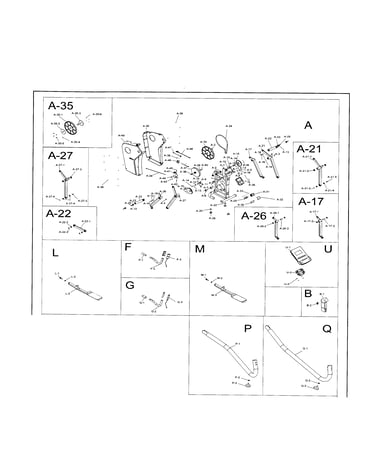

Pedal assy diagram

Bh fitness hex screw

Part #S3XI-A-8

The manufacturer no longer makes this part, and there's no substitute part

Bh Fitness Hex Screw S3XI-A-25
#A-25

Pedal assy diagram

Bh fitness hex screw

Part #S3XI-A-25

The manufacturer no longer makes this part, and there's no substitute part

Bh Fitness Comp Wire S3XI-A-47
#A-47

Pedal assy diagram

Bh fitness comp wire

Part #S3XI-A-47

The manufacturer no longer makes this part, and there's no substitute part

Bh Fitness Flat Washer S3XI-A-38
#A-38

Pedal assy diagram

Bh fitness flat washer

Part #S3XI-A-38

The manufacturer no longer makes this part, and there's no substitute part

Left Connection Tube Set S3XI-P
Left connection tube set

Part #S3XI-P

The manufacturer no longer makes this part, and there's no substitute part

Bh Fitness Lt-fr-cvr S3XI-H
#H

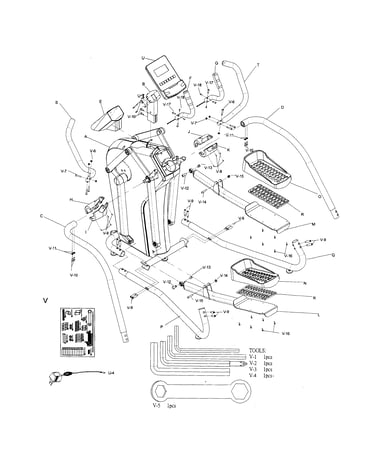

Main assy diagram

Bh fitness lt-fr-cvr

Part #S3XI-H

The manufacturer no longer makes this part, and there's no substitute part

Bh Fitness Hex Nut S3XI-A-42
#A-42

Pedal assy diagram

Bh fitness hex nut

Part #S3XI-A-42

The manufacturer no longer makes this part, and there's no substitute part

Bh Fitness Bearing S3XI-A-21-2
#A212

Pedal assy diagram

Bh fitness bearing

Part #S3XI-A-21-2

The manufacturer no longer makes this part, and there's no substitute part

Bh Fitness Bearing S3XI-L-1
#L-1

Pedal assy diagram

Bh fitness bearing

Part #S3XI-L-1

The manufacturer no longer makes this part, and there's no substitute part

Bh Fitness Phil Screw S3XI-A-33
#A-33

Pedal assy diagram

Bh fitness phil screw

Part #S3XI-A-33

The manufacturer no longer makes this part, and there's no substitute part
