Model # PVM9179FL5DS Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE PVM9179FL5DS microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

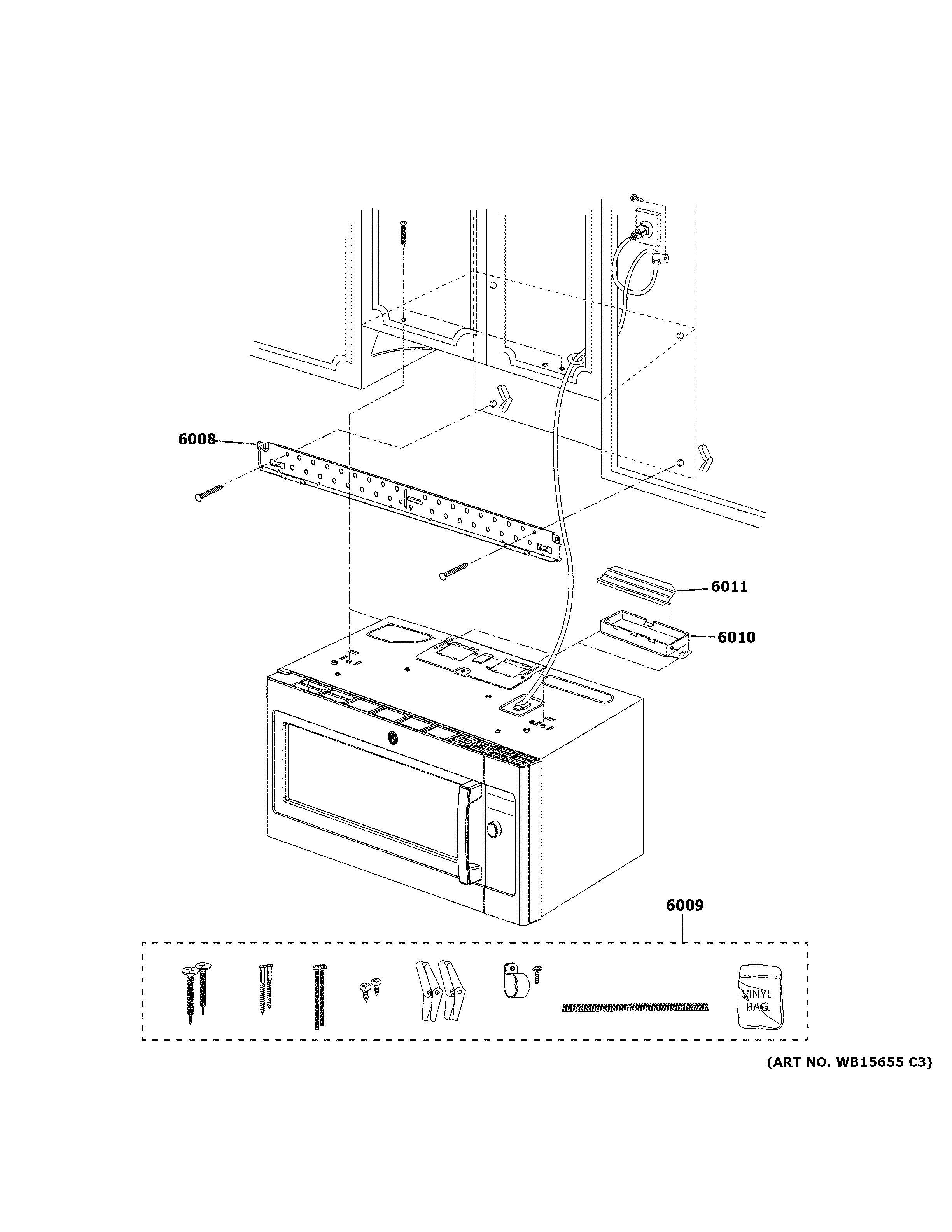

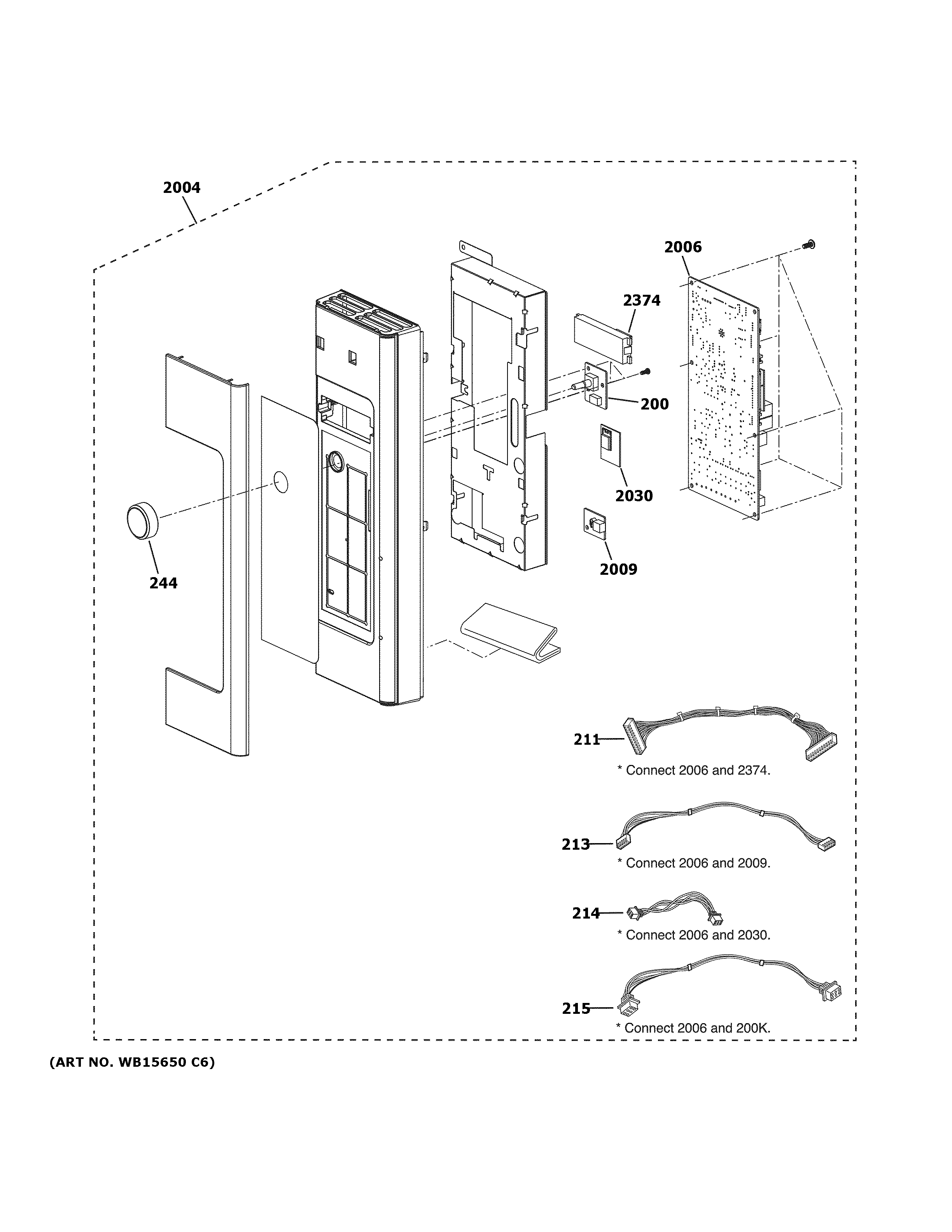

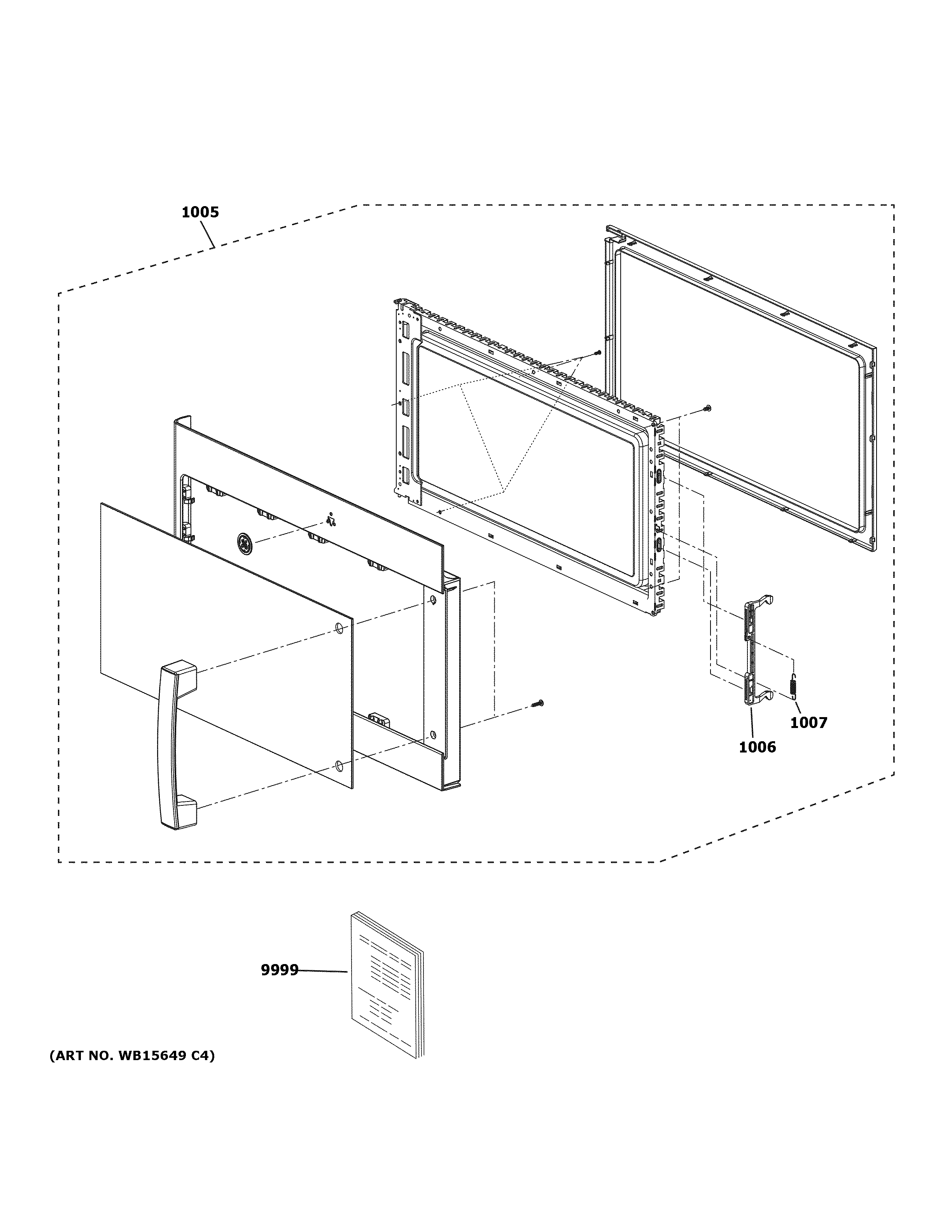

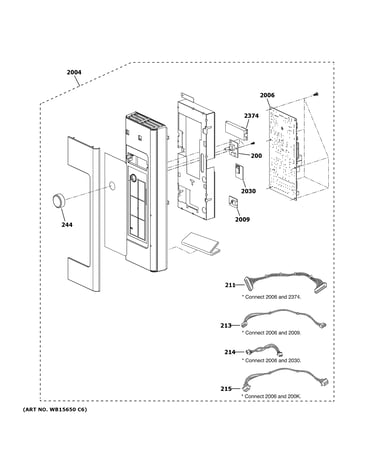

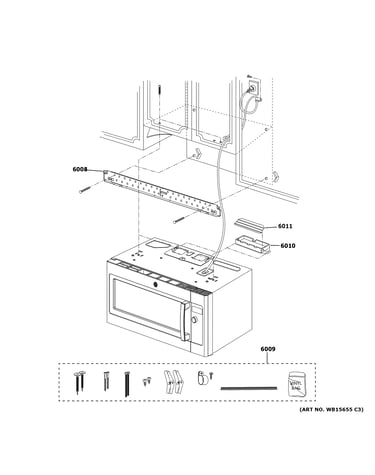

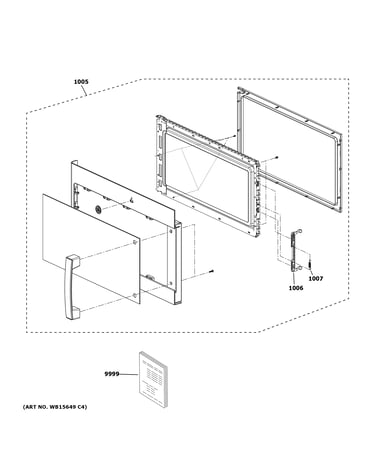

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Microwave Fuse (replaces Wb27x10388) WB27X10928
#5001

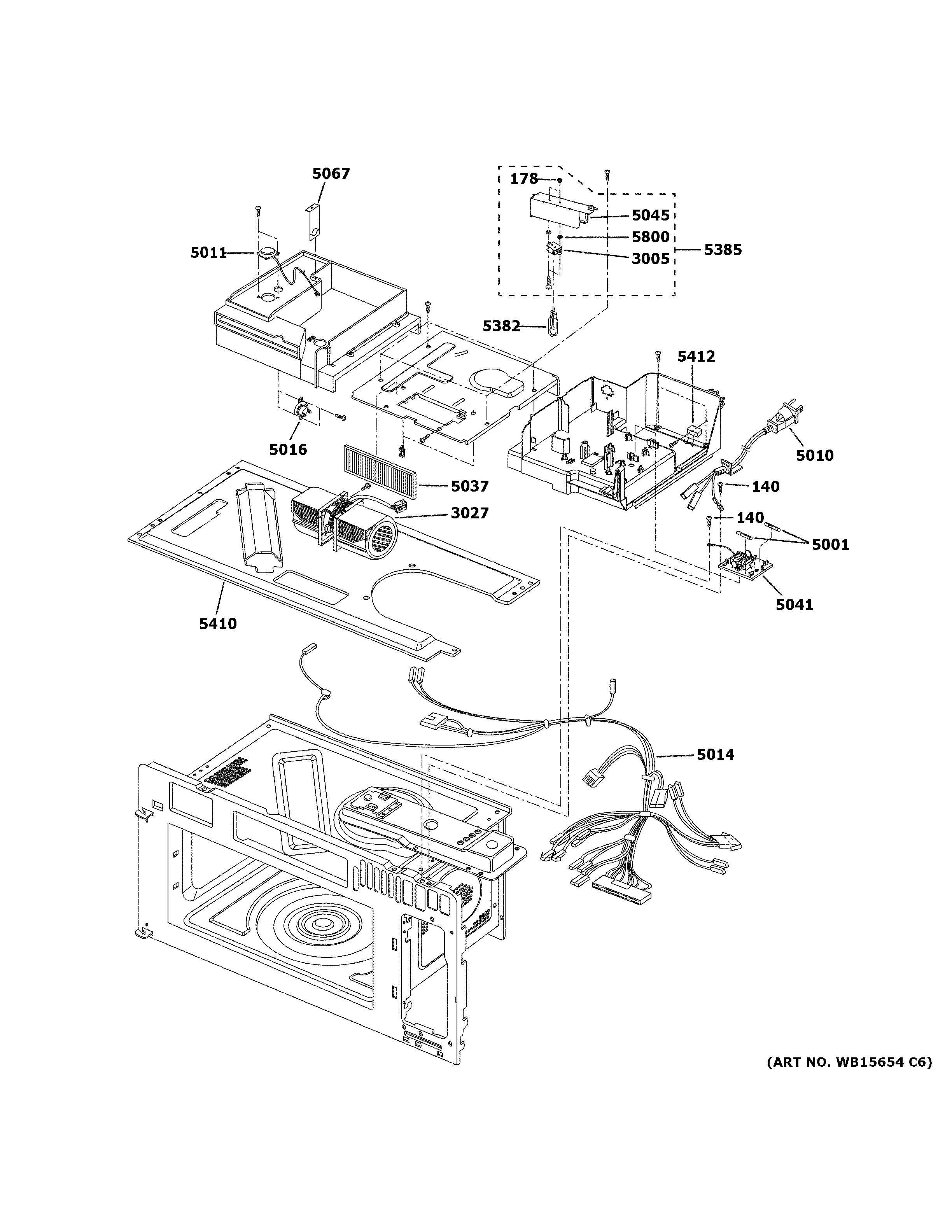

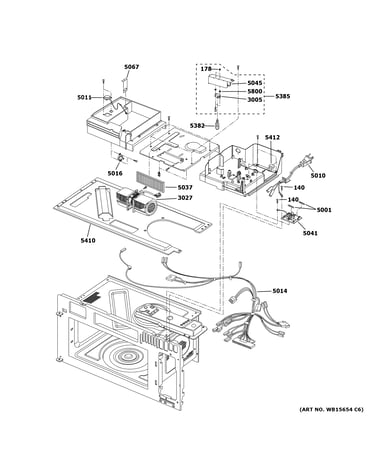

Interior parts (2) diagram

Microwave fuse (replaces wb27x10388)

Part #WB27X10928

BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Drive Capacitor WB27X10701
#5000

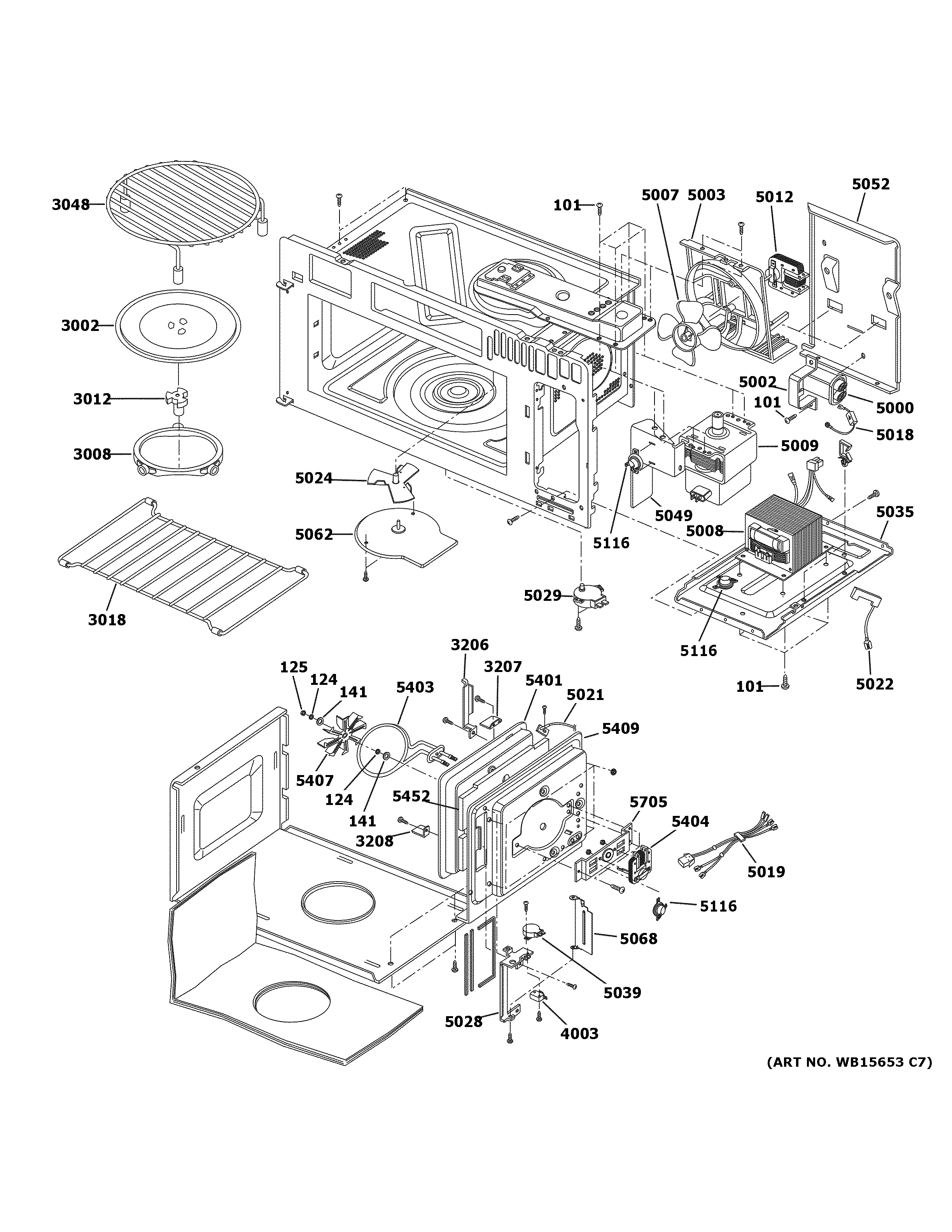

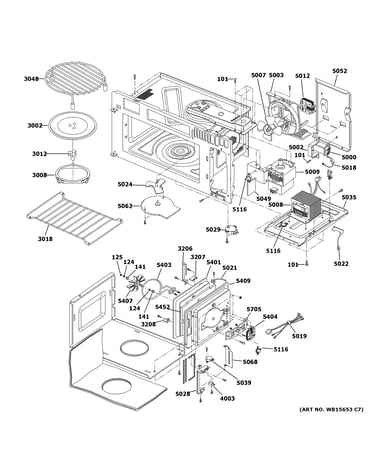

Interior parts (1) diagram

Drive capacitor

Part #WB27X10701

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
13% OFF Phone Price : $47.91
In Stock
Microwave High-voltage Diode (replaces Wb18x10449) WB27X35382
#5018

Interior parts (1) diagram

Microwave high-voltage diode (replaces wb18x10449)

Part #WB27X35382

BEST SELLER
$19.87
In Stock
Microwave Door Interlock Switch (replaces Wb24x817) WB24X25397
Microwave door interlock switch (replaces wb24x817)

Part #WB24X25397

BEST SELLER
$26.64 |
18% OFF Phone Price : $32.64
In Stock
Microwave Magnetron WB27X32766
#5009

Interior parts (1) diagram

Microwave magnetron

Part #WB27X32766

Replaced by #WB27X44106

?
Manufacturer substitution
This part replaces WB27X32766. Substitute parts can look different from the original.
BEST SELLER
$99.73
In Stock
Microwave Door Latch Housing WB02X32720
#4000

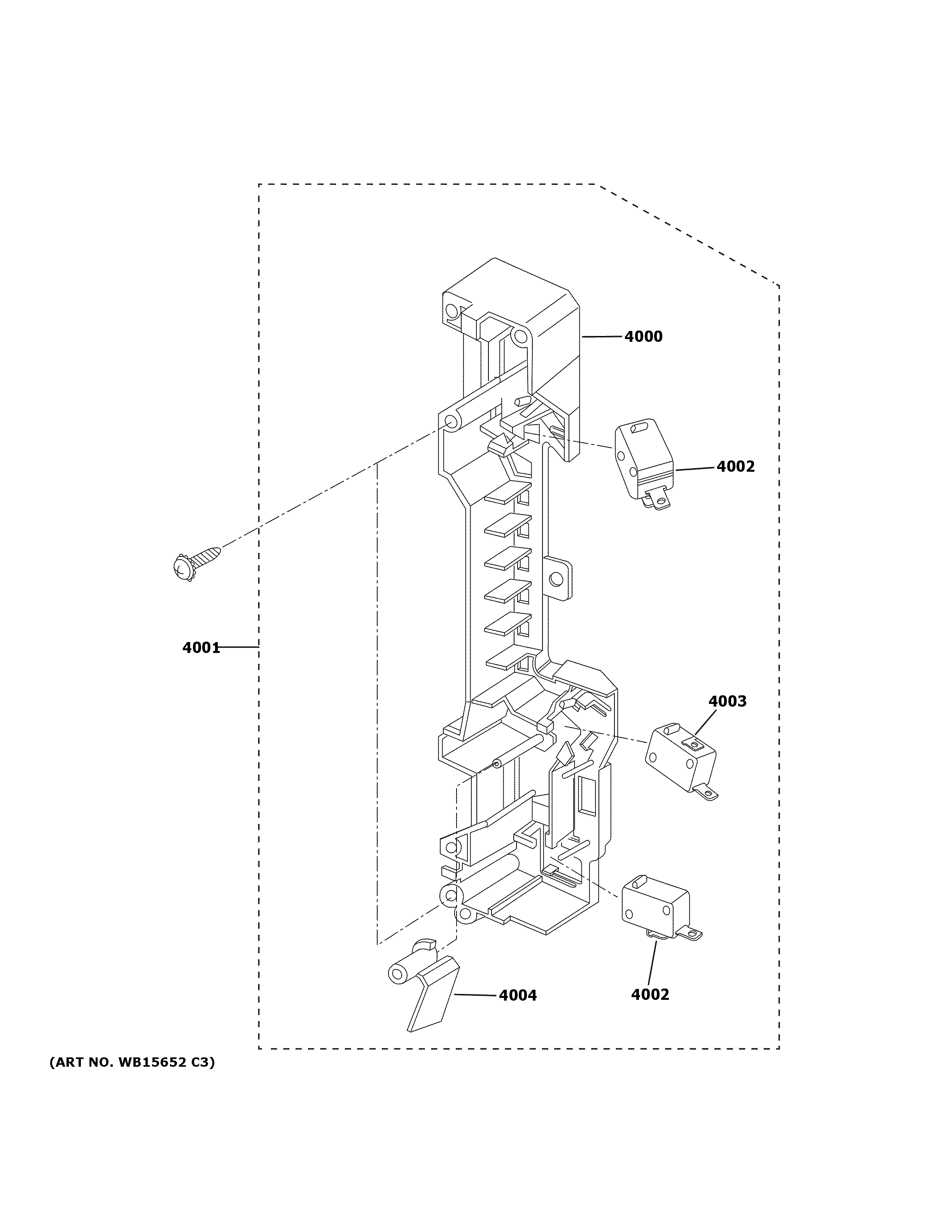

Latch board parts diagram

Microwave door latch housing

Part #WB02X32720

This item is not returnable
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Circulating Motor WB26X10186
#5029

Interior parts (1) diagram

Circulating motor

Part #WB26X10186

Replaced by #WB26X10226

?
Manufacturer substitution
This part replaces WB26X10186. Substitute parts can look different from the original.
$28.69 |
17% OFF Phone Price : $34.69
In Stock
Microwave Door Latch Housing And Interlock Switch Assembly (replaces Wb10x21789, Wb14x10048) WB10X35397
#4001

Latch board parts diagram

Microwave door latch housing and interlock switch assembly (replaces wb10x21789, wb14x10048)

Part #WB10X35397

$37.17 |
14% OFF Phone Price : $43.17
In Stock
Microwave Humidity Sensor WB27X10857
#5011

Interior parts (2) diagram

Microwave humidity sensor

Part #WB27X10857

$88.55 |
6% OFF Phone Price : $94.55
In Stock
Microwave Grease Filter WB02X25388
#3026

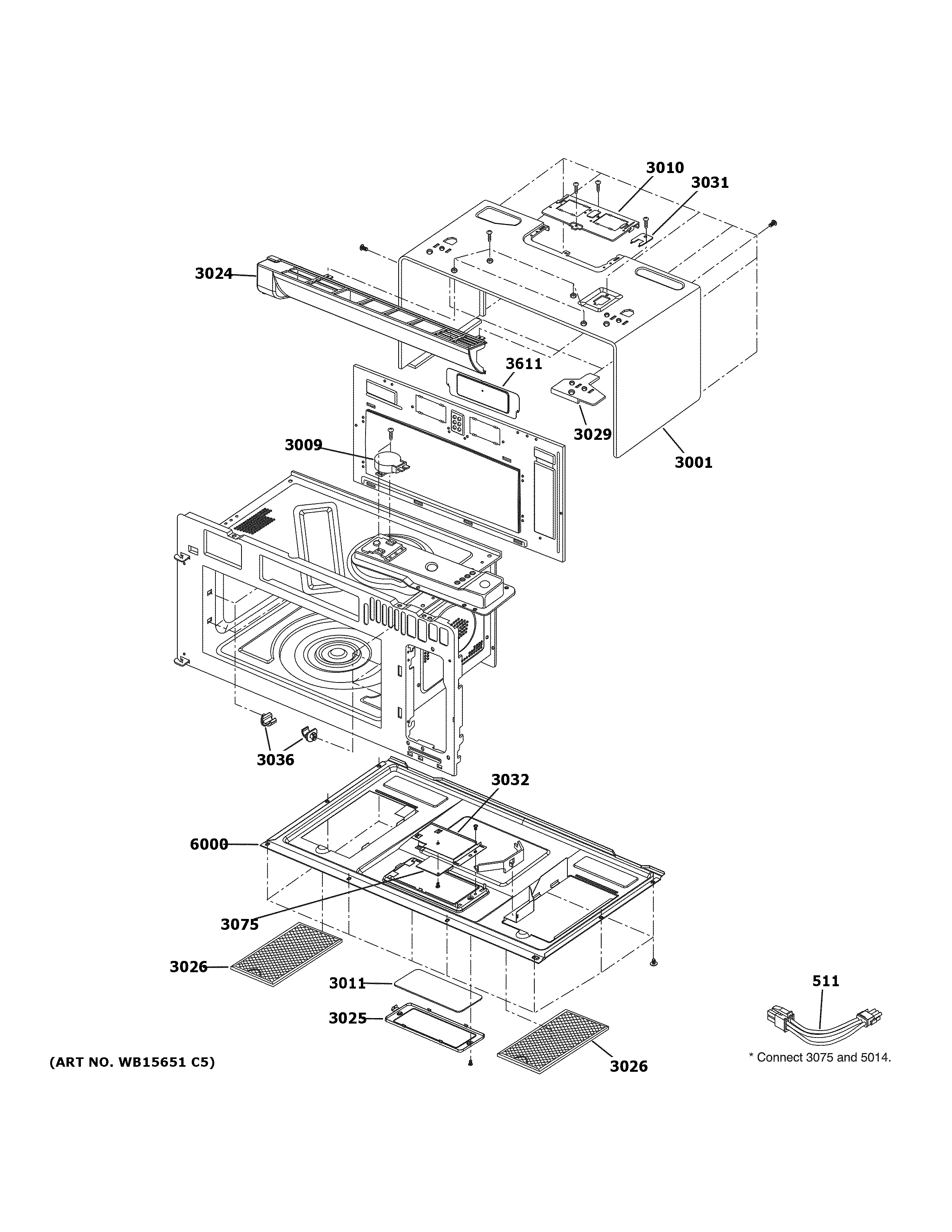

Oven cavity parts diagram

Microwave grease filter

Part #WB02X25388

Replaced by #WB02X32793

?
Manufacturer substitution
This part replaces WB02X25388. Substitute parts can look different from the original.
This item is not returnable
$7.92 |
11% OFF Phone Price : $8.92
In Stock
