GE
Side-By-Side Refrigerator

Model # PIG23MISAFBB Official GE refrigerator - s series

Here are the diagrams and repair parts for Official GE PIG23MISAFBB refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

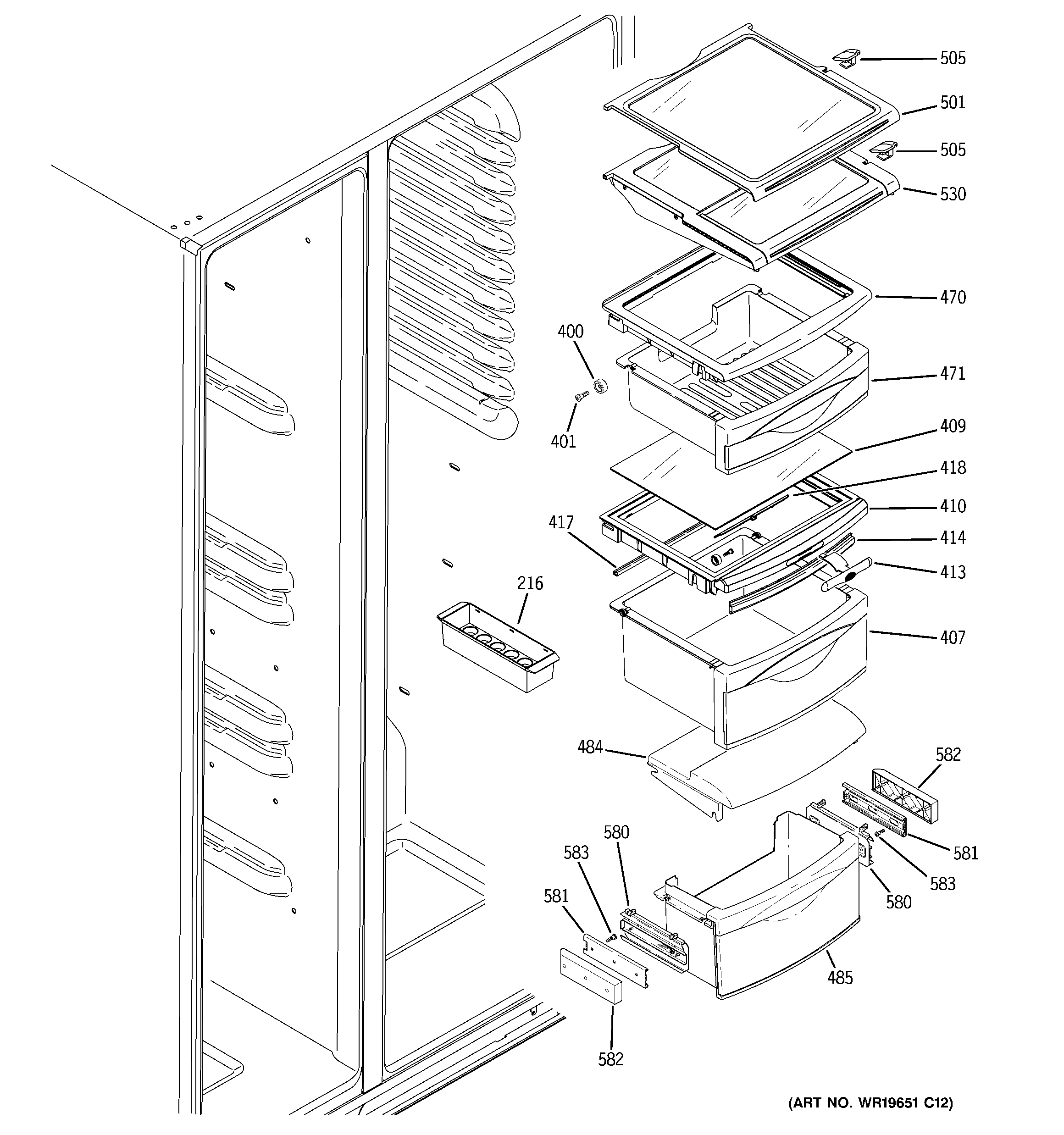

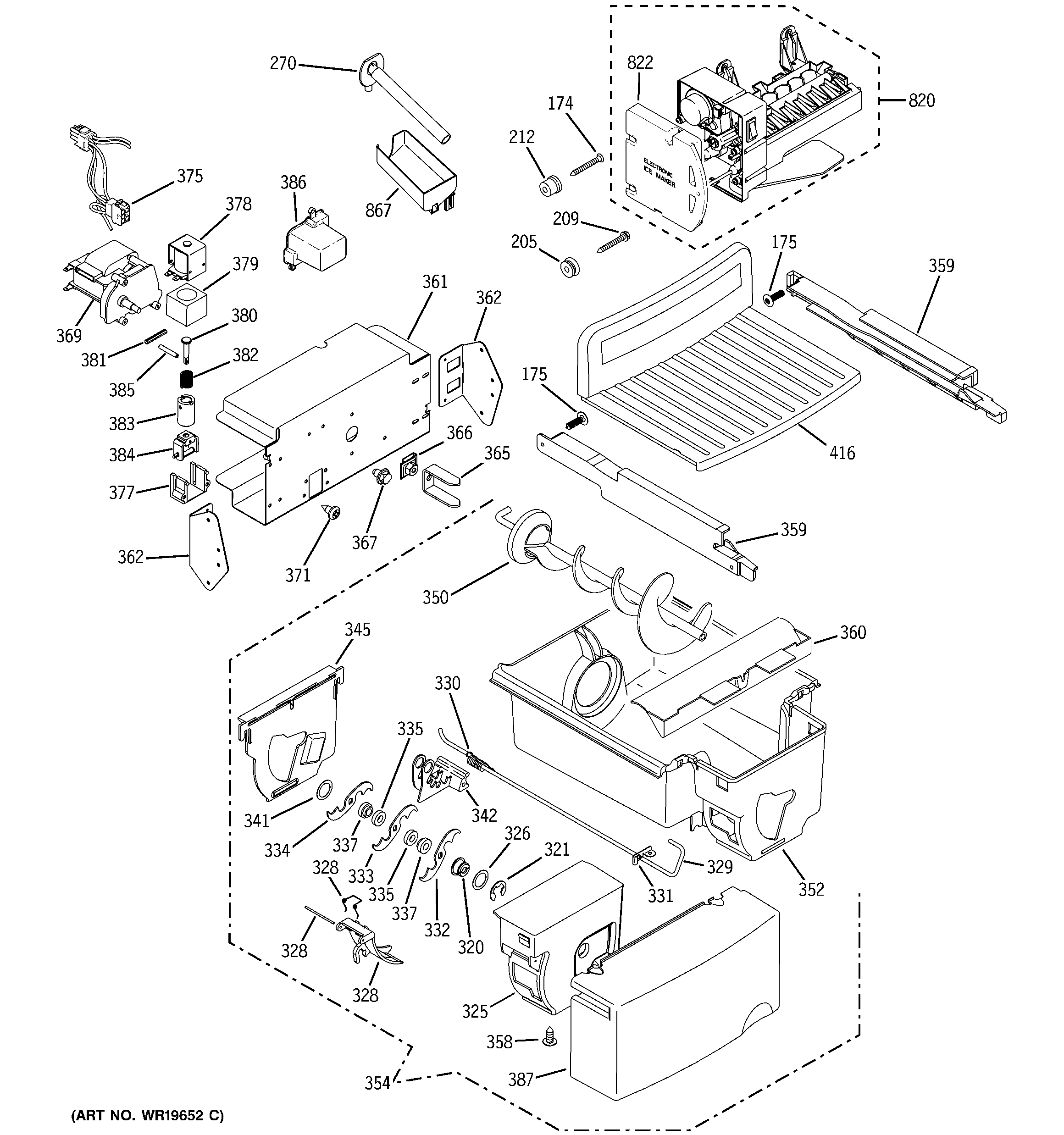

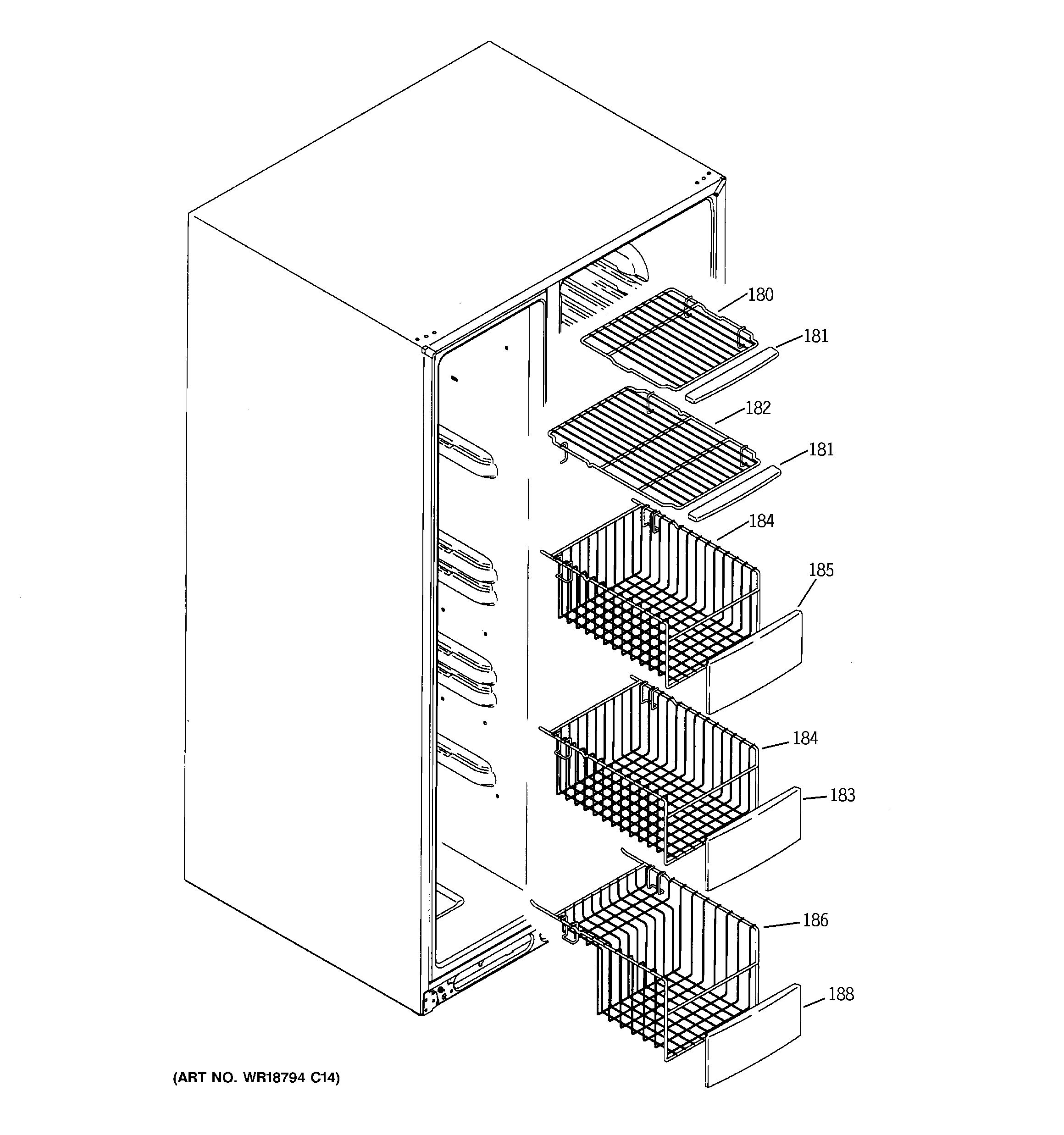

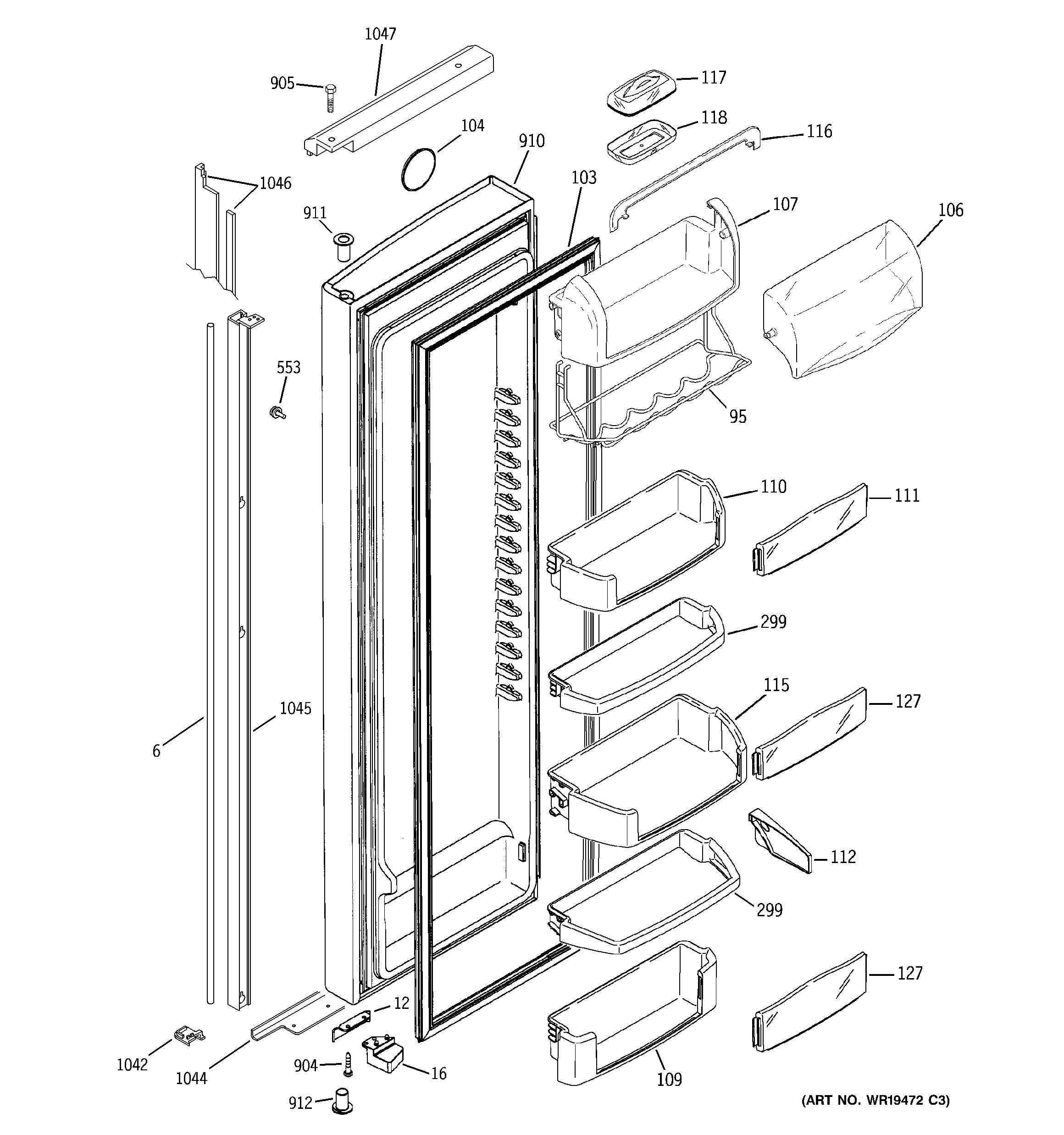

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 299 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10028
#237

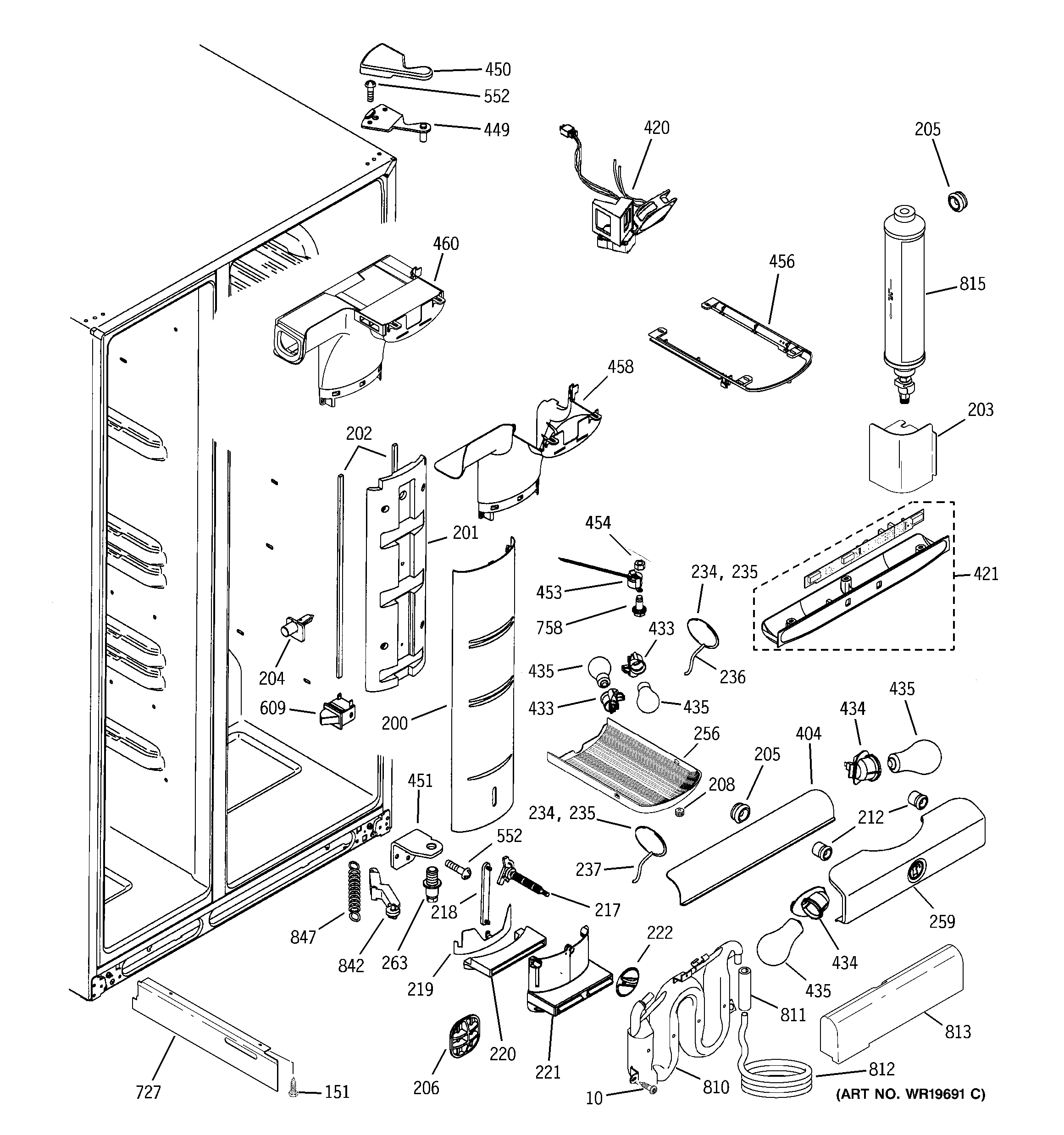

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10028

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10028. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10027
#236

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10027

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10027. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10026
#233

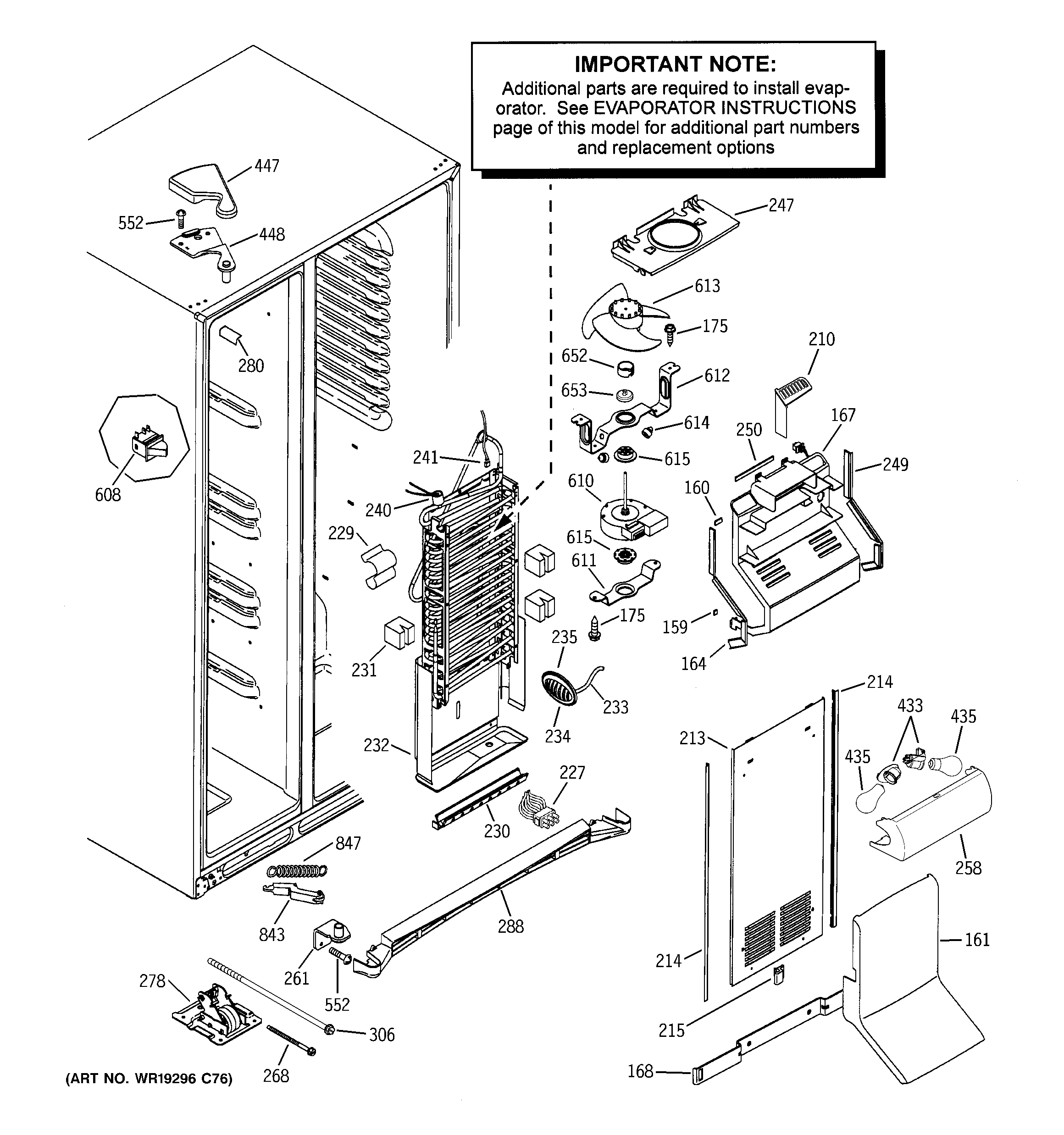

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10026

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10026. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Defrost Heater (replaces Wr51x10030) WR51X10055
#230

Freezer section diagram

Refrigerator defrost heater (replaces wr51x10030)

Part #WR51X10055

BEST SELLER
$93.82 |
6% OFF Phone Price : $99.82
In Stock
Dryer Filter WR86X0096
#740

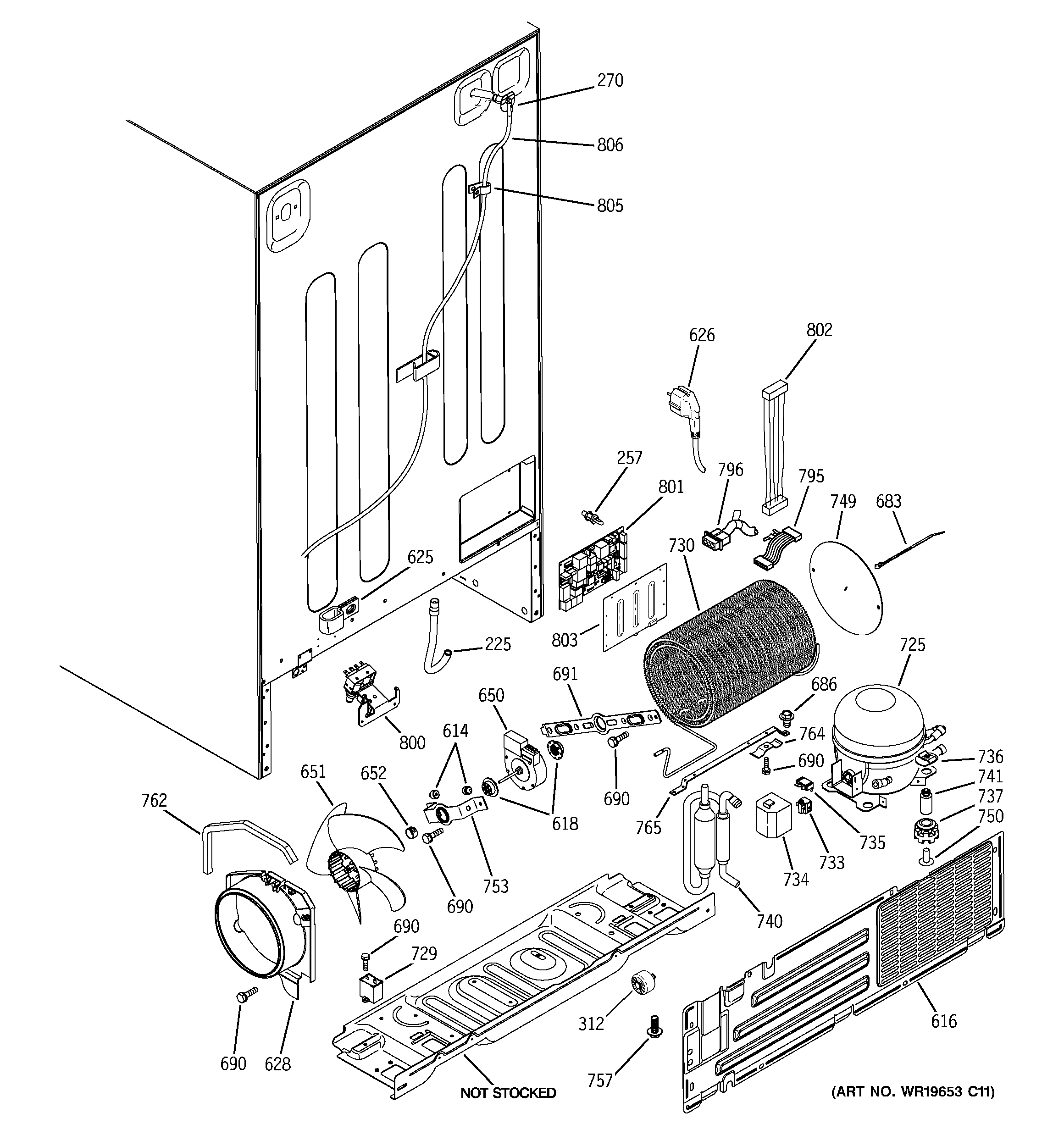

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Solenoid WR62X10020
#36

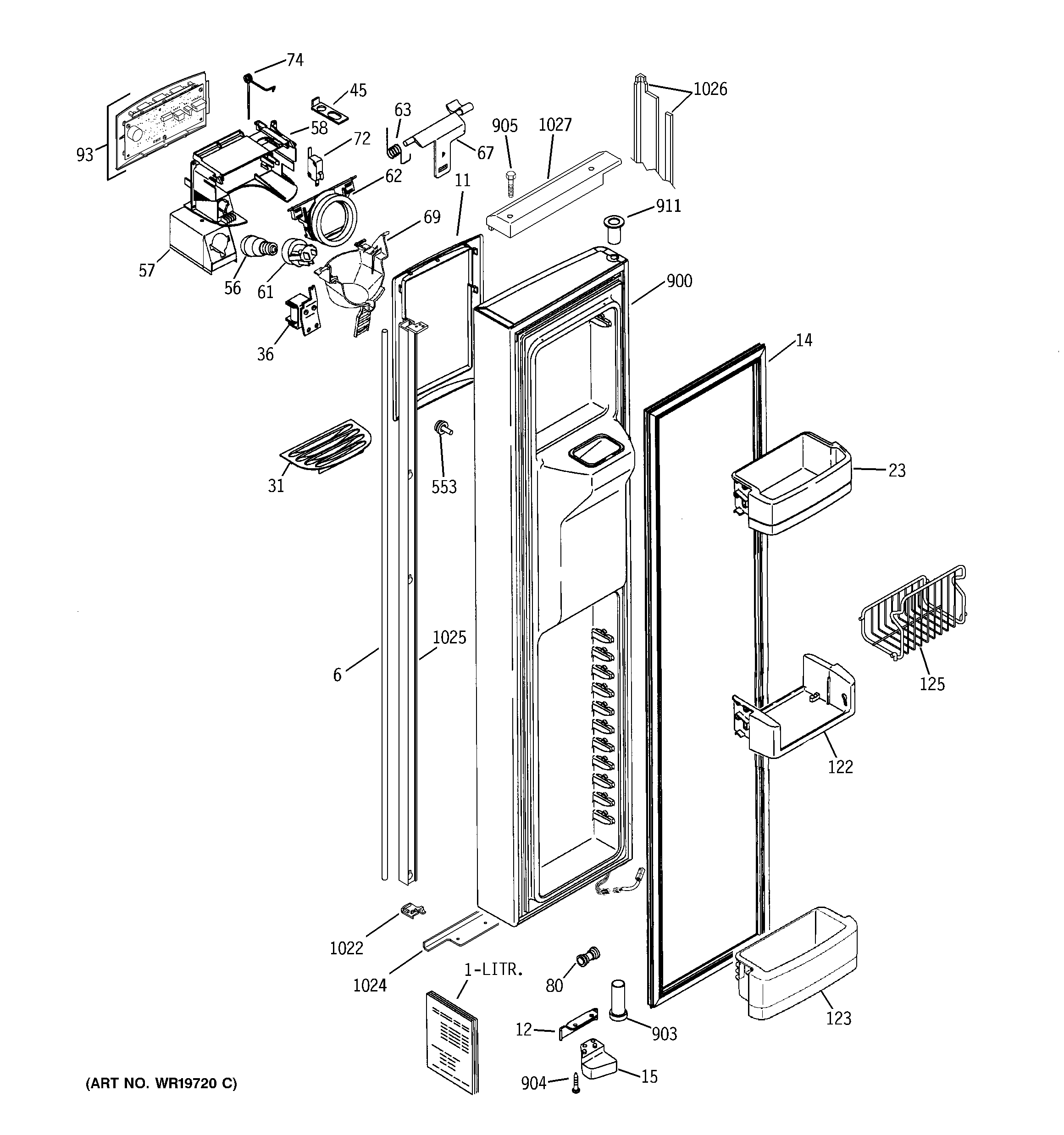

Freezer door diagram

Refrigerator solenoid

Part #WR62X10020

Replaced by #WR62X10055

?
Manufacturer substitution
This part replaces WR62X10020. Substitute parts can look different from the original.
BEST SELLER
$54.06 |
10% OFF Phone Price : $60.06
In Stock
Refrigerator Water Tube Fitting, 5/16 X 5/16-in (replaces Wr02x10471) WR02X11330
#80

Freezer door diagram

Refrigerator water tube fitting, 5/16 x 5/16-in (replaces wr02x10471)

Part #WR02X11330

BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Refrigerator Water Reservoir Assembly WR17X11440
#810

Fresh food section diagram

Refrigerator water reservoir assembly

Part #WR17X11440

BEST SELLER
$29.99 |
17% OFF Phone Price : $35.99
In Stock
Refrigerator Evaporator Blade WR60X10075
#613

Freezer section diagram

Refrigerator evaporator blade

Part #WR60X10075

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10075. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
