GE
Freestanding Ice Maker

Model # ZDI15CKBB Official GE ice cube maker

Here are the diagrams and repair parts for Official GE ZDI15CKBB ice cube maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

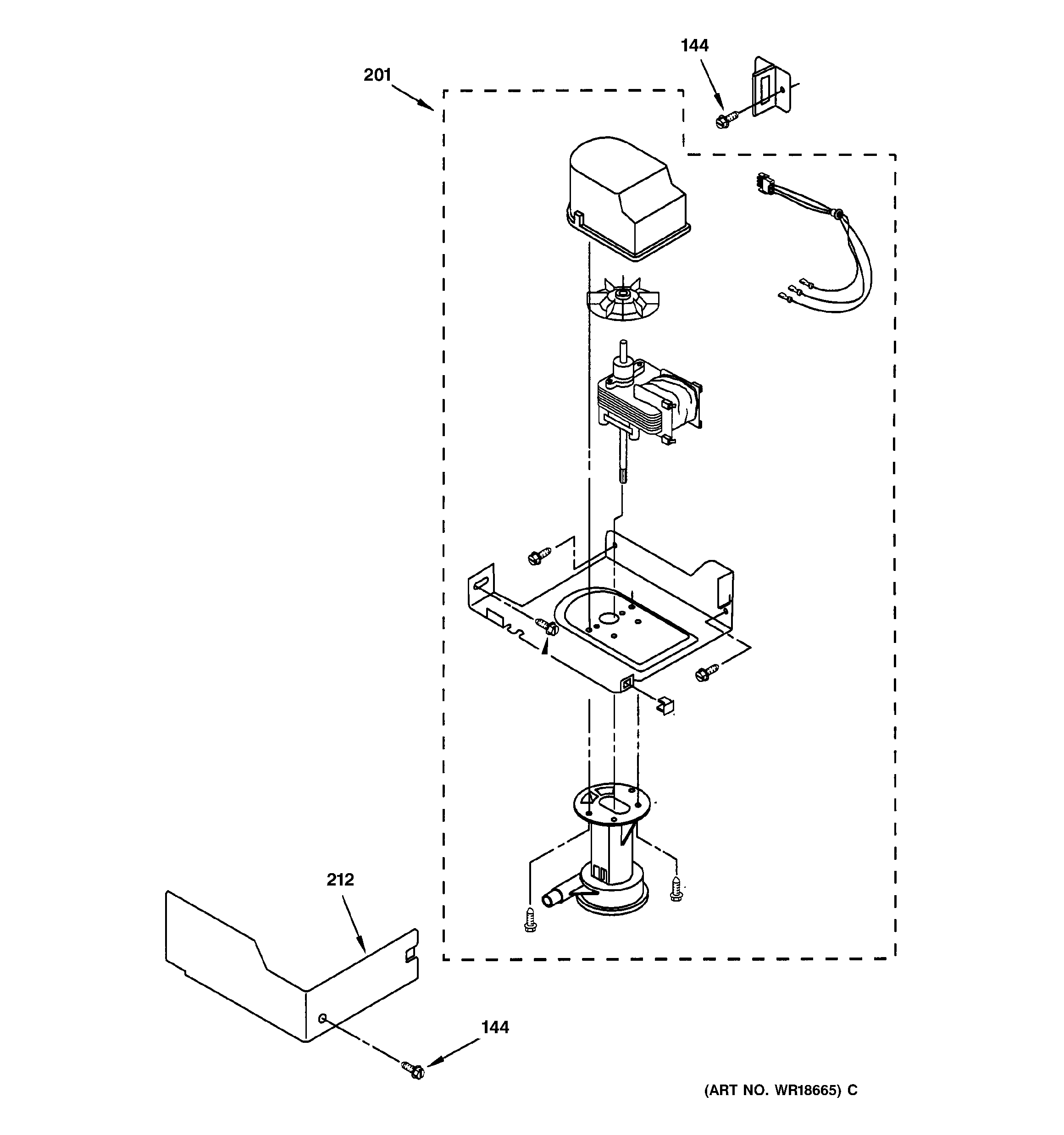

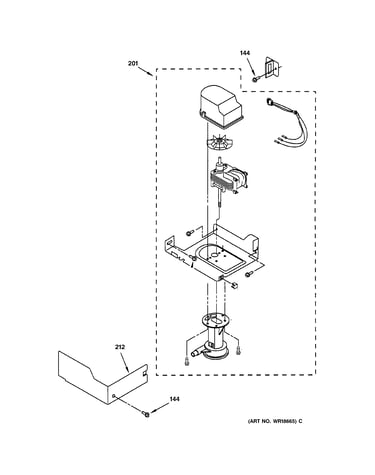

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Dryer Filter WR86X0096
#740

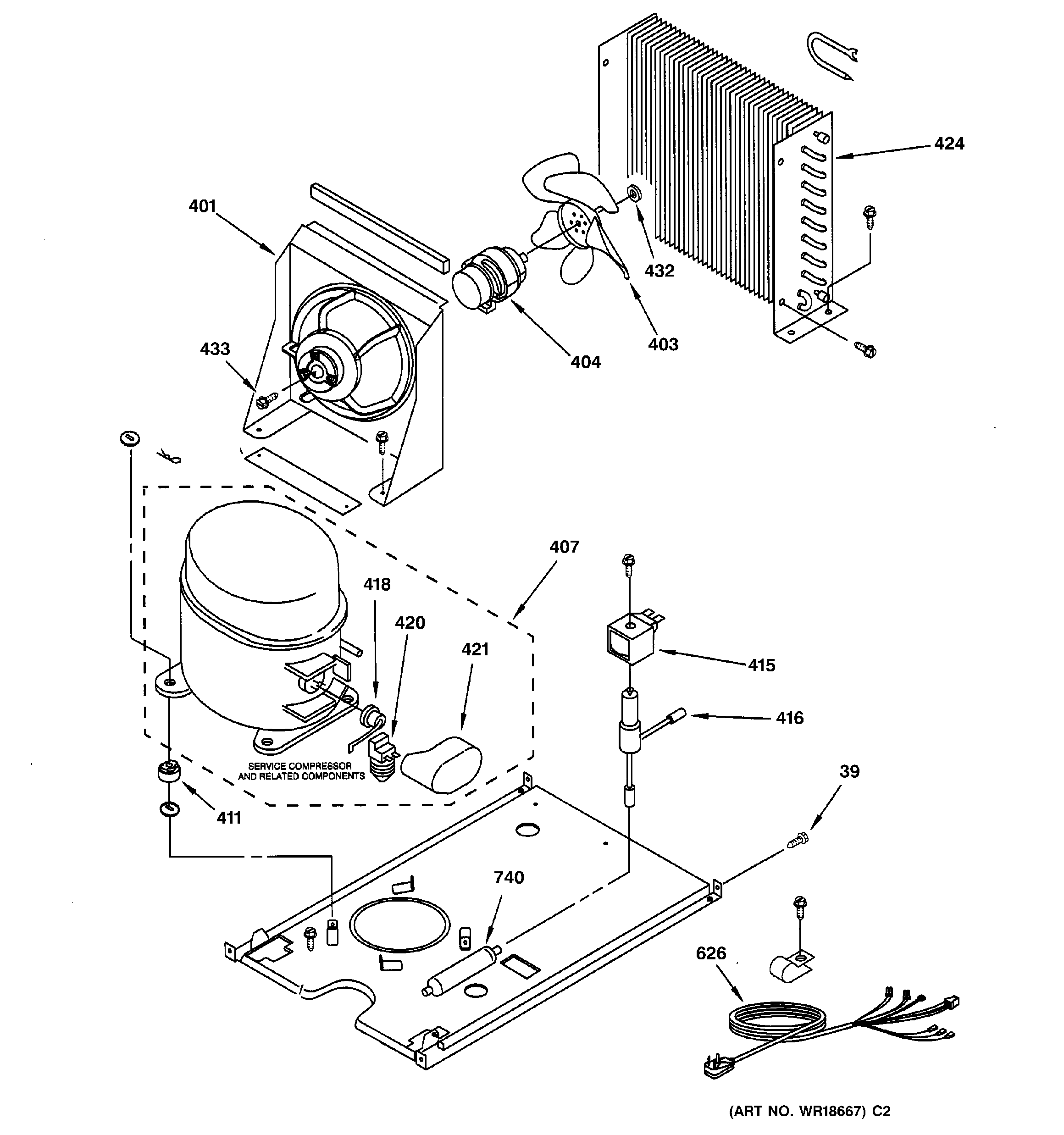

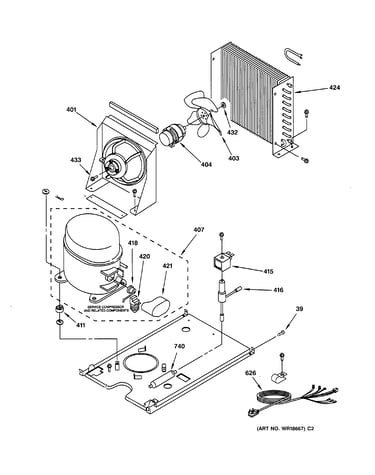

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Ice Maker Fill Tube (replaces Swr17x1948, Wr17x0969, Wr17x1059, Wr17x1125, Wr17x12313, Wr17x1356, Wr17x5404, Wr17x5566, Wr17x969, Wr29x5036) WR17X1948
#108

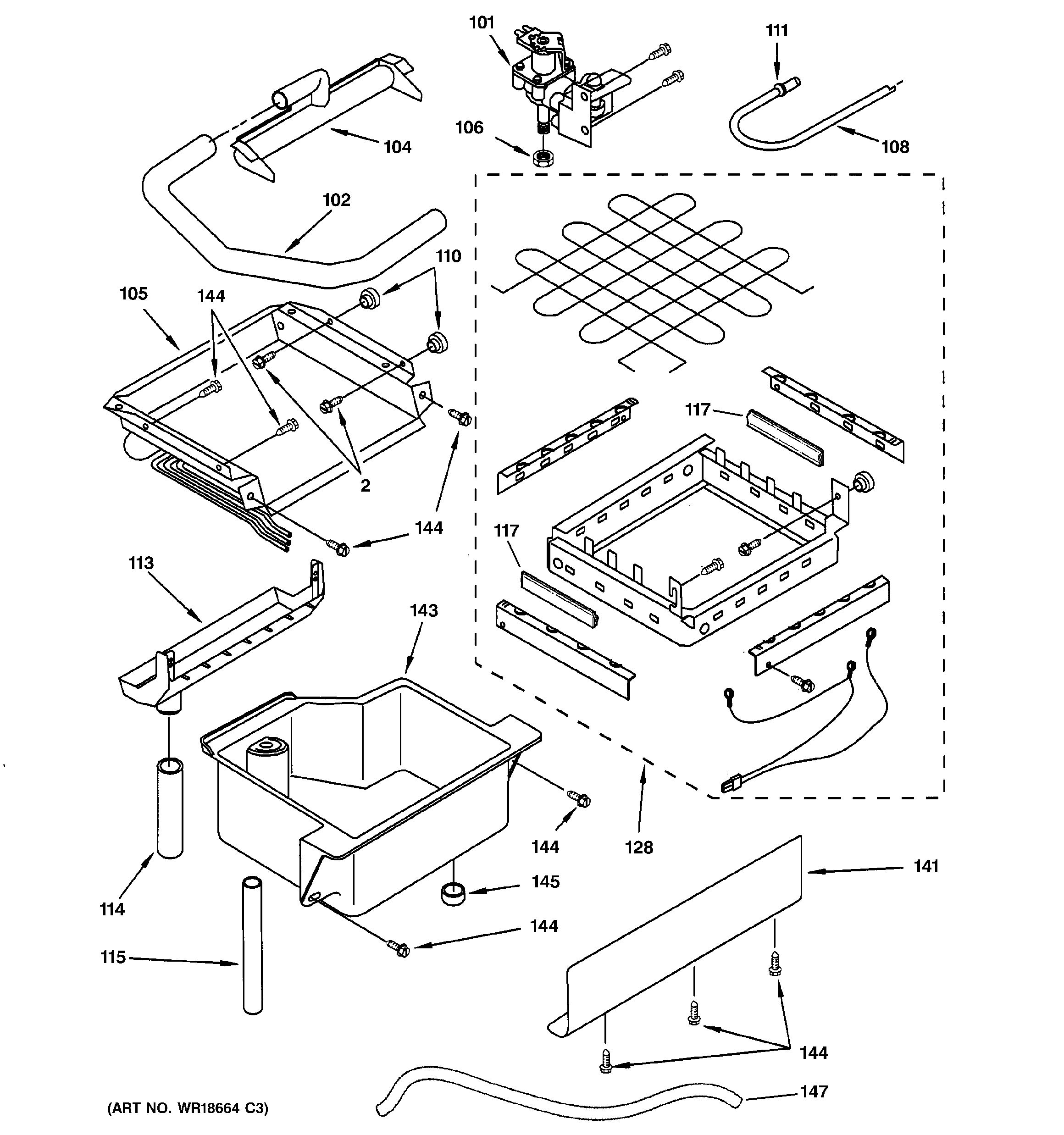

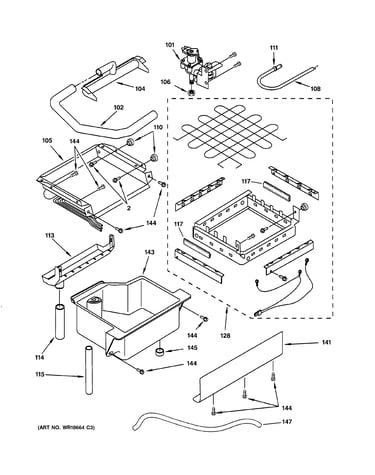

Evaporator, ice cutter grid & water diagram

Refrigerator ice maker fill tube (replaces swr17x1948, wr17x0969, wr17x1059, wr17x1125, wr17x12313, wr17x1356, wr17x5404, wr17x5566, wr17x969, wr29x5036)

Part #WR17X1948

This item is not returnable
$10.84 |
16% OFF Phone Price : $12.84
In Stock
Cord Pwr Asm WR23X0420
#626

Unit parts diagram

Cord pwr asm

Part #WR23X0420

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0420. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Ice Maker Temperature Sensor WR55X10544
#320

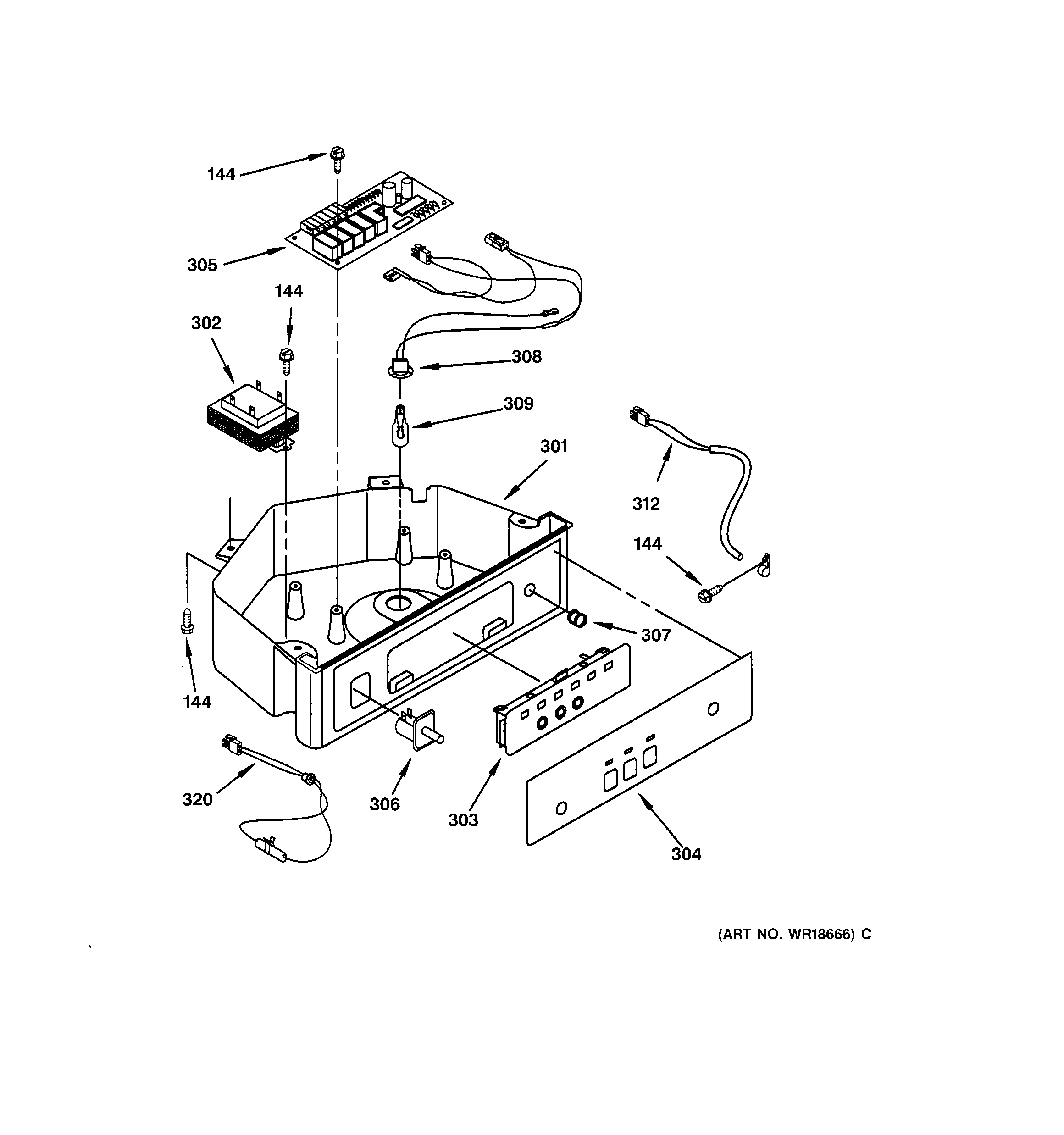

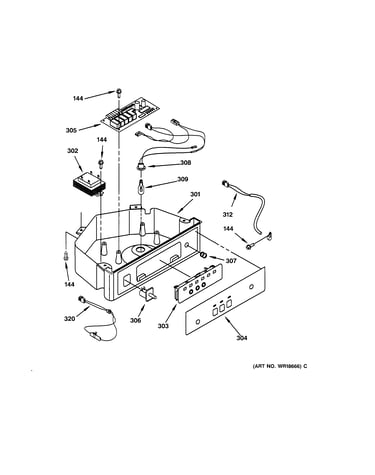

Control panel parts diagram

Ice maker temperature sensor

Part #WR55X10544

$64.49 |
9% OFF Phone Price : $70.49
In Stock
Ice Maker Temperature Sensor WR55X10545
#312

Control panel parts diagram

Ice maker temperature sensor

Part #WR55X10545

$129.20 |
8% OFF Phone Price : $141.20
In Stock
Grid Asm. WR29X10071
#128

Evaporator, ice cutter grid & water diagram

Grid asm.

Part #WR29X10071

Replaced by #WR29X10073

?
Manufacturer substitution
This part replaces WR29X10071. Substitute parts can look different from the original.
$328.36 |
$12.00 OFF Phone Price : $340.36
In Stock
Refrigerator Door Hinge Pin WR01X10135
#34

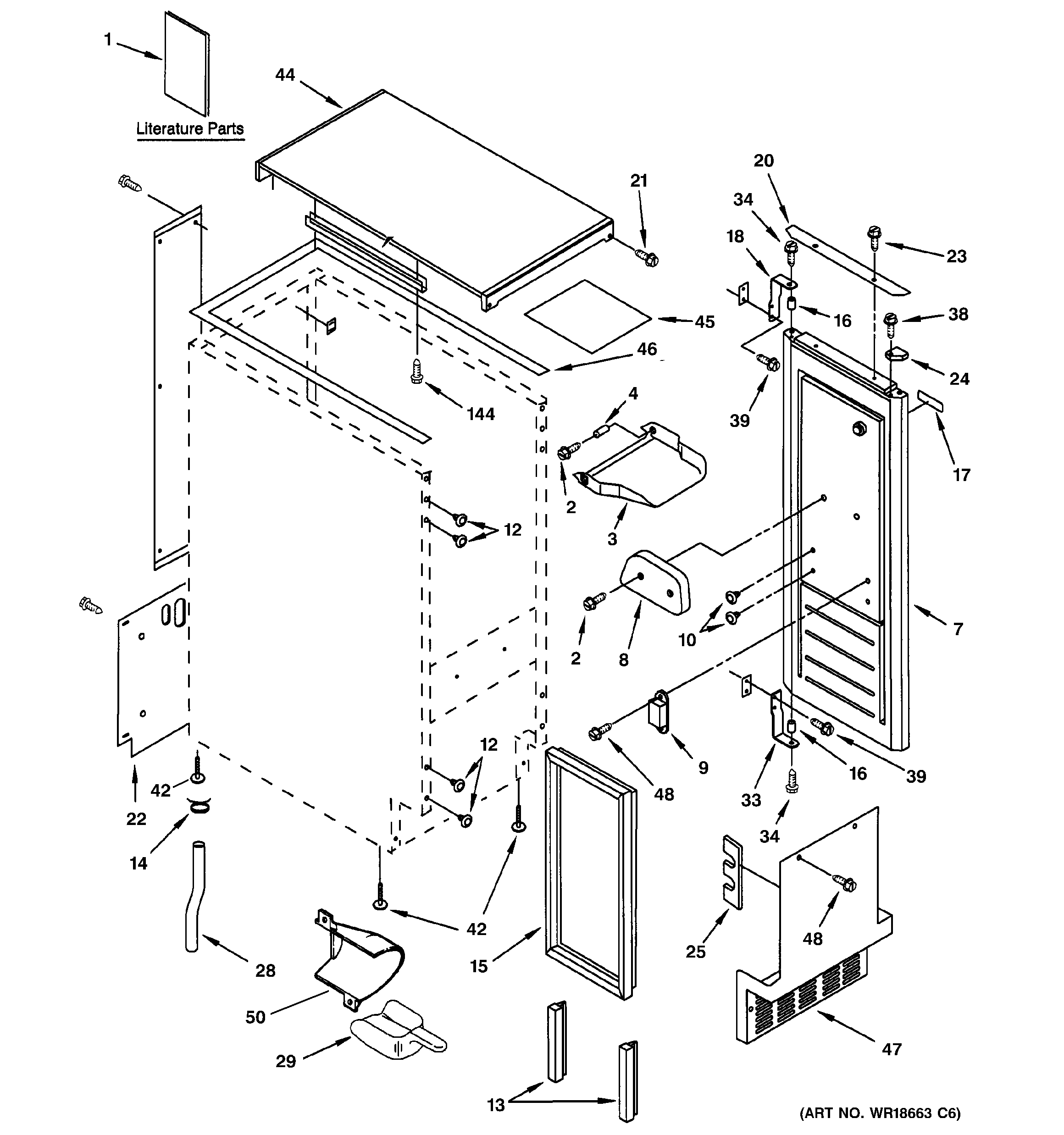

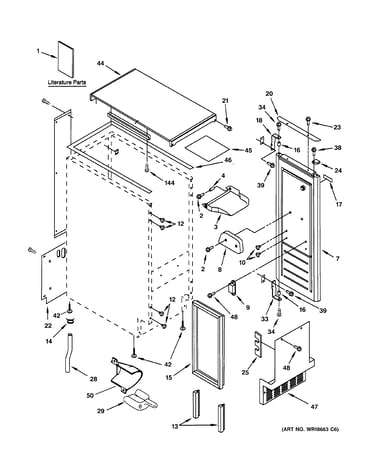

Cabinet, liner & door parts diagram

Refrigerator door hinge pin

Part #WR01X10135

$30.33
In Stock
Filler End Cap WR02X10389
#24

Cabinet, liner & door parts diagram

Filler end cap

Part #WR02X10389

This item is not returnable
$7.40
In Stock
Filler End Cap WR02X10390
#24

Cabinet, liner & door parts diagram

Filler end cap

Part #WR02X10390

This item is not returnable
$7.24
In Stock
Ice Maker Water Reservoir WR32X10090
#113

Evaporator, ice cutter grid & water diagram

Ice maker water reservoir

Part #WR32X10090

$91.29 |
6% OFF Phone Price : $97.29
In Stock
