Model # EVP399 Official Caloric electric self-cleaning range with microwave upper oven

Here are the diagrams and repair parts for Official Caloric EVP399 electric self-cleaning range with microwave upper oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

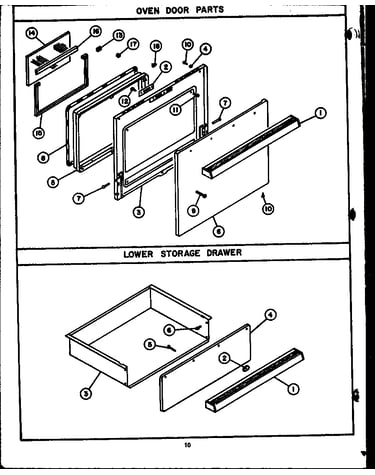

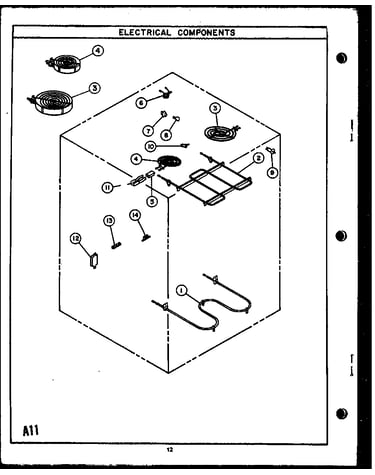

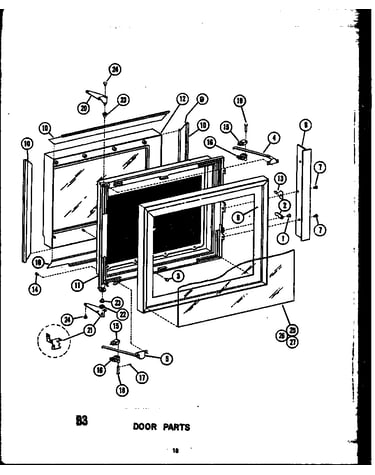

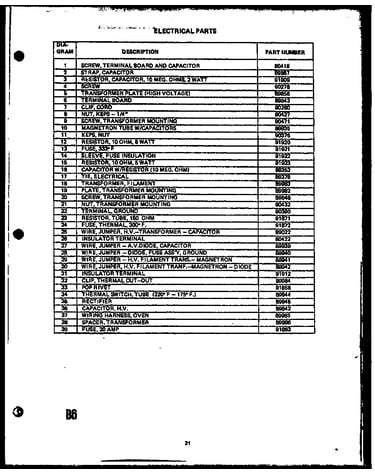

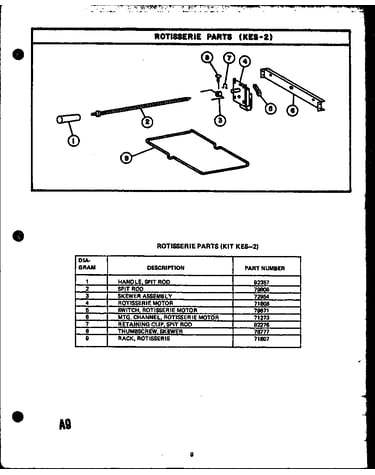

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 448 parts  |
Assembly - Latch Mounting - Above Serial #3524561 68101
#41A

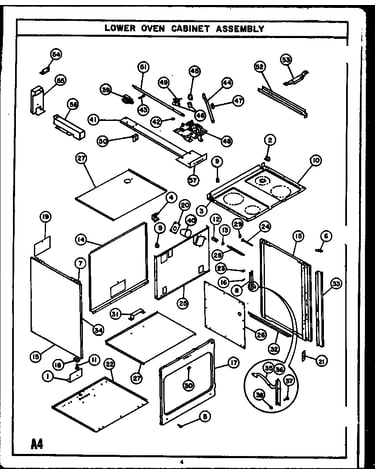

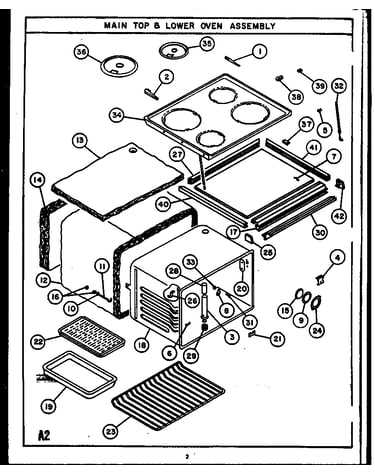

Lower oven cabinet assembly (evp394) (evp399) diagram

Assembly - latch mounting - above serial #3524561

Part #68101

The manufacturer no longer makes this part, and there's no substitute part

Supply Cord Set 72787
#10

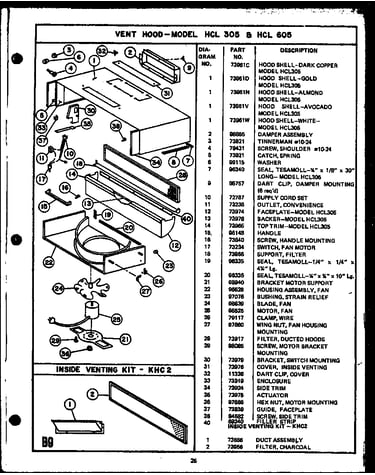

(hcl305) (hcl605) diagram

Supply cord set

Part #72787

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 89989
#16

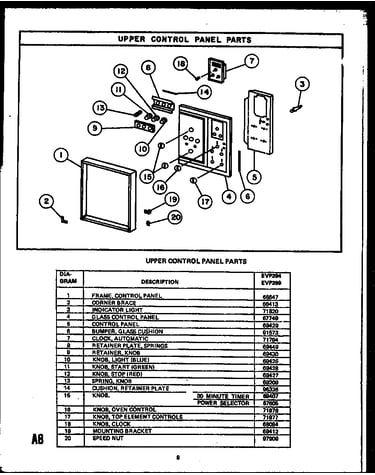

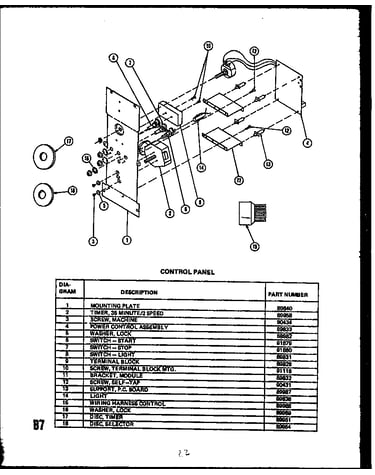

Control panel (evp394) (evp399) diagram

Lock washer

Part #89989

The manufacturer no longer makes this part, and there's no substitute part

Main End (before S.n. 3690698) (note: Models After S.n. 71080V
#15D

Lower oven cabinet assembly (evp394) (evp399) diagram

Main end (before s.n. 3690698) (note: models after s.n.

Part #71080V

The manufacturer no longer makes this part, and there's no substitute part

Grommet, Motor Mount, Rubber 91866
#34

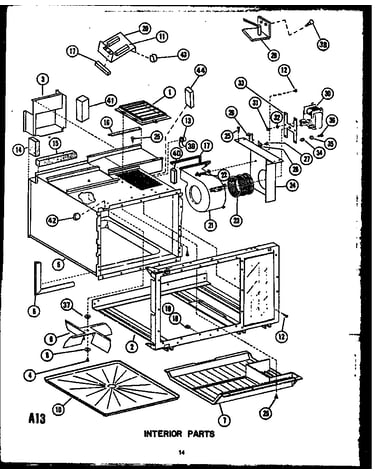

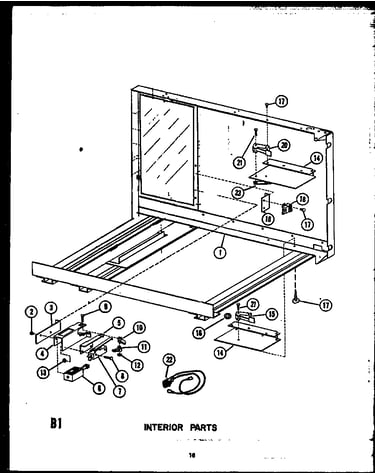

Interior parts (evp394) (evp399) diagram

Grommet, motor mount, rubber

Part #91866

The manufacturer no longer makes this part, and there's no substitute part

End Panel, - Middle L.h. (avocado) 69436V
#19D

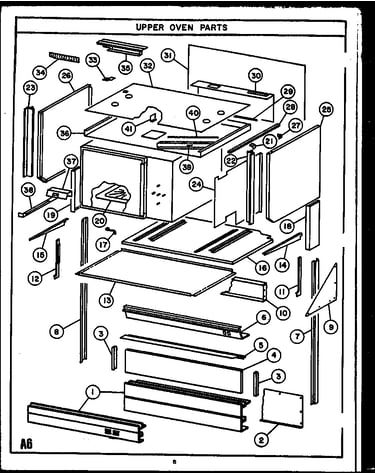

Upper oven parts (evp394) (evp399) diagram

End panel, - middle l.h. (avocado)

Part #69436V

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, Motor Ro Bracket 90464
#32

Interior parts (evp394) (evp399) diagram

Lock washer, motor ro bracket

Part #90464

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Sponge 91853
#15

Interior parts (evp394) (evp399) diagram

Gasket, sponge

Part #91853

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 71890
#6

(evp394) (evp399) diagram

Cotter pin

Part #71890

The manufacturer no longer makes this part, and there's no substitute part

Socket Starter 71964
#12

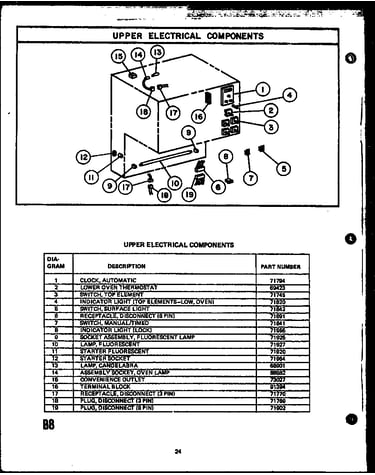

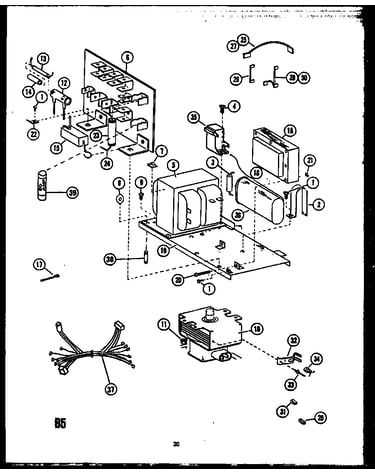

Upper electrical components (evp394) diagram

Socket starter

Part #71964

The manufacturer no longer makes this part, and there's no substitute part
