Chest Freezer

Model # EHL090FXRQ00 Official Whirlpool chest freezer

Here are the diagrams and repair parts for Official Whirlpool EHL090FXRQ00 chest freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
EHL090FXRQ00 Freestanding Freezers
Spray Paint (white) 350930
#NI

Unit parts, optional parts (not included) diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Unit parts, optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Compressor 8210240
#1

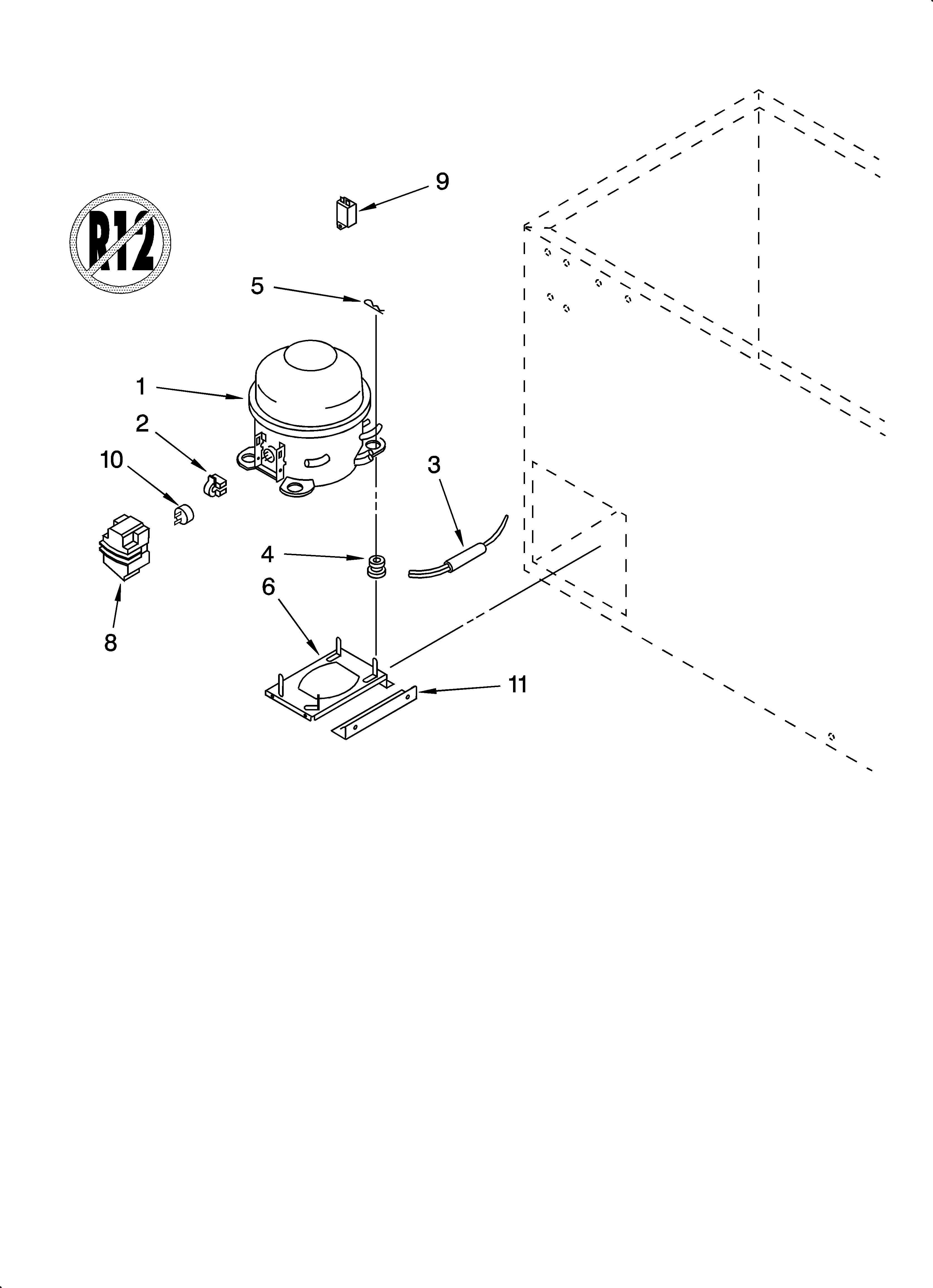

Unit parts, optional parts (not included) diagram

Compressor

Part #8210240

Replaced by #W10237328

?
Manufacturer substitution
This part replaces 8210240. Substitute parts can look different from the original.
$387.50 |
$12.00 OFF Phone Price : $399.50
In Stock
Door Hinge 4356490
#2

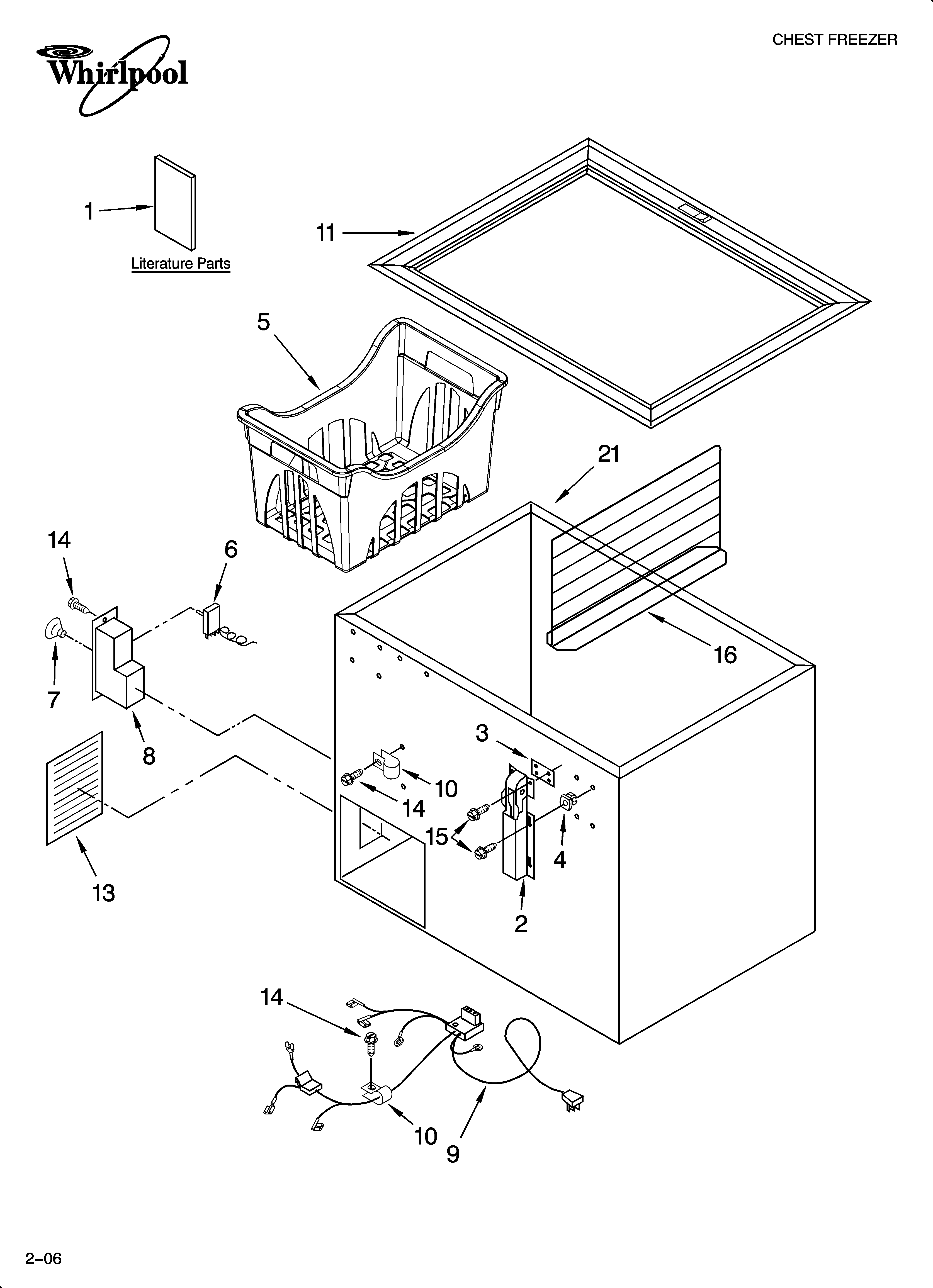

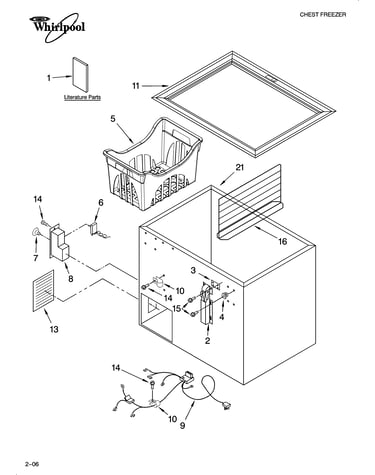

Cabinet parts diagram

Door hinge

Part #4356490

$117.82
In Stock
Whirlpool Energy Guide 8210335
#1

Cabinet parts diagram

Whirlpool energy guide

Part #8210335

This item is not returnable
$4.55
In Stock
Grommet 4356321
#4

Cabinet parts diagram

Grommet

Part #4356321

$15.29 |
12% OFF Phone Price : $17.29
In Stock
Screw 4356491
#15

Cabinet parts diagram

Screw

Part #4356491

$11.59
In Stock
Appliance Porcelain Touch-up Paint, 1-qt (white) 799344
#NI

Unit parts, optional parts (not included) diagram

Appliance porcelain touch-up paint, 1-qt (white)

Part #799344

$109.53 |
10% OFF Phone Price : $121.53
In Stock
Door Lock 4356759
#10

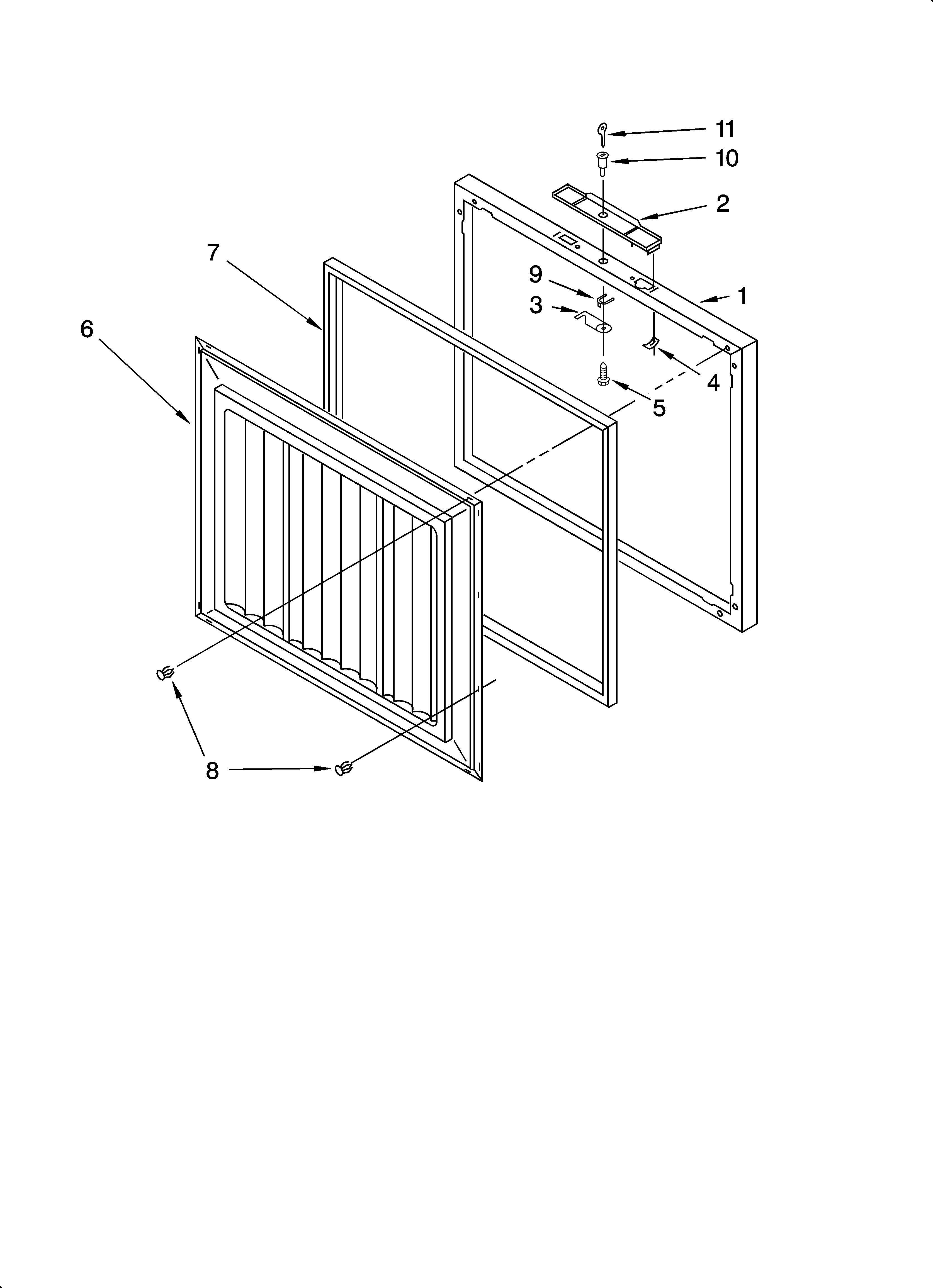

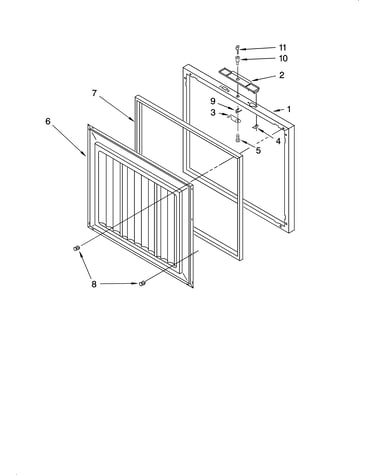

Door parts diagram

Door lock

Part #4356759

$14.44
In Stock
Kirkland Terminal Cover 8210242
#8

Unit parts, optional parts (not included) diagram

Kirkland terminal cover

Part #8210242

$114.84
In Stock
