Craftsman
Power Drill

Model # 142-2 3/8 INCH Official Craftsman 3/8" electric drill

Here are the diagrams and repair parts for Official Craftsman 142-2-3-8-INCH 3/8" electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Bearing 1-607129-01
#12

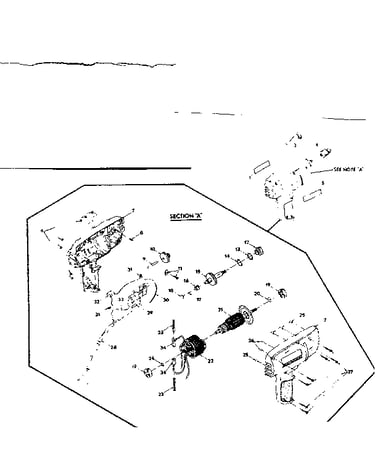

Unit parts diagram

Bearing

Part #1-607129-01

The manufacturer no longer makes this part, and there's no substitute part

Dataplate 2-989104-01
#5

Unit parts diagram

Dataplate

Part #2-989104-01

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1-607122-01
#16

Unit parts diagram

Bearing

Part #1-607122-01

The manufacturer no longer makes this part, and there's no substitute part

Armature 2-612053-01
#21

Unit parts diagram

Armature

Part #2-612053-01

The manufacturer no longer makes this part, and there's no substitute part

Gear Shaft 1-607625-05
#9

Unit parts diagram

Gear shaft

Part #1-607625-05

The manufacturer no longer makes this part, and there's no substitute part

Spacer 1-622204-17
#13

Unit parts diagram

Spacer

Part #1-622204-17

The manufacturer no longer makes this part, and there's no substitute part

Brush W/spy 1-610784-10
#23

Unit parts diagram

Brush w/spy

Part #1-610784-10

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly 2-607134-01
#15

Unit parts diagram

Gear assembly

Part #2-607134-01

The manufacturer no longer makes this part, and there's no substitute part

Rub Insert 1-622795-02
#26

Unit parts diagram

Rub insert

Part #1-622795-02

The manufacturer no longer makes this part, and there's no substitute part

Cord 2-612568-01
#28

Unit parts diagram

Cord

Part #2-612568-01

The manufacturer no longer makes this part, and there's no substitute part
