Model # MXS65PNATS Official Maytag commercial washer

Here are the diagrams and repair parts for Official Maytag MXS65PNATS commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

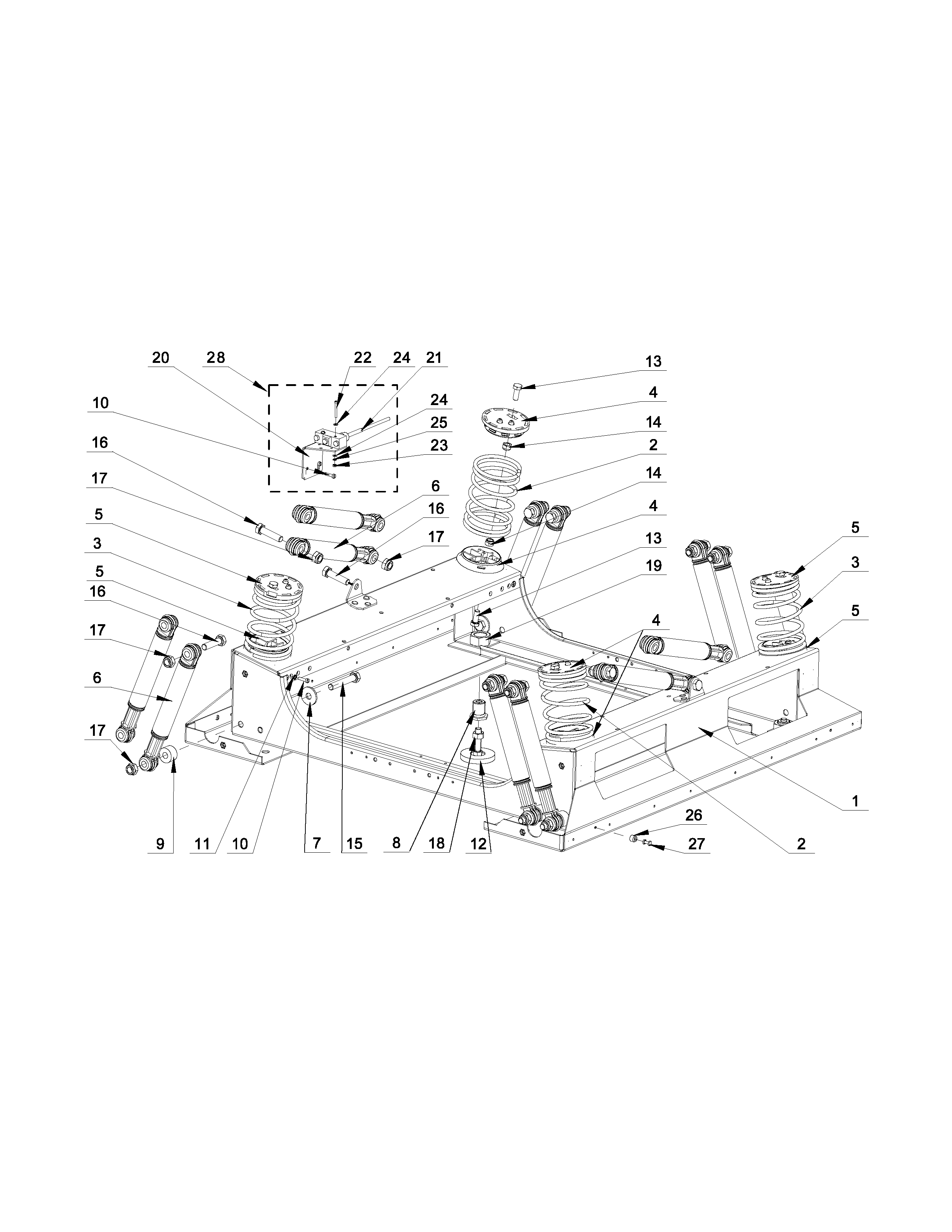

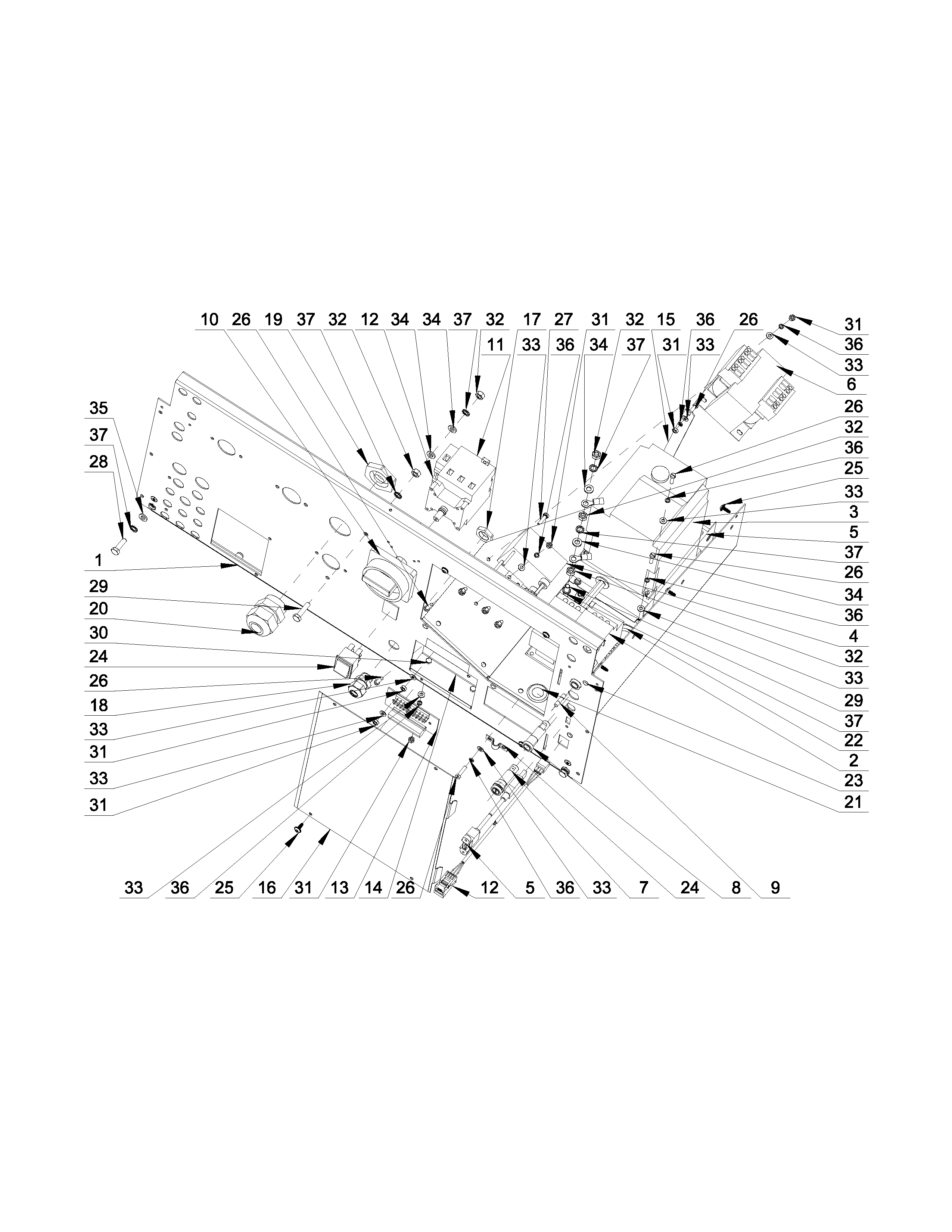

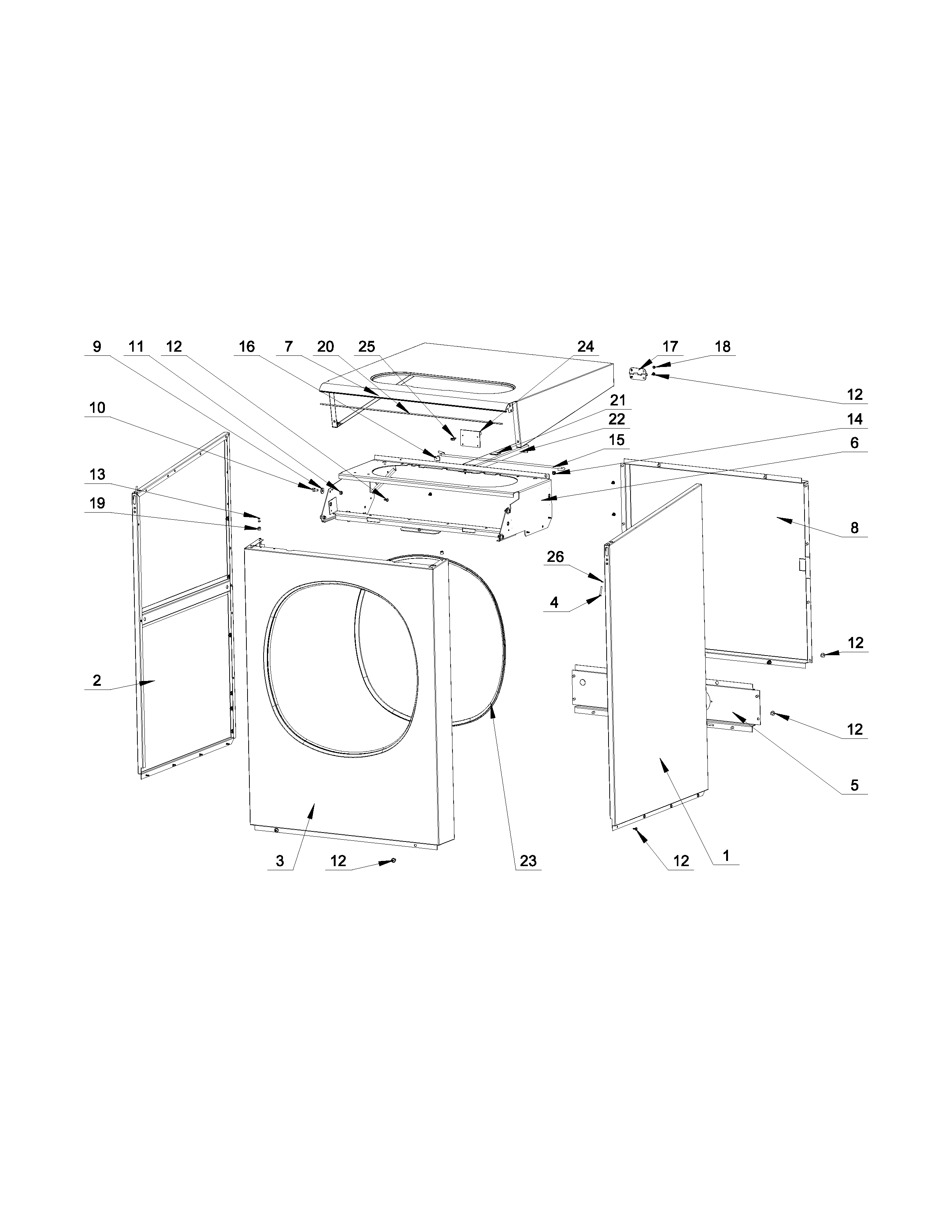

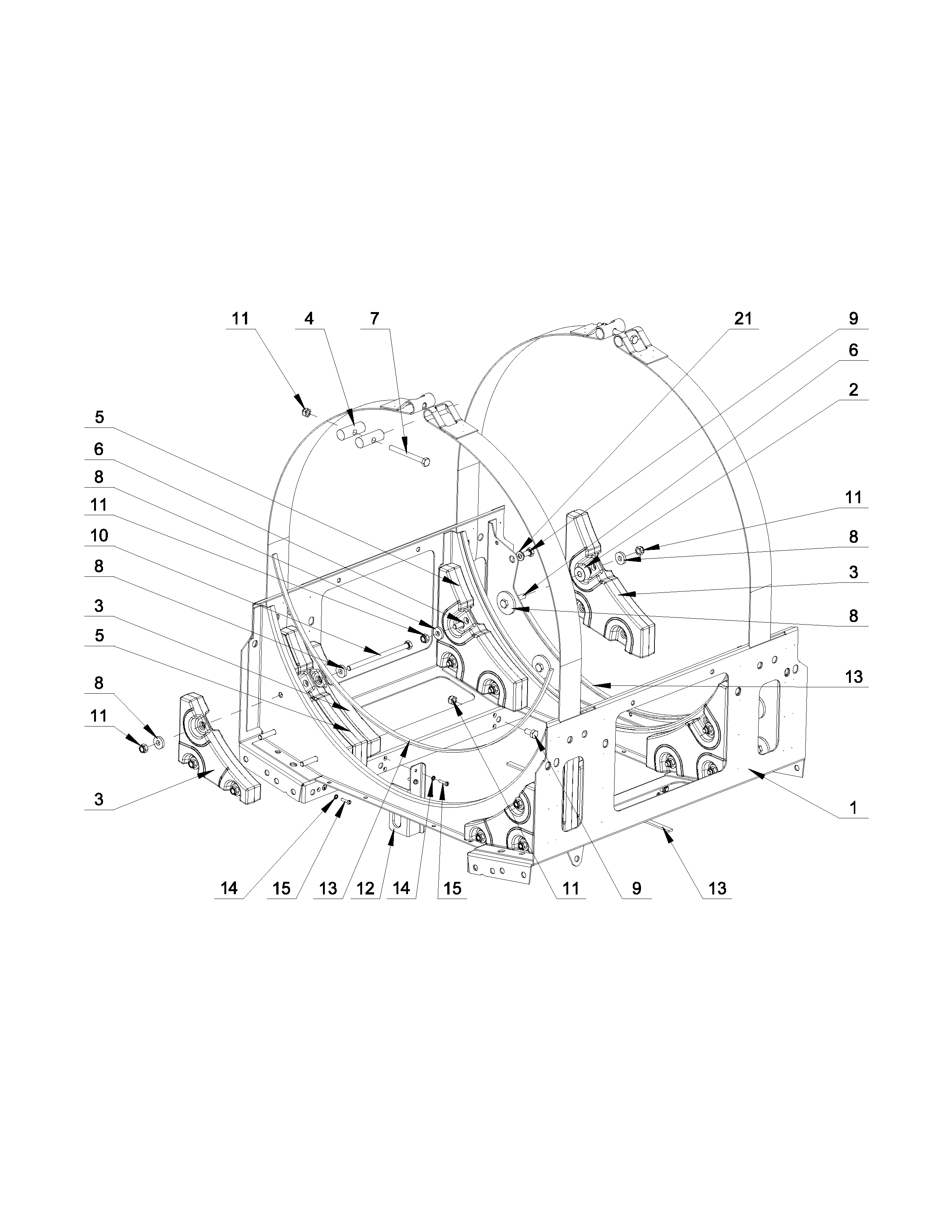

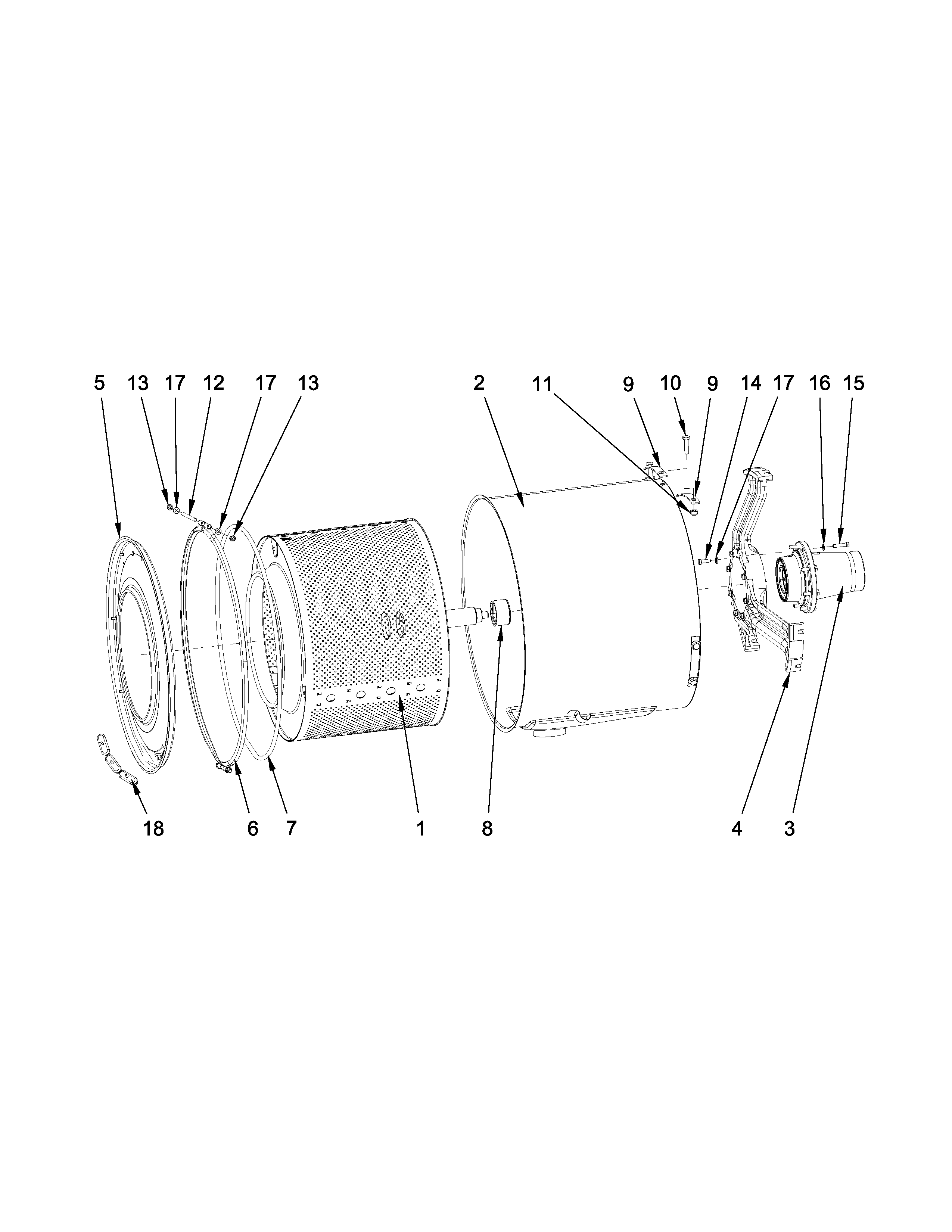

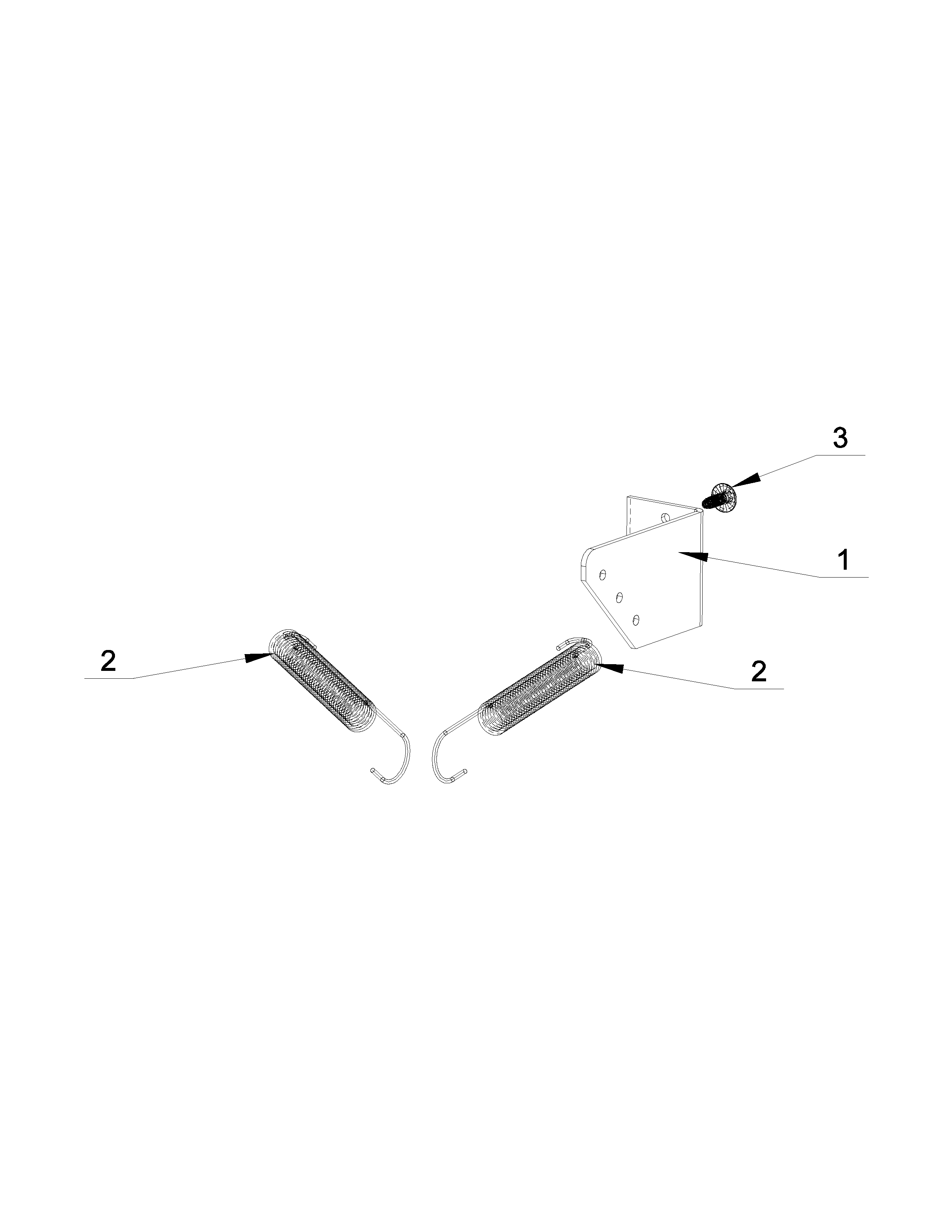

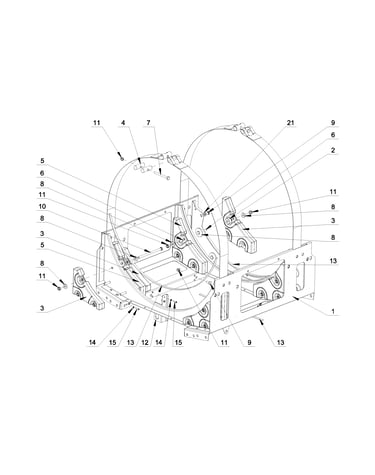

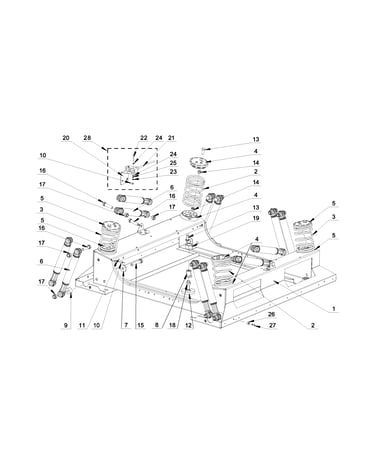

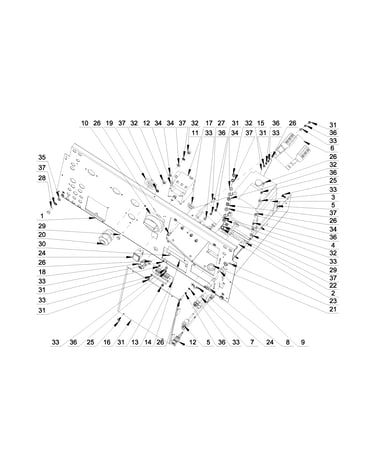

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 289 parts  |
Clamp W10712805
#19

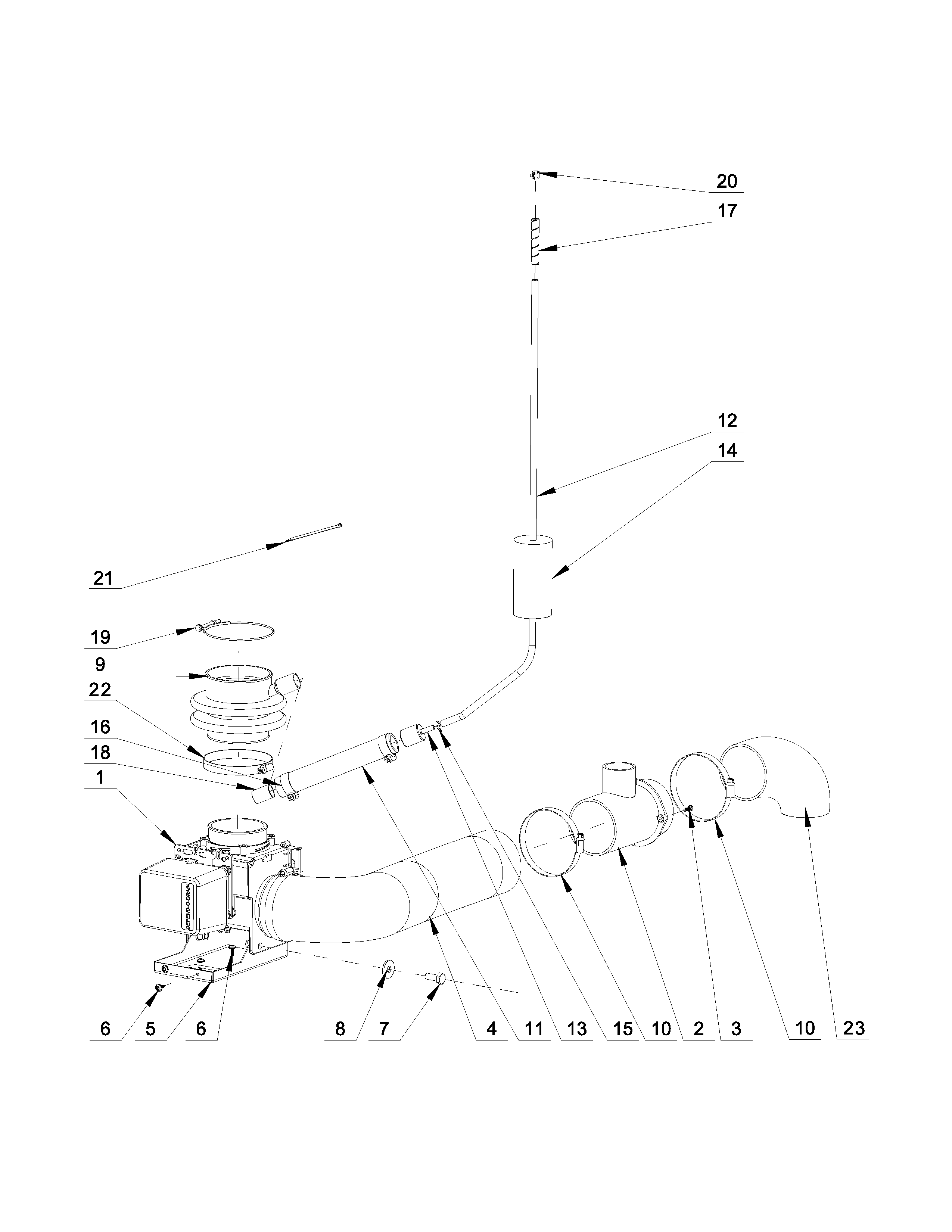

Drain system parts diagram

Clamp

Part #W10712805

Replaced by #WP696392

?
Manufacturer substitution
This part replaces W10712805. Substitute parts can look different from the original.
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
Hinge W10712306
#4

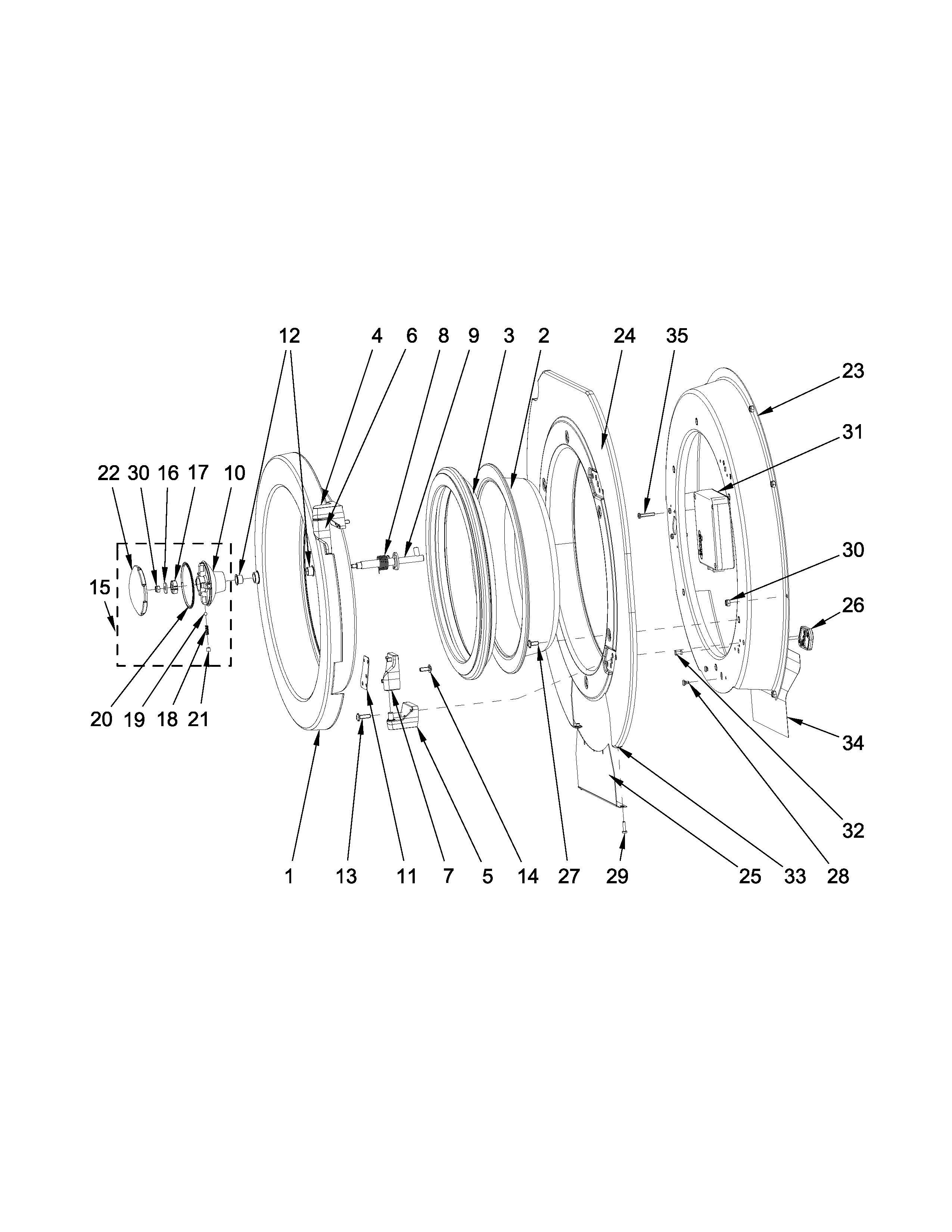

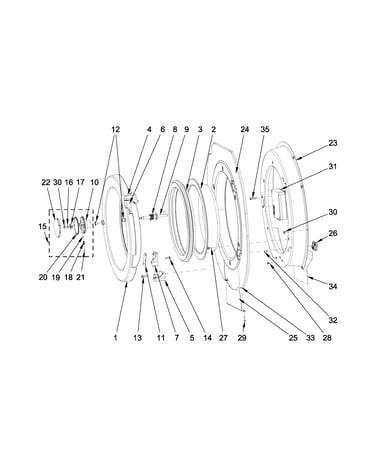

Door parts diagram

Hinge

Part #W10712306

$15.18
In Stock
Spring W10712328
#18

Door parts diagram

Spring

Part #W10712328

This item is not returnable
$6.44
In Stock
Bracket W10747779
#20

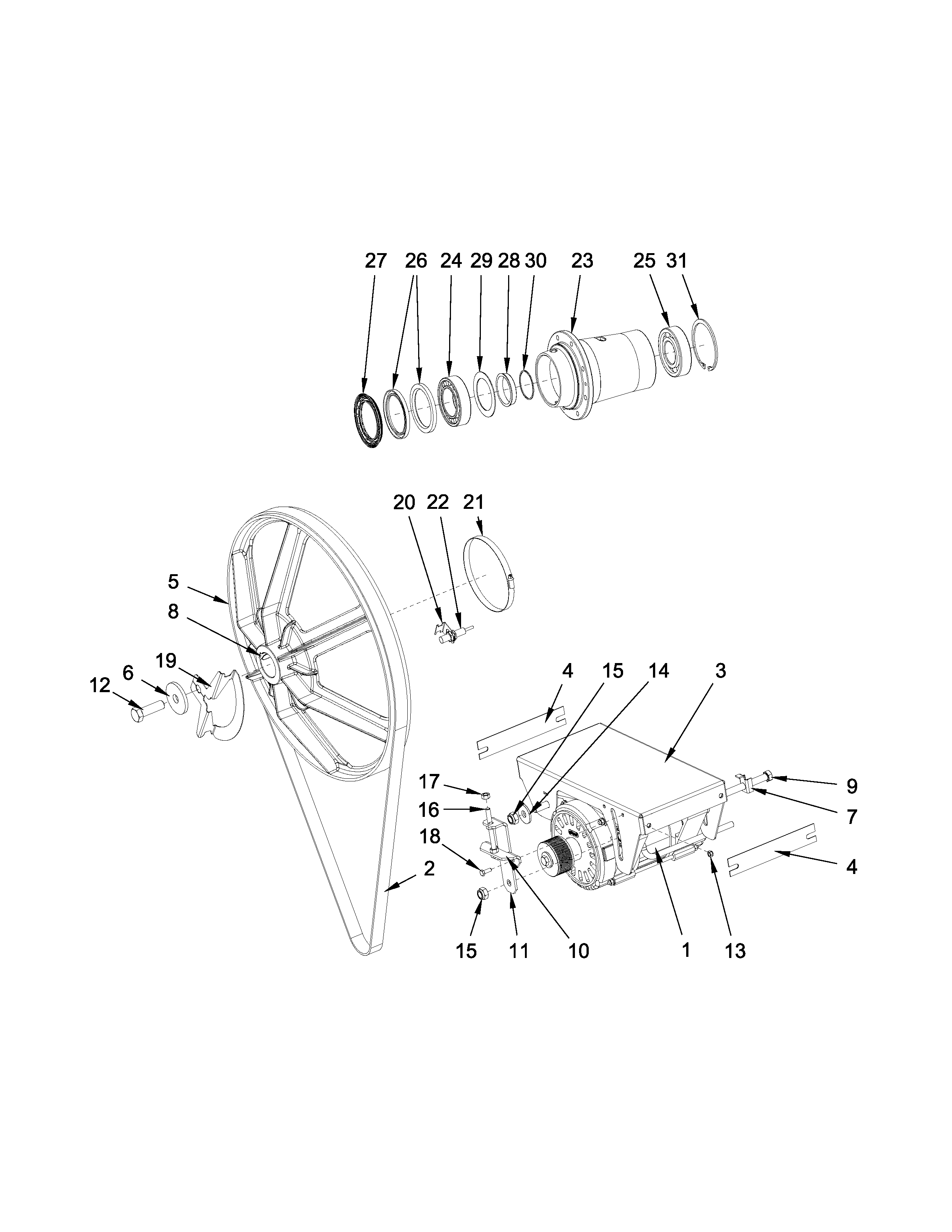

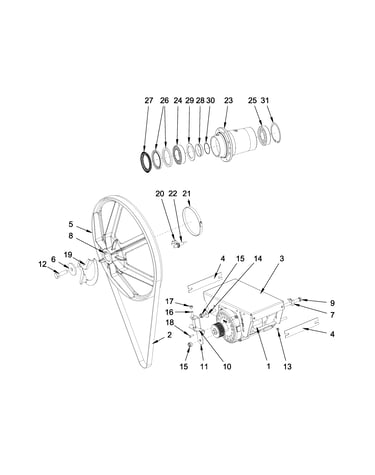

Drive parts diagram

Bracket

Part #W10747779

$17.19 |
10% OFF Phone Price : $19.19
In Stock
Motor Bracket W10713991
#3

Drive parts diagram

Motor bracket

Part #W10713991

$115.16
In Stock
Cover W10712364
#25

Door parts diagram

Cover

Part #W10712364

$48.22
In Stock
Spiral W10712803
#17

Drain system parts diagram

Spiral

Part #W10712803

$108.34
In Stock
Injector W10713178
#7

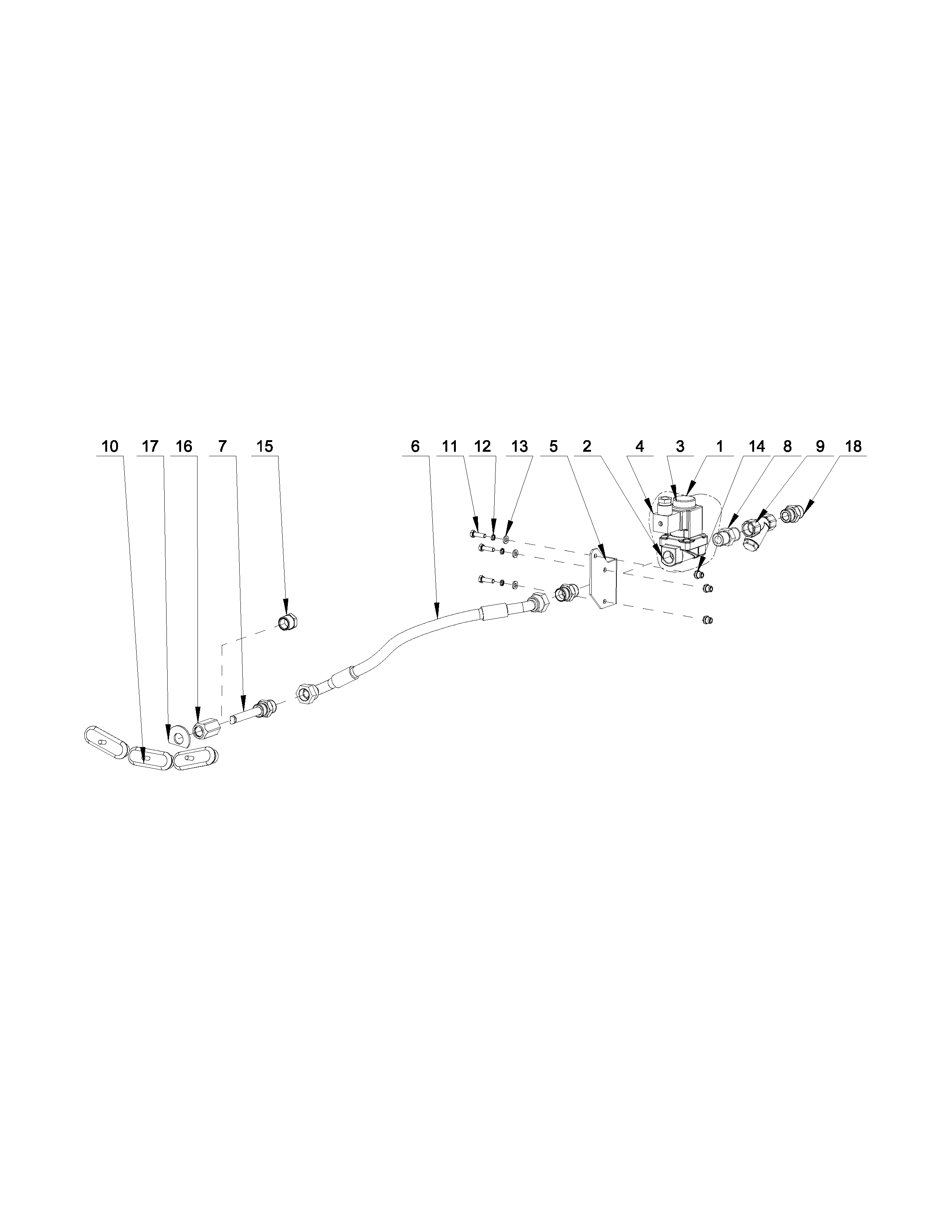

Steam heating parts diagram

Injector

Part #W10713178

$9.71
In Stock
Bracket W10712217
#5

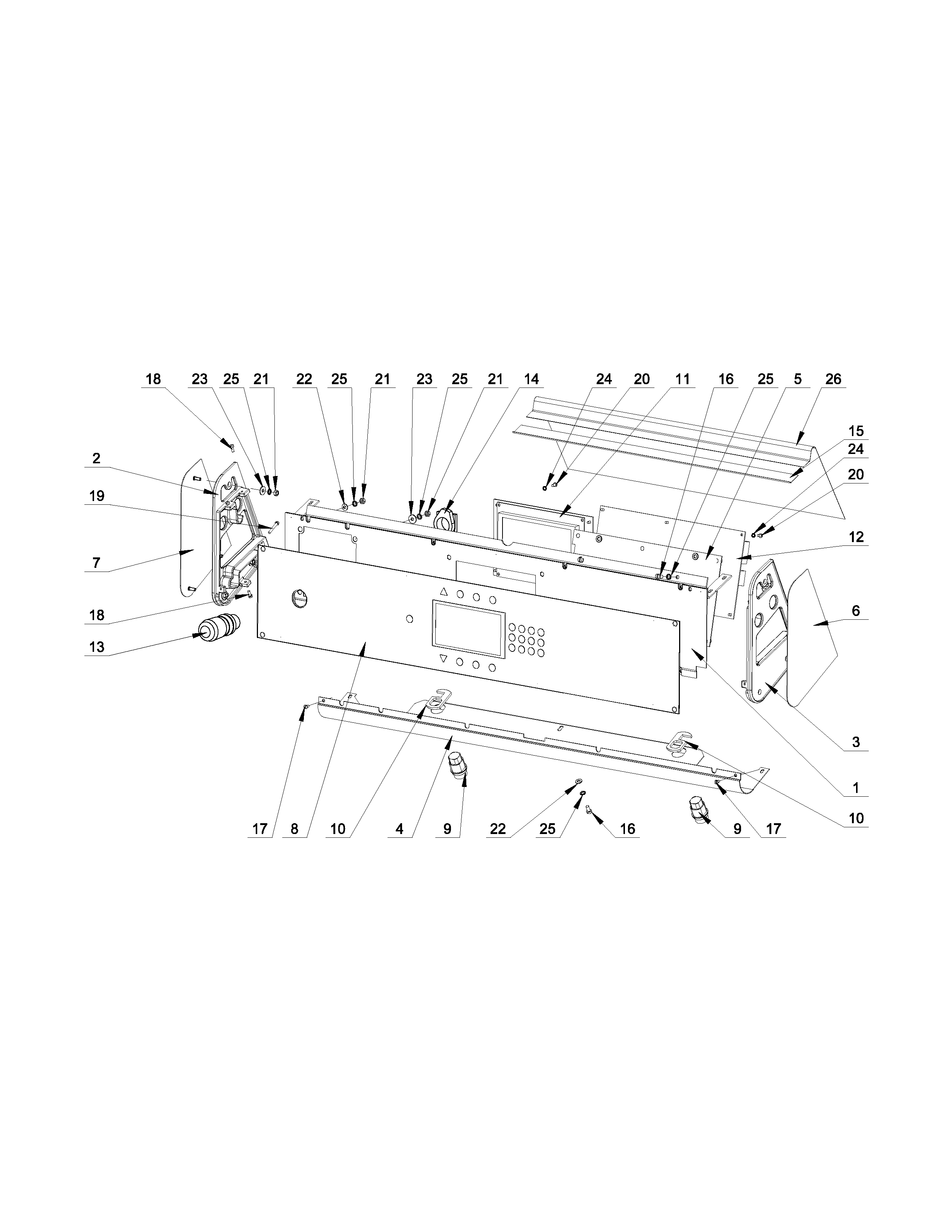

Control panel parts diagram

Bracket

Part #W10712217

$41.67
In Stock
Commercial Washer Water Temperature Seal W10712713
#23

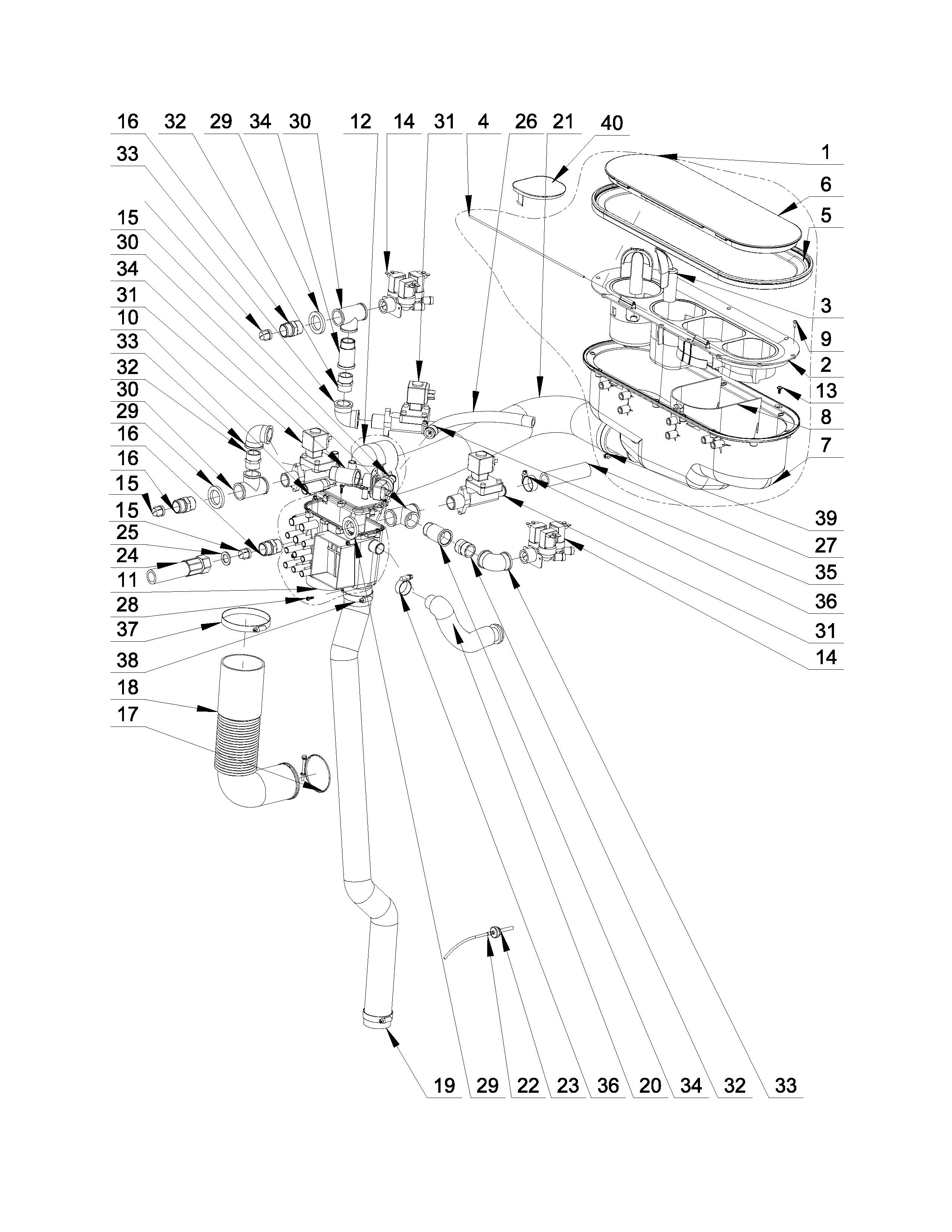

Water inlet parts diagram
