Model # ZDBR240HAPS Official GE wine cooler

Here are the diagrams and repair parts for Official GE ZDBR240HAPS wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Magnetic Gas WR24X10123
#336

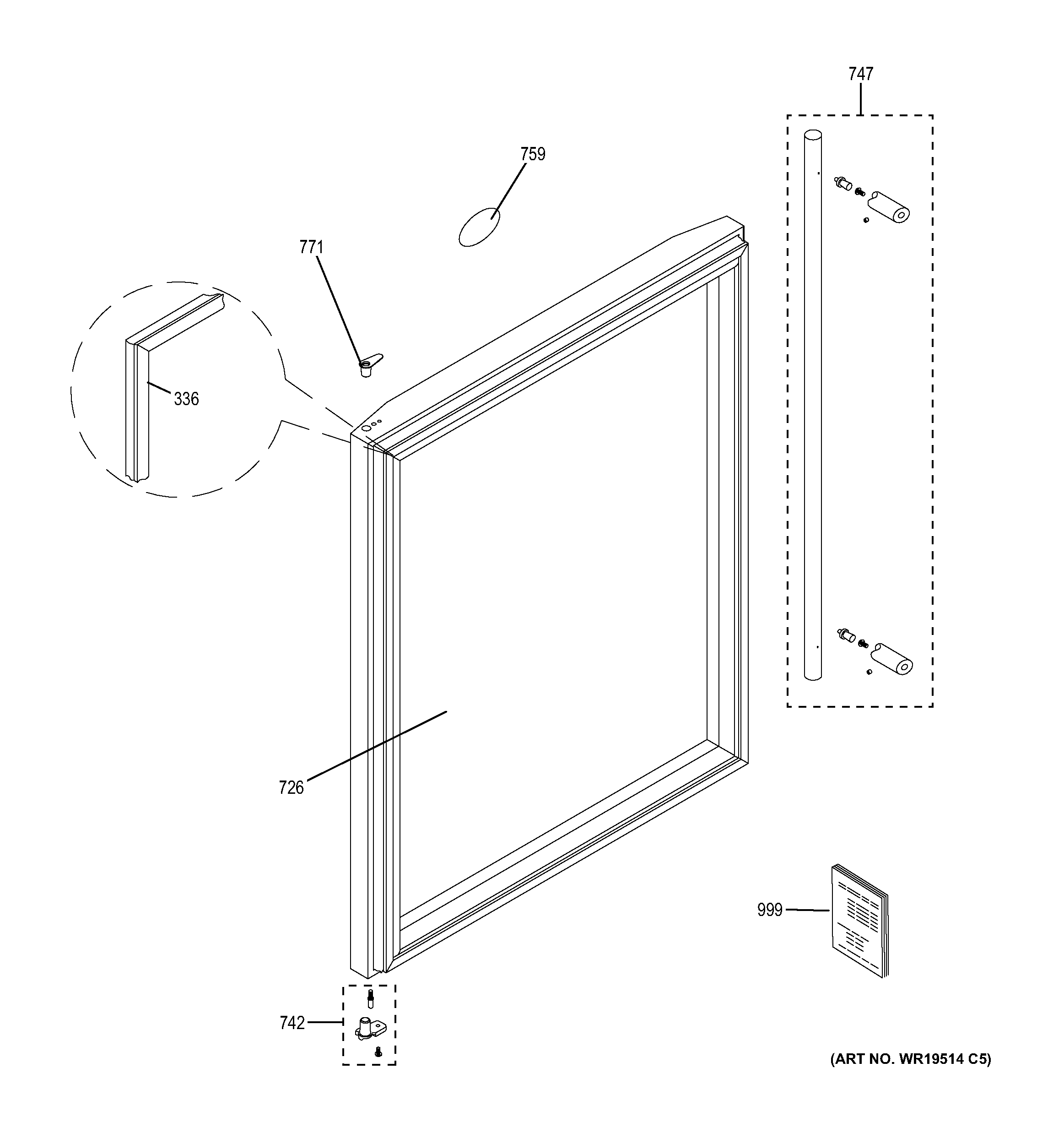

Door diagram

Magnetic gas

Part #WR24X10123

Replaced by #WR24X10161

?
Manufacturer substitution
This part replaces WR24X10123. Substitute parts can look different from the original.
$117.45 |
9% OFF Phone Price : $129.45
In Stock
Beverage Cooler Compressor (replaces Wr87x10245) WR87X10076
#210

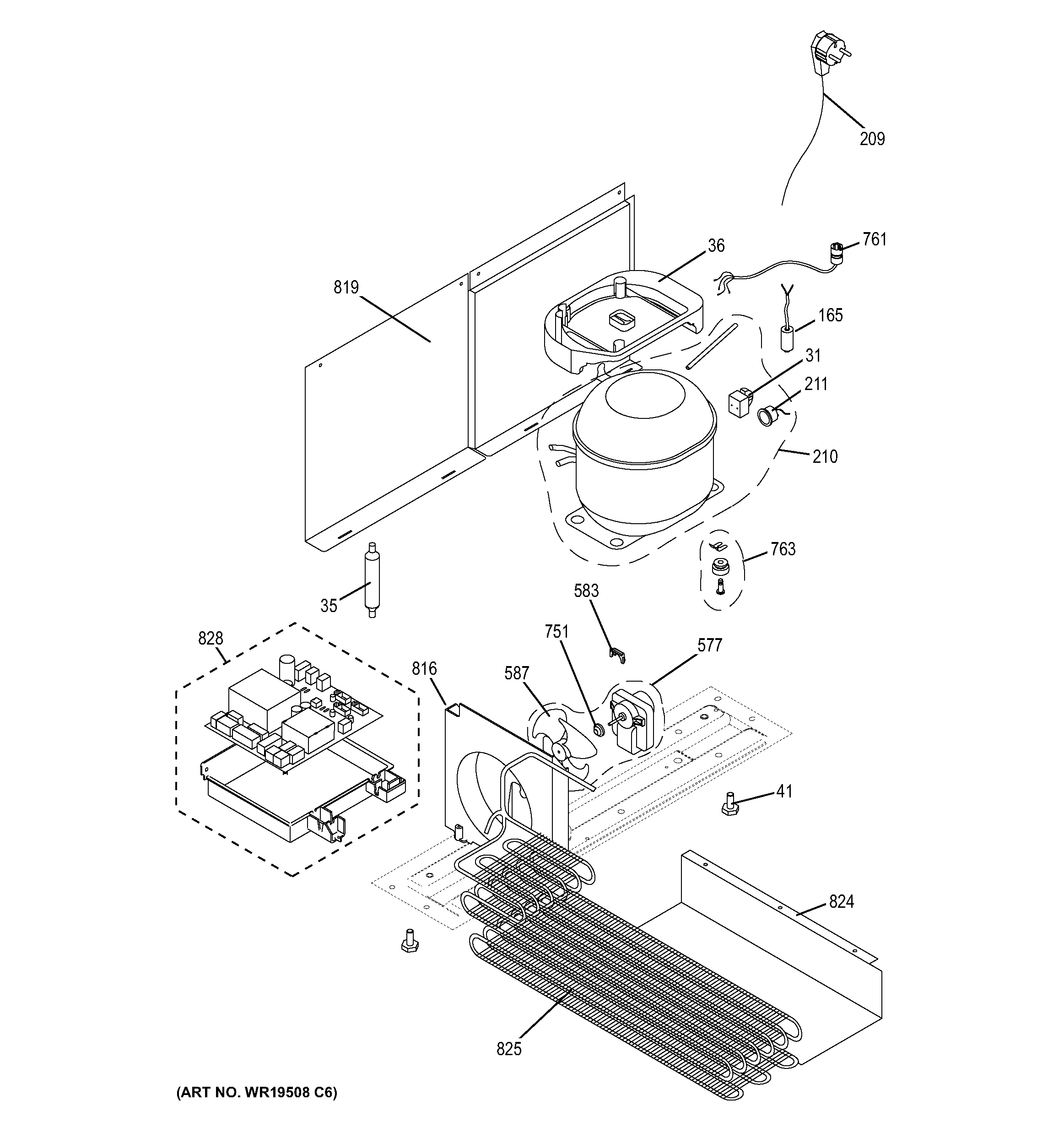

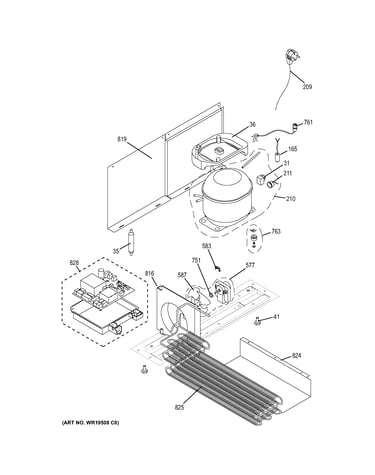

Machine compartment diagram

Beverage cooler compressor (replaces wr87x10245)

Part #WR87X10076

$548.74 |
$12.00 OFF Phone Price : $560.74
In Stock
Wine Cooler Compressor Start Relay WR07X10072
#31

Machine compartment diagram

Wine cooler compressor start relay

Part #WR07X10072

$96.54 |
11% OFF Phone Price : $108.54
In Stock
Beverage Cooler Power Control Board (replaces Wr17x11680, Wr55x10407, Wr55x10507, Wr55x10508, Wr55x10509, Wr55x10510, Wr55x10511, Wr55x10512) WR55X10430
#828

Machine compartment diagram

Beverage cooler power control board (replaces wr17x11680, wr55x10407, wr55x10507, wr55x10508, wr55x10509, wr55x10510, wr55x10511, wr55x10512)

Part #WR55X10430

$454.55 |
$12.00 OFF Phone Price : $466.55
In Stock
Refrigeration Appliance Evaporator Fan Motor And Blade WR60X10165
#601

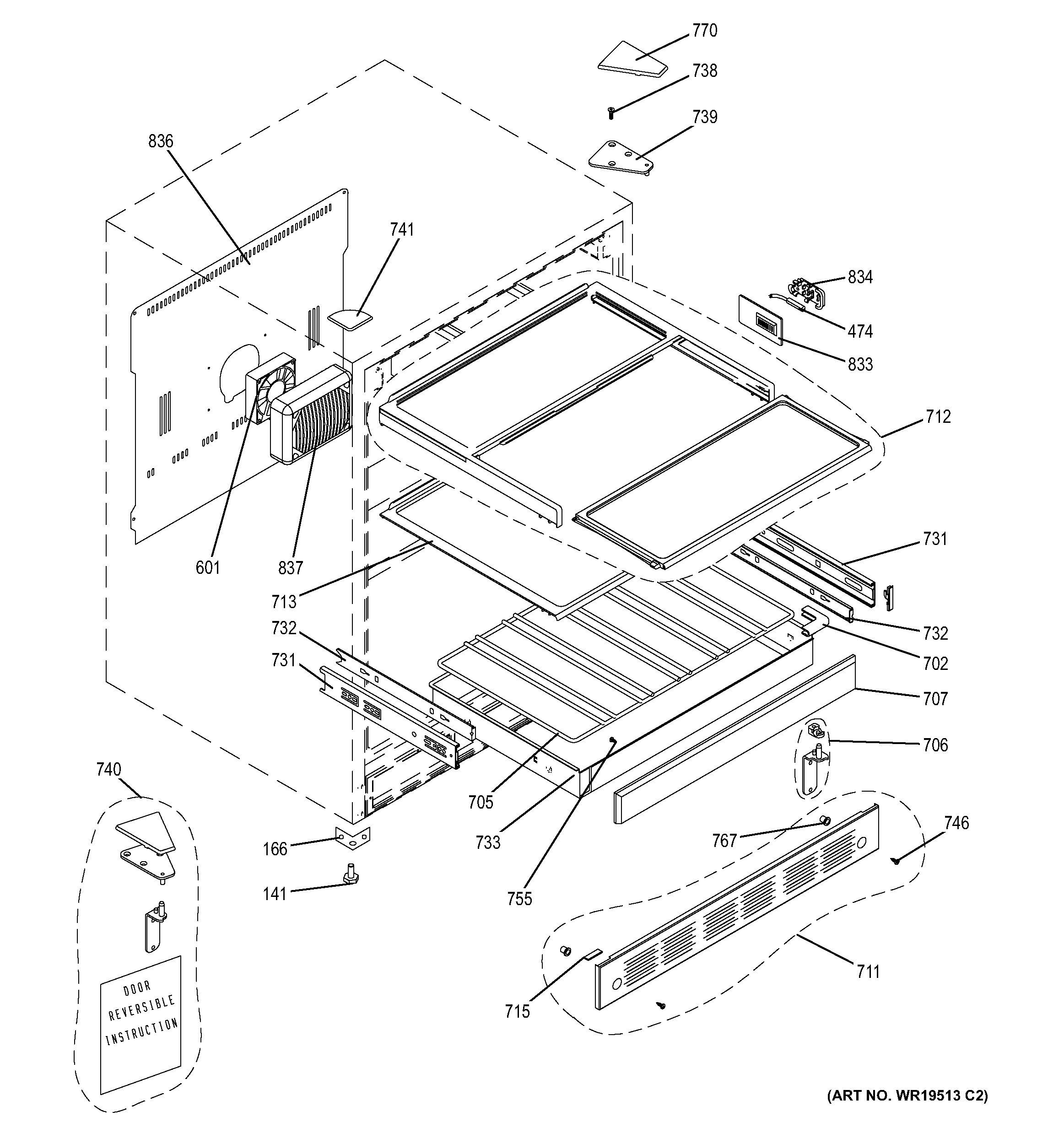

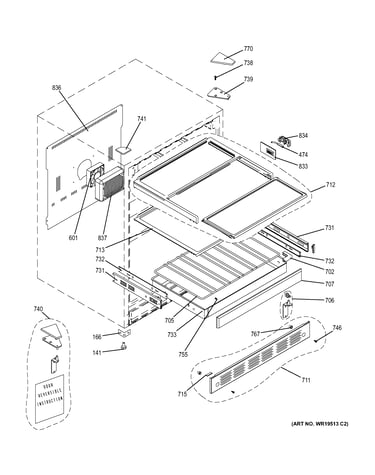

Cabinet & shelves diagram

Refrigeration appliance evaporator fan motor and blade

Part #WR60X10165

$226.00 |
5% OFF Phone Price : $238.00
In Stock
Wine Cooler Door Hinge, Upper WR13X10276
#739

Cabinet & shelves diagram

Wine cooler door hinge, upper

Part #WR13X10276

$38.53 |
13% OFF Phone Price : $44.53
In Stock
Glass Door WR78X11060
#726

Door diagram

Glass door

Part #WR78X11060

$776.68
In Stock
Hinge Cover WR13X23839
#741

Cabinet & shelves diagram

Hinge cover

Part #WR13X23839

$22.22
In Stock
Frame WR17X11693
#707

Cabinet & shelves diagram

Frame

Part #WR17X11693

$73.33
In Stock
Compressor M WR01X10452
#763

Machine compartment diagram

Compressor m

Part #WR01X10452

$35.97 |
14% OFF Phone Price : $41.97
In Stock
