Model # WTW4810EW1 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool WTW4810EW1 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Washer Drive Pulley (replaces W10006356, W10239973, W10315818, W10536113, W11396423) W10721967
#8

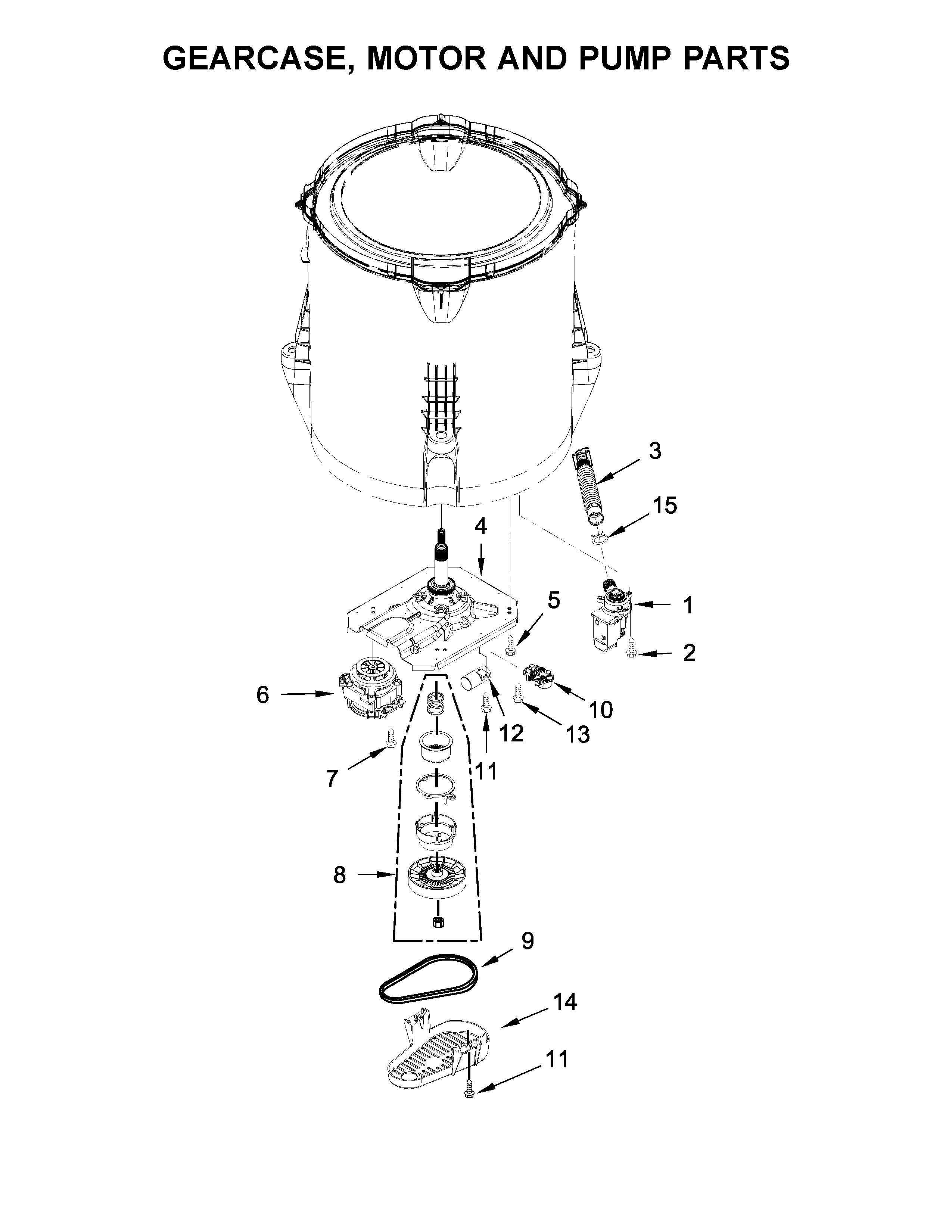

Gearcase, motor and pump parts diagram

Washer drive pulley (replaces w10006356, w10239973, w10315818, w10536113, w11396423)

Part #W10721967

BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Washer Actuator W10815026
#10

Gearcase, motor and pump parts diagram

Washer actuator

Part #W10815026

Replaced by #W10913953

?
Manufacturer substitution
This part replaces W10815026. Substitute parts can look different from the original.
BEST SELLER
$49.66 |
11% OFF Phone Price : $55.66
In Stock
Washer Drive Belt W10006384
#9

Gearcase, motor and pump parts diagram

Washer drive belt

Part #W10006384

Replaced by #WPW10006384

?
Manufacturer substitution
This part replaces W10006384. Substitute parts can look different from the original.
BEST SELLER
$25.38 |
19% OFF Phone Price : $31.38
In Stock
Damper Assembly W10821951
#18

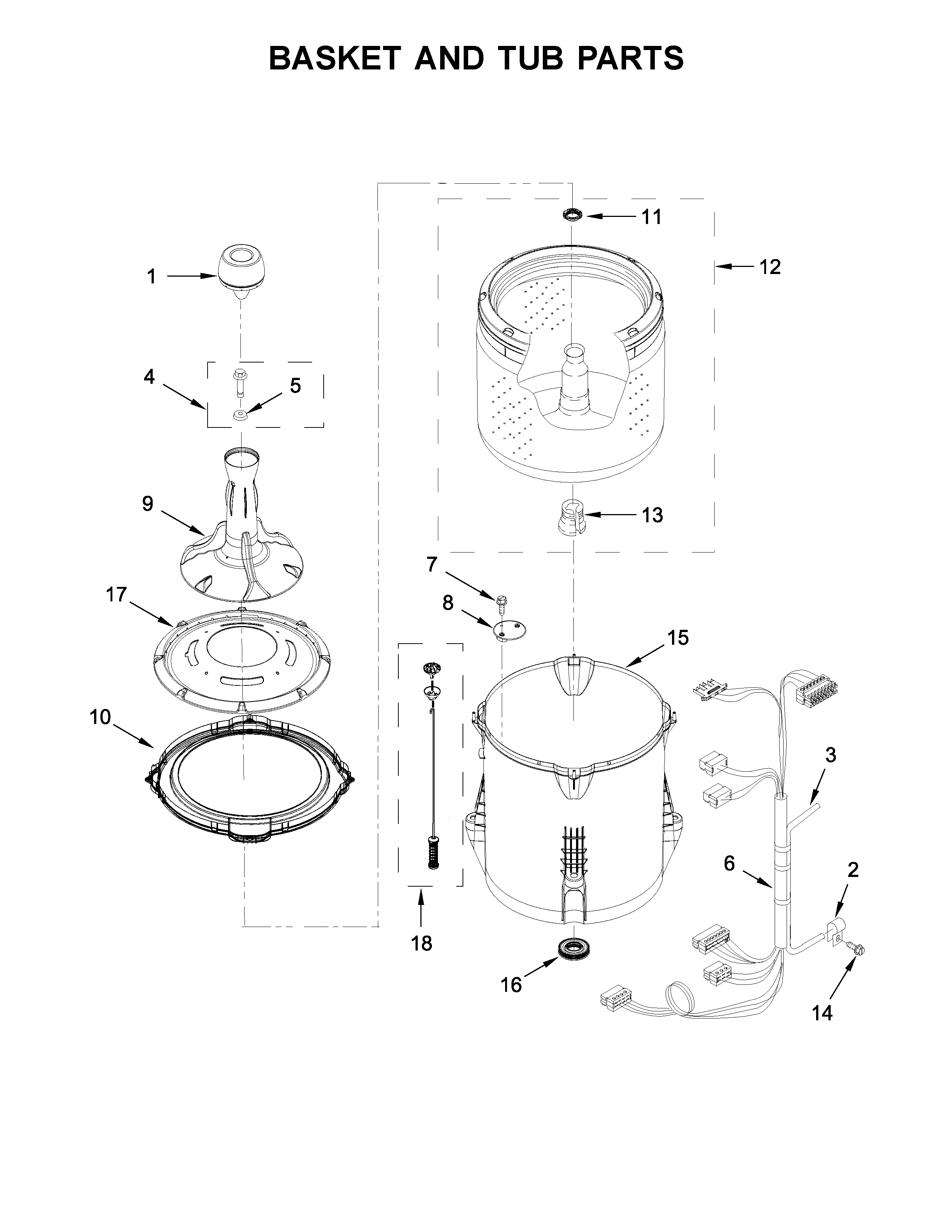

Basket and tub parts diagram

Damper assembly

Part #W10821951

Replaced by #W10780045

?
Manufacturer substitution
This part replaces W10821951. Substitute parts can look different from the original.
BEST SELLER
$70.40 |
8% OFF Phone Price : $76.40
In Stock
Washer Lid Lock W10682535
#14

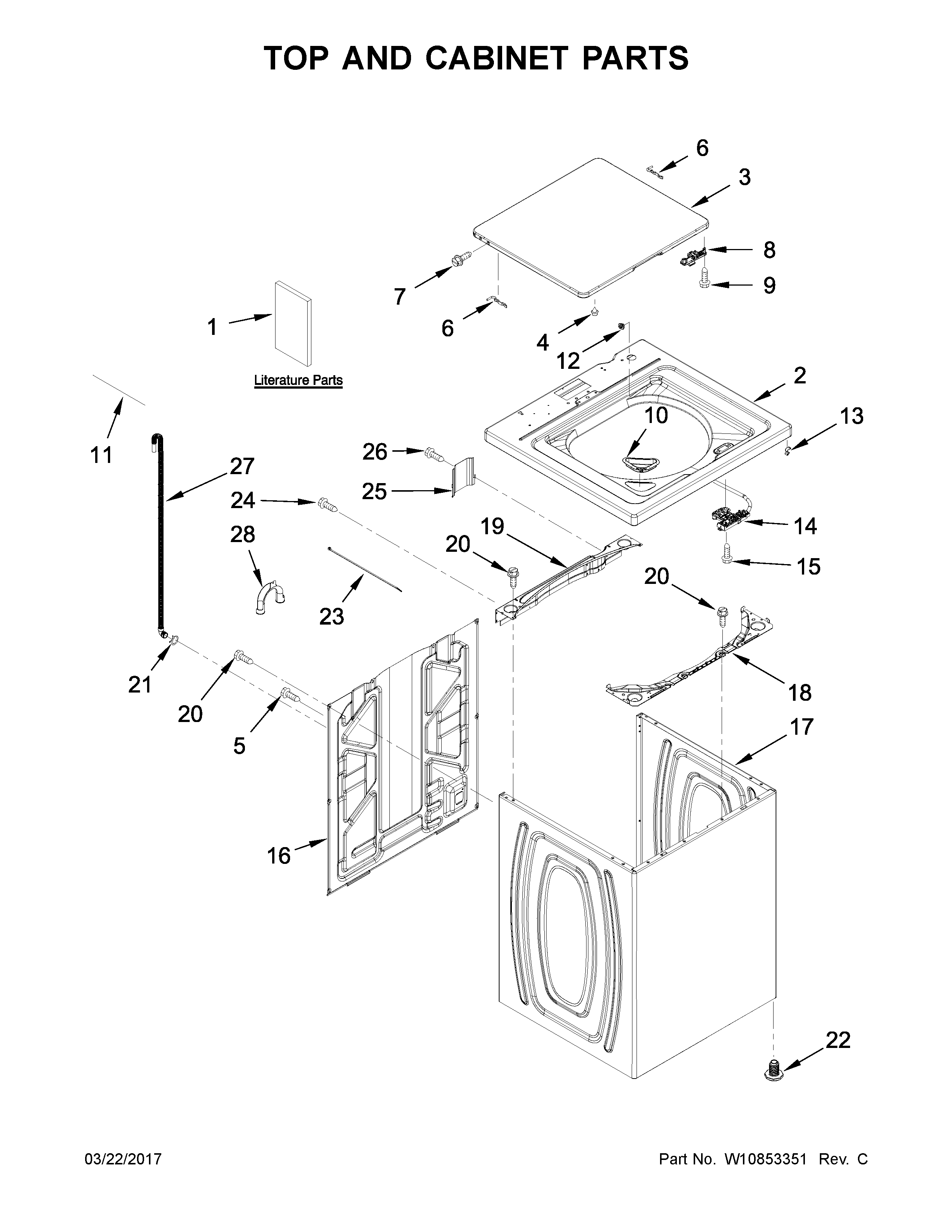

Top and cabinet parts diagram

Washer lid lock

Part #W10682535

Replaced by #W11307244

?
Manufacturer substitution
This part replaces W10682535. Substitute parts can look different from the original.
BEST SELLER
$104.27 |
10% OFF Phone Price : $116.27
In Stock
Water Inlet Valve Assembly W10869799
#17

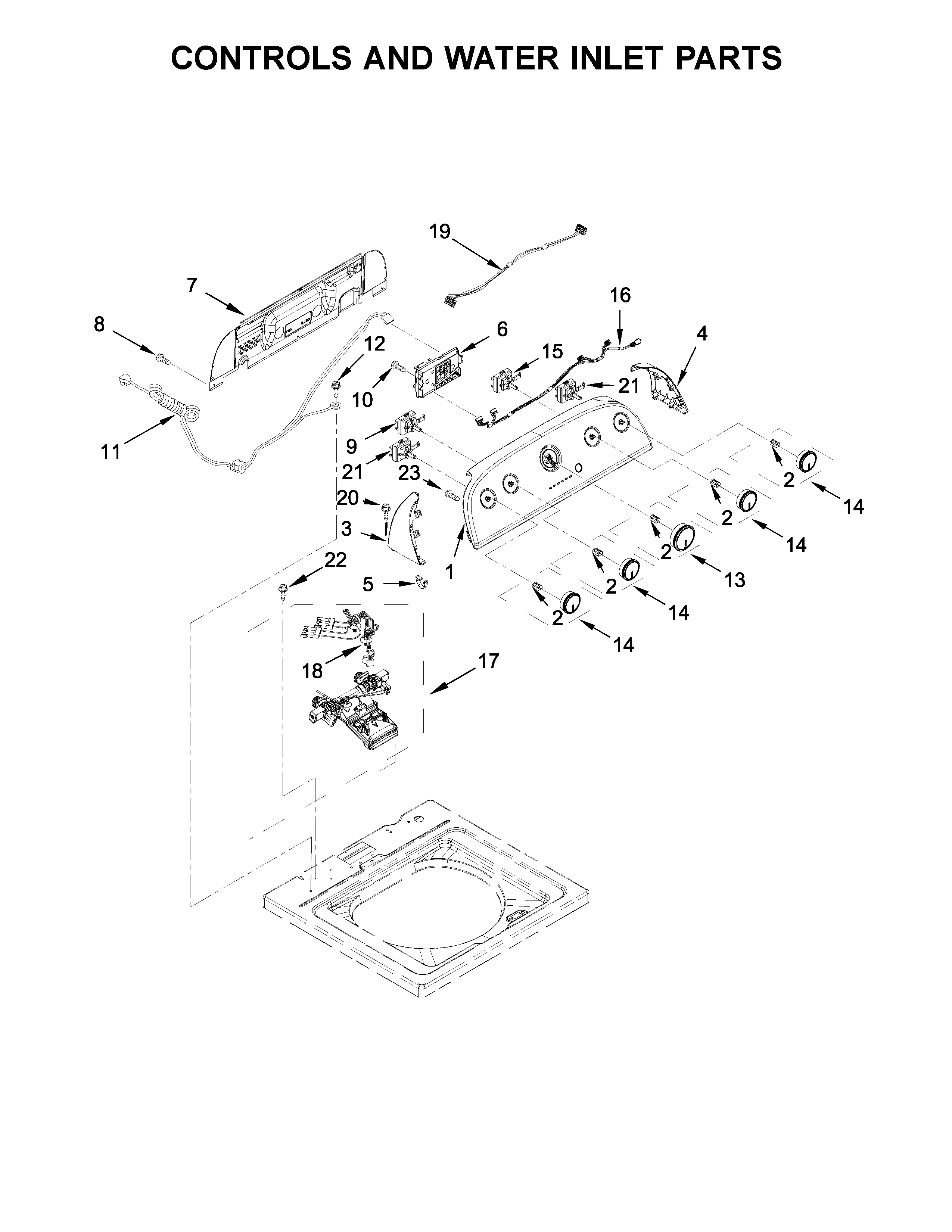

Controls and water inlet parts diagram

Water inlet valve assembly

Part #W10869799

Replaced by #W11210459

?
Manufacturer substitution
This part replaces W10869799. Substitute parts can look different from the original.
BEST SELLER
$52.87 |
10% OFF Phone Price : $58.87
In Stock
Washer Drive Block 389140
#13

Basket and tub parts diagram

Washer drive block

Part #389140

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
BEST SELLER
$23.94 |
20% OFF Phone Price : $29.94
In Stock
Washer Spanner Nut 21366
#11

Basket and tub parts diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.91 |
14% OFF Phone Price : $13.91
In Stock
Washer Gear Case W10473144
#4

Gearcase, motor and pump parts diagram

Washer gear case

Part #W10473144

Replaced by #W11454741

?
Manufacturer substitution
This part replaces W10473144. Substitute parts can look different from the original.
BEST SELLER
$173.11 |
6% OFF Phone Price : $185.11
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
