Ryobi
Bench Grinder

Model # BG800 Official Ryobi bench grinder

Here are the diagrams and repair parts for Official Ryobi BG800 bench grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

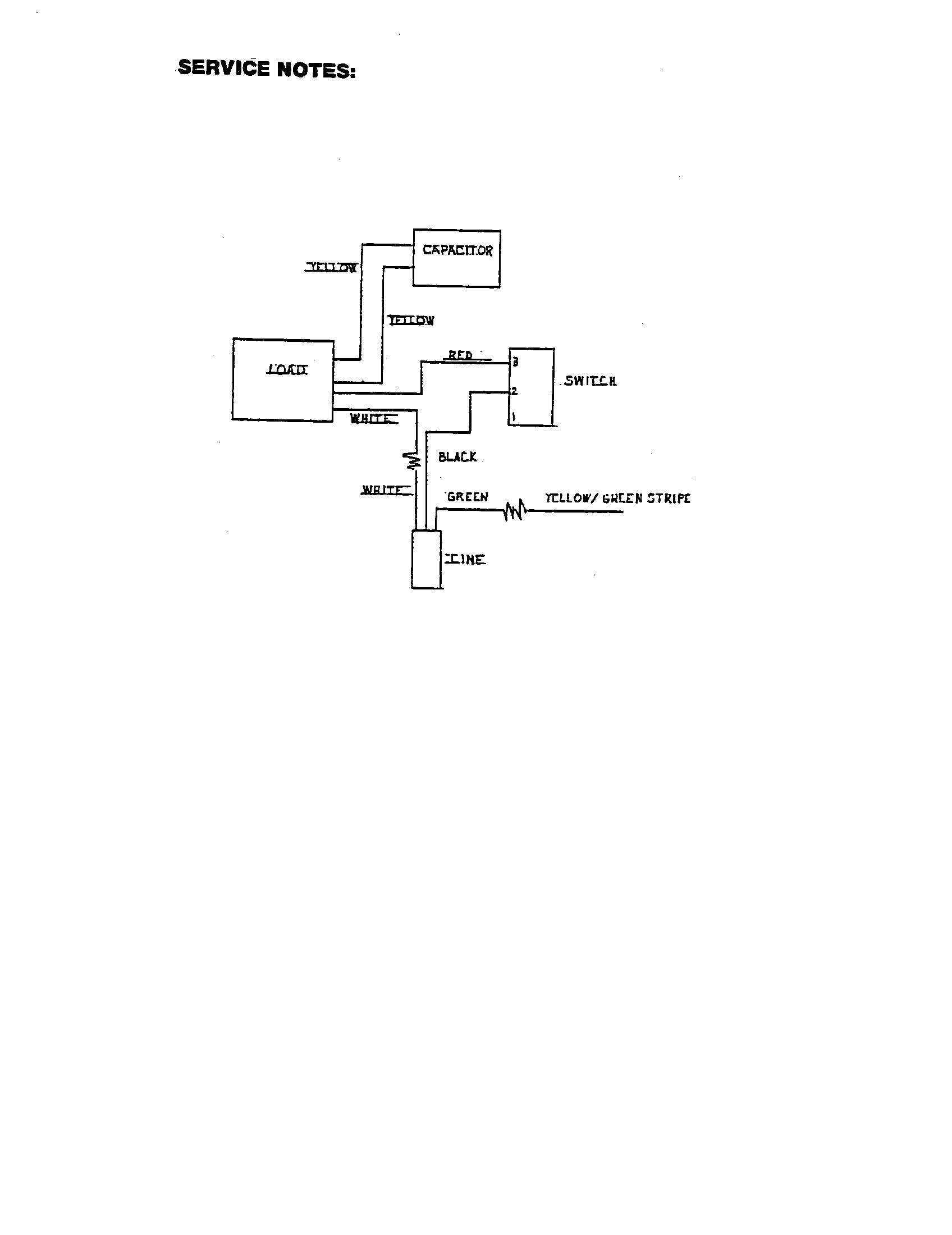

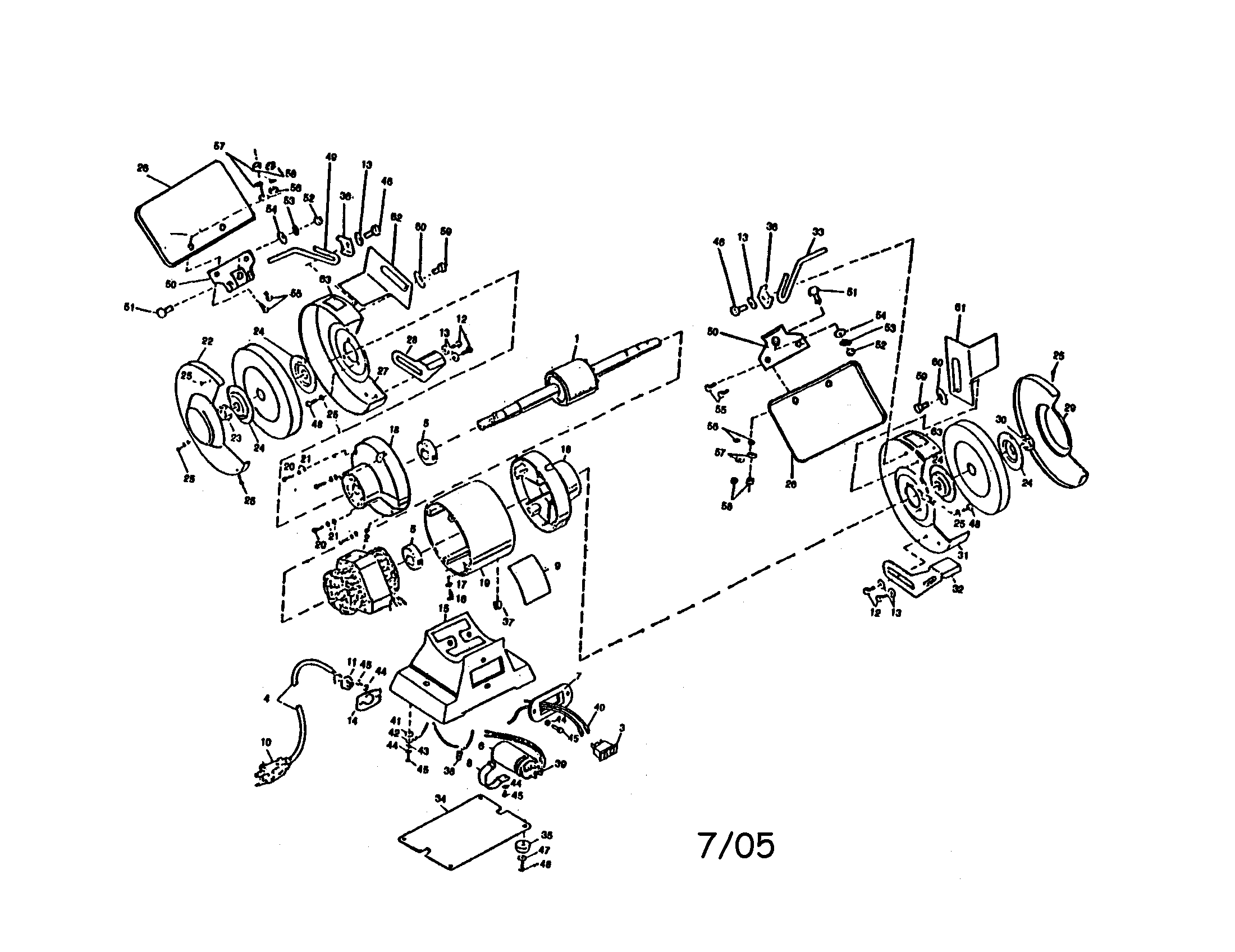

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Guard Assembly (see Page 6)) N/P
Guard assembly (see page 6))

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Left Wheel Guard 4880030
#27

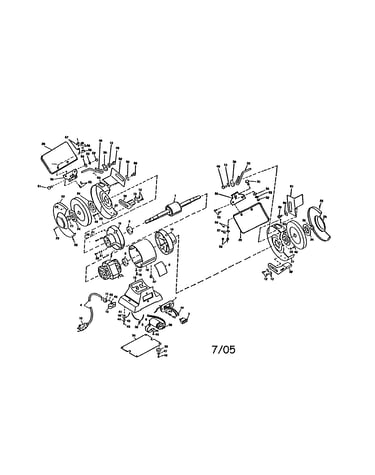

Bench grinder diagram

Left wheel guard

Part #4880030

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer (4) 4900066
#47

Bench grinder diagram

Flat washer (4)

Part #4900066

The manufacturer no longer makes this part, and there's no substitute part

End Bell 4800021
#18

Bench grinder diagram

End bell

Part #4800021

The manufacturer no longer makes this part, and there's no substitute part

Clamp Washer (4) 4900059
#24

Bench grinder diagram

Clamp washer (4)

Part #4900059

The manufacturer no longer makes this part, and there's no substitute part

Washer, 2-pack 4900068
#54

Bench grinder diagram

Washer, 2-pack

Part #4900068

The manufacturer no longer makes this part, and there's no substitute part

Coarse Grinding Wheel (bg800) 4700003
#66A

Bench grinder diagram

Coarse grinding wheel (bg800)

Part #4700003

The manufacturer no longer makes this part, and there's no substitute part

Screw, 4-pack 4130221
#59

Bench grinder diagram

Screw, 4-pack

Part #4130221

The manufacturer no longer makes this part, and there's no substitute part

Fine Grinding Wheel 4700000
#65

Bench grinder diagram

Fine grinding wheel

Part #4700000

The manufacturer no longer makes this part, and there's no substitute part

Coarse Grinding Wheel 4700001
#66

Bench grinder diagram

Coarse grinding wheel

Part #4700001

The manufacturer no longer makes this part, and there's no substitute part
