Model # SSD25N5W-P1178903WW Official Amana side-by-side refrigerator

Here are the diagrams and repair parts for Official Amana SSD25N5W-P1178903WW side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

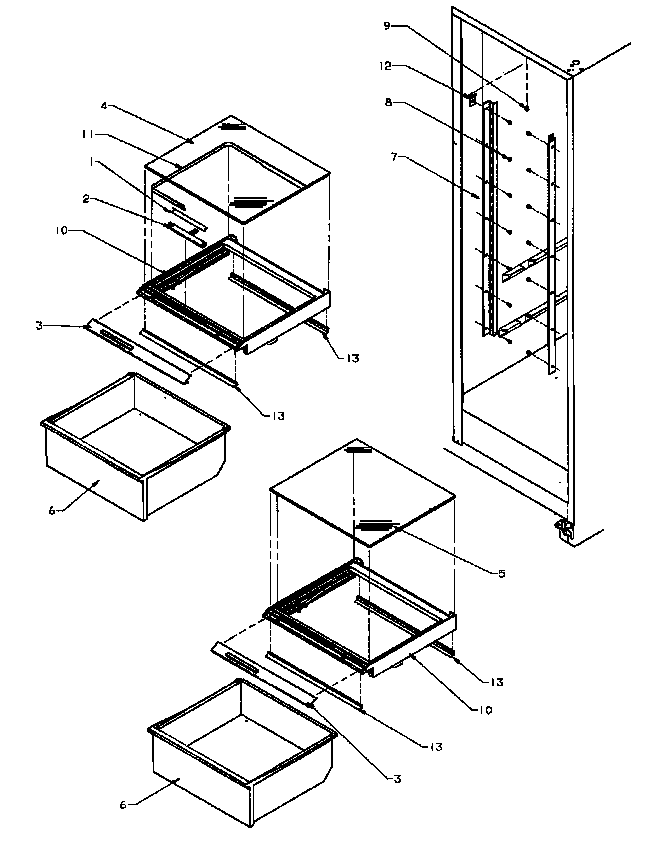

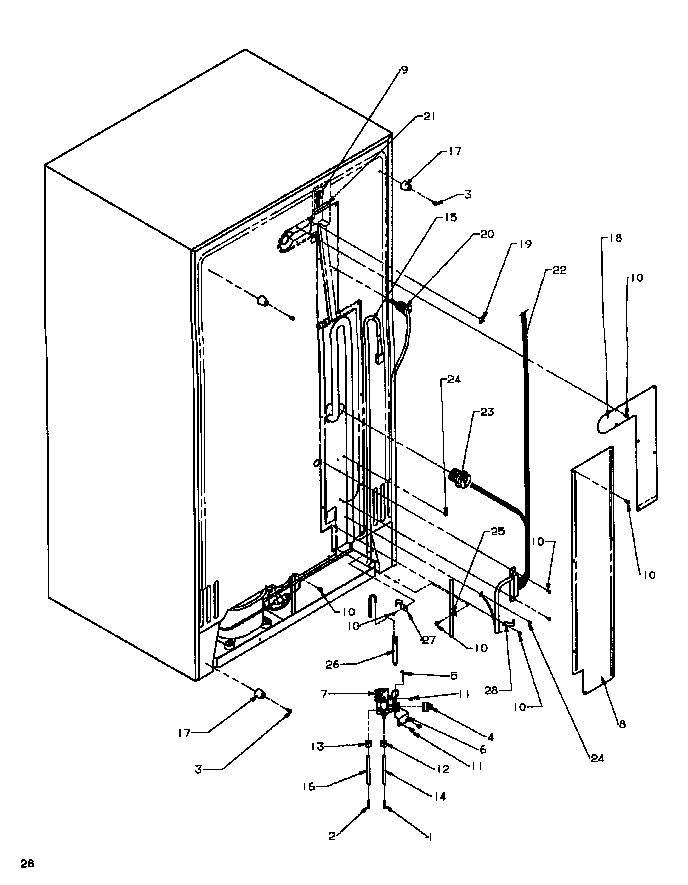

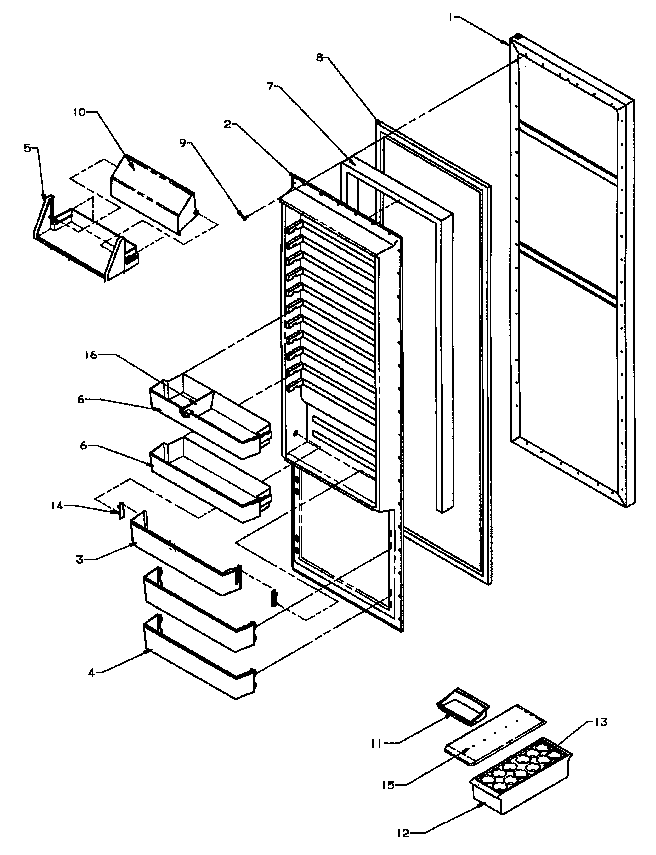

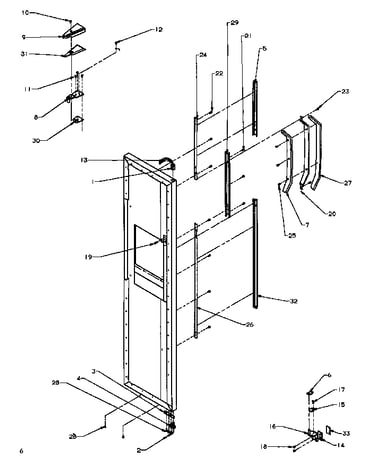

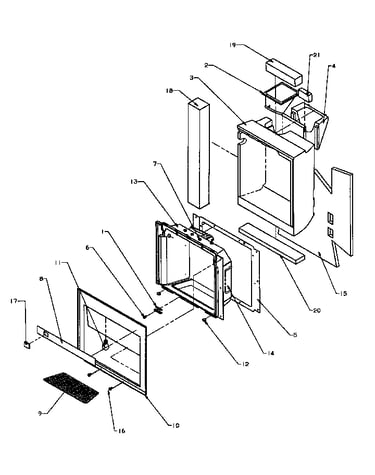

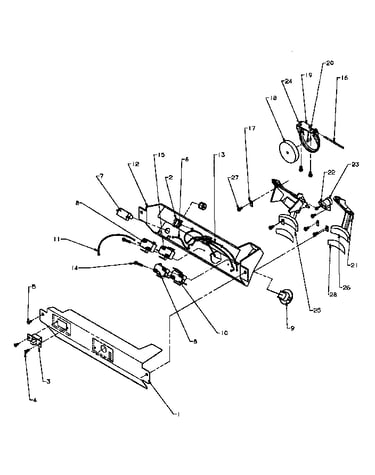

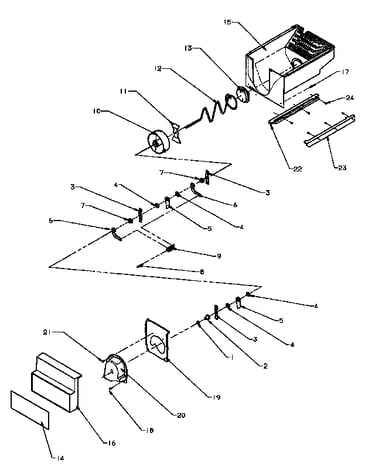

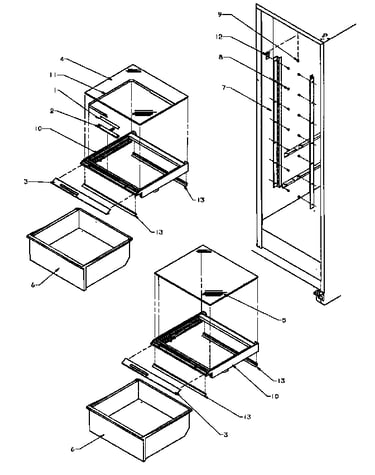

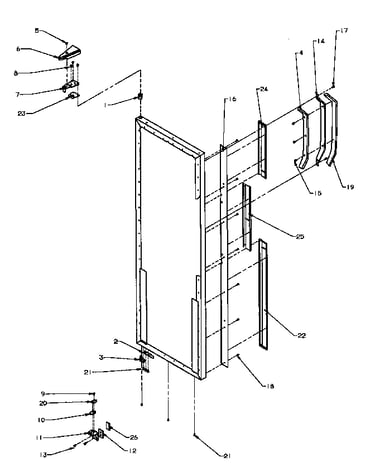

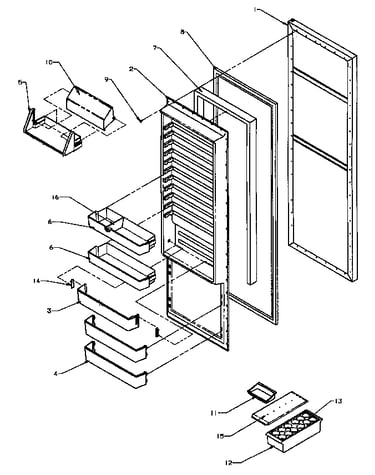

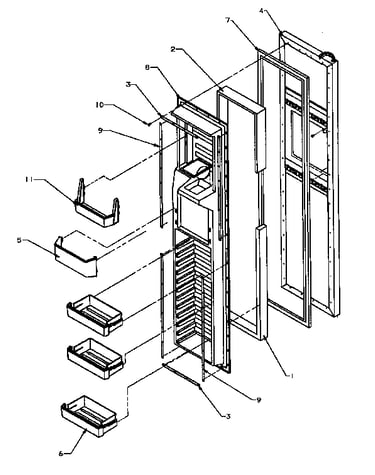

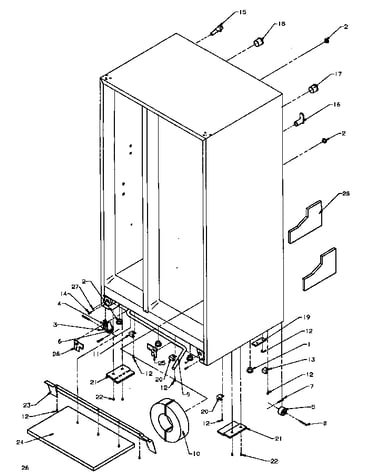

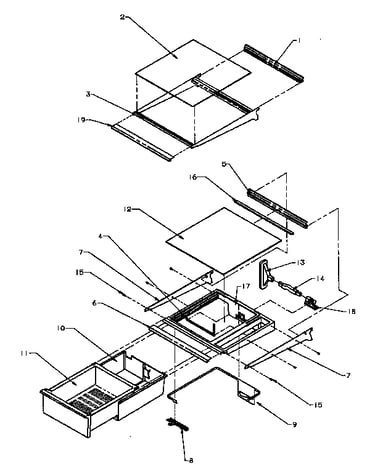

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 337 parts  |
Refrigerator Ice Maker (red) D7824702
#10

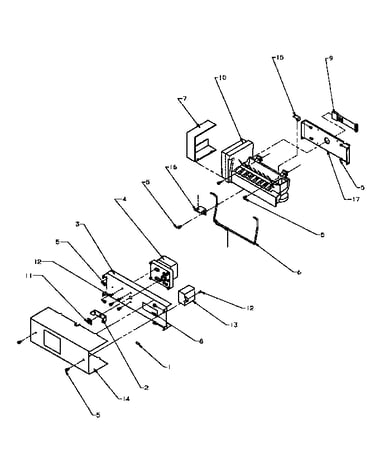

Ice maker diagram

Refrigerator ice maker (red)

Part #D7824702

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824702. Substitute parts can look different from the original.
BEST SELLER
$80.74 |
7% OFF Phone Price : $86.74
In Stock
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#15

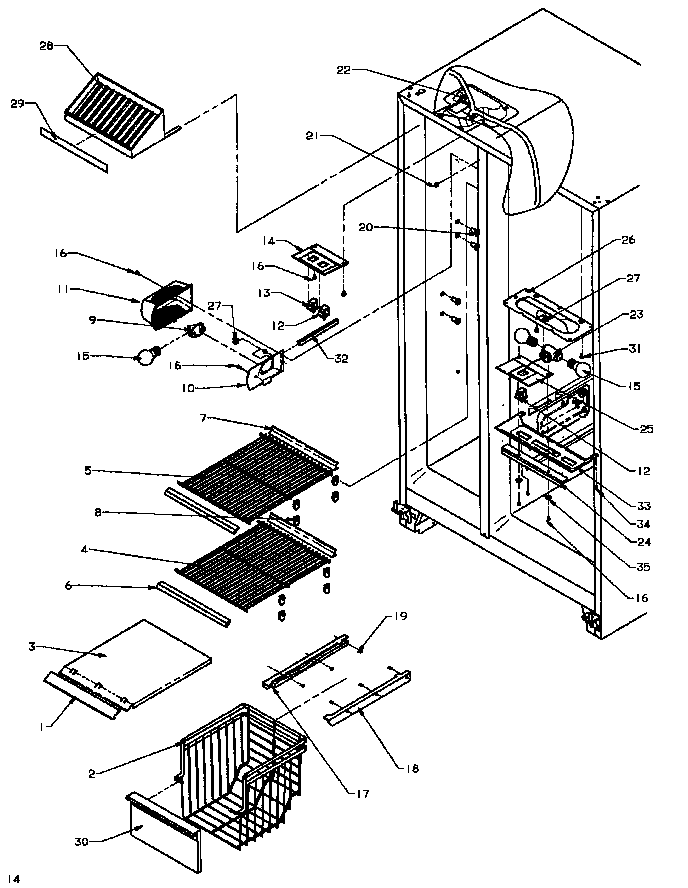

Fz shelving and ref light diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Switch C3680304
#12

Fz shelving and ref light diagram

Switch

Part #C3680304

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680304. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Capacitor C8931605
#13

Ice maker diagram

Refrigerator capacitor

Part #C8931605

Replaced by #W10613606

?
Manufacturer substitution
This part replaces C8931605. Substitute parts can look different from the original.
BEST SELLER
$56.27 |
10% OFF Phone Price : $62.27
In Stock
Refrigerator Ptc Relay 10097202
#17

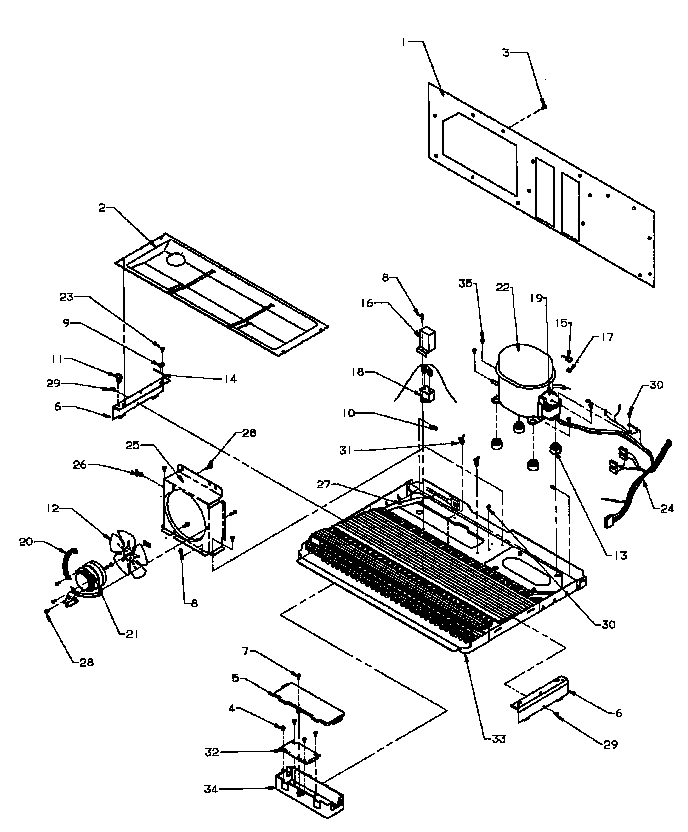

Machine compartment diagram

Refrigerator ptc relay

Part #10097202

Replaced by #WPW10189190

?
Manufacturer substitution
This part replaces 10097202. Substitute parts can look different from the original.
BEST SELLER
$68.97 |
8% OFF Phone Price : $74.97
In Stock
Refrigerator Control C3615024
#26

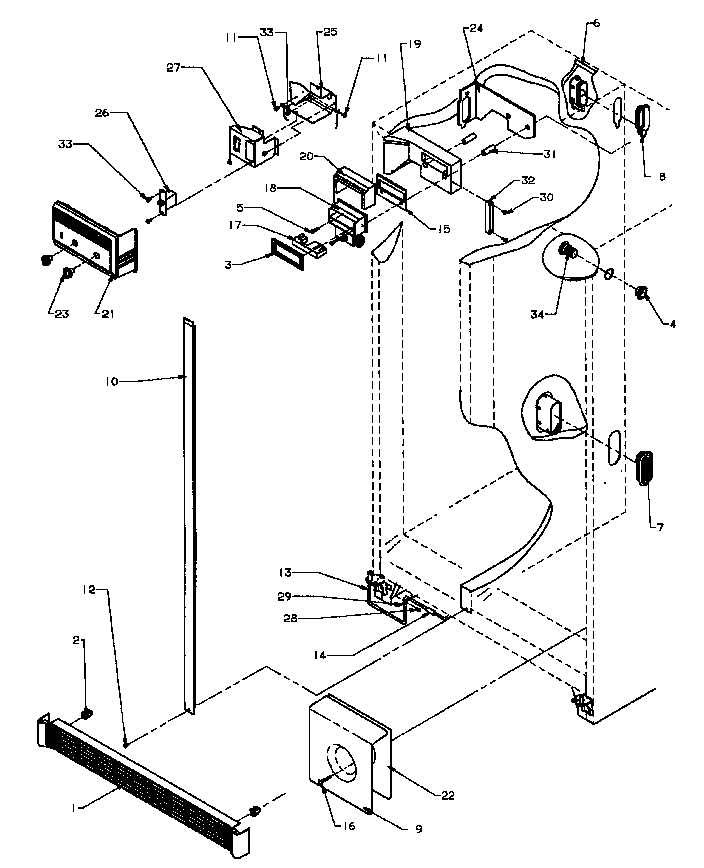

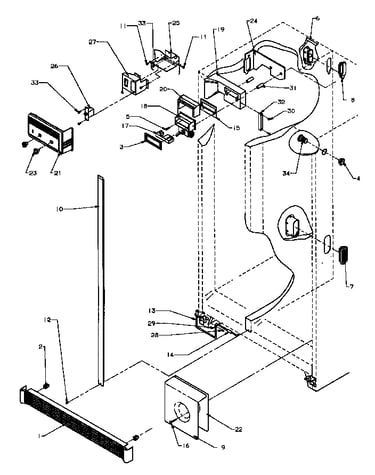

Ref/fz controls and cabinet parts diagram

Refrigerator control

Part #C3615024

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Heater 10428405
#28

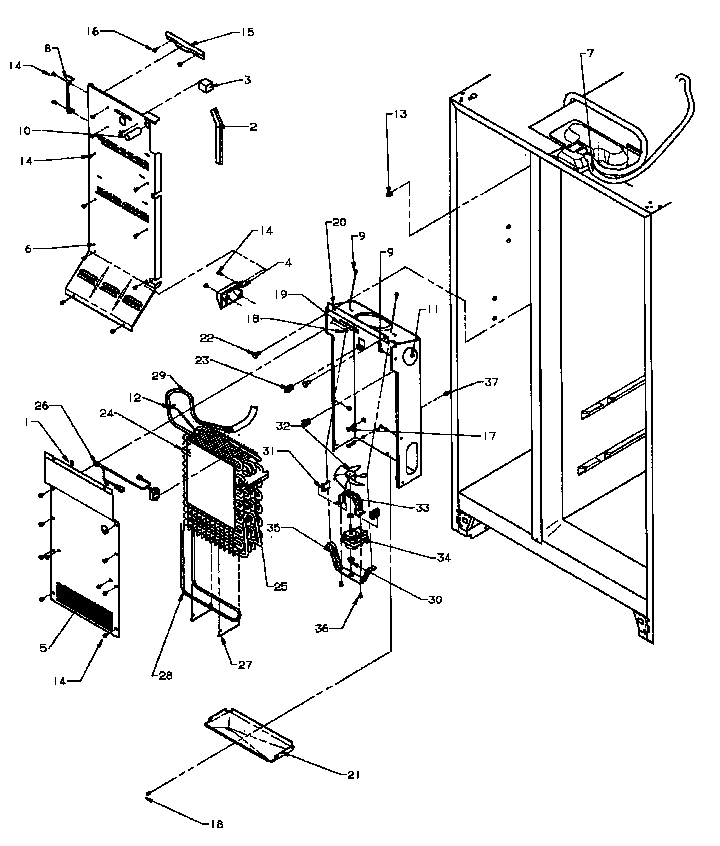

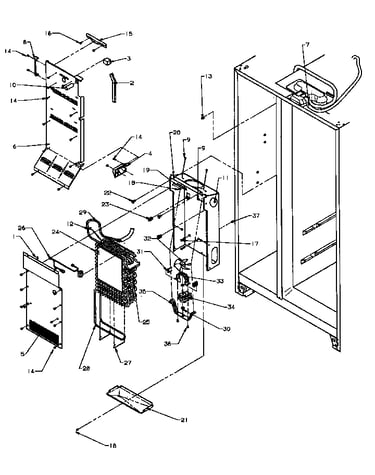

Evap and air handling diagram
