Kenmore
Electric Range

Model # 3639878911KS Official Kenmore free standing electric range

Here are the diagrams and repair parts for Official Kenmore 3639878911KS free standing electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 264 parts  |
Bake Unit Wh WB44X5082
#650

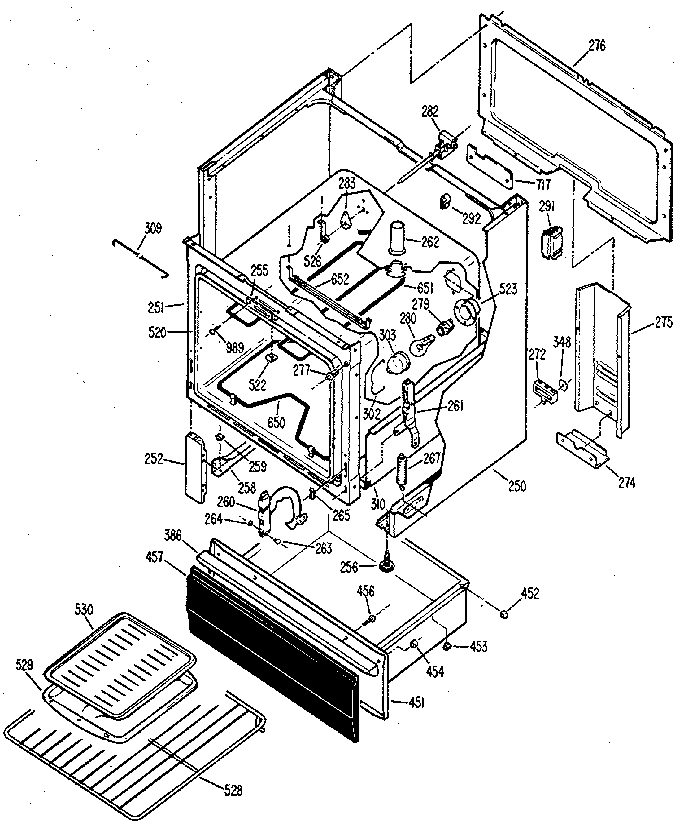

Lower oven diagram

Bake unit wh

Part #WB44X5082

Replaced by #WB44X5082

?
Manufacturer substitution
This part replaces WB44X5082. Substitute parts can look different from the original.
BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
Inf Ht Swi WB21X5243
#3

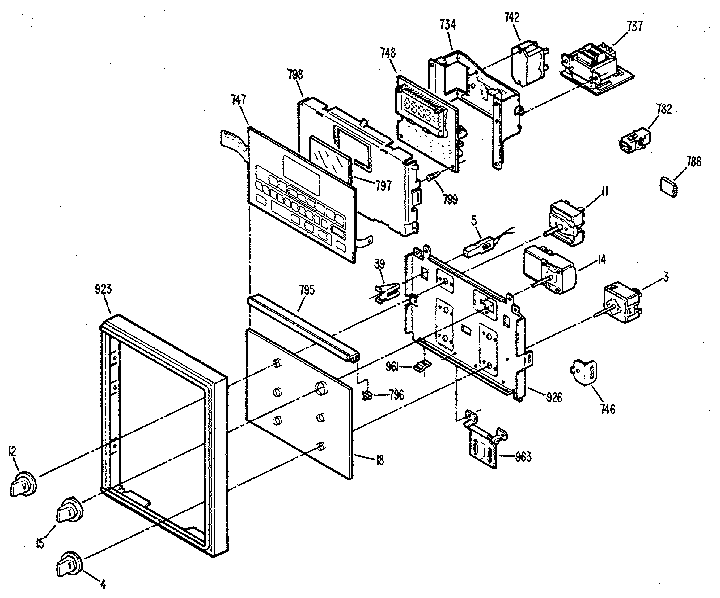

Control panel diagram

Inf ht swi

Part #WB21X5243

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB21X5243. Substitute parts can look different from the original.
BEST SELLER
$42.68 |
12% OFF Phone Price : $48.68
In Stock
Broil Unit F WB44X0185
#651

Lower oven diagram

Broil unit f

Part #WB44X0185

Replaced by #WB44X173

?
Manufacturer substitution
This part replaces WB44X0185. Substitute parts can look different from the original.
$27.42 |
18% OFF Phone Price : $33.42
In Stock
Receptacle WB08X5095
#279

Lower oven diagram

Receptacle

Part #WB08X5095

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB08X5095. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broiler Rack WB48X5002
#530

Lower oven diagram

Broiler rack

Part #WB48X5002

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48X5002. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Jewel WB25X0065
#7

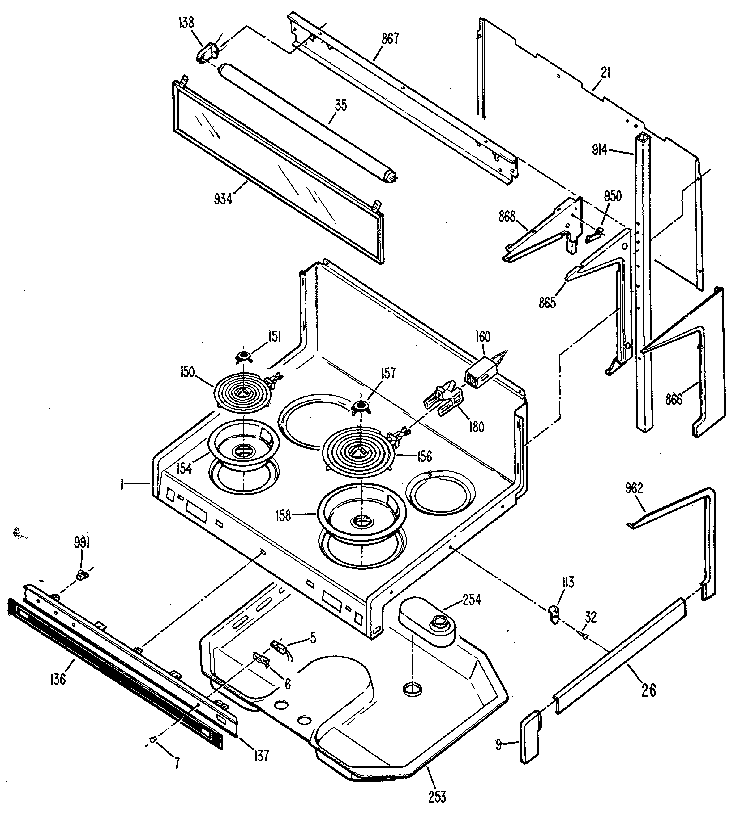

Cooktop diagram

Jewel

Part #WB25X0065

Replaced by #WB25X65

?
Manufacturer substitution
This part replaces WB25X0065. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WZ04X0345
Screw

Part #WZ04X0345

Replaced by #WZ4X345D

?
Manufacturer substitution
This part replaces WZ04X0345. Substitute parts can look different from the original.
$12.84 |
13% OFF Phone Price : $14.84
In Stock
Mounting Screw WB01X5364
#32

Cooktop diagram

Mounting screw

Part #WB01X5364

Replaced by #WB1X5364

?
Manufacturer substitution
This part replaces WB01X5364. Substitute parts can look different from the original.
$7.90 |
11% OFF Phone Price : $8.90
In Stock
Pan & Rn 8" WB31X5011
#158

Cooktop diagram

Pan & rn 8"

Part #WB31X5011

Replaced by #WB31X5011

?
Manufacturer substitution
This part replaces WB31X5011. Substitute parts can look different from the original.
This item is not returnable
$20.77 |
22% OFF Phone Price : $26.77
In Stock
Ge Cook Book 49-4706
#1D

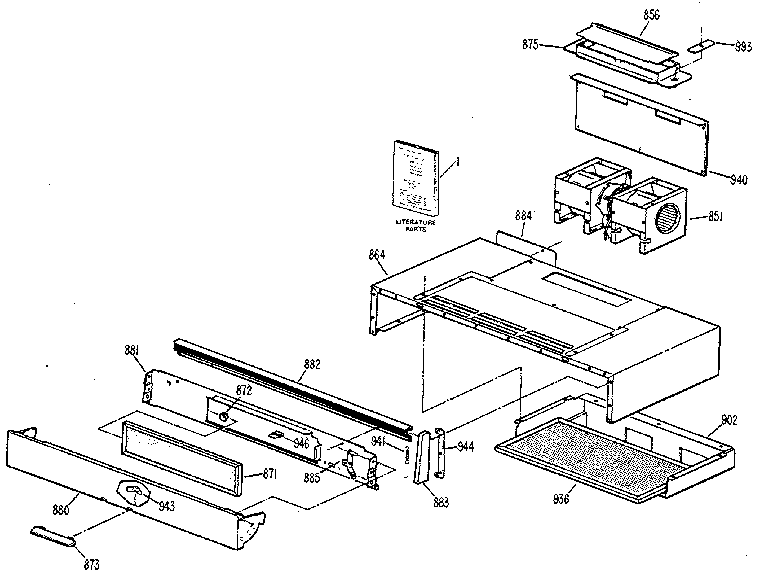

Hood diagram

Ge cook book

Part #49-4706

$45.09
In Stock
