Model # RA520W6 Official Hotpoint electric range

Here are the diagrams and repair parts for Official Hotpoint RA520W6 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Receptacle WB17X10007
#134

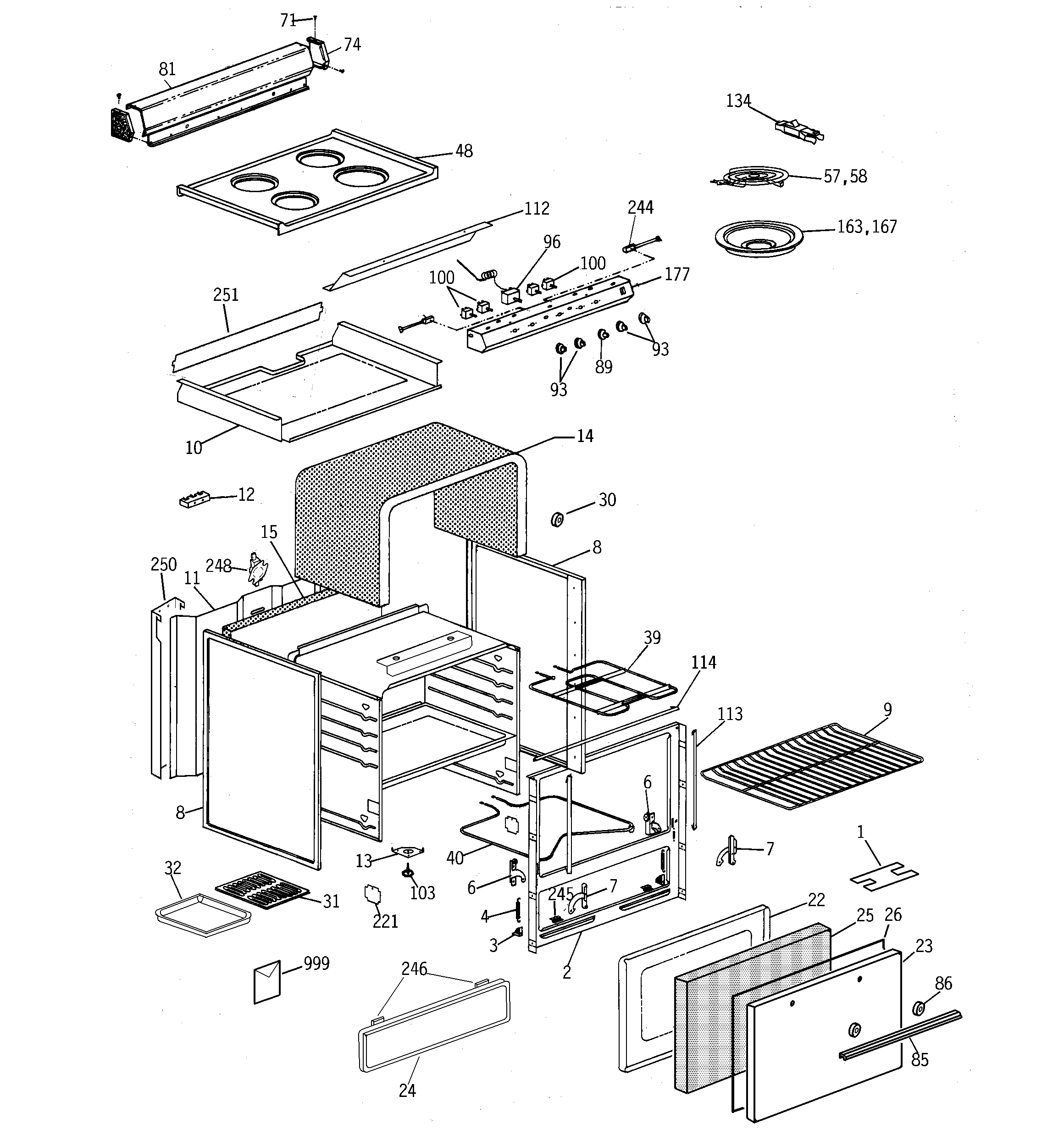

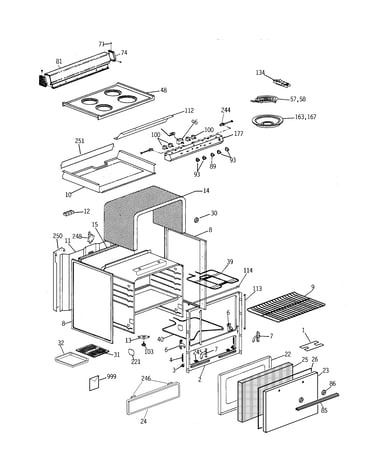

Range parts diagram

Receptacle

Part #WB17X10007

Replaced by #WB17T10006

?
Manufacturer substitution
This part replaces WB17X10007. Substitute parts can look different from the original.
BEST SELLER
$25.63 |
19% OFF Phone Price : $31.63
In Stock
Unit Pan 8" WB32X5073
#167

Range parts diagram

Unit pan 8"

Part #WB32X5073

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces WB32X5073. Substitute parts can look different from the original.
BEST SELLER
$13.87 |
13% OFF Phone Price : $15.87
In Stock
Sur Unit 8" WB30X5095
#58

Range parts diagram

Sur unit 8"

Part #WB30X5095

Replaced by #WB30X253

?
Manufacturer substitution
This part replaces WB30X5095. Substitute parts can look different from the original.
BEST SELLER
$57.45 |
9% OFF Phone Price : $63.45
In Stock
Range Surface Element Control Switch, 8-in WB21X5349
#100

Range parts diagram

Range surface element control switch, 8-in

Part #WB21X5349

$96.13 |
11% OFF Phone Price : $108.13
In Stock
Range Bake Element WB44X5094
#40

Range parts diagram

Range bake element

Part #WB44X5094

$40.84
In Stock
Range 6-in Surface Element Control Switch WB21X5348
#100

Range parts diagram

Range 6-in surface element control switch

Part #WB21X5348

$116.63 |
9% OFF Phone Price : $128.63
In Stock
Hinge WB10X5213
#7

Range parts diagram

Hinge

Part #WB10X5213

$9.99
In Stock
Use And Care Guide 49-8024
#999

Range parts diagram

Use and care guide

Part #49-8024

Replaced by #49-8295

?
Manufacturer substitution
This part replaces 49-8024. Substitute parts can look different from the original.
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Unit Pan 6" WB32X5072
#163

Range parts diagram

Unit pan 6"

Part #WB32X5072

Replaced by #WB32X107

?
Manufacturer substitution
This part replaces WB32X5072. Substitute parts can look different from the original.
$9.80 |
10% OFF Was : $10.89
In Stock
Sur Unit 6" WB30X5094
#57

Range parts diagram

Sur unit 6"

Part #WB30X5094

Replaced by #WB30X254

?
Manufacturer substitution
This part replaces WB30X5094. Substitute parts can look different from the original.
$40.42 |
13% OFF Phone Price : $46.42
In Stock
